Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

7 part groups · 3 illustrations

Illustrations

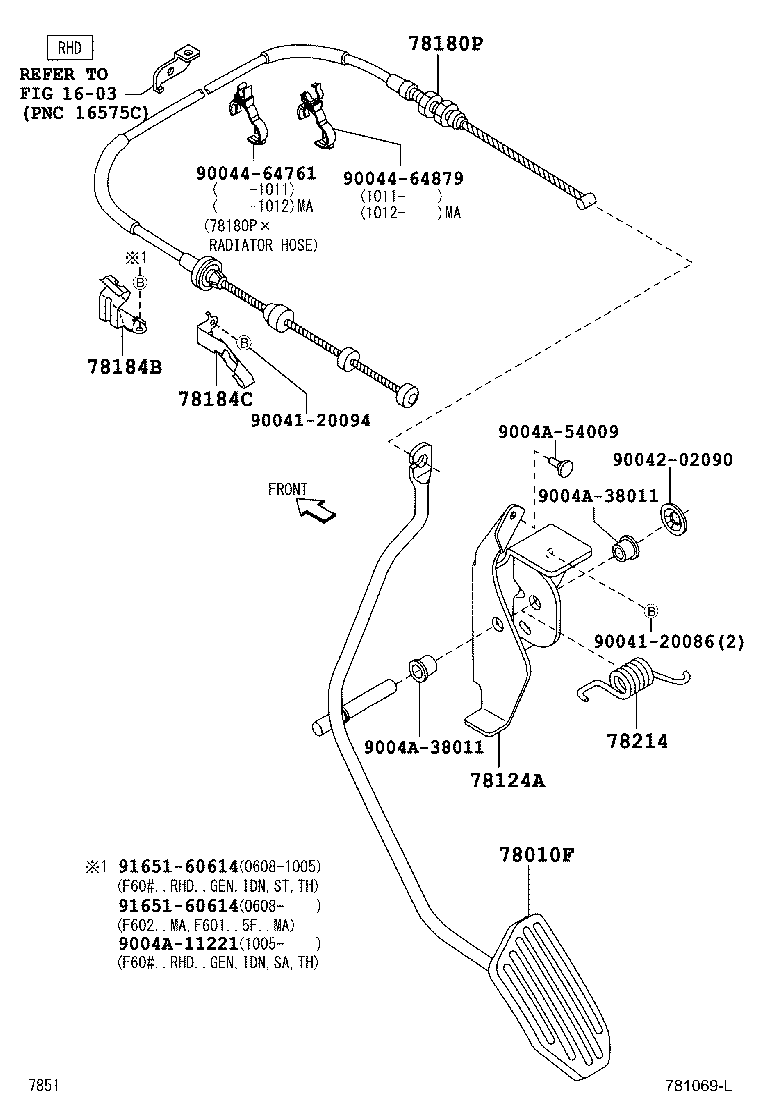

Figure 780821L 780821L 2003-12 → 2006-08 Figure 781069L 781069L 2006-08 → — Figure 781237A 781237A 2006-08 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78124A Bracket, Accelerator Pedal Rod
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78214 Spring, Accelerator Link Rod Return
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
