Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 2 illustrations

Illustrations

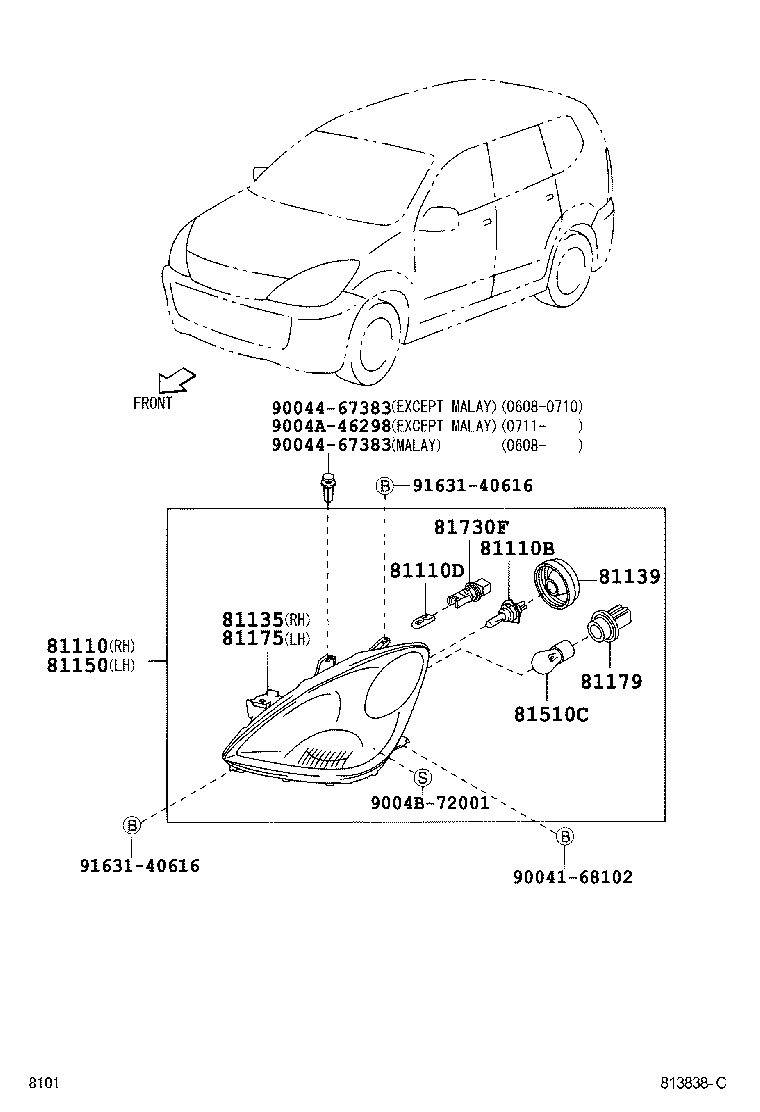

Figure 812743B 812743B 2003-12 → 2006-08 Figure 813838C 813838C 2006-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81115B Socket,Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81730F Socket Plug, Side Turn Signel Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
