Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

5 part groups · 2 illustrations

Illustrations

Figure 812748B

812748B 2003-12 → 2006-08

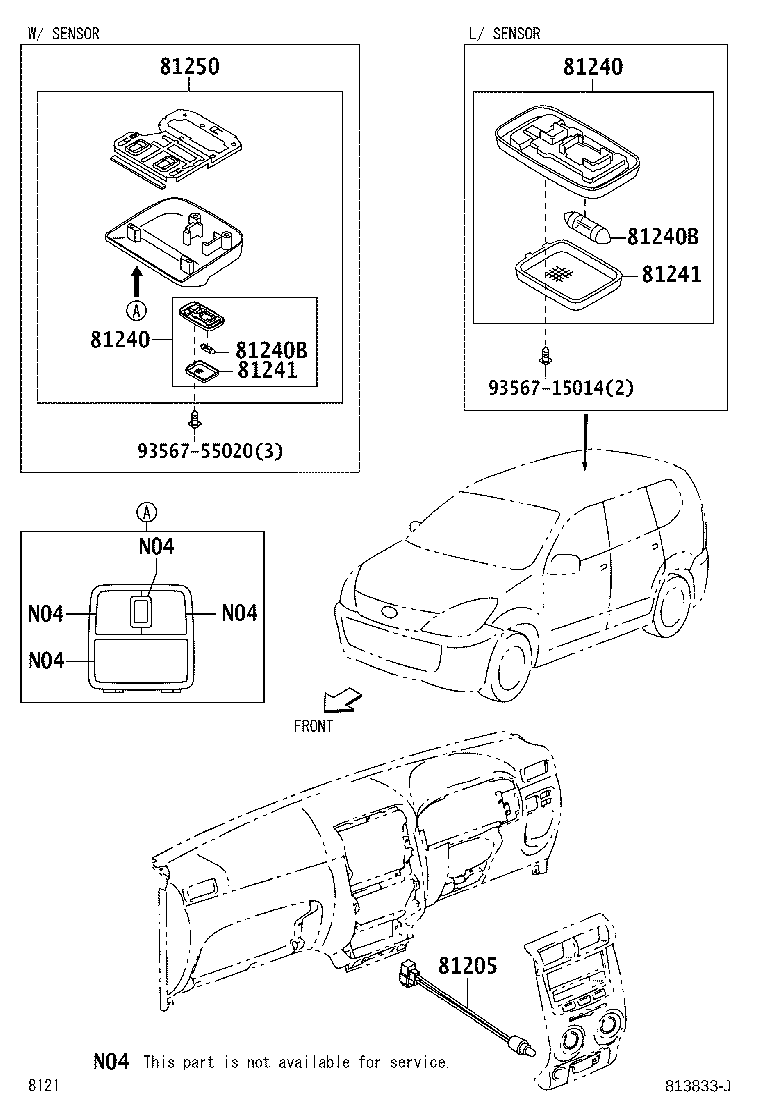

Figure 813833J

813833J 2006-08 → —

Part groups

PNC	Description
81205	Lamp Sub-assy, Ash Receptacle
81240	Lamp Assy, Room, NO.1
81240B	Bulb, Room Lamp, NO.1
81241	Lens, Room Lamp, NO.1
81250	Lamp Assy, Room, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
