Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 9 illustrations

Illustrations

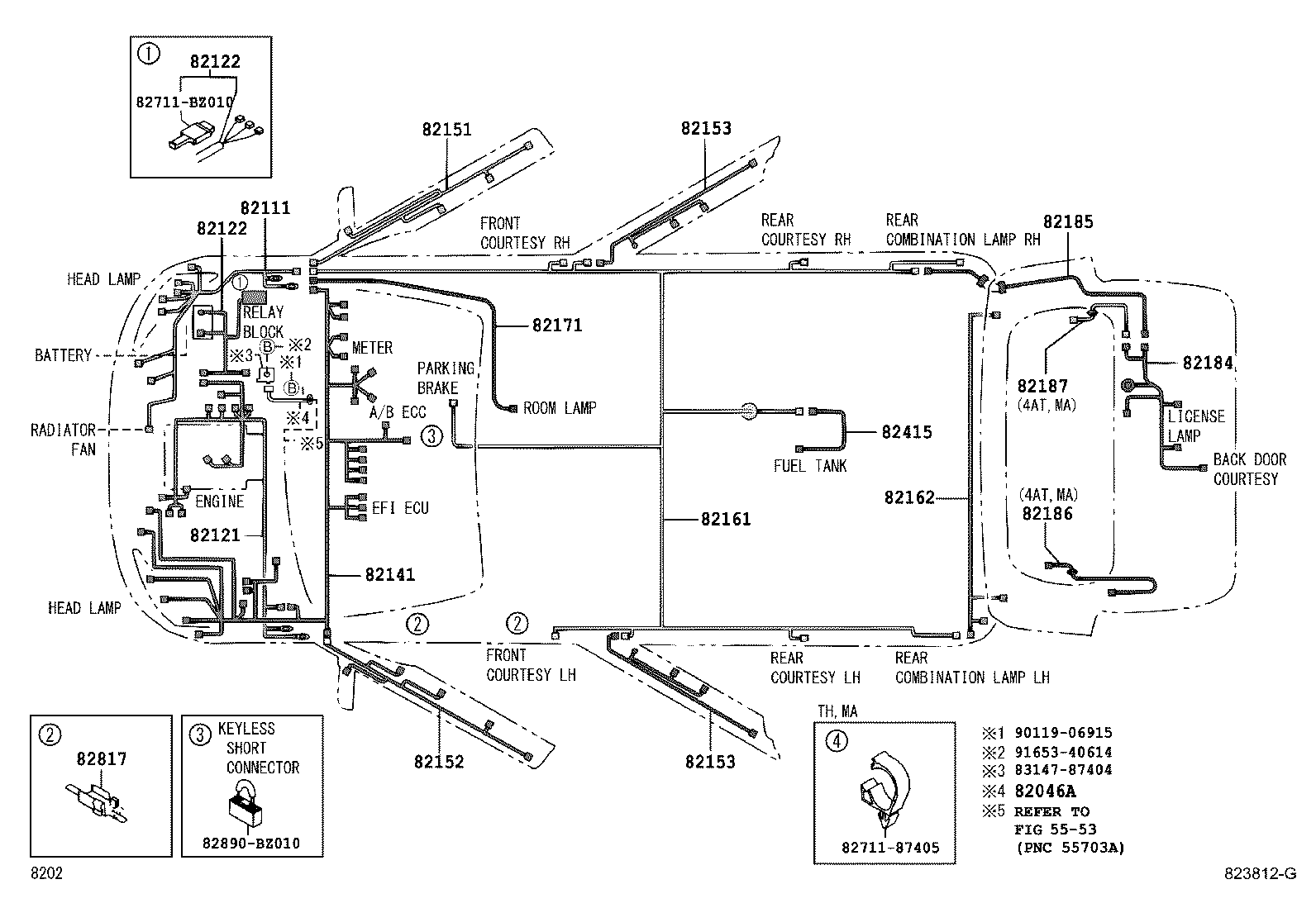

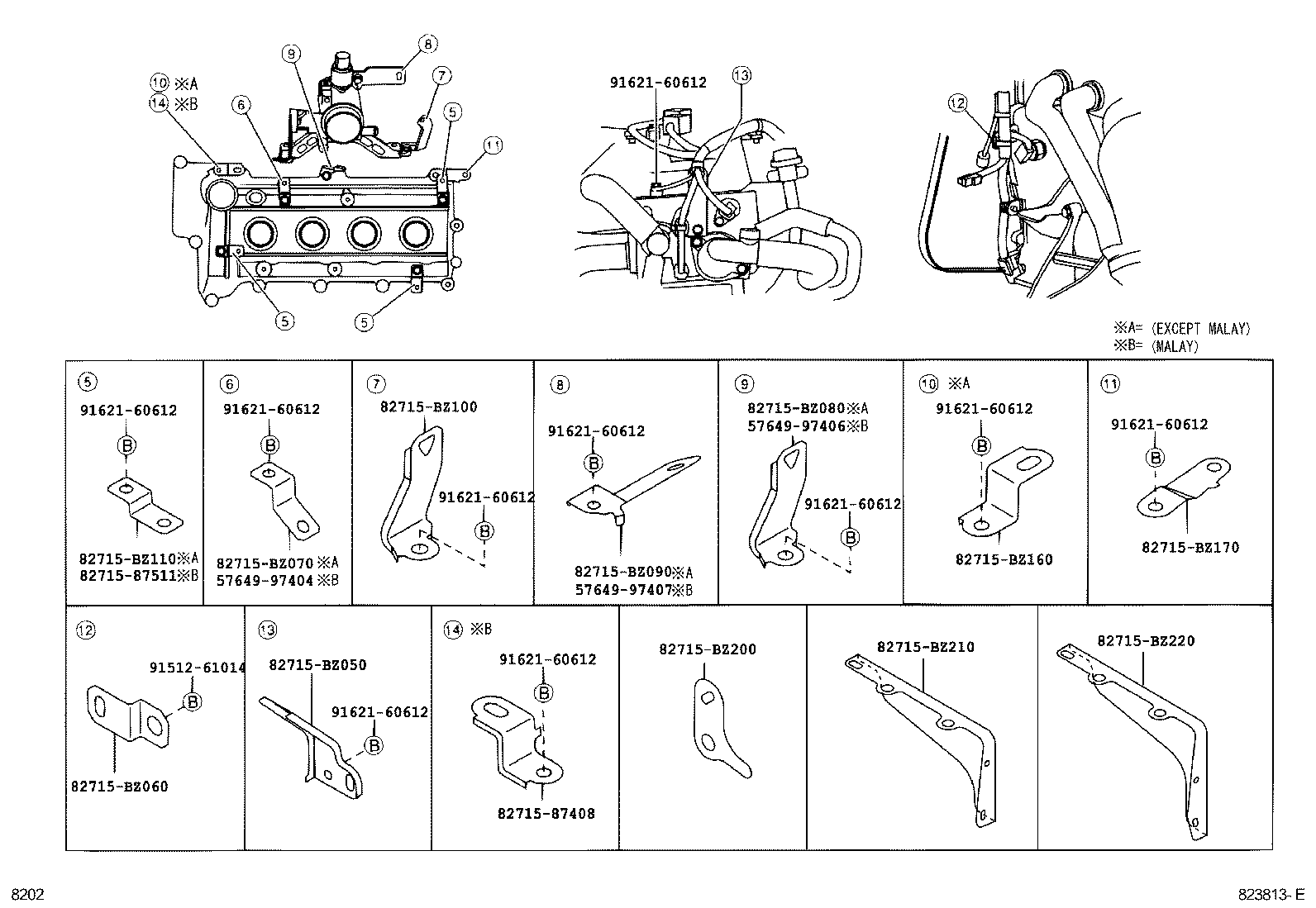

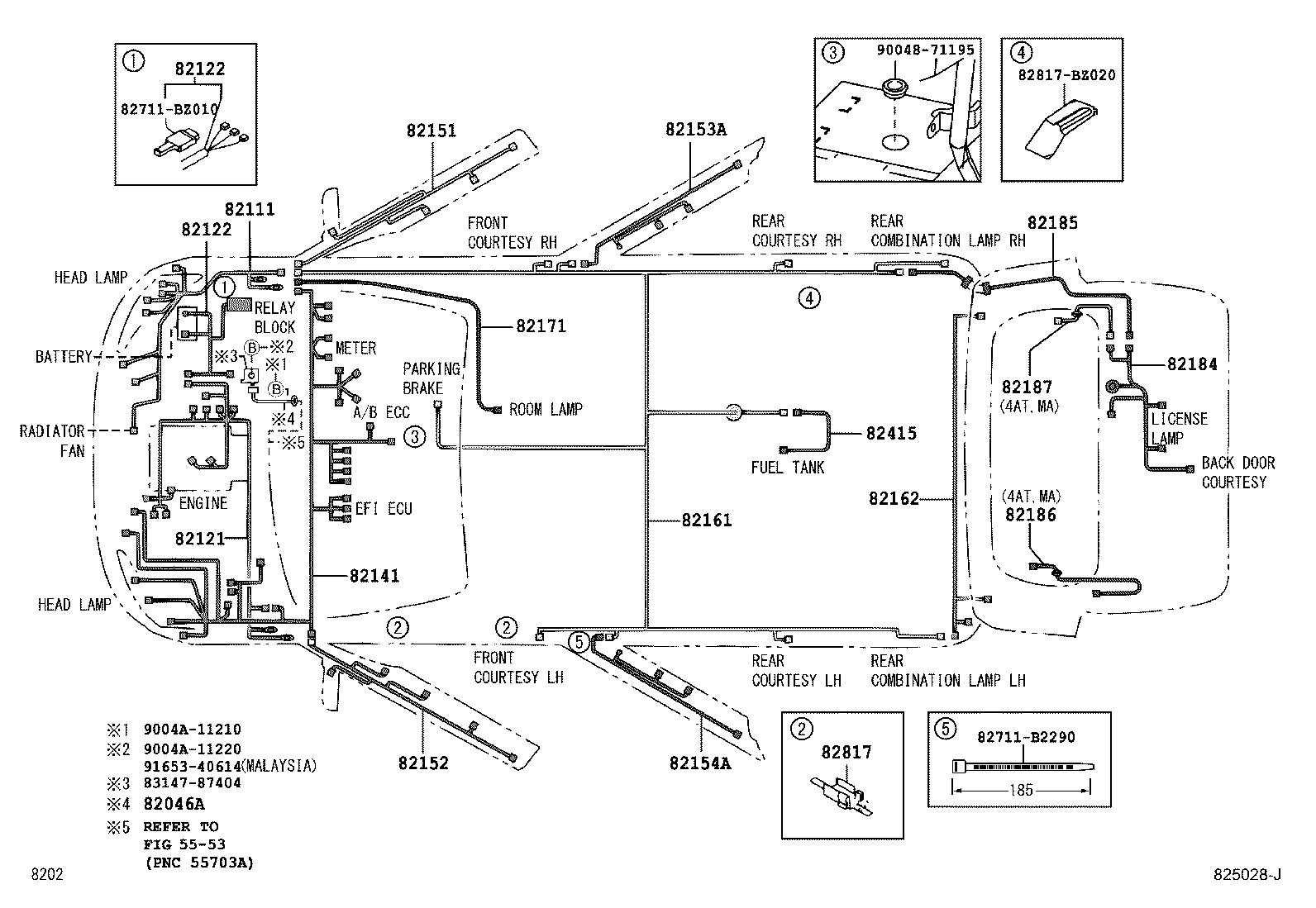

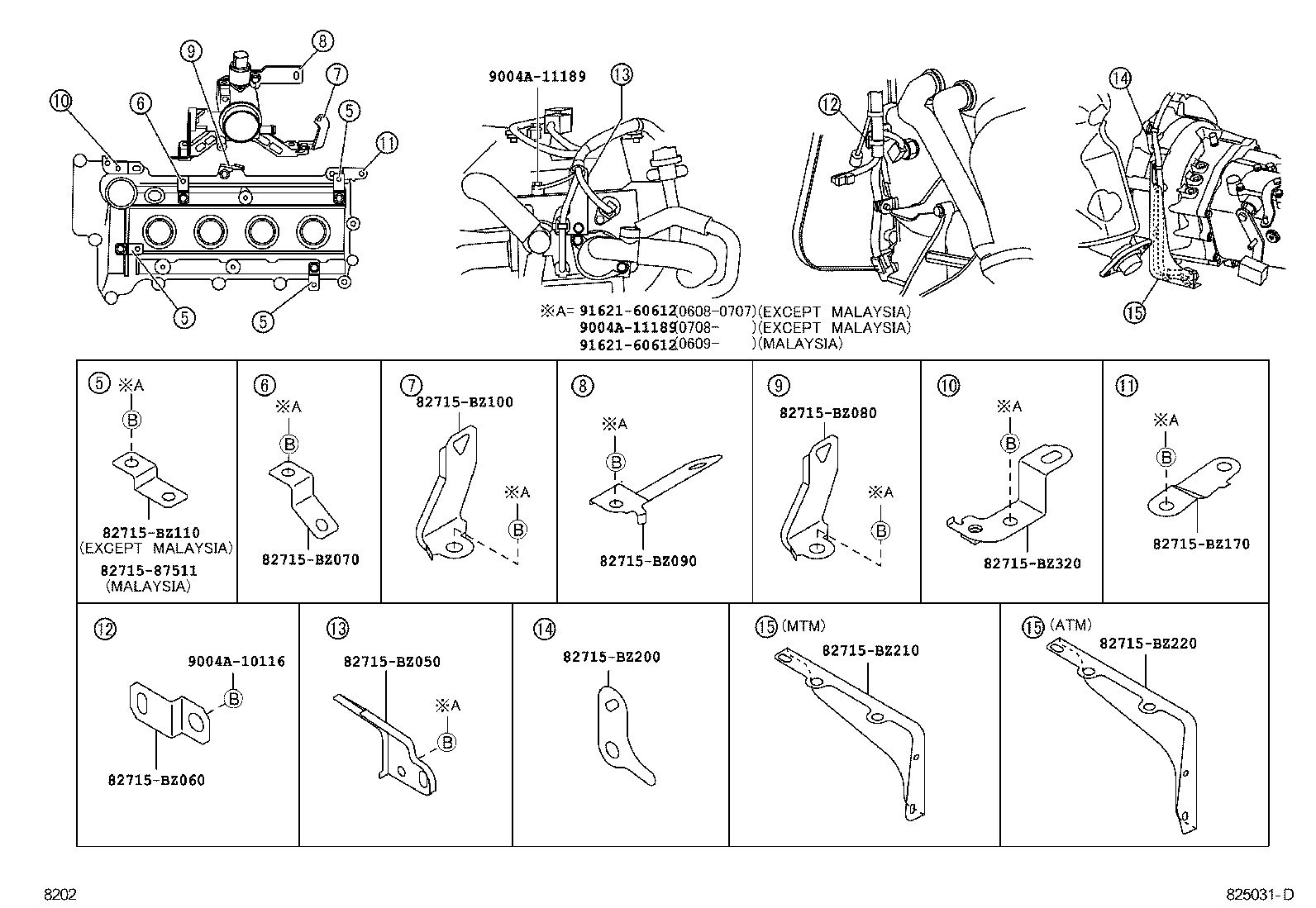

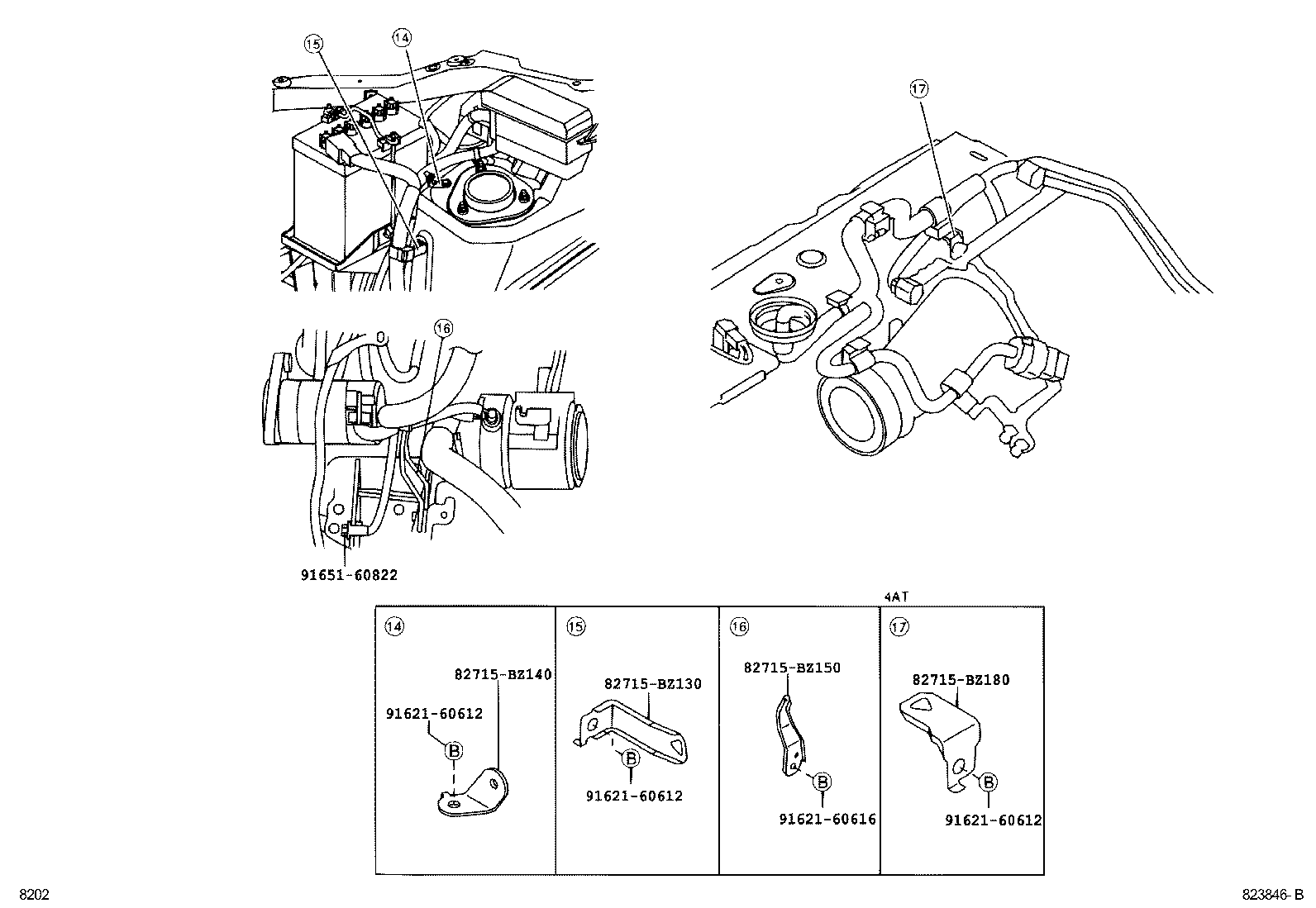

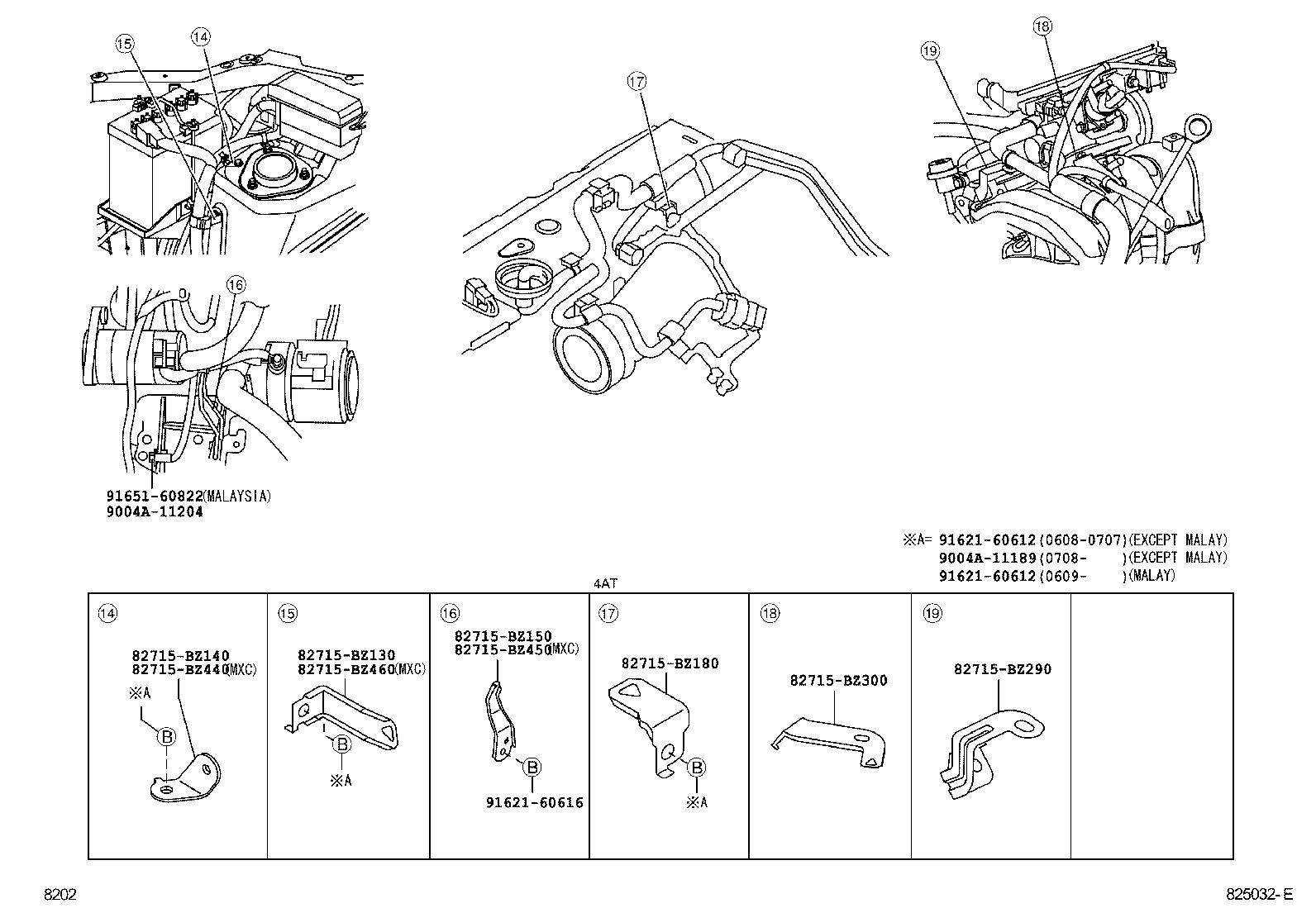

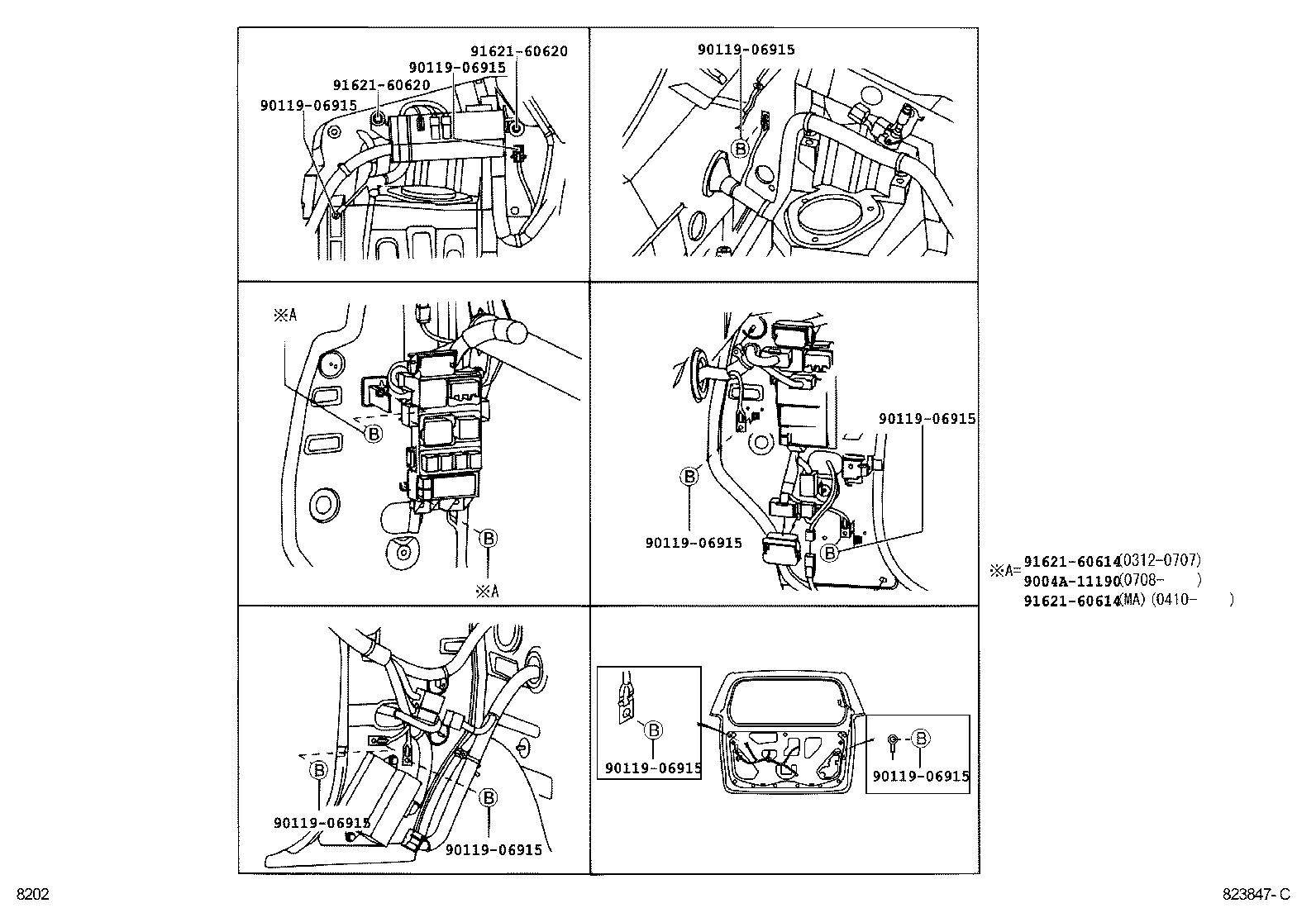

Figure 826126B 826126B 2003-12 → 2006-08 Figure 823812G 823812G 2004-04 → 2006-08 Figure 825028J 825028J 2006-08 → — Figure 823813E 823813E 2003-12 → — Figure 823846B 823846B 2003-12 → 2006-08 Figure 823847C 823847C 2003-12 → 2006-08 Figure 823847C 823847C 2006-08 → — Figure 825031D 825031D 2006-08 → — Figure 825032E 825032E 2006-08 → —

Part groups

PNCDescription
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82415 Wire, Fuel Pump
82817 Protector, Wiring Harness, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
