Toyota Avanza
2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States
Discontinued model
Data version 2012-05
Meter
11 part groups · 5 illustrations
Part groups

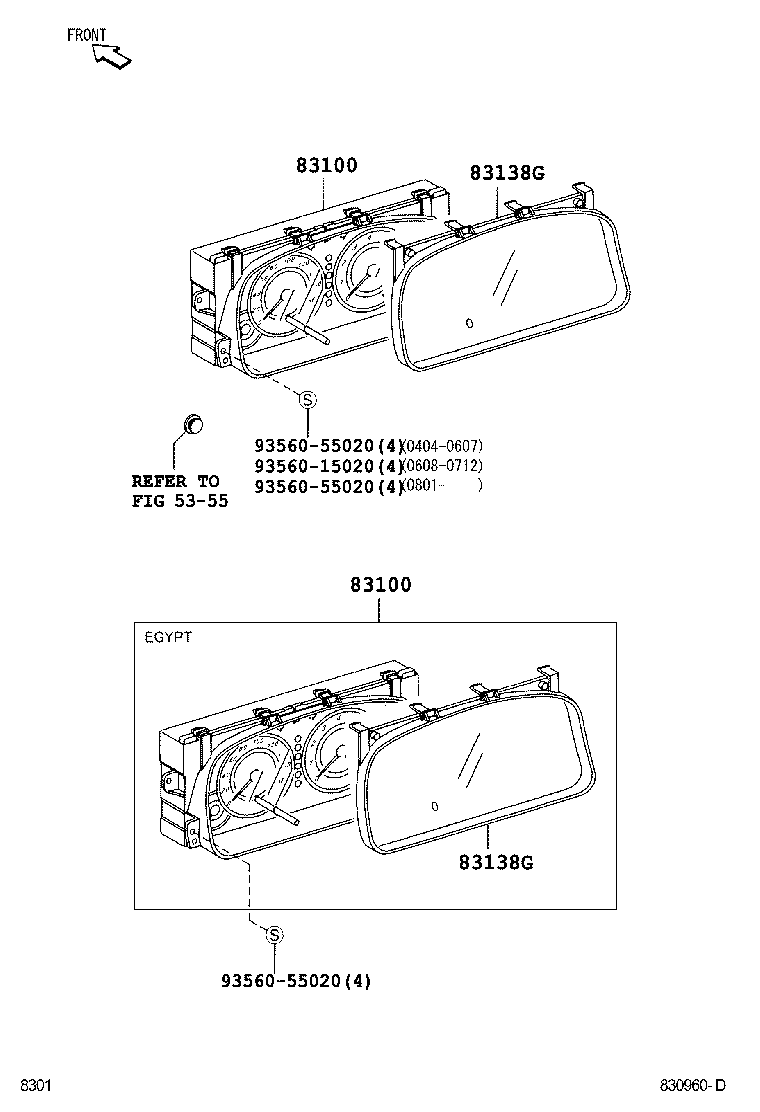

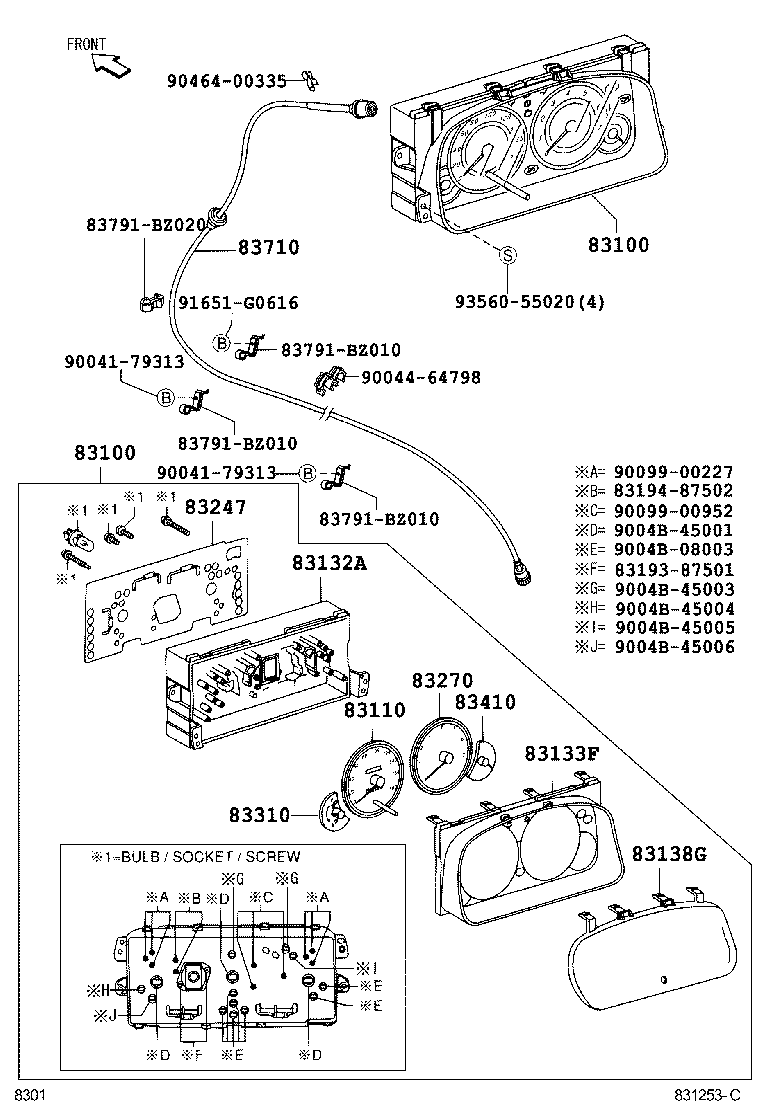

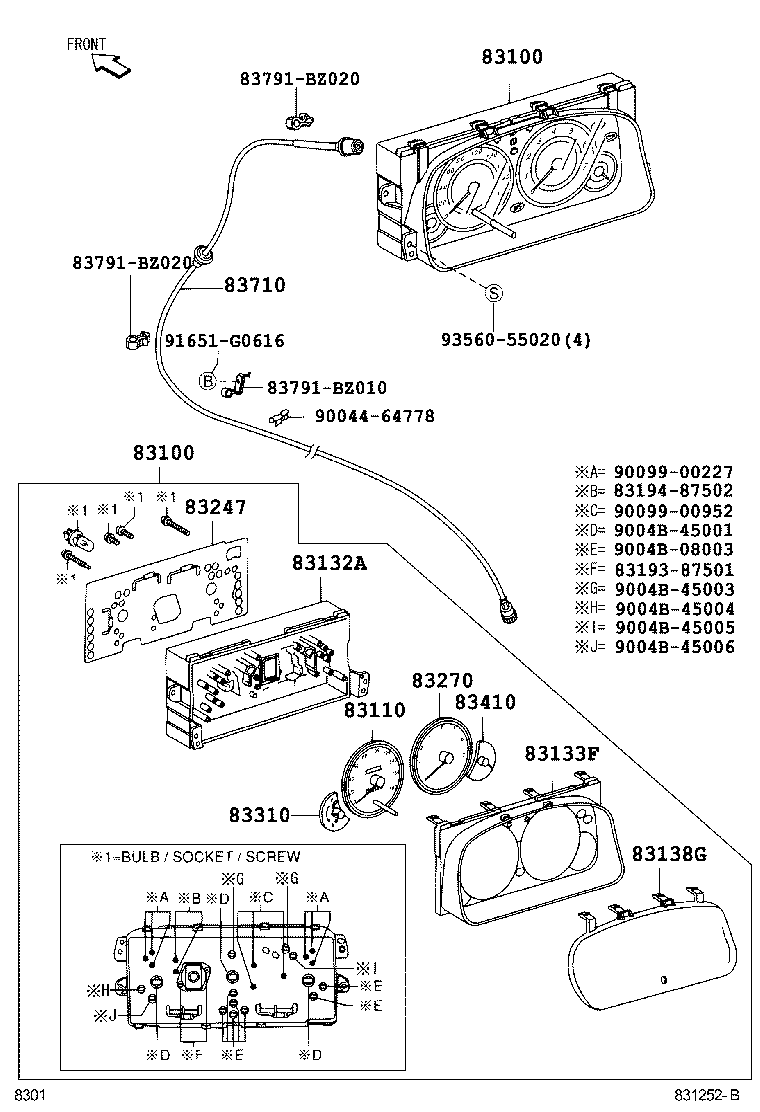

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83110 | Speedometer Assy |
| 83132A | Case, Meter |
| 83133F | Plate, Meter |
| 83138G | Glass, Combination Meter |
| 83247 | Plate, Meter Circuit |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
