Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

51 part groups · 12 illustrations

Illustrations

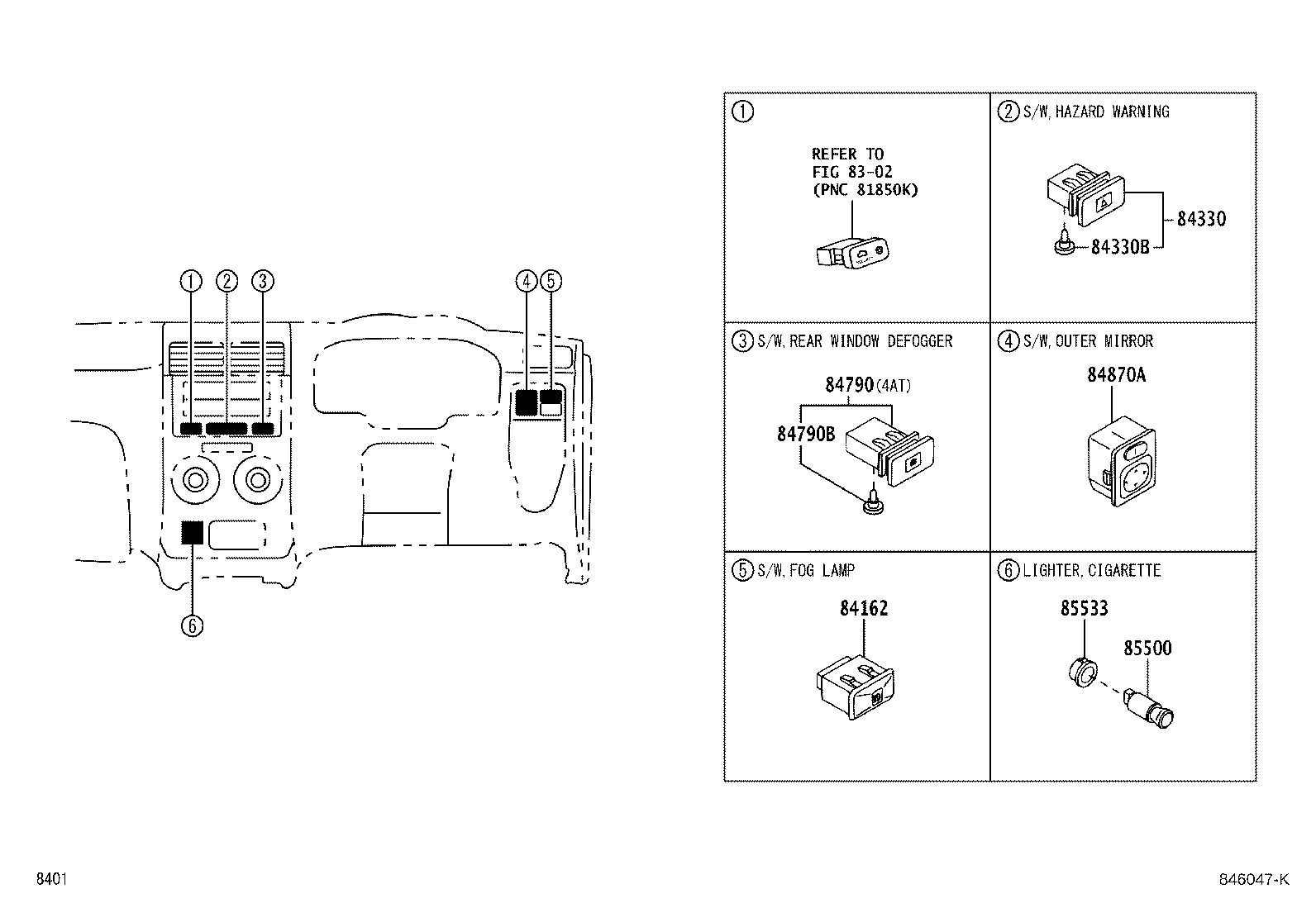

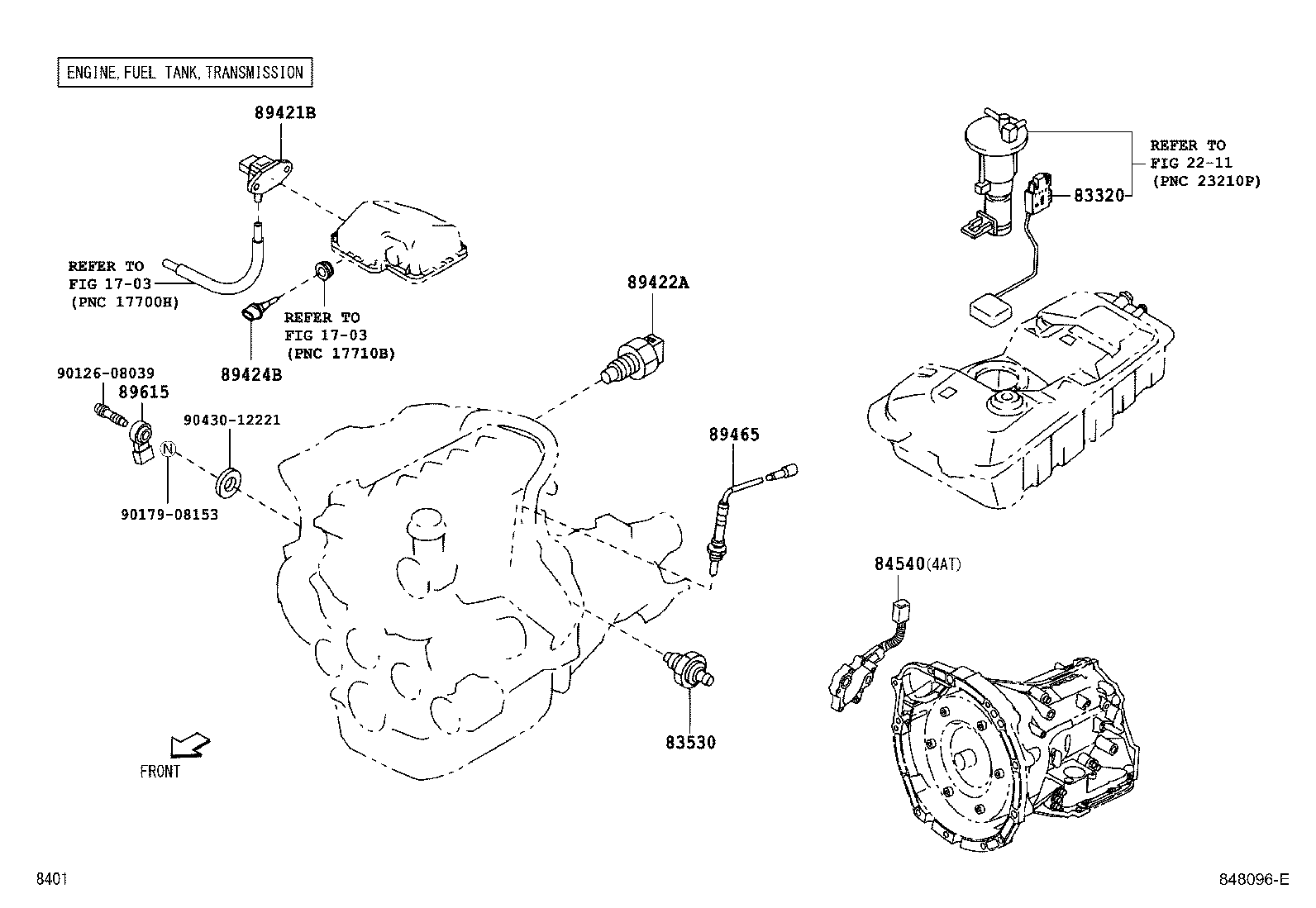

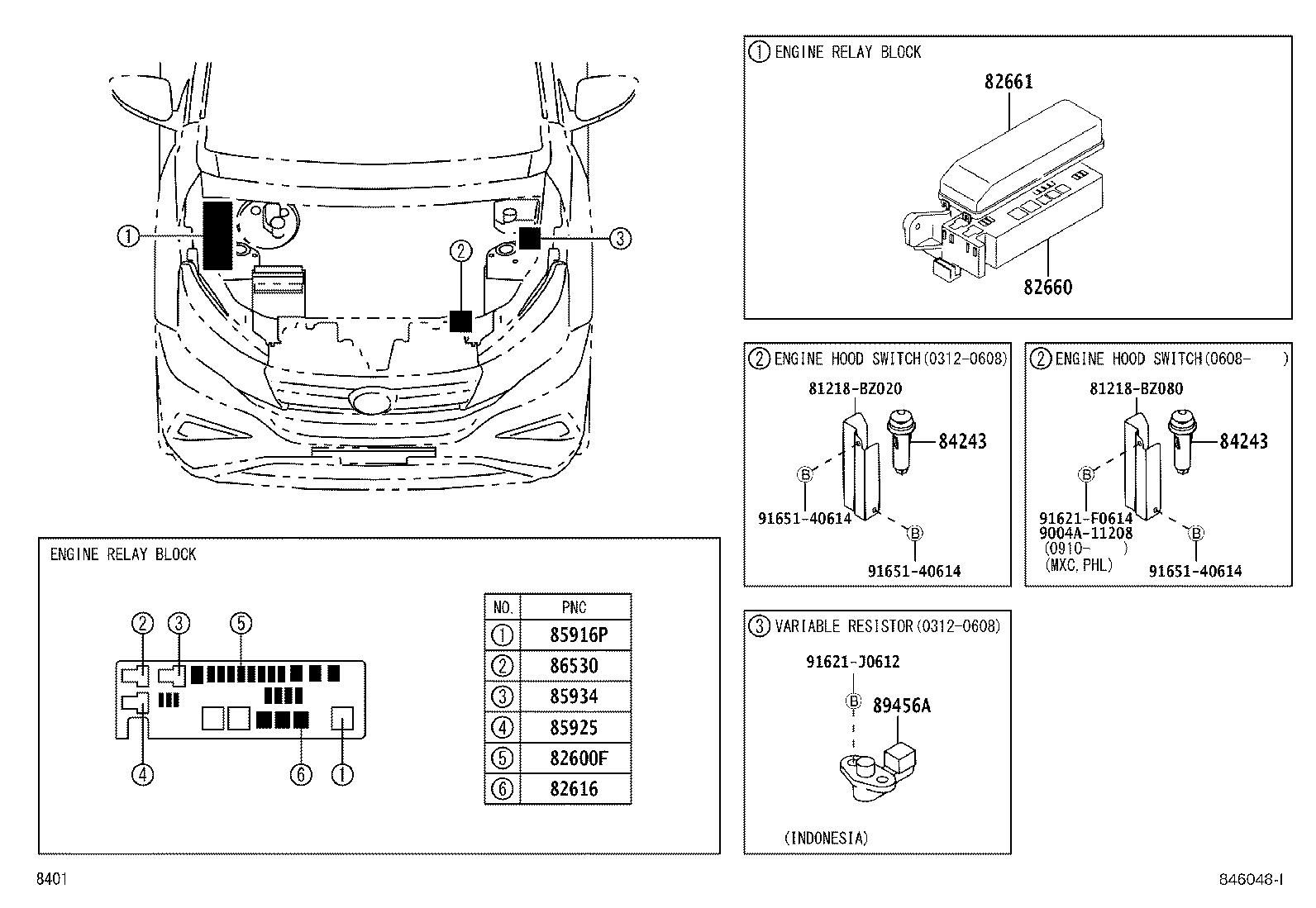

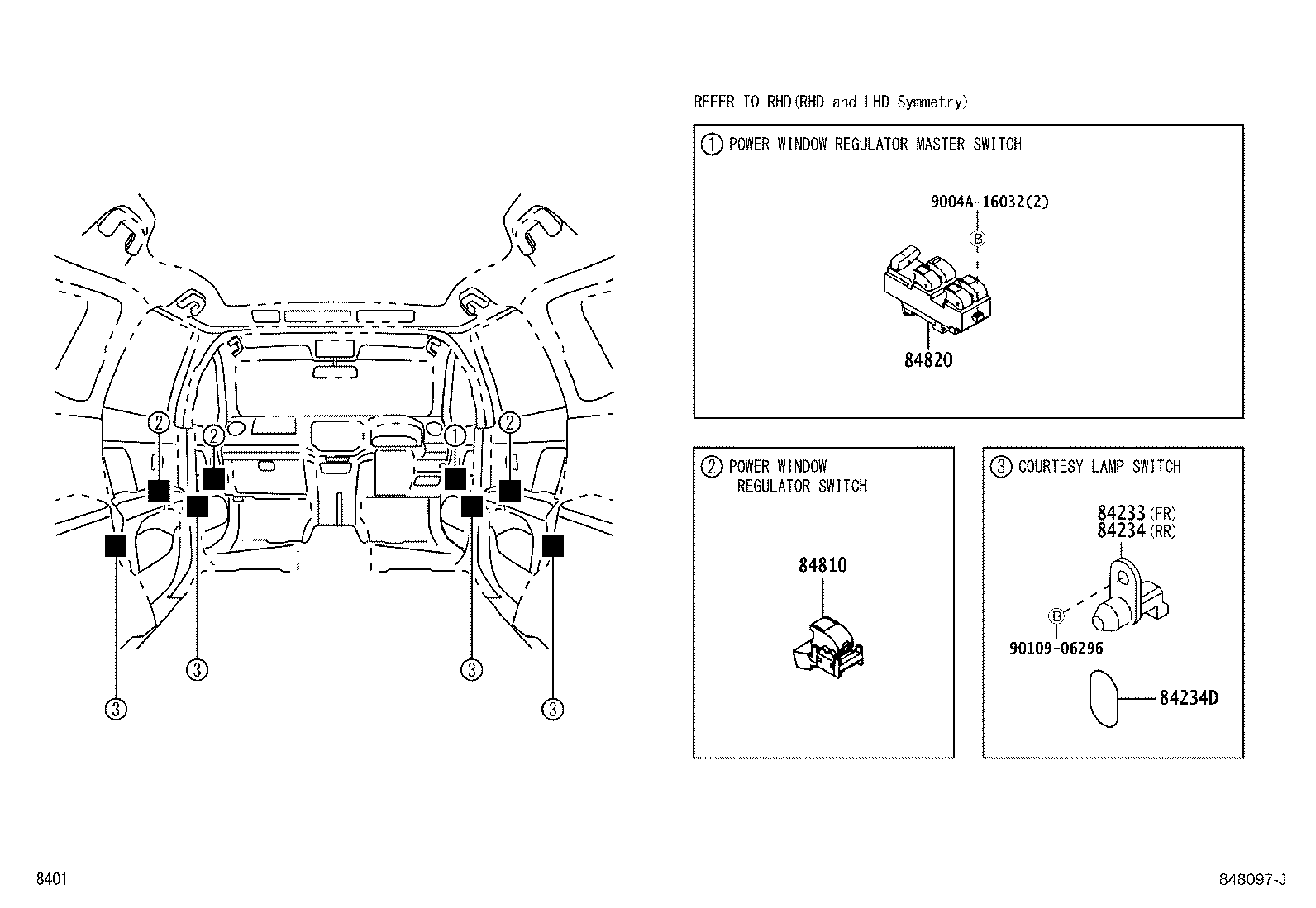

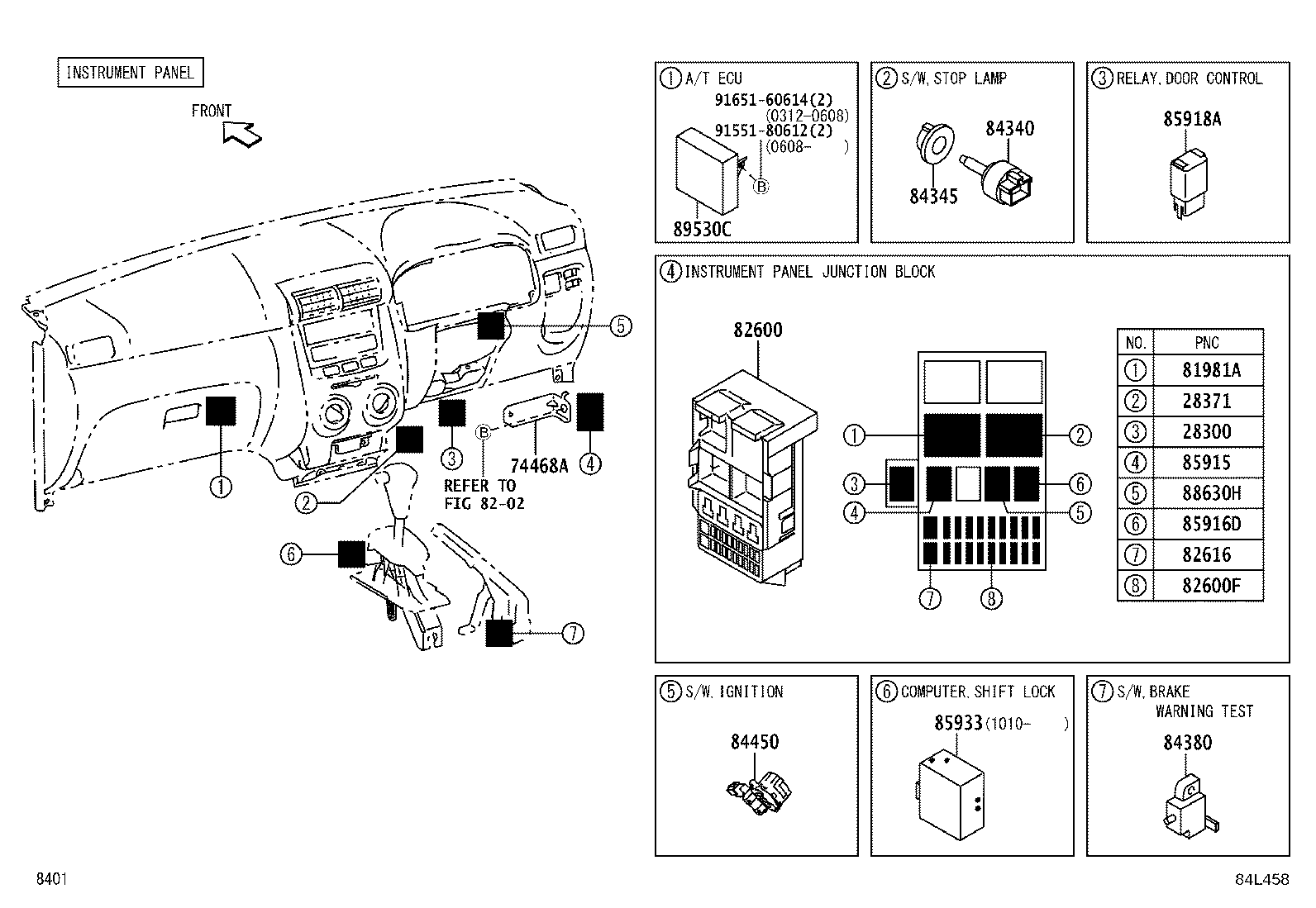

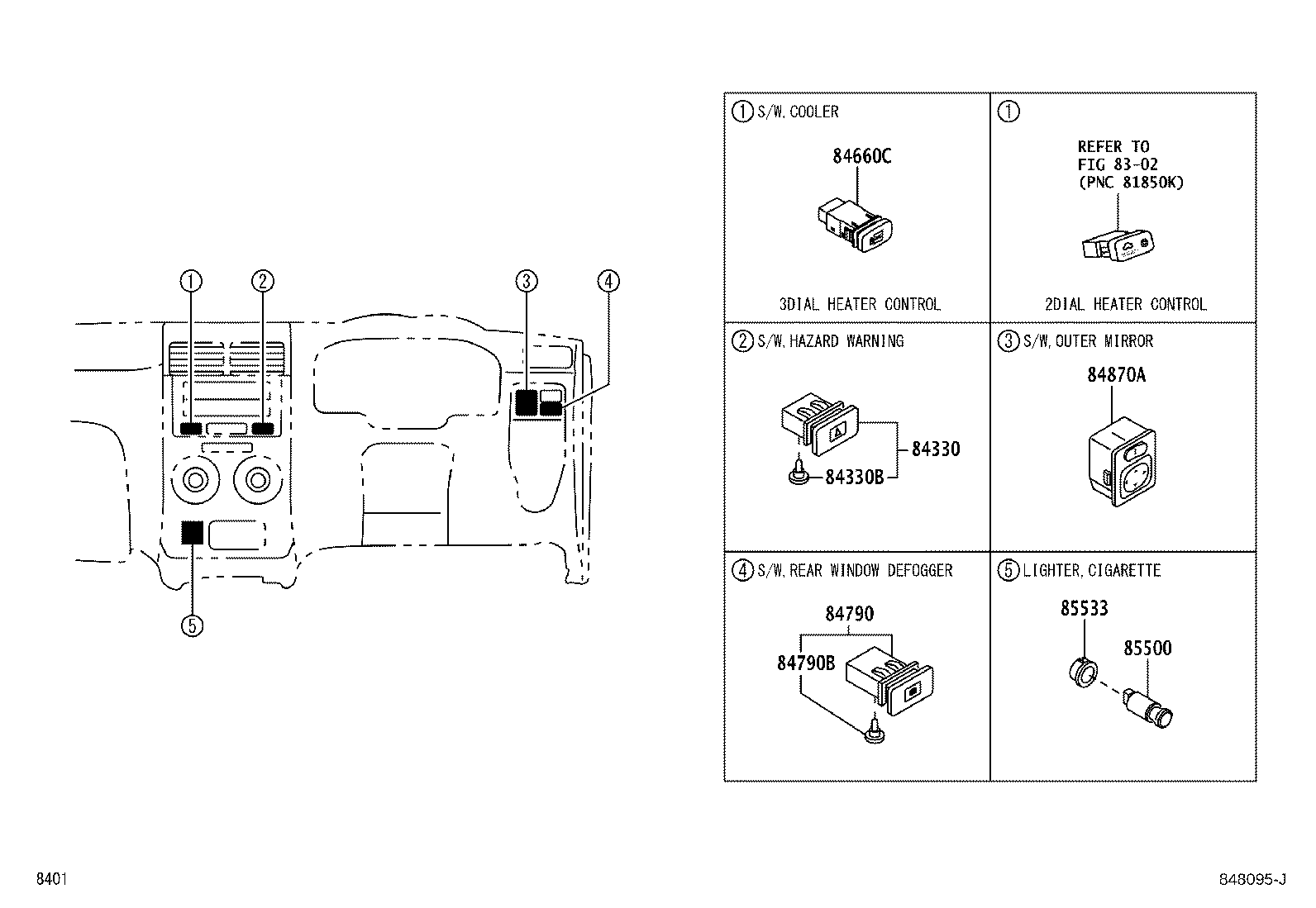

Figure 846102H 846102H 2003-12 → 2006-08 Figure 848096E 848096E 2006-08 → — Figure 846047K 846047K 2003-12 → 2006-08 Figure 848095J 848095J 2006-08 → — Figure 84L458 84L458 2003-12 → 2006-08 Figure 84L458 84L458 2006-08 → — Figure 846048I 846048I 2003-12 → 2006-08 Figure 846048I 846048I 2006-08 → — Figure 848097J 848097J 2003-12 → 2006-08 Figure 848097J 848097J 2006-08 → — Figure 84B557B 84B557B 2003-12 → 2006-08 Figure 84B557B 84B557B 2006-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
74468A Bracket, Relay Block
81981A Flasher, Turn Signal
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
82660 Block Assy, Relay, Engine Room
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234D Cushion, Courtesy Switch
84243 Switch, Engine Hood
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660C Switch, Cooler
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85533 Lens, Cigarette Lighter Indicator
85915 Relay, Main
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85918A Relay, Door Control
85925 Relay, Radiator Fan
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
86530 Relay Assy, Horn
88630H Relay Assy, Cooler
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89456A Resistor, Variable
89465 Sensor, Oxygen
89530C Computer Assy, Transmission Control
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
