Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

4 part groups · 5 illustrations

Illustrations

Figure 846045G

846045G 2003-12 → 2006-08

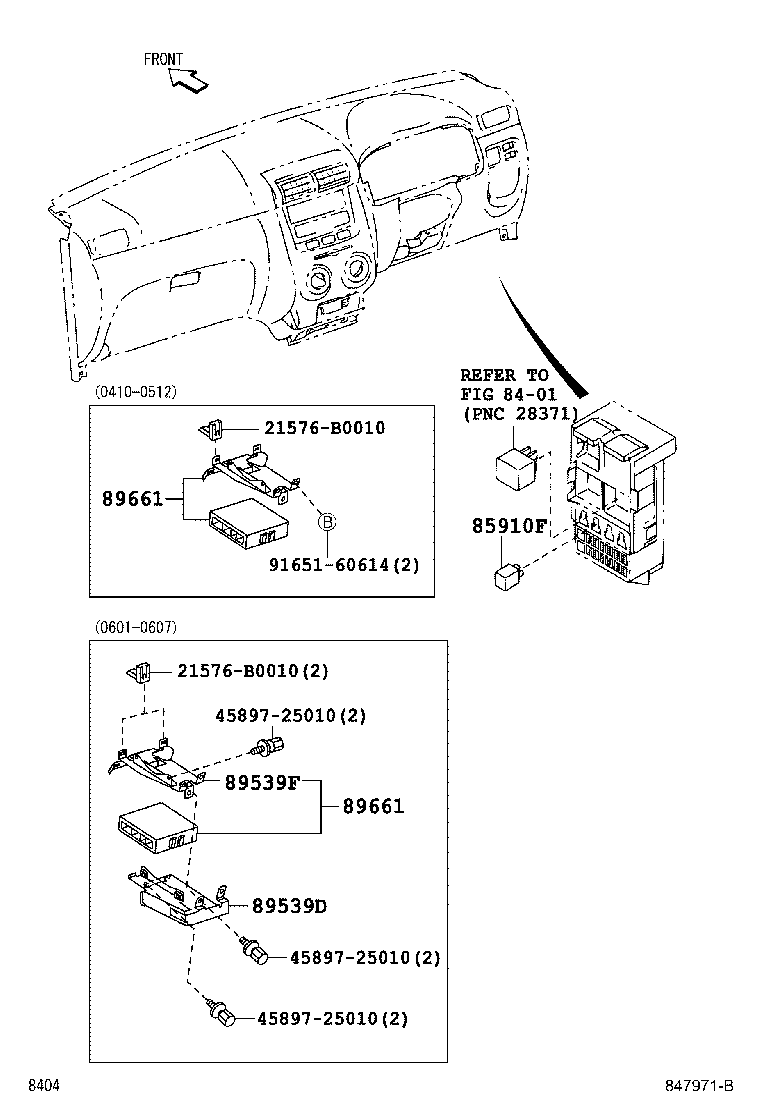

Figure 847971B

847971B 2004-04 → 2006-08

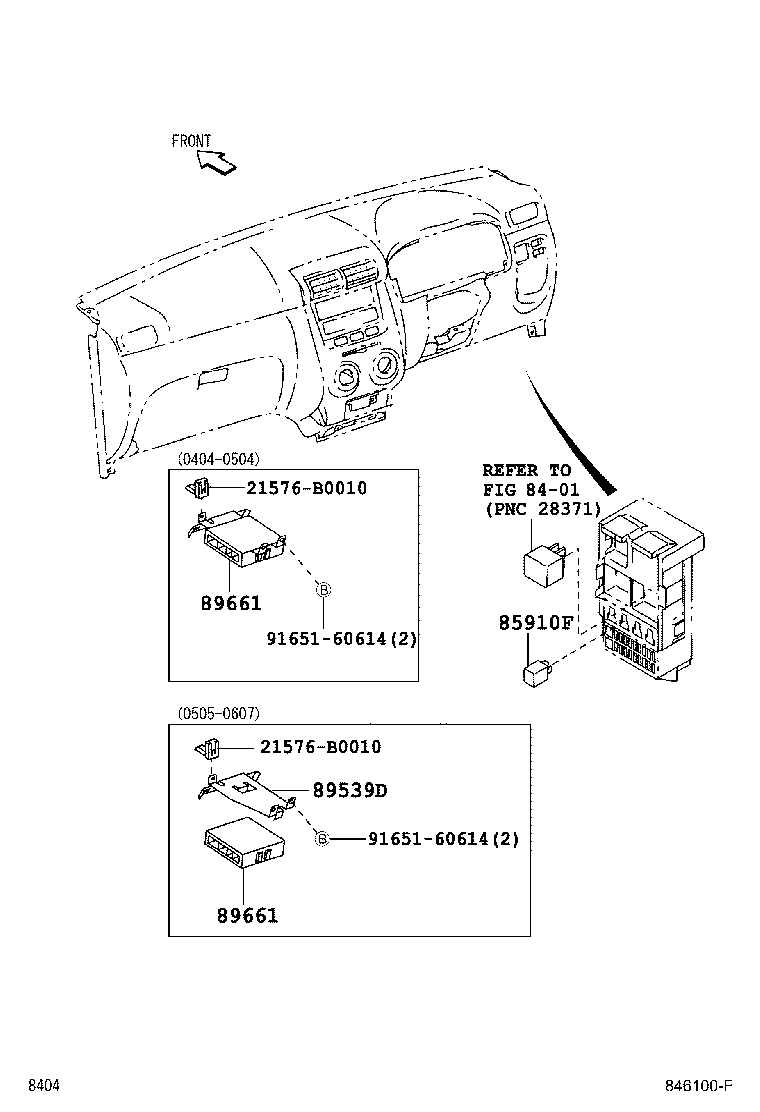

Figure 846100F

846100F 2004-04 → 2006-08

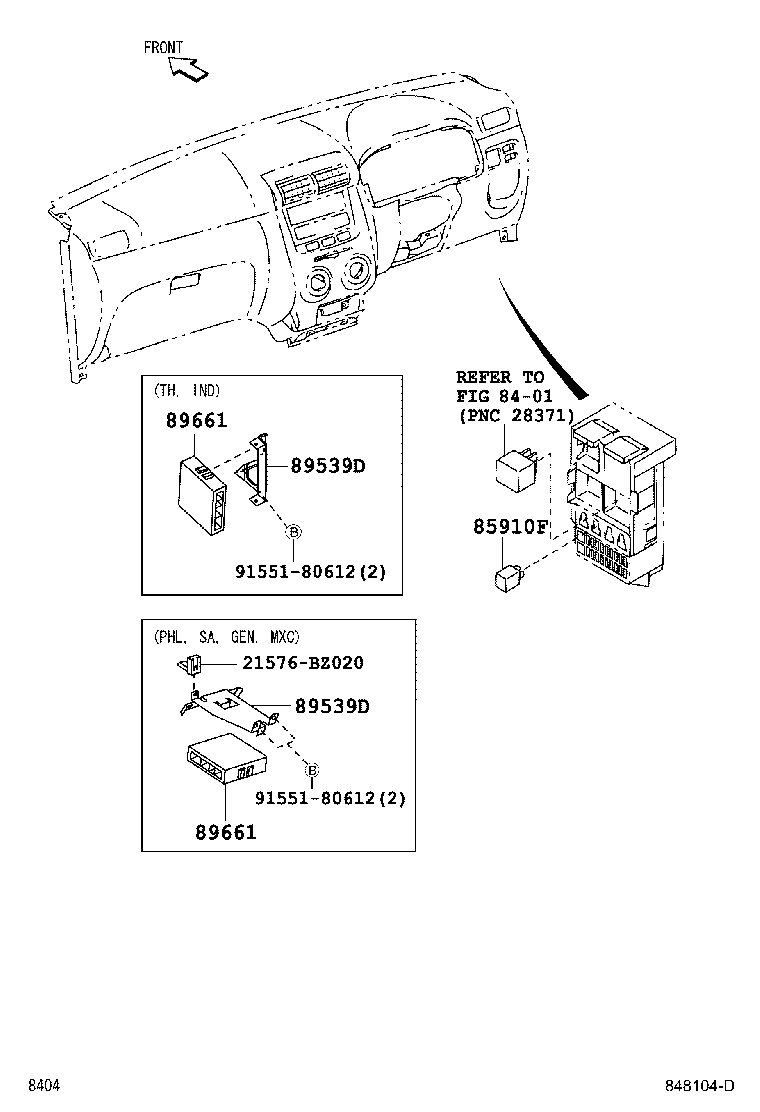

Figure 848104D

848104D 2006-08 → —

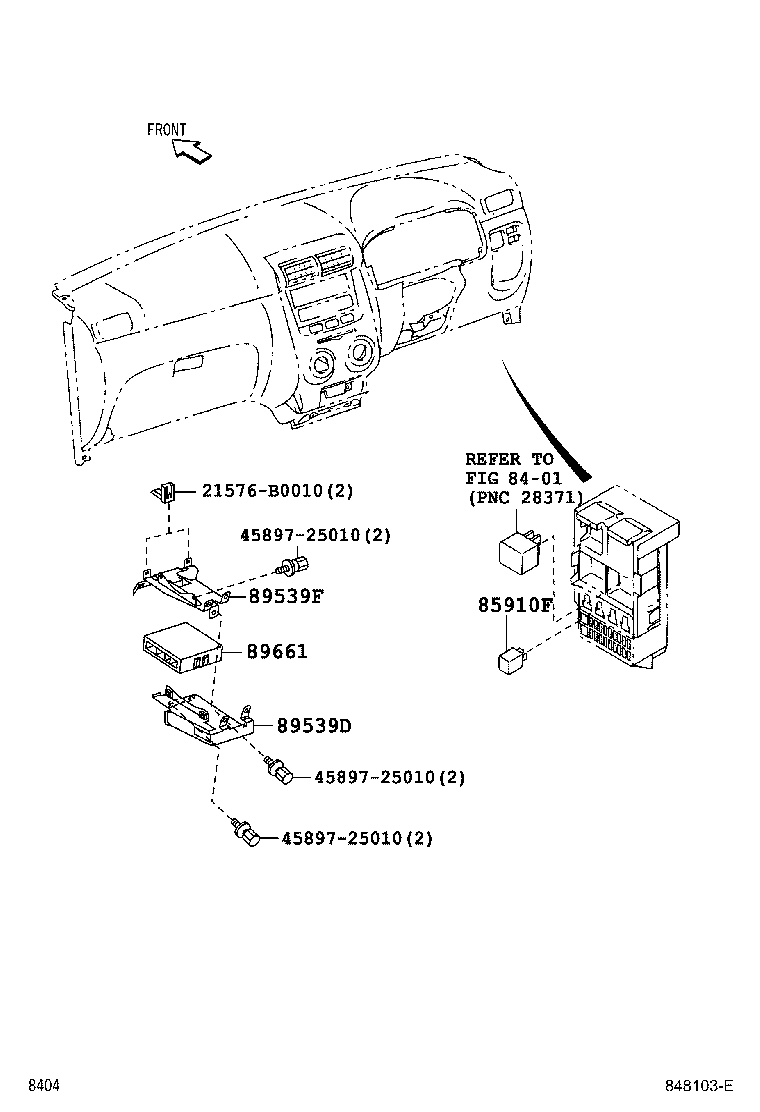

Figure 848103E

848103E 2006-08 → —

Part groups

PNC	Description
85910F	Relay, Computer (FOR EFI)
89539D	Bracket, Computer
89539F	Bracket, Computer
89661	Computer, Engine Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
