Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

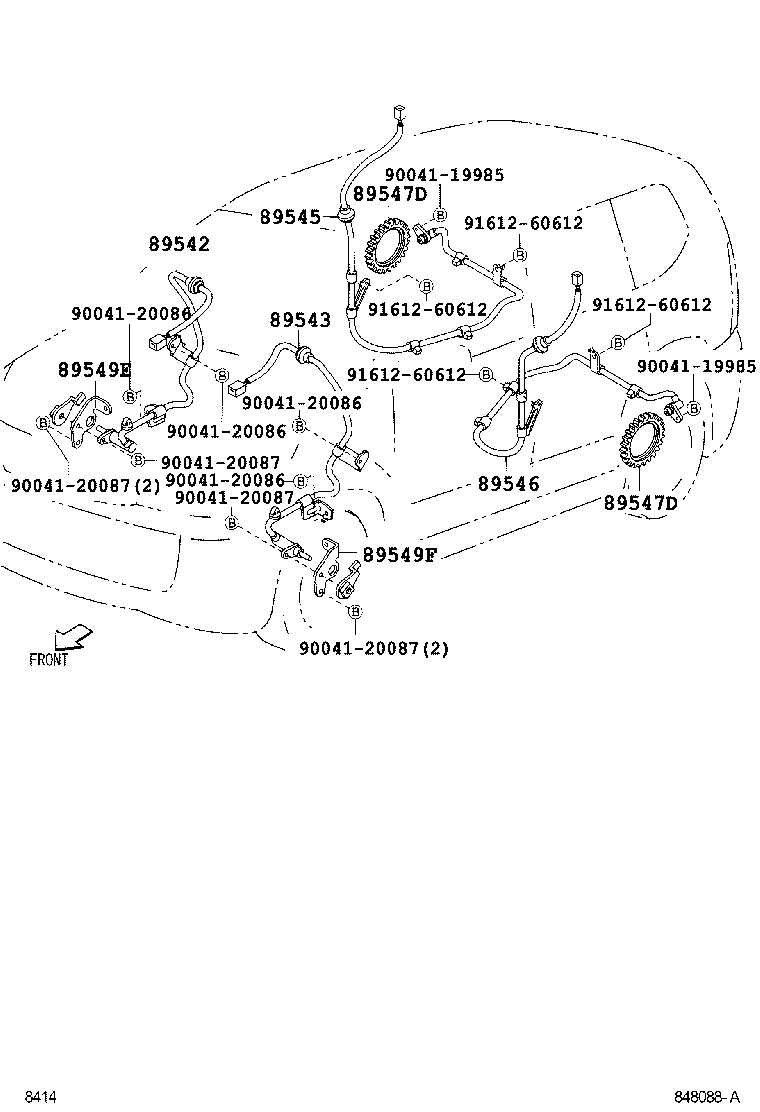

Figure 84A009 84A009 2004-04 → 2006-08 Figure 848088A 848088A 2006-08 → —

Part groups

PNCDescription
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89547D Rotor, Skid Control Sensor
89549E Bracket, Speed Sensor
89549F Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
