Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

4 part groups · 3 illustrations

Illustrations

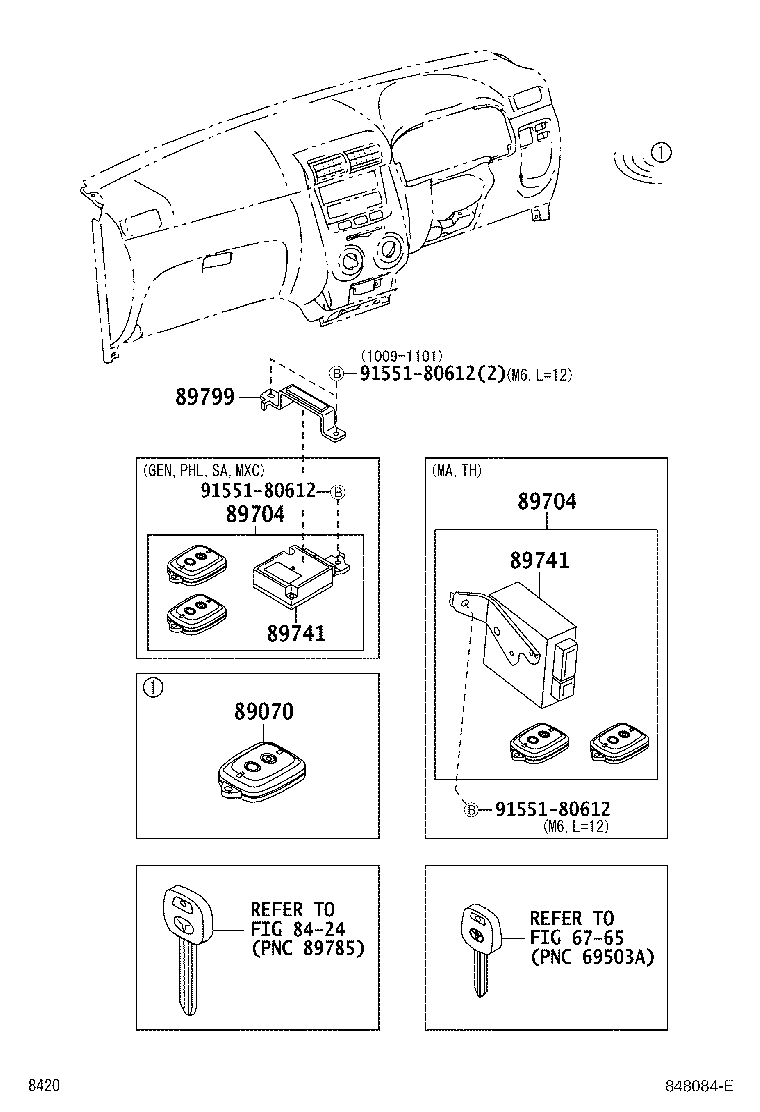

Figure 846227D 846227D 2004-04 → 2006-08 Figure 848084E 848084E 2006-08 → — Figure 848084E 848084E 2006-10 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89704 Control Set, Wireless Door Lock
89741 Receiver, Door Control
89799 Bracket, Smart Door Control Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
