Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 8 illustrations

Illustrations

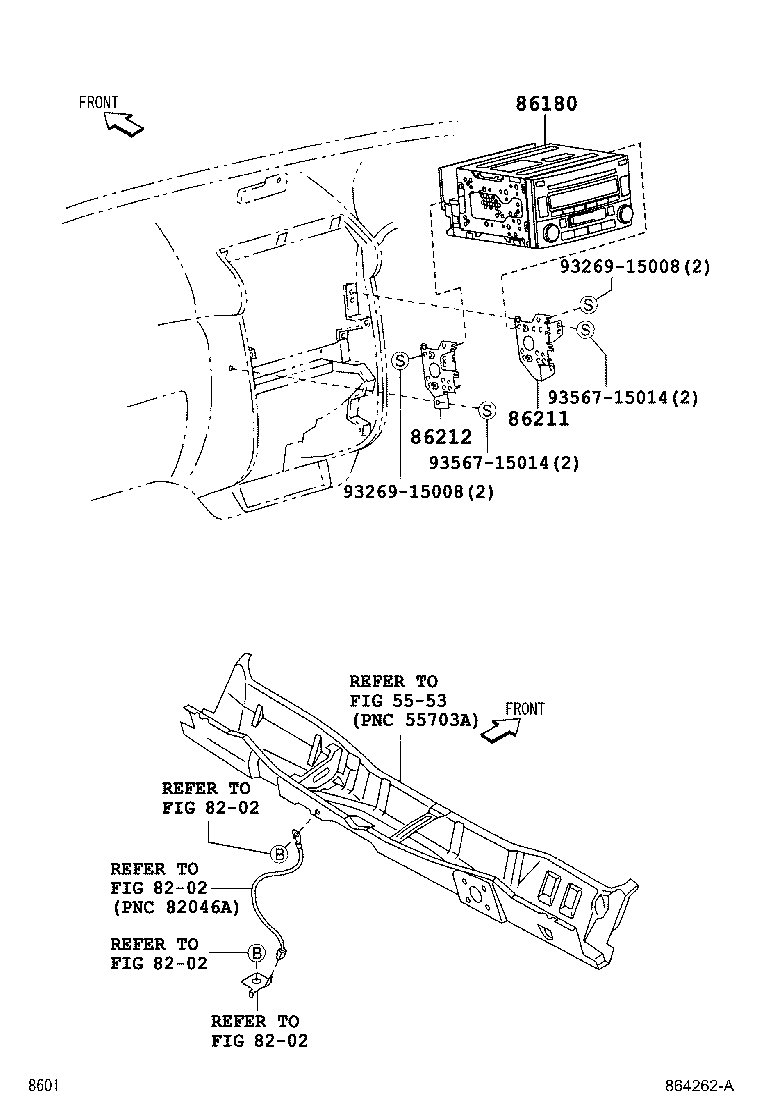

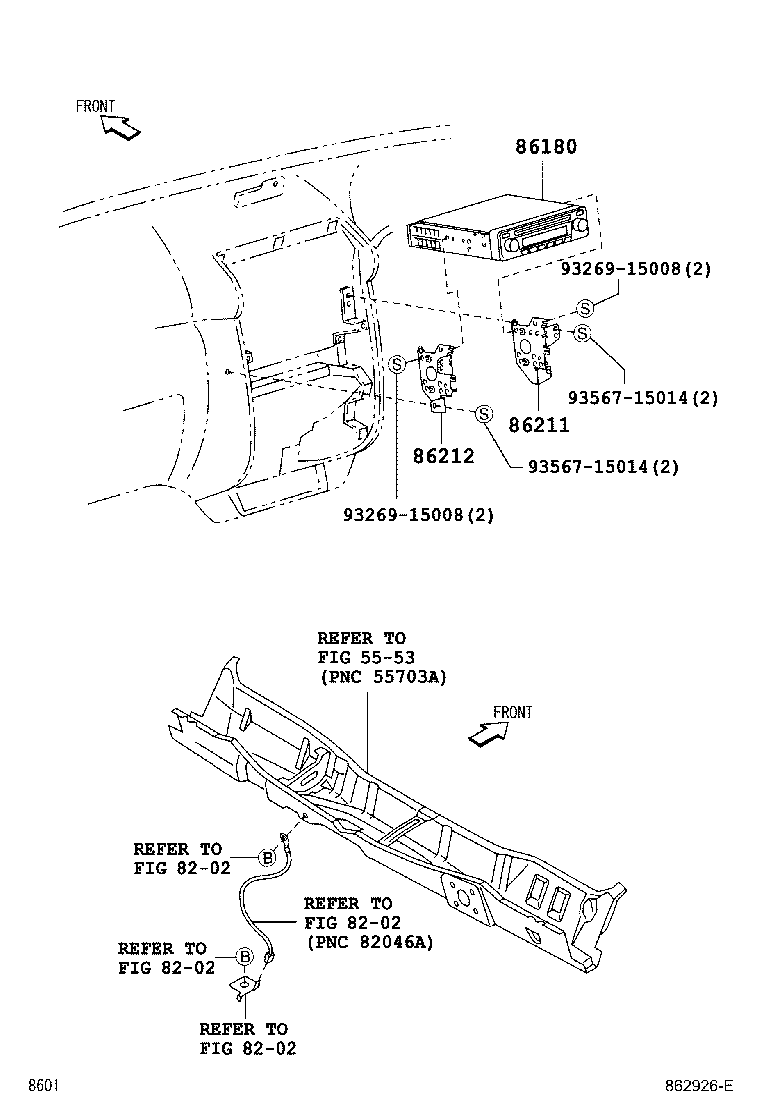

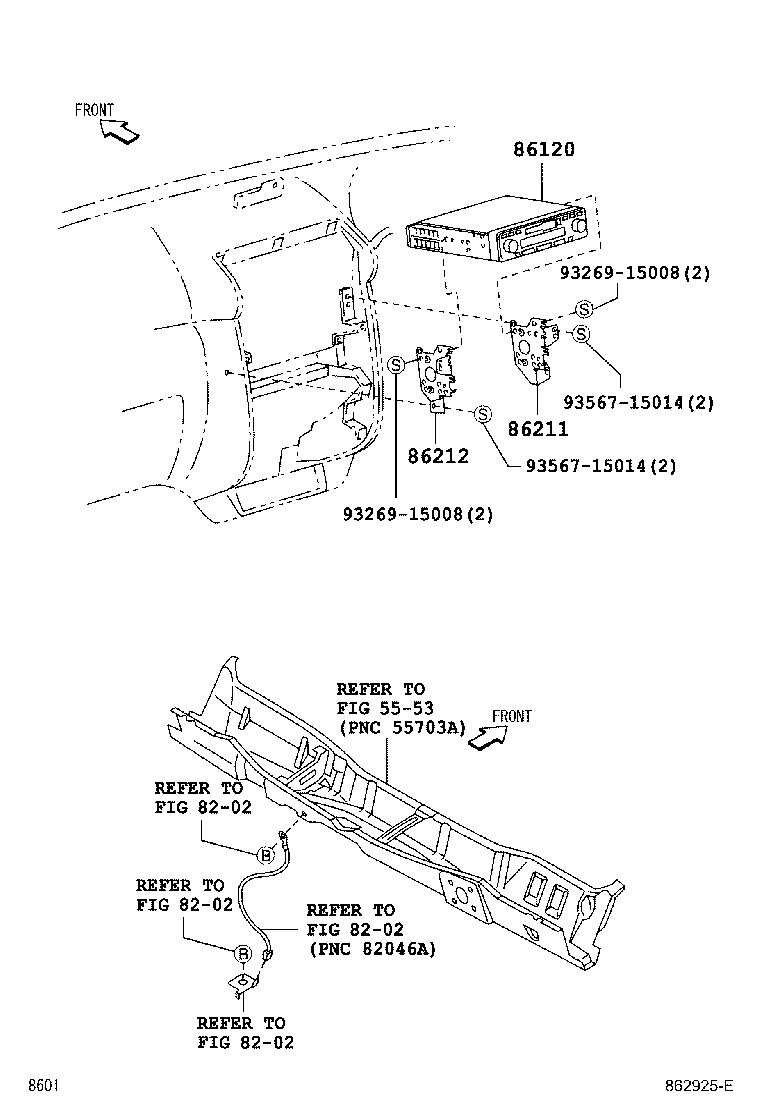

Figure 862110G 862110G 2003-12 → 2006-08 Figure 862925E 862925E 2004-04 → 2006-08 Figure 862925E 862925E 2006-08 → — Figure 864262A 864262A 2006-08 → — Figure 862926E 862926E 2004-10 → 2006-08 Figure 862926E 862926E 2006-08 → — Figure 863600 863600 2003-12 → 2006-08 Figure 863600 863600 2006-08 → —

Part groups

PNCDescription
86120 Receiver Assy, Radio
86180 Tuner Assy, Stereo Component
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
