Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 2 illustrations

Illustrations

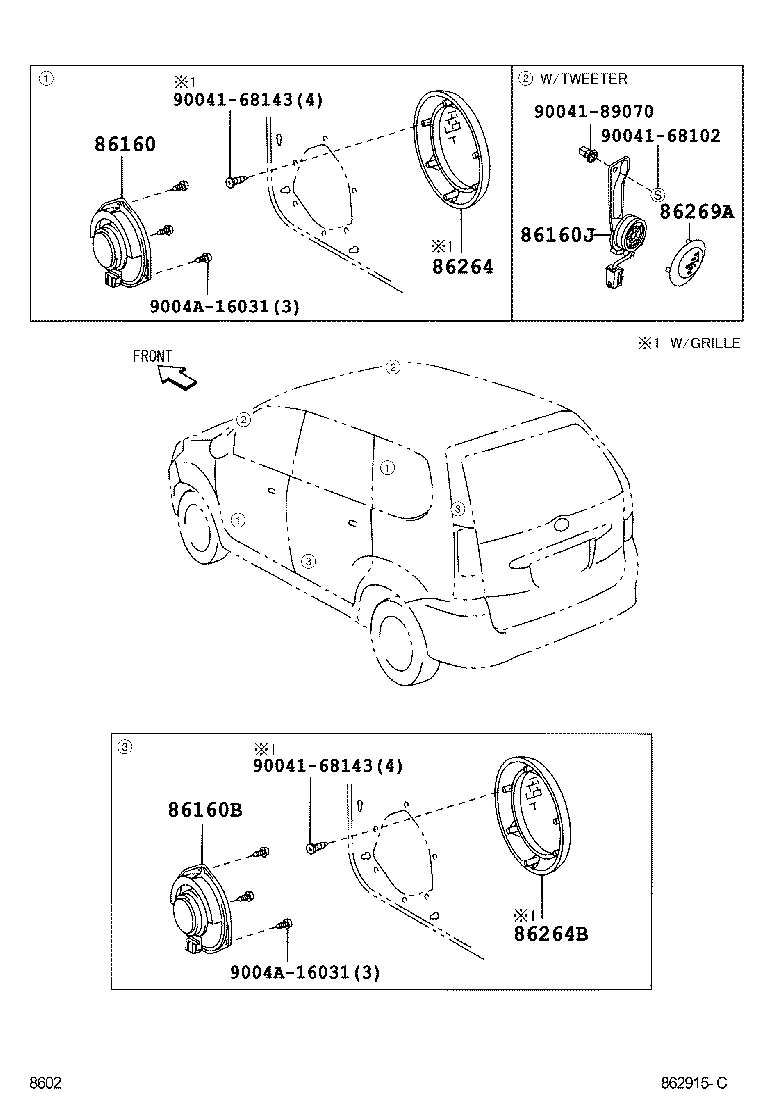

Figure 862107B 862107B 2003-12 → 2006-08 Figure 862915C 862915C 2006-08 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86264 Grille, Speaker, Front
86264B Grille, Speaker, Rear
86269A Grille, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
