Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

56 part groups · 16 illustrations

Illustrations

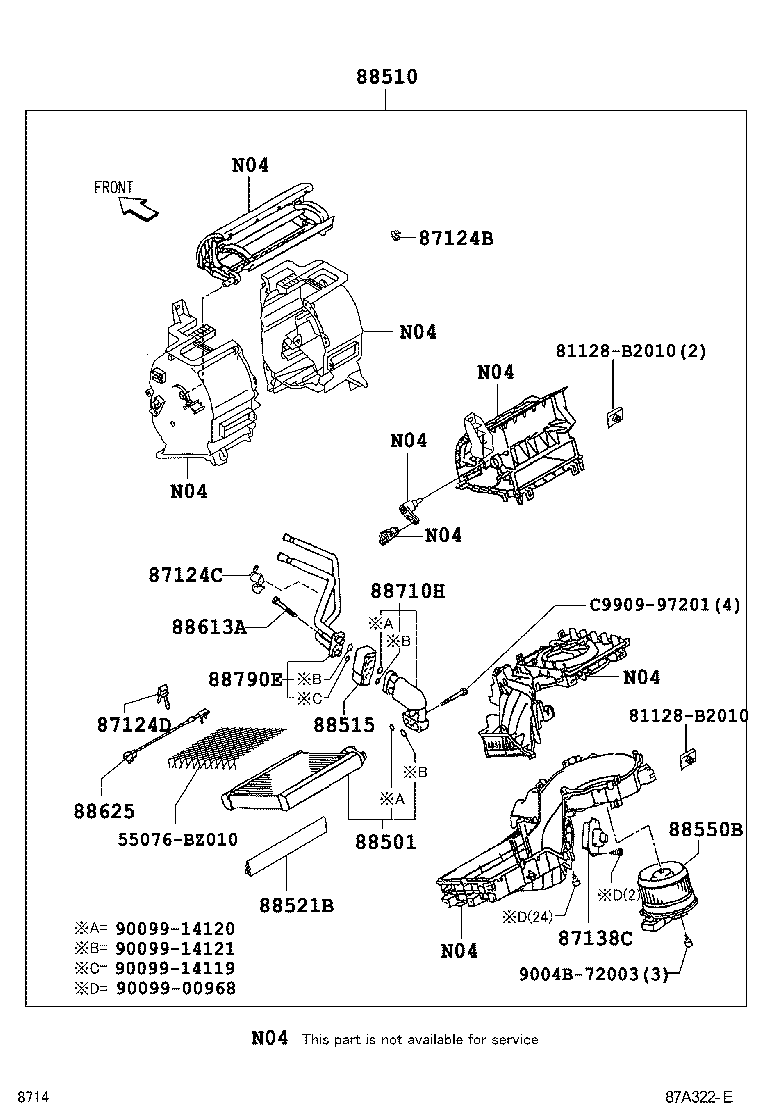

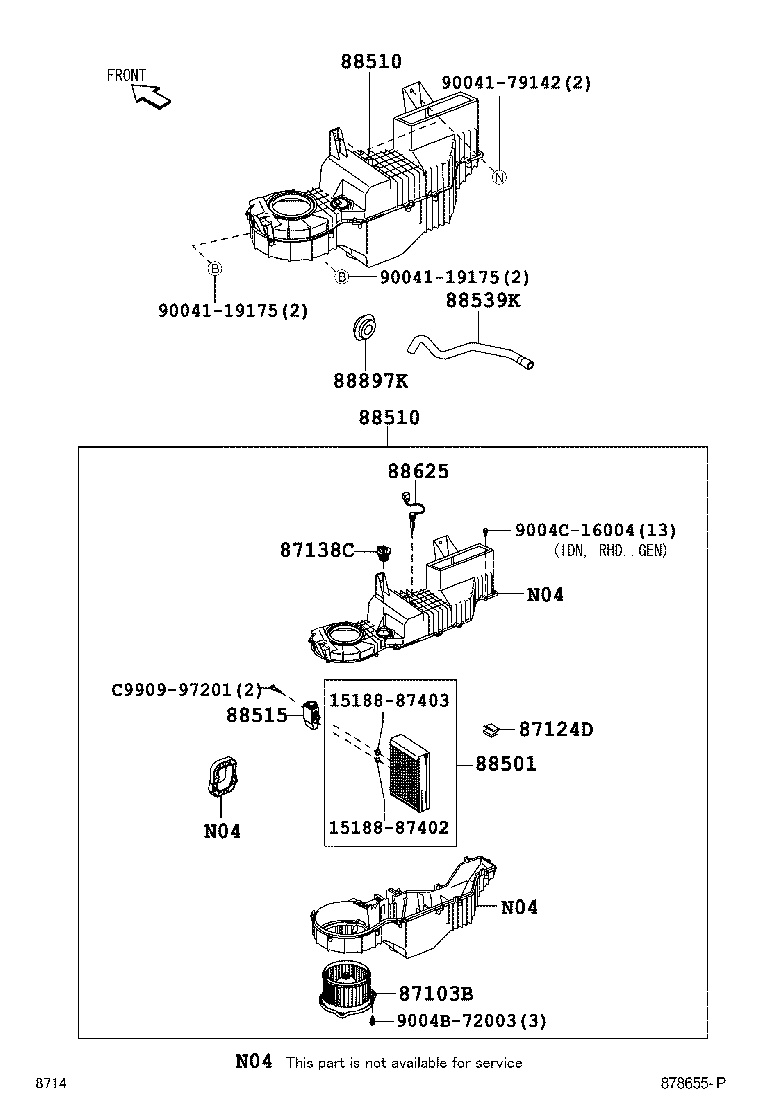

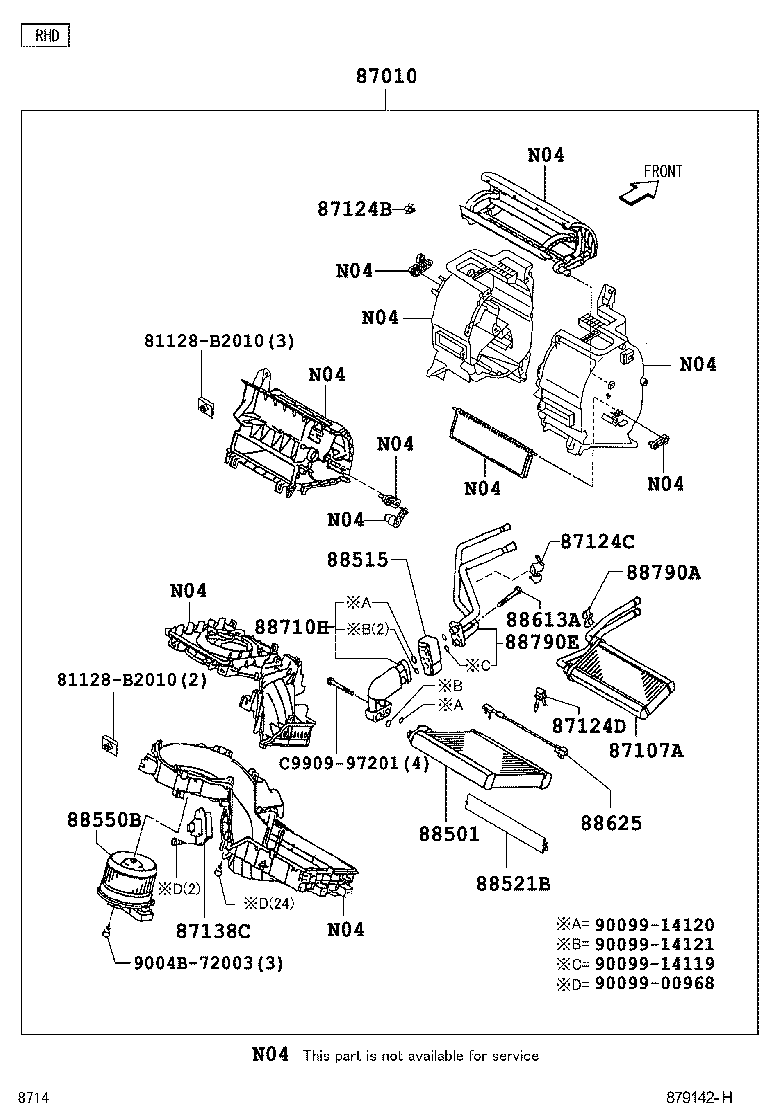

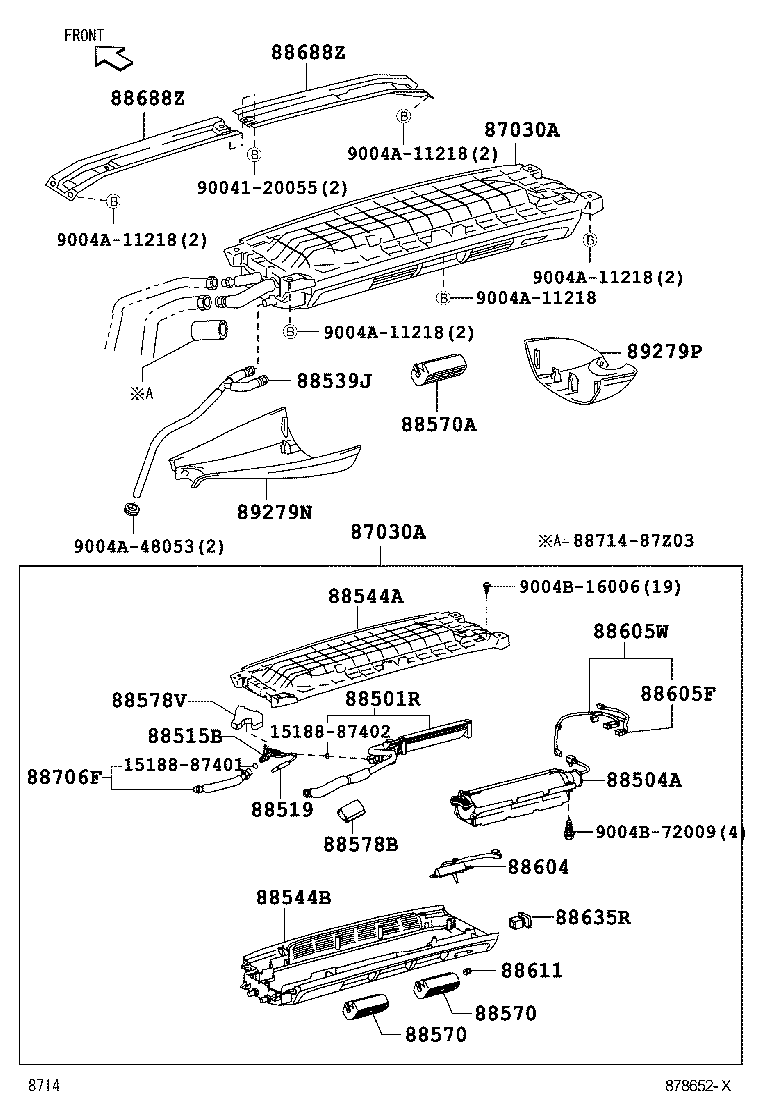

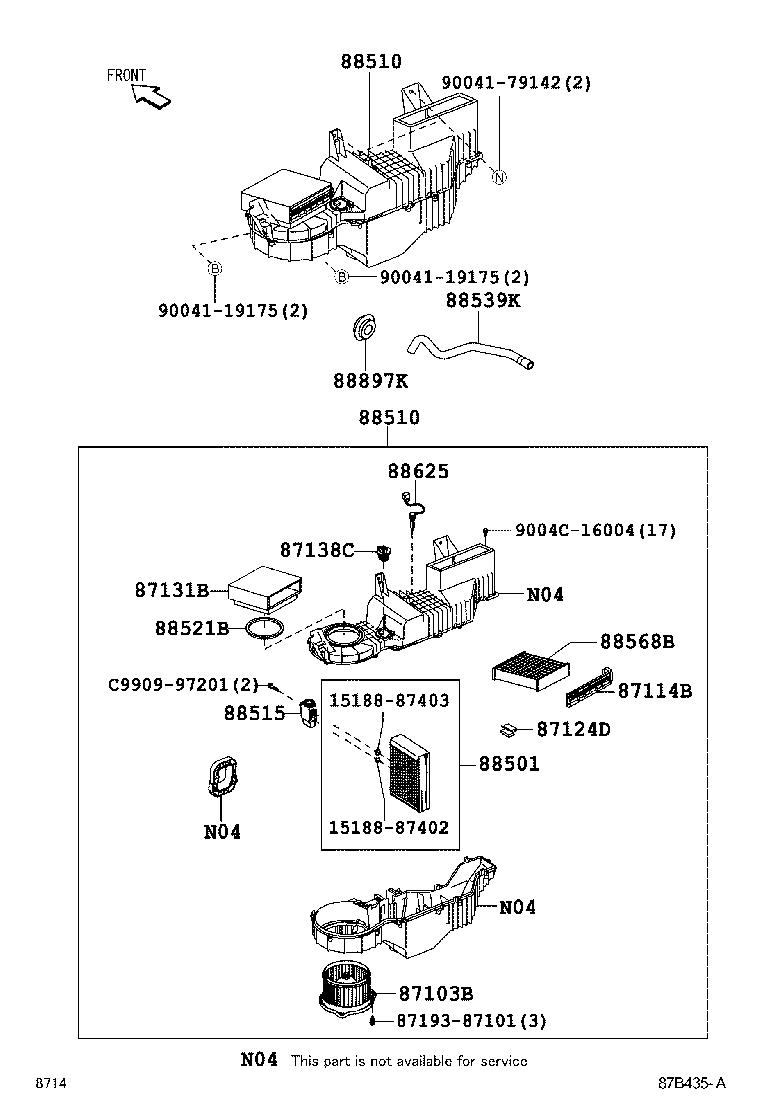

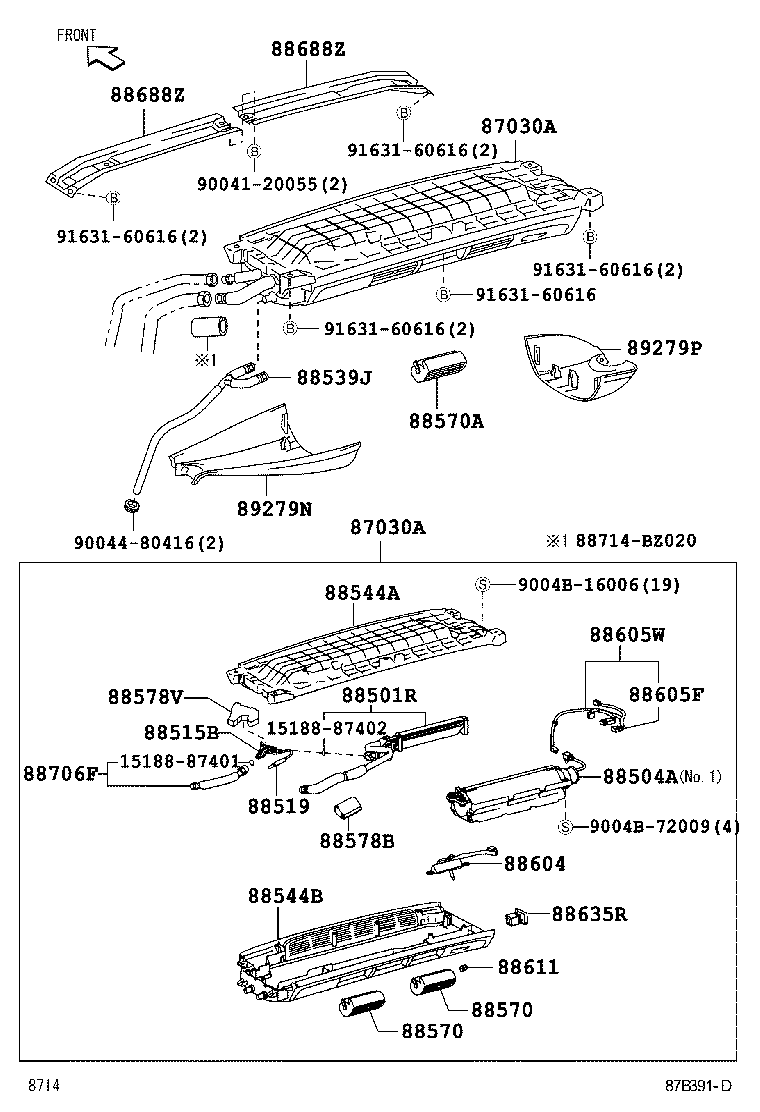

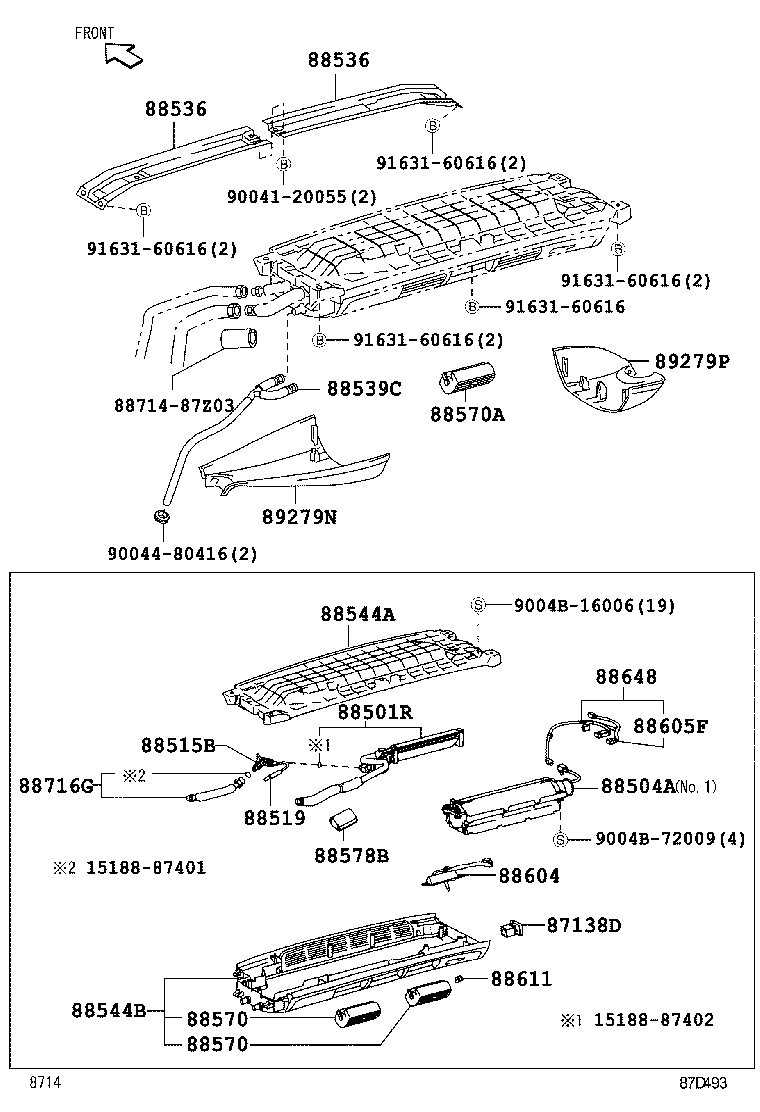

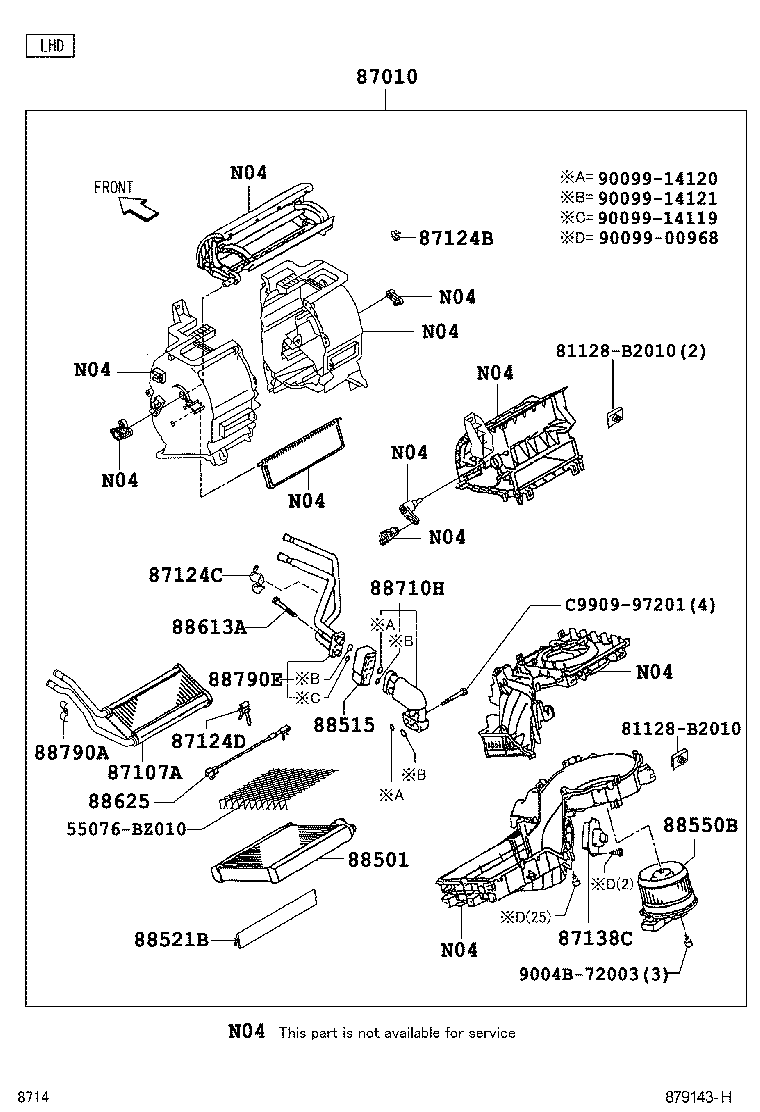

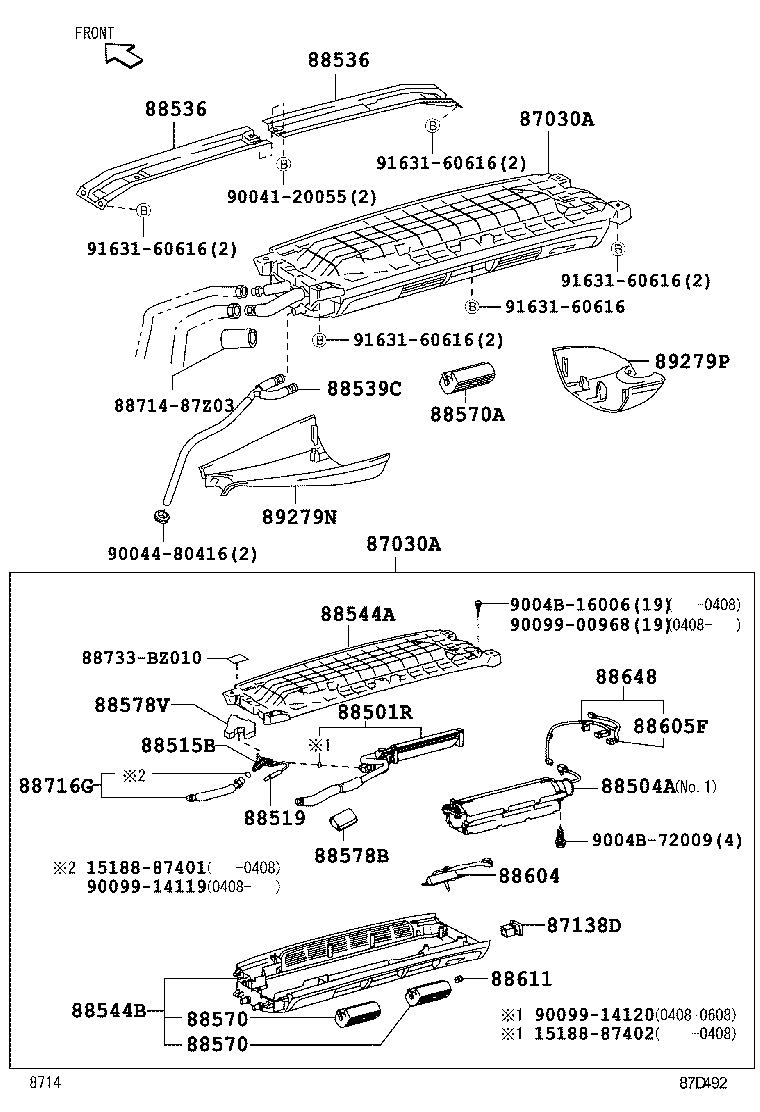

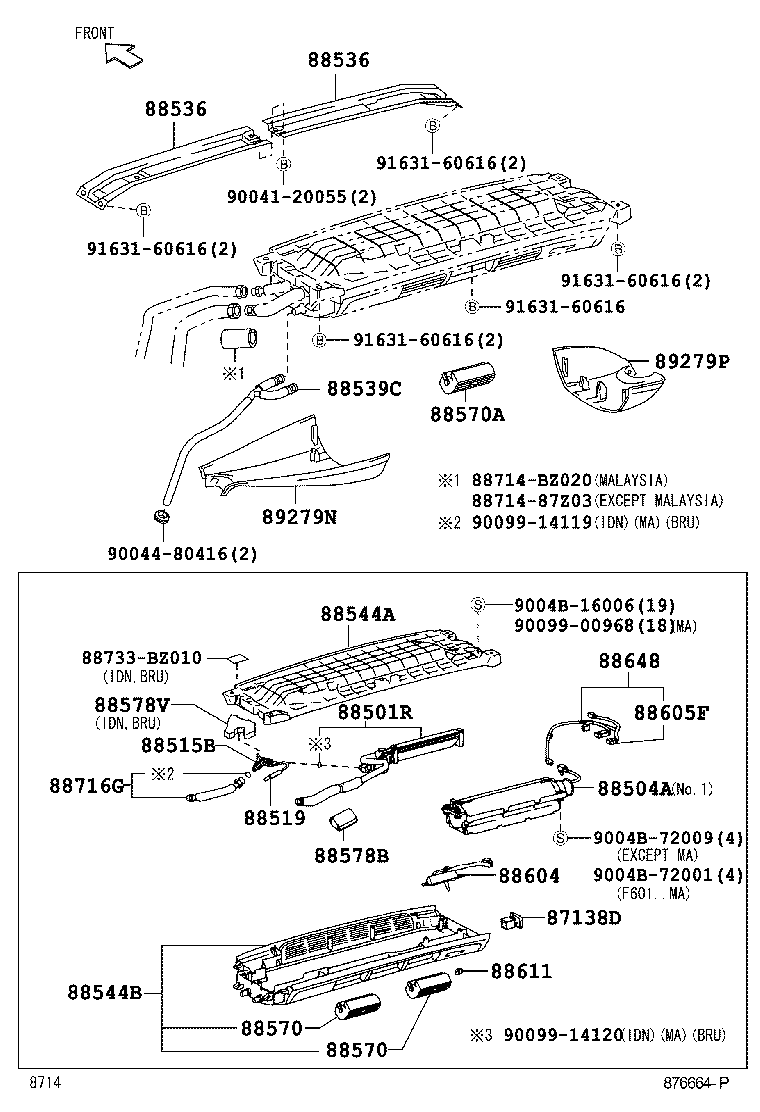

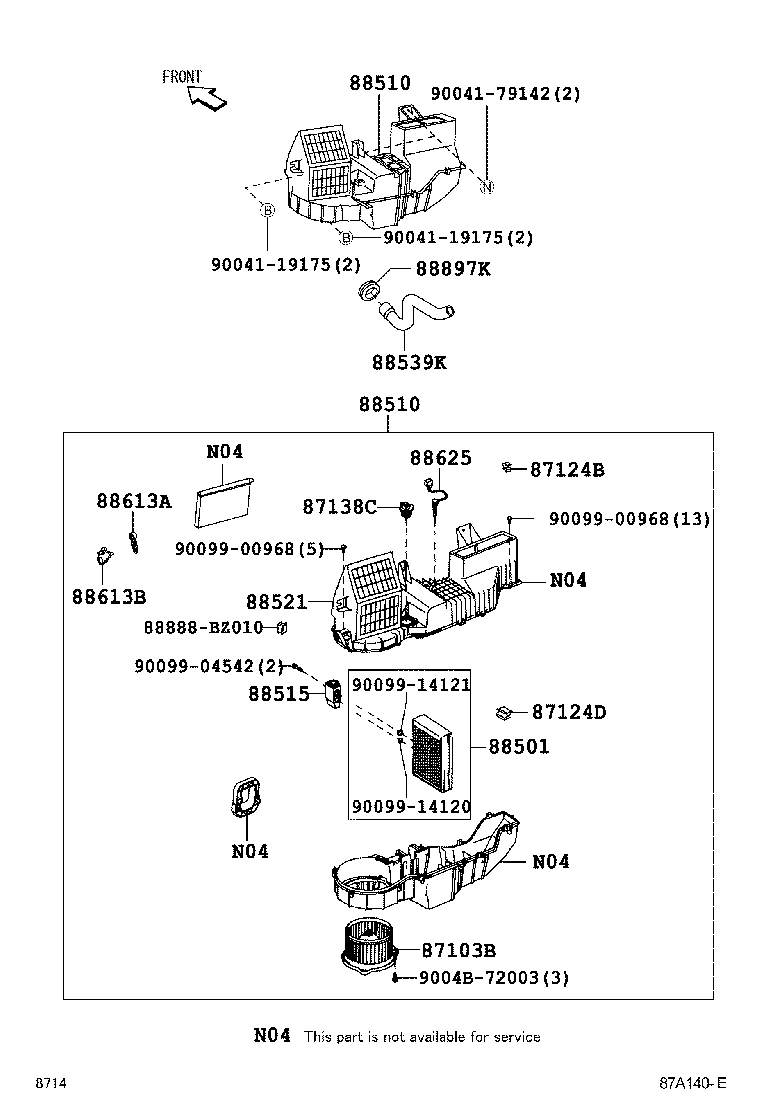

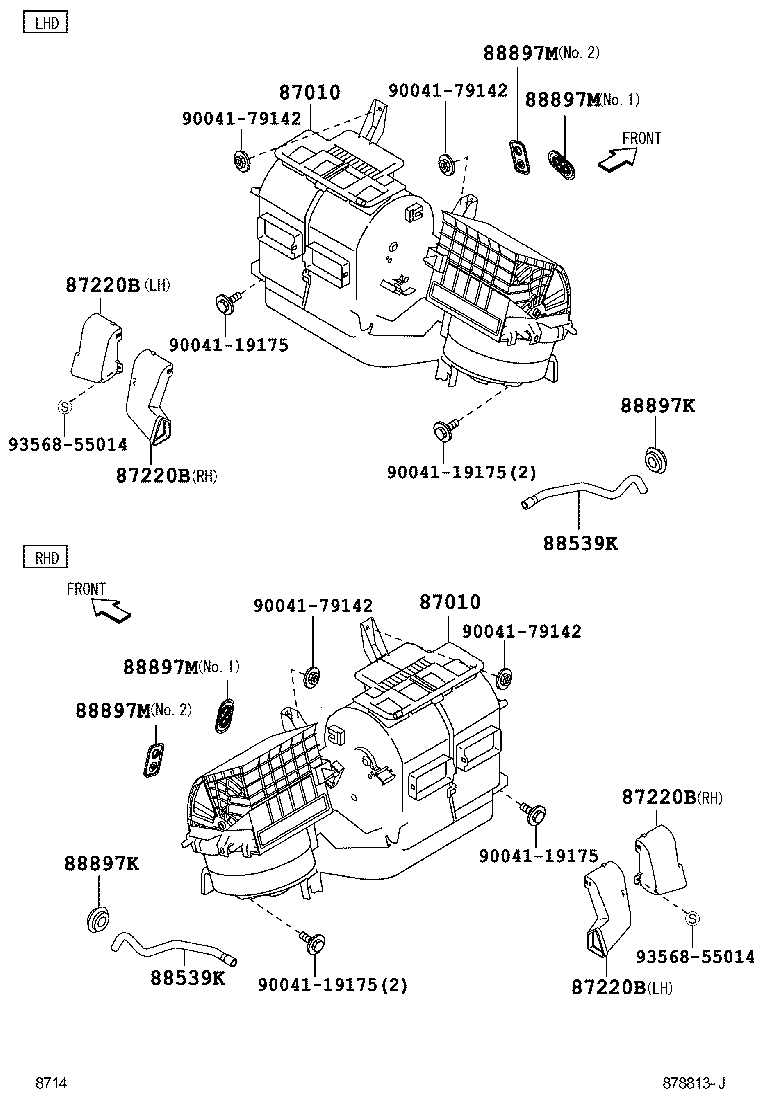

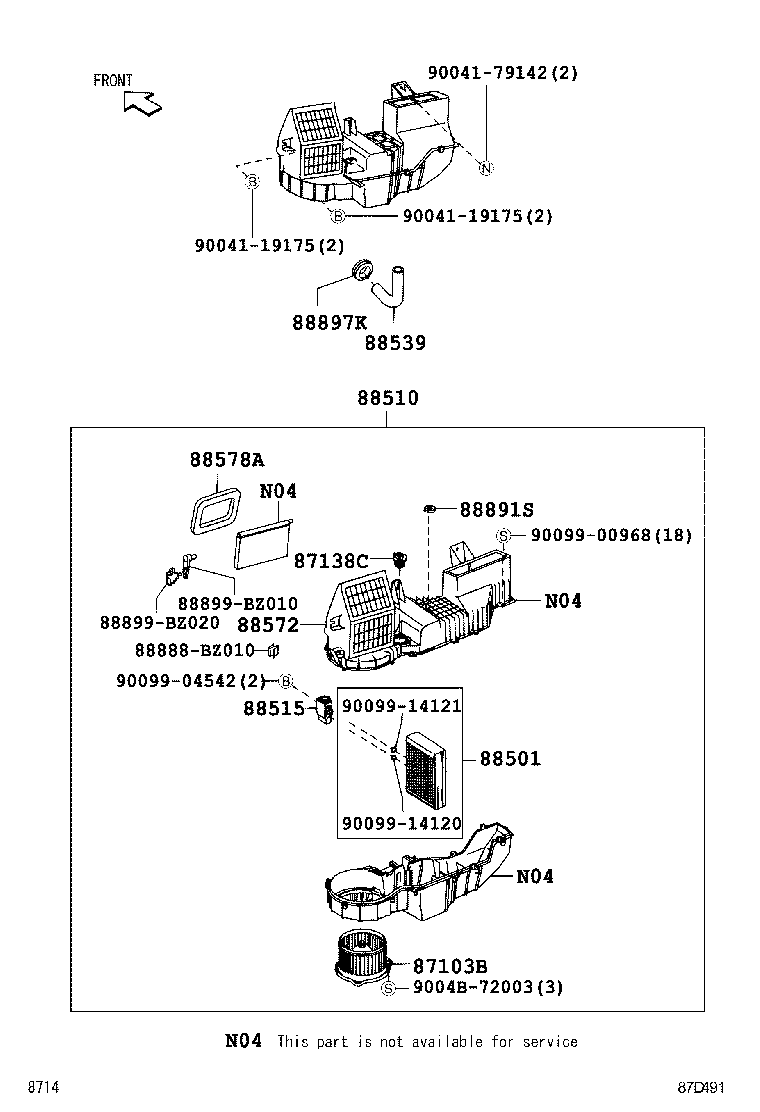

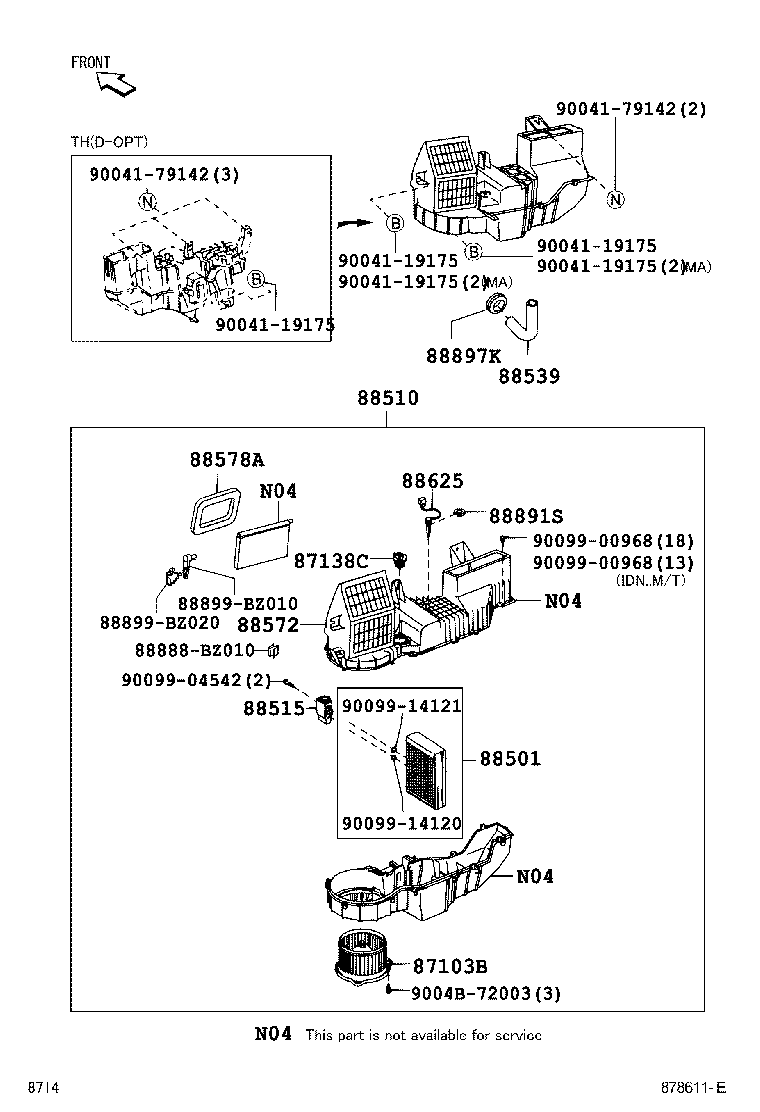

Figure 876663F 876663F 2003-12 → 2006-08 Figure 878611E 878611E 2004-04 → 2006-08 Figure 87D491 87D491 2004-04 → 2006-08 Figure 876664P 876664P 2003-12 → 2006-08 Figure 87D492 87D492 2004-04 → 2006-08 Figure 87D493 87D493 2003-12 → 2006-08 Figure 878655P 878655P 2006-08 → — Figure 87A140E 87A140E 2006-08 → — Figure 87A323B 87A323B 2006-08 → — Figure 87A322E 87A322E 2006-08 → — Figure 87B435A 87B435A 2006-08 → — Figure 878813J 878813J 2006-08 → — Figure 879142H 879142H 2006-08 → — Figure 879143H 879143H 2006-08 → — Figure 878652X 878652X 2006-08 → — Figure 87B391D 87B391D 2006-09 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87030A Unit Assy, Cooling, Rear
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87124B Clamp, Heater
87124C Clamp, Heater
87124D Clamp, Heater, NO.3
87131B Case, Heater Blower
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87220B Duct Assy, Air
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88504A Case Sub-assy, Blower
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88519 Holder, Remote Bulb
88521 Case, Cooler Unit
88521B Packing (FOR COOLER UNIT CASE)
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88550B Motor Assy, Blower
88568B Filter, Air
88570 Grille Sub-assy, Cooler Air Outlet
88570A Grille Assy, Air Outlet
88572 Case, Cooler Air Outlet
88578A Packing, Cooler Stabilizer Amplifier
88578B Packing, Cooling Unit, NO.1
88578V Packing, Cooling Unit, NO.3
88604 Panel Sub-assy, Cooler Control
88605F Fuse(FOR COOLER WIRING HARNESS)
88605W Harness Sub-assy, Wiring Air Conditioner
88611 Knob, Cooler Control Switch
88613A Lever, Cooler Control, NO.1
88613B Lever, Cooler Control, NO.2
88625 Thermistor, Cooler, NO.1
88635R Resistor, Blower
88648 Wiring, Cooler, NO.1
88688Z Bracket
88706F Tube Sub-assy, Liquid, F
88710H Tube & Accessory Assy, Air Conditioner
88716G Pipe, Cooler Refrigerant Liquid, G
88790A Sensor, Thermo
88790E Tube & Accessory Assy, Airconditioner
88891S Cover, Cooler, NO.1
88897K Grommet, (FOR COOLER PIPE)
88897M Grommet (FOR HEATER PIPE)
89279N Cover
89279P Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
