Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 6 illustrations

Illustrations

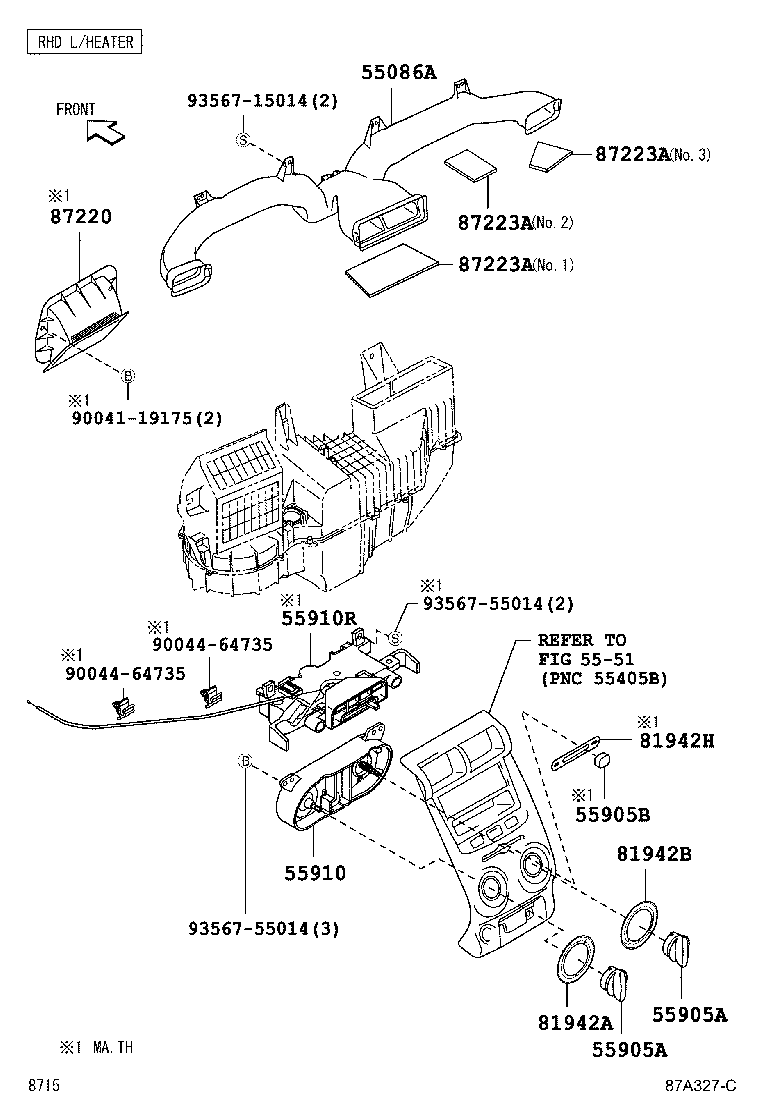

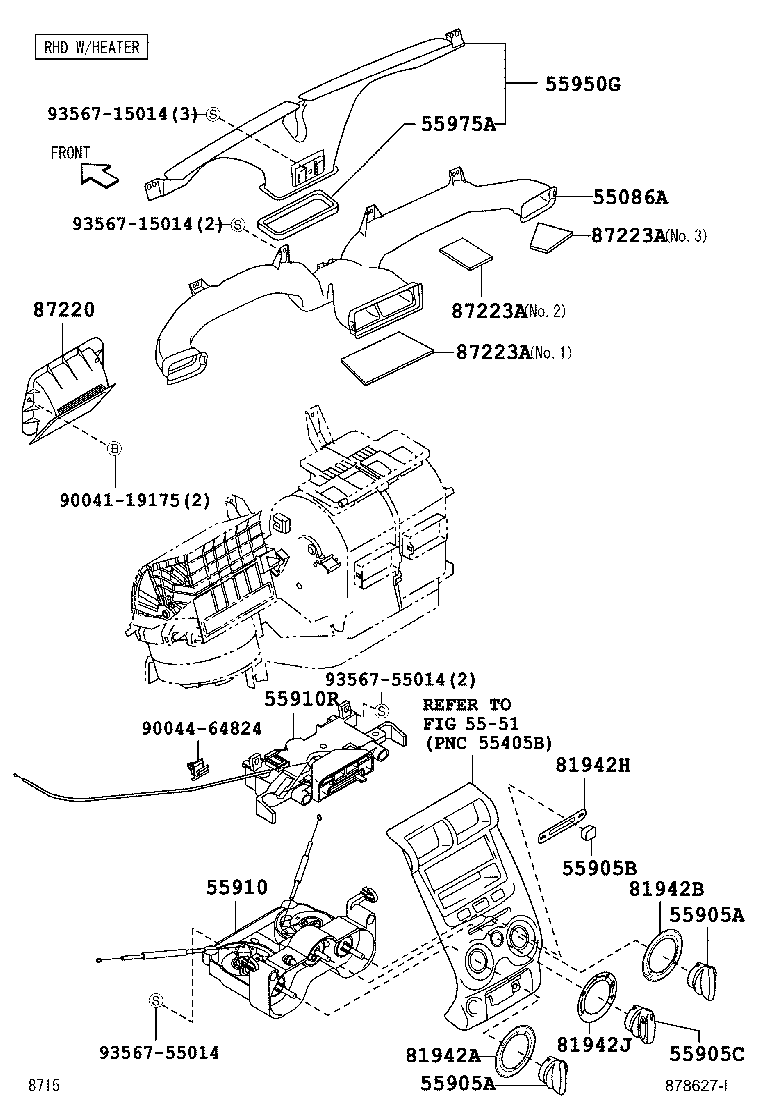

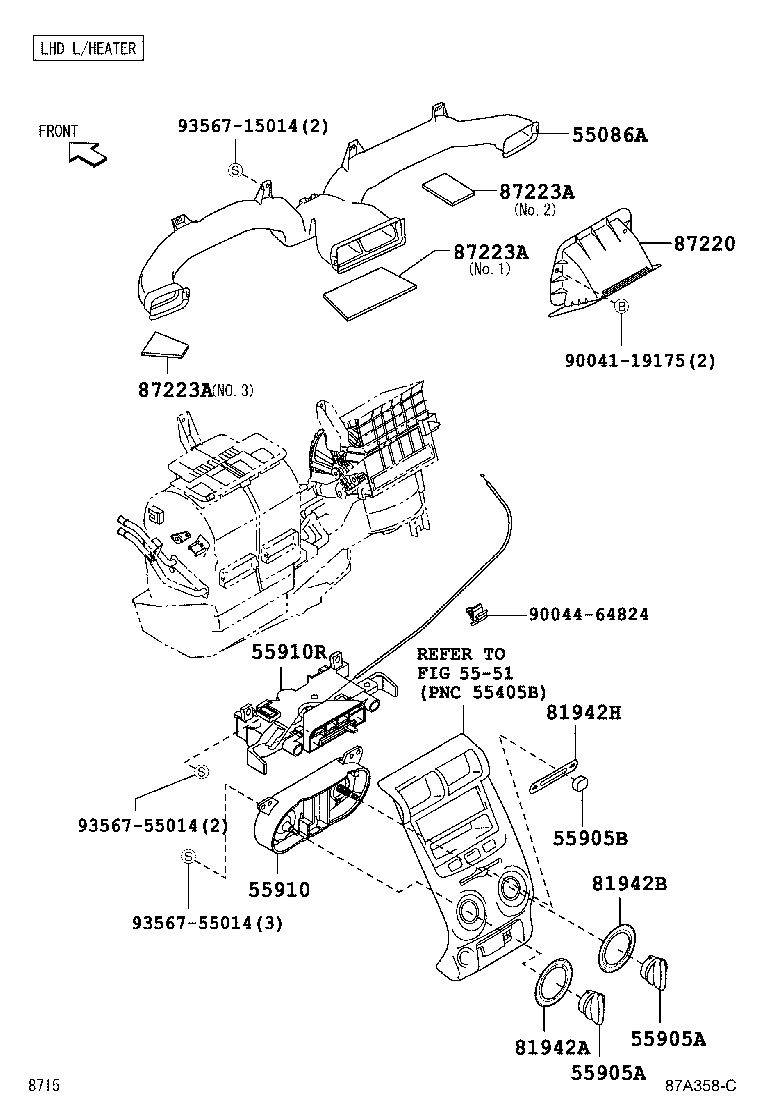

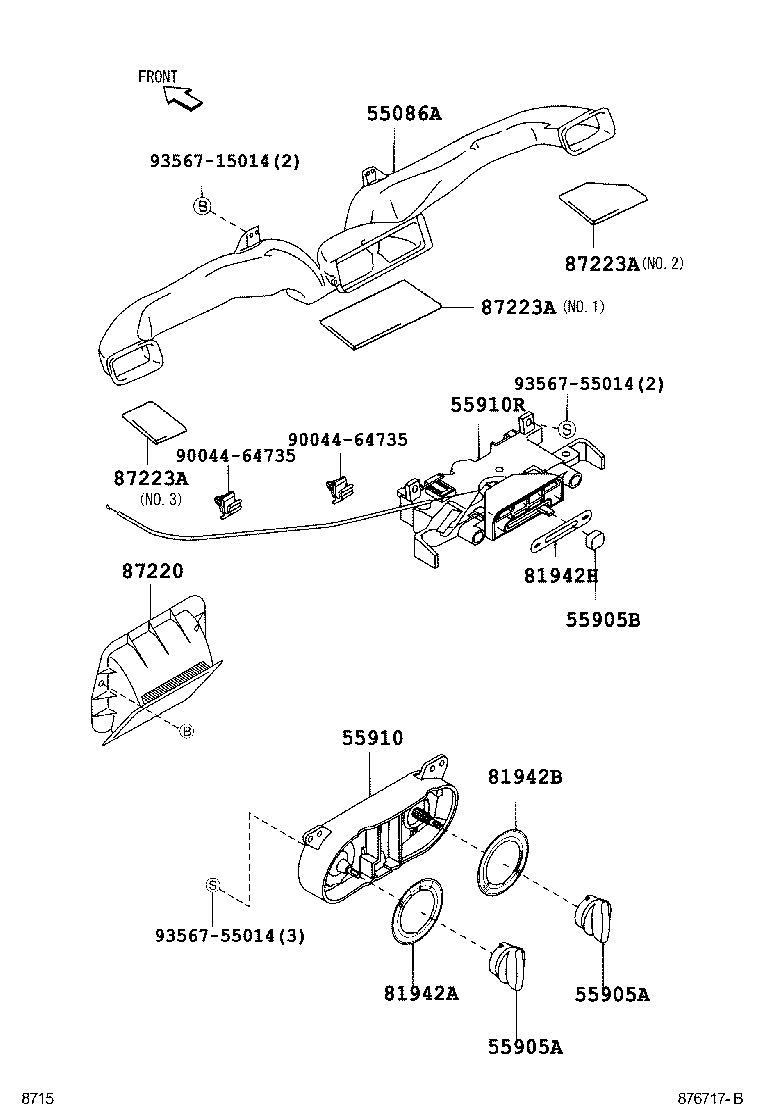

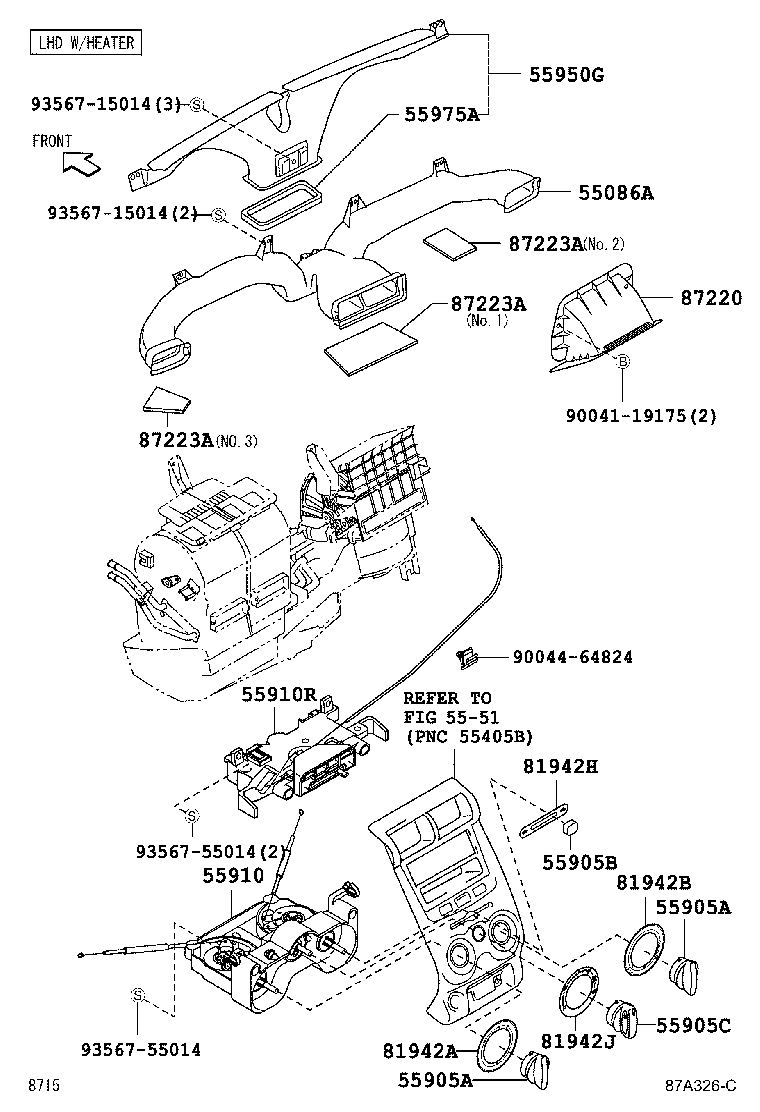

Figure 876653D 876653D 2003-12 → 2006-08 Figure 876717B 876717B 2004-04 → 2006-08 Figure 87A327C 87A327C 2006-08 → — Figure 878627I 878627I 2006-08 → — Figure 87A358C 87A358C 2006-10 → — Figure 87A326C 87A326C 2006-08 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55910 Control Assy, Heater OR Boost Ventilator
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55975A Seal, Defroster Nozzle, NO.1
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
87220 Duct Assy, Air
87223A Pad, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
