Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

31 part groups · 9 illustrations

Illustrations

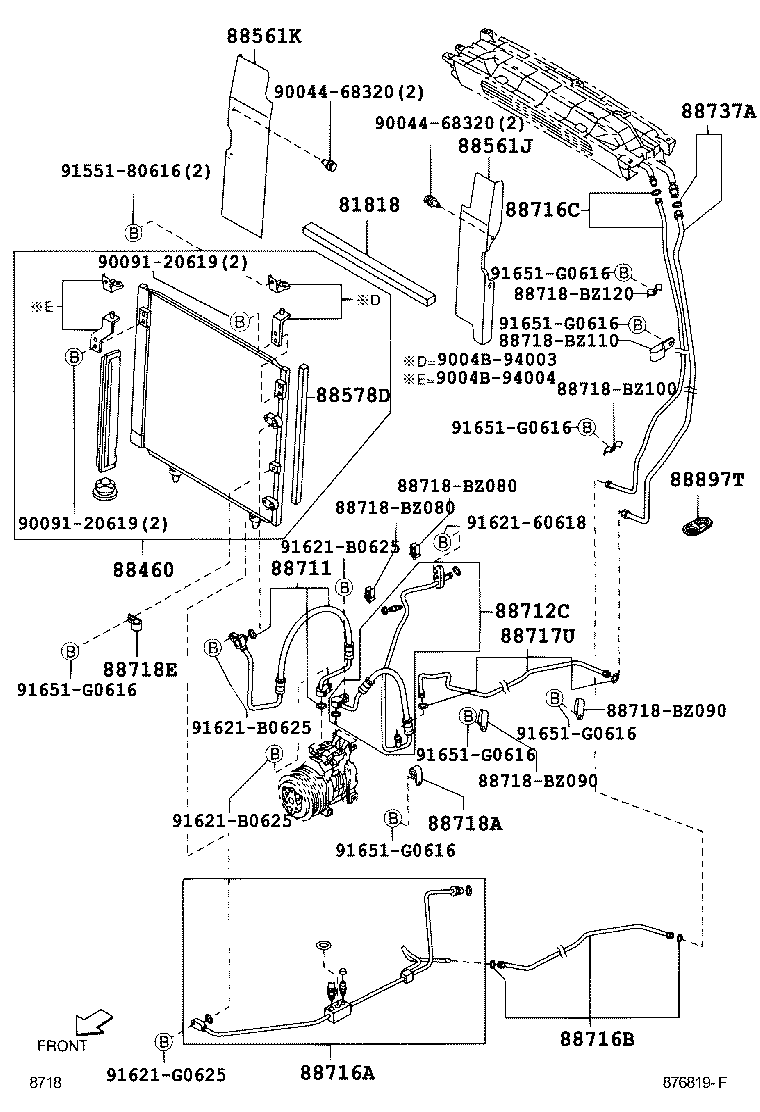

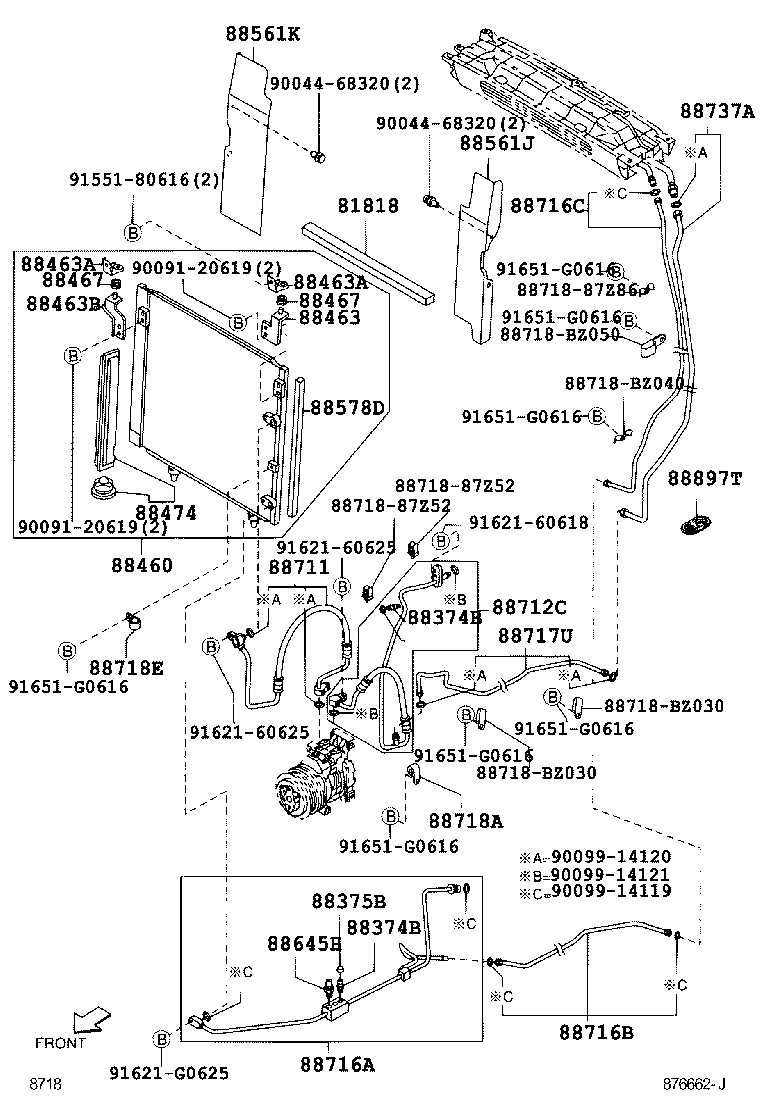

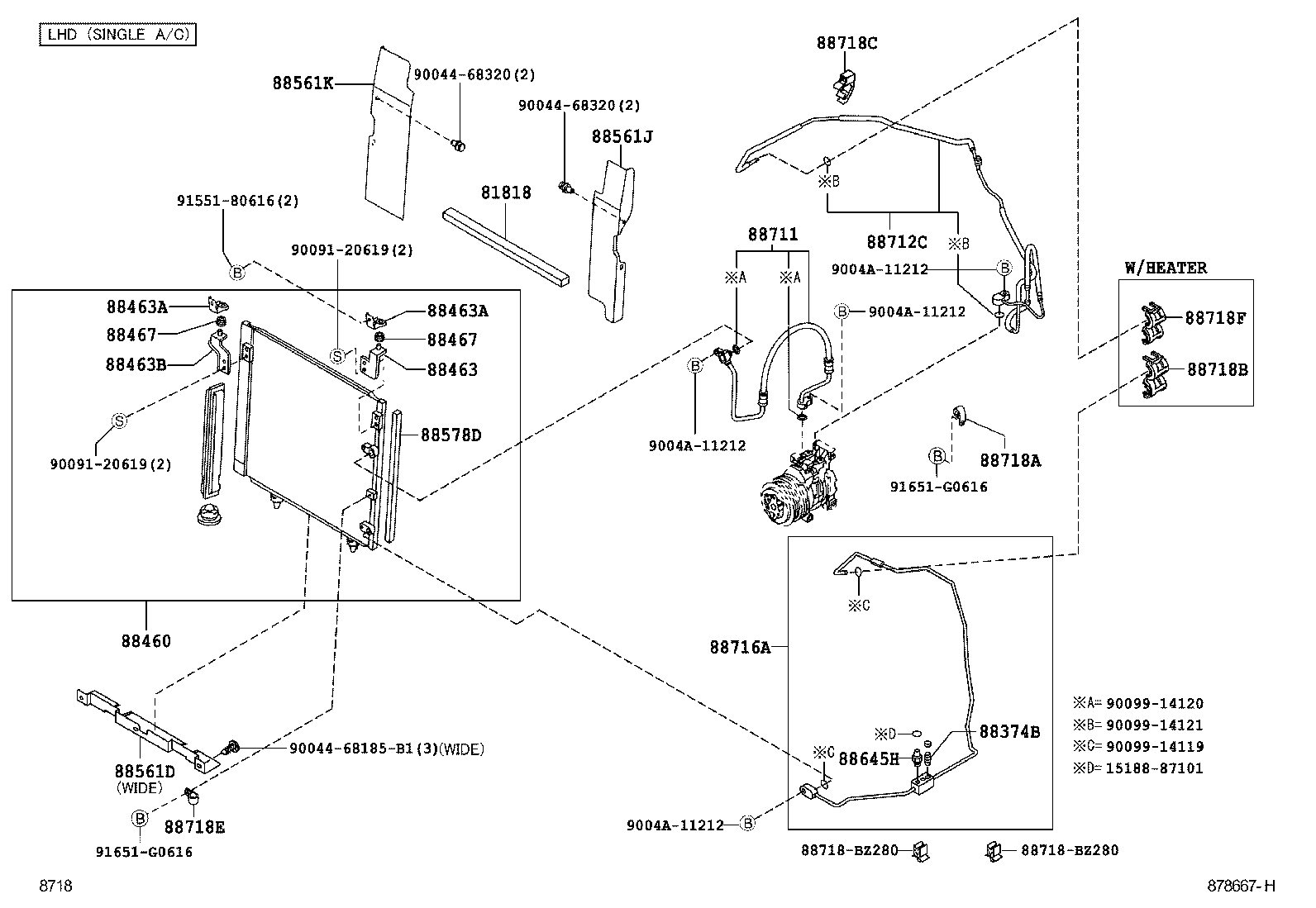

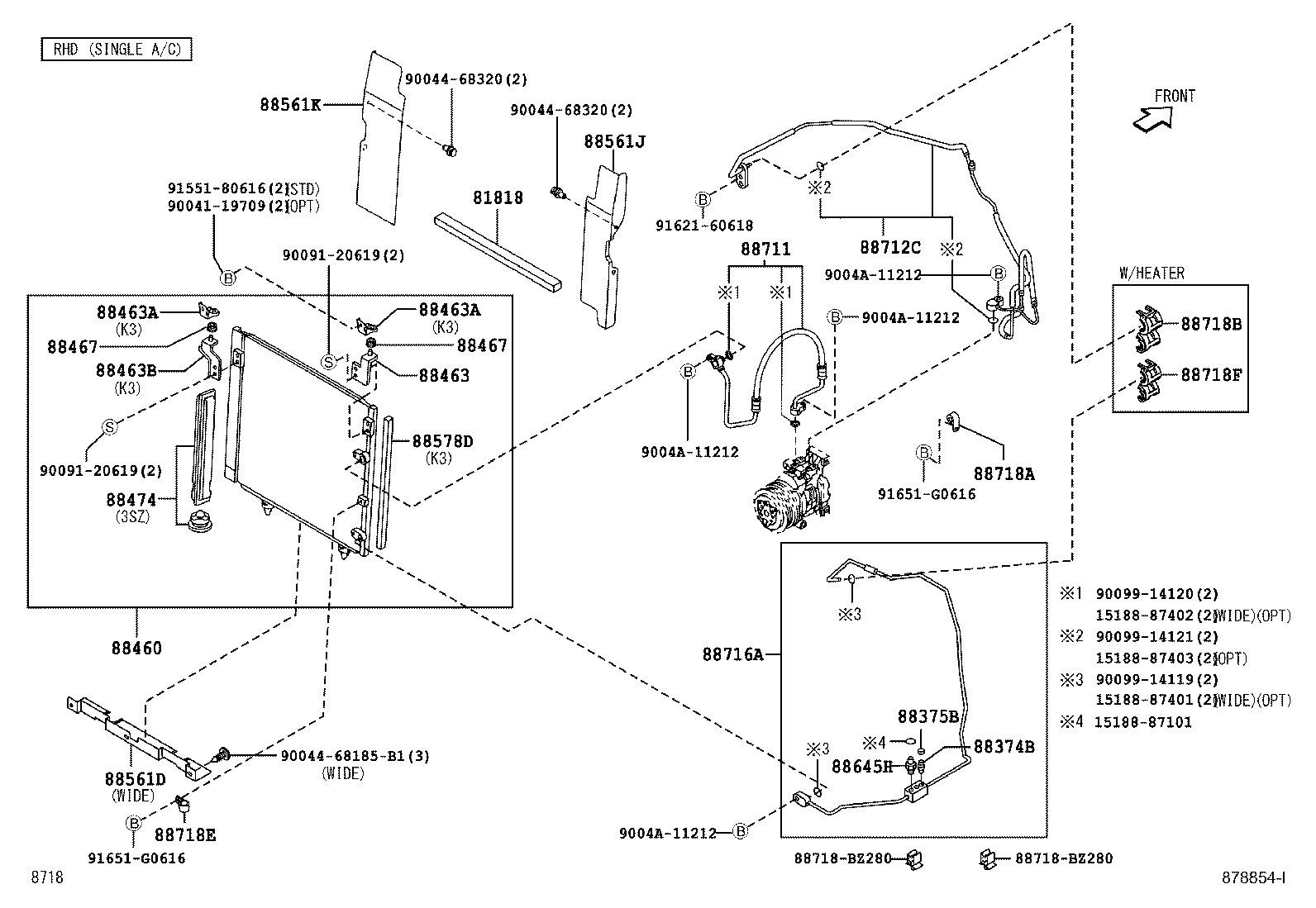

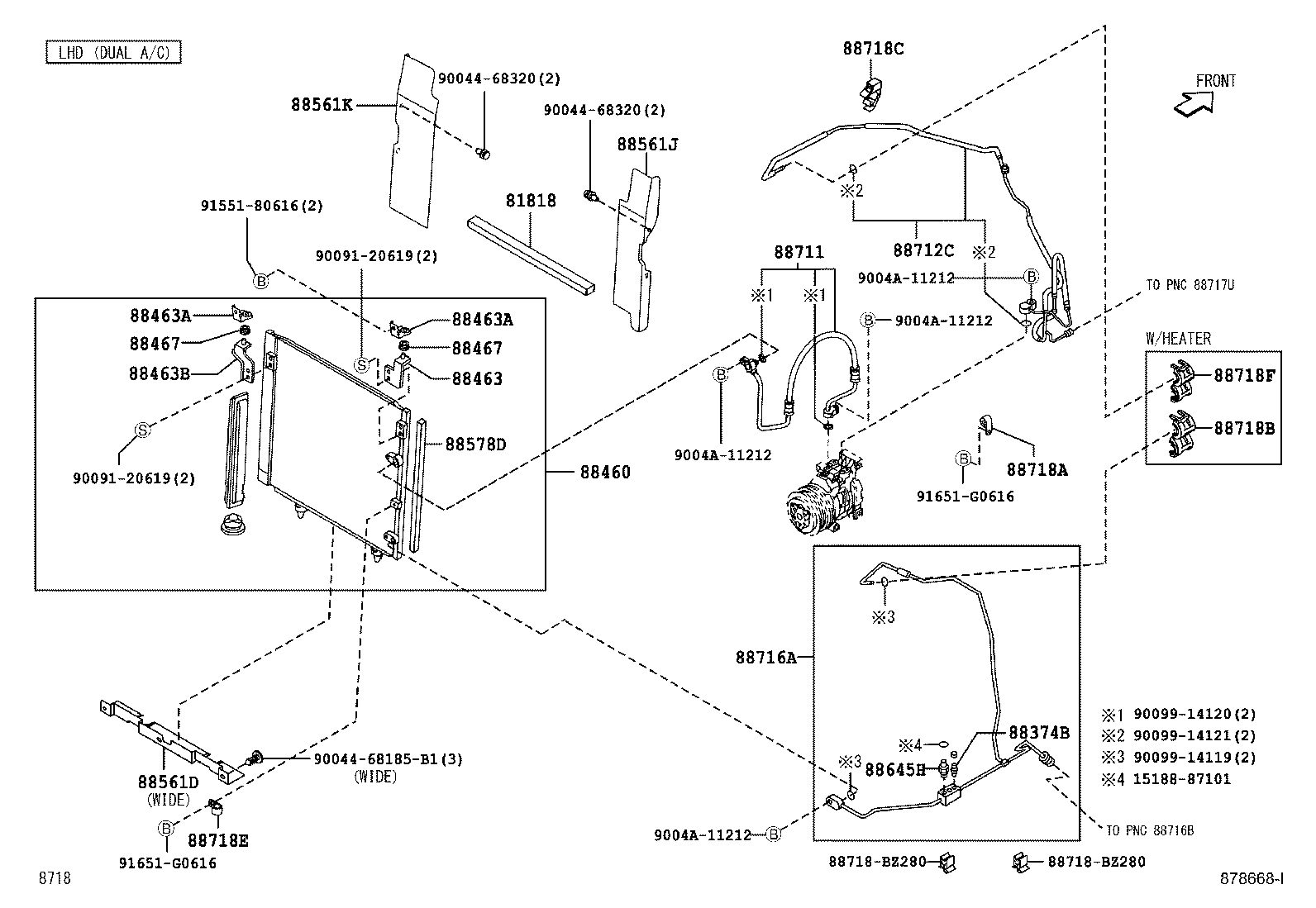

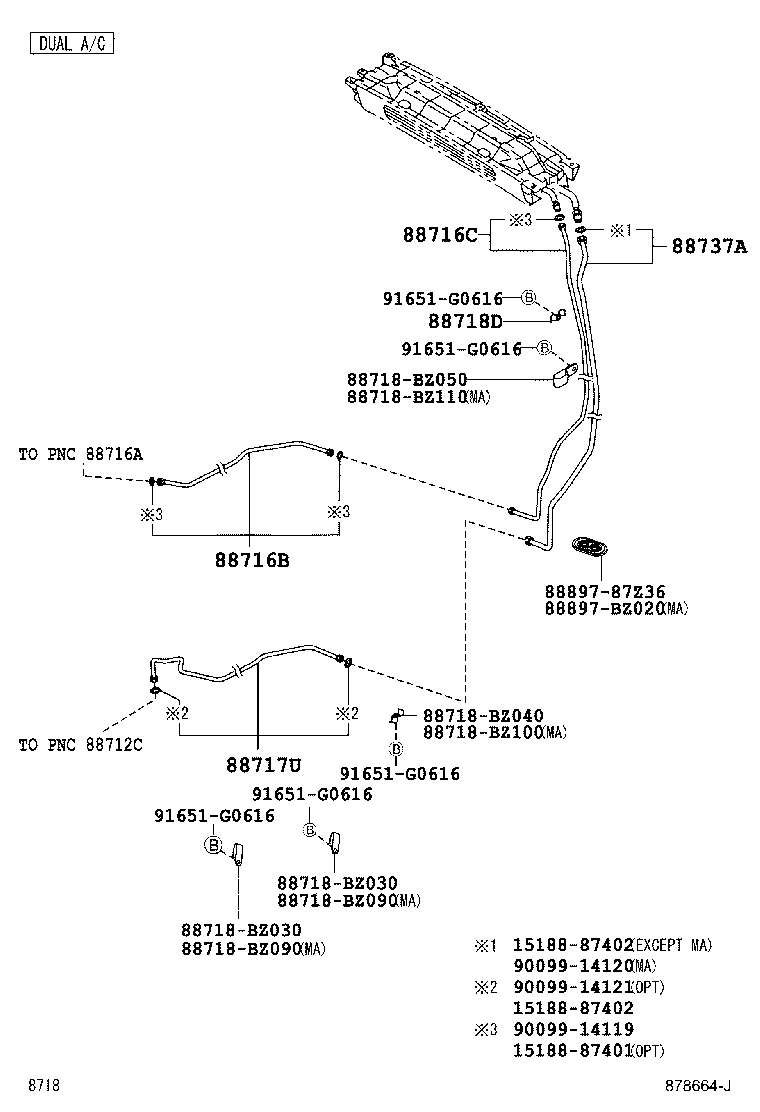

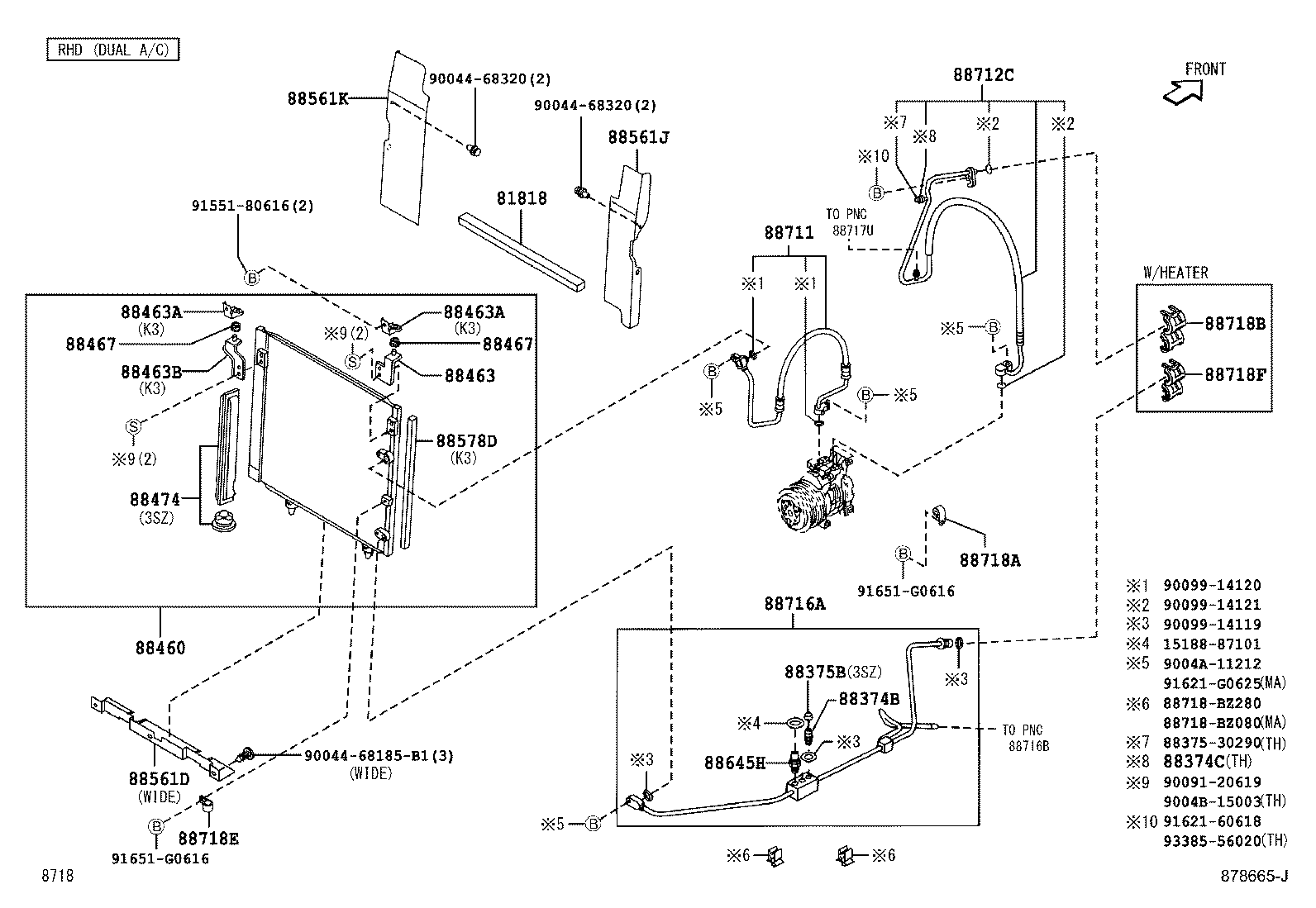

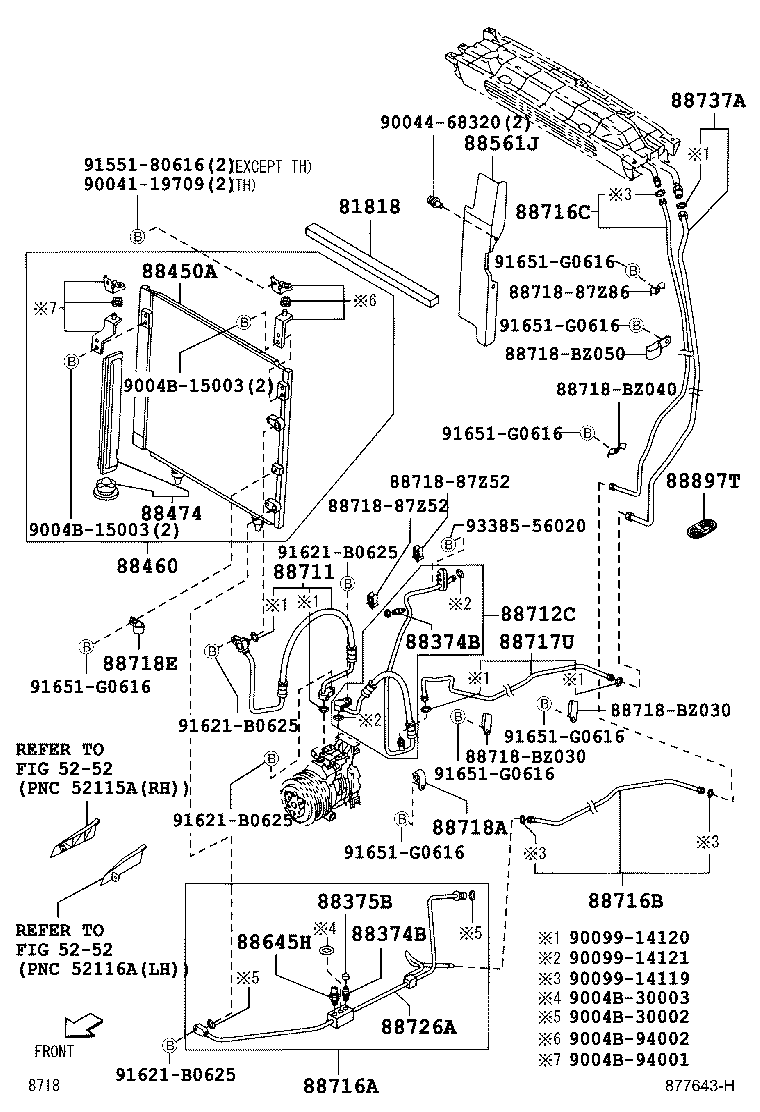

Figure 876814I 876814I 2003-12 → 2006-08 Figure 876662J 876662J 2003-12 → 2006-08 Figure 877643H 877643H 2004-04 → 2006-08 Figure 876819F 876819F 2004-10 → 2006-08 Figure 878854I 878854I 2006-08 → — Figure 878665J 878665J 2006-08 → — Figure 878667H 878667H 2006-08 → — Figure 878668I 878668I 2006-10 → — Figure 878664J 878664J 2006-08 → —

Part groups

PNCDescription
81818 Packing
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88450A Sub Condenser Assy
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88561D Grille, Air Inlet NO.3
88561J Grille, Air Inlet NO.1
88561K Grille, Air Inlet NO.2
88578D Packing, Cooler Pipe, NO.1
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717U Tube, Suction, NO.1
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88726A Pipe, Cooler Refrigerant Liquid, A
88737A Tube, Suction, A(FOR COOL BOX)
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
