Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

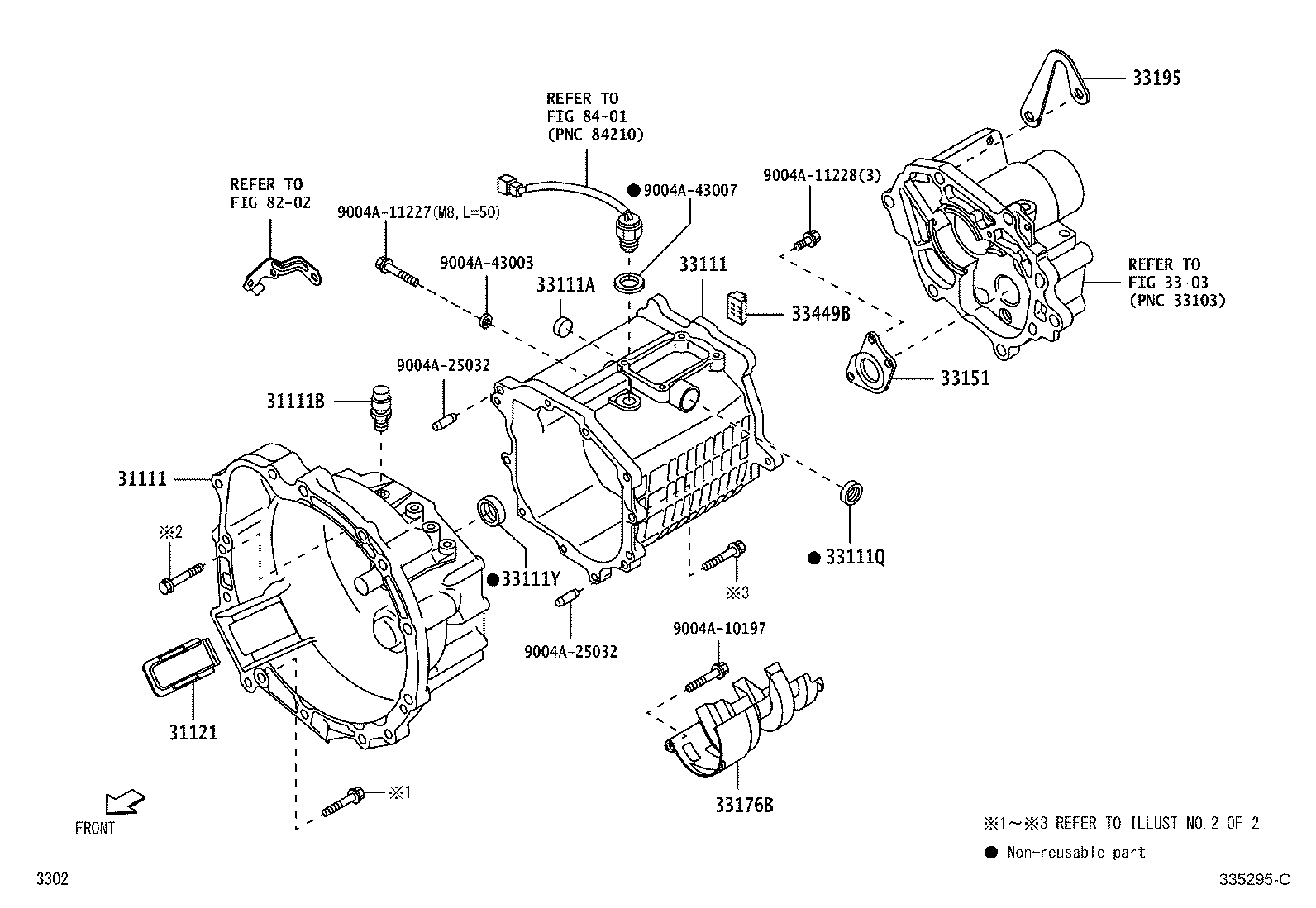

Exploded illustration 335295C 31111 — HOUSING, CLUTCH (14 parts) 31121 — COVER, CLUTCH HOUSING, NO.1 (6 parts) 9004A11228 — not listed in this catalogue 31111B — PLUG(FOR CLUTCH HOUSING) (7 parts) 33111 — CASE, MANUAL TRANSMISSION (7 parts) 33111Y — SEAL, OIL(FOR TRANSMISSION CASE) (7 parts) 33195 — HANGER, TRANSMISSION CASE, NO.1 (5 parts) 33151 — RETAINER, OUTPUT SHAFT REAR BEARING(MTM) (7 parts) 33449B — MAGNET, TRANSMISSION (8 parts) 9004A10197 — not listed in this catalogue 9004A25032 — not listed in this catalogue 9004A25032 — not listed in this catalogue 9004A43007 — not listed in this catalogue 33111Q — SEAL, OIL(FOR TRANSMISSION CASE) (7 parts) 33176B — SEPARATOR, TRANSMISSION OIL(MTM) (5 parts) 33111A — PLUG, MANUAL TRANSMISSION CASE (7 parts) 9004A11227 — not listed in this catalogue 9004A43003 — not listed in this catalogue 8401 — not listed in this catalogue 3303 — not listed in this catalogue 8202 — not listed in this catalogue
335295C · 11 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
31111 — Housing, Clutch
31111-BZ010 Housing, Clutch
2011-11 → 2015-07 ended
F651 5F IDN —
31111-BZ010 Housing, Clutch
2011-11 → 2015-08 ended
F651 5F (GEN,MA,PHL,SA) —
31111-BZ020 Housing, Clutch
2011-11 → 2015-07 ended
F652 5F IDN —
31111-BZ020 Housing, Clutch
2011-11 → 2015-08 ended
F652 5F (GCC,MXC,PHL,SA,TH) —
31111-BZ040 Housing, Clutch
2015-07 → 2019-01 ended
F653 5F (IDN,MA) —
31111-BZ040 Housing, Clutch
2015-07 → 2019-04 ended
F653 5F (GEN,PHL,SA) —
31111-BZ050 Housing, Clutch
2015-07 → 2019-01 ended
F654 5F (IDN,TH) —
31111-BZ050 Housing, Clutch
2015-07 → 2019-04 ended
F654 5F (GCC,GEN,MXC,PHL,SA) —
31111-BZ040 Housing, Clutch
2019-01 → 2021-10 ended
F653 5F (MID,SPO) —
31111-BZ040 Housing, Clutch
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +1 —
31111-BZ040 Housing, Clutch
2019-01 → —
F653 LO GEN;F653 5F +2 —
31111-BZ050 Housing, Clutch
2019-01 → 2021-10 ended
F654 5F IDN —
31111-BZ050 Housing, Clutch
2019-01 → 2021-12 ended
F654 5F (GCC,GEN,PHL,SA) —
31111-BZ050 Housing, Clutch
2019-01 → —
F654 5F MXC —
31111B — Plug(FOR CLUTCH HOUSING)
9004A-93003 Plug(FOR CLUTCH HOUSING)
2011-11 → 2015-07 ended
F65# 5F IDN —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
9004A-93003 Plug(FOR CLUTCH HOUSING)
2019-01 → —
F653 5F STD IDN;F65# +3 —
31121 — Cover, Clutch Housing, NO.1
31121-BZ010 Cover, Clutch Housing, NO.1
2011-11 → 2015-07 ended
F651 5F IDN —
31121-BZ010 Cover, Clutch Housing, NO.1
2011-11 → 2015-08 ended
F651 5F (GEN,MA,PHL,SA) —
31121-BZ010 Cover, Clutch Housing, NO.1
2015-07 → 2019-01 ended
F653 5F (IDN,MA) —
31121-BZ010 Cover, Clutch Housing, NO.1
2015-07 → 2019-04 ended
F653 5F (GEN,PHL,SA) —
31121-BZ010 Cover, Clutch Housing, NO.1
2019-01 → 2021-10 ended
F653 5F (MID,SPO) —
31121-BZ010 Cover, Clutch Housing, NO.1
2019-01 → —
F653 5F (LO,STD,VB) (GEN,IDN,PHL,SA) —
33111 — Case, Manual Transmission
33111-BZ020 Case, Manual Transmission
2011-11 → 2015-07 ended
F65# 5F IDN —
33111-BZ020 Case, Manual Transmission
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
33111-BZ090 Case, Manual Transmission
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
33111-BZ090 Case, Manual Transmission
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
33111-BZ090 Case, Manual Transmission
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
33111-BZ090 Case, Manual Transmission
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33111-BZ090 Case, Manual Transmission
2019-01 → —
F653 5F STD IDN;F65# +3 —
33111A — Plug, Manual Transmission Case
9004A-33016 Plug, Manual Transmission Case
2011-11 → 2015-07 ended
F65# 5F IDN —
9004A-33016 Plug, Manual Transmission Case
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
9004A-33016 Plug, Manual Transmission Case
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
9004A-33016 Plug, Manual Transmission Case
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
9004A-33016 Plug, Manual Transmission Case
2019-01 → —
F653 5F STD IDN;F65# +3 —
9004A-33016 Plug, Manual Transmission Case
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
9004A-33016 Plug, Manual Transmission Case
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33111Q — Seal, Oil(FOR TRANSMISSION CASE)
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2011-11 → 2015-07 ended
F65# 5F IDN —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
9004A-31015 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → —
F653 5F STD IDN;F65# +3 —
33111Y — Seal, Oil(FOR TRANSMISSION CASE)
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2011-11 → 2015-07 ended
F65# 5F IDN —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
9004A-31013 Seal, Oil(FOR TRANSMISSION CASE)
2019-01 → —
F653 5F STD IDN;F65# +3 —
33151 — Retainer, Output Shaft Rear Bearing(MTM)
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2011-11 → 2015-07 ended
F65# 5F IDN —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2019-01 → —
F653 5F STD IDN;F65# +3 —
33151-BZ010 Retainer, Output Shaft Rear Bearing(MTM)
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33176B — Separator, Transmission Oil(MTM)
33176-BZ010 Separator, Transmission Oil(MTM)
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
33176-BZ010 Separator, Transmission Oil(MTM)
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
33176-BZ010 Separator, Transmission Oil(MTM)
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
33176-BZ010 Separator, Transmission Oil(MTM)
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33176-BZ010 Separator, Transmission Oil(MTM)
2019-01 → —
F653 5F STD IDN;F65# +3 —
33195 — Hanger, Transmission Case, NO.1
33195-BZ010 Hanger, Transmission Case, NO.1
2015-07 → 2019-01 ended
F653,654 5F (IDN,MA,TH) —
33195-BZ010 Hanger, Transmission Case, NO.1
2015-07 → 2019-04 ended
F653,654 5F (GCC,GEN,MXC,PHL,SA) —
33195-BZ010 Hanger, Transmission Case, NO.1
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33195-BZ010 Hanger, Transmission Case, NO.1
2019-01 → —
F653 5F STD IDN;F65# +3 —
33195-BZ010 Hanger, Transmission Case, NO.1
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
33449B — Magnet, Transmission
33449-BZ010 Magnet, Transmission
2011-11 → 2015-07 ended
F65# 5F IDN —
33449-BZ010 Magnet, Transmission
2011-11 → 2015-08 ended
F651,652 5F (GCC,GEN,MA,MXC,PHL,SA,TH) —
33449-BZ010 Magnet, Transmission
2015-07 → 2015-12 ended
F653,654 5F —
33449-BZ060 Magnet, Transmission
2016-01 → 2019-01 ended
F65# 5F (IDN,MA,TH) —
33449-BZ060 Magnet, Transmission
2016-01 → 2019-04 ended
F65# 5F (GCC,GEN,MXC,PHL,SA) —
33449-BZ060 Magnet, Transmission
2019-01 → 2021-10 ended
F65# 5F (MID,SPO) IDN —
33449-BZ060 Magnet, Transmission
2019-01 → 2021-12 ended
F653 STD GEN;F653 5F +3 —
33449-BZ060 Magnet, Transmission
2019-01 → —
F653 5F STD IDN;F65# +3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
