Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

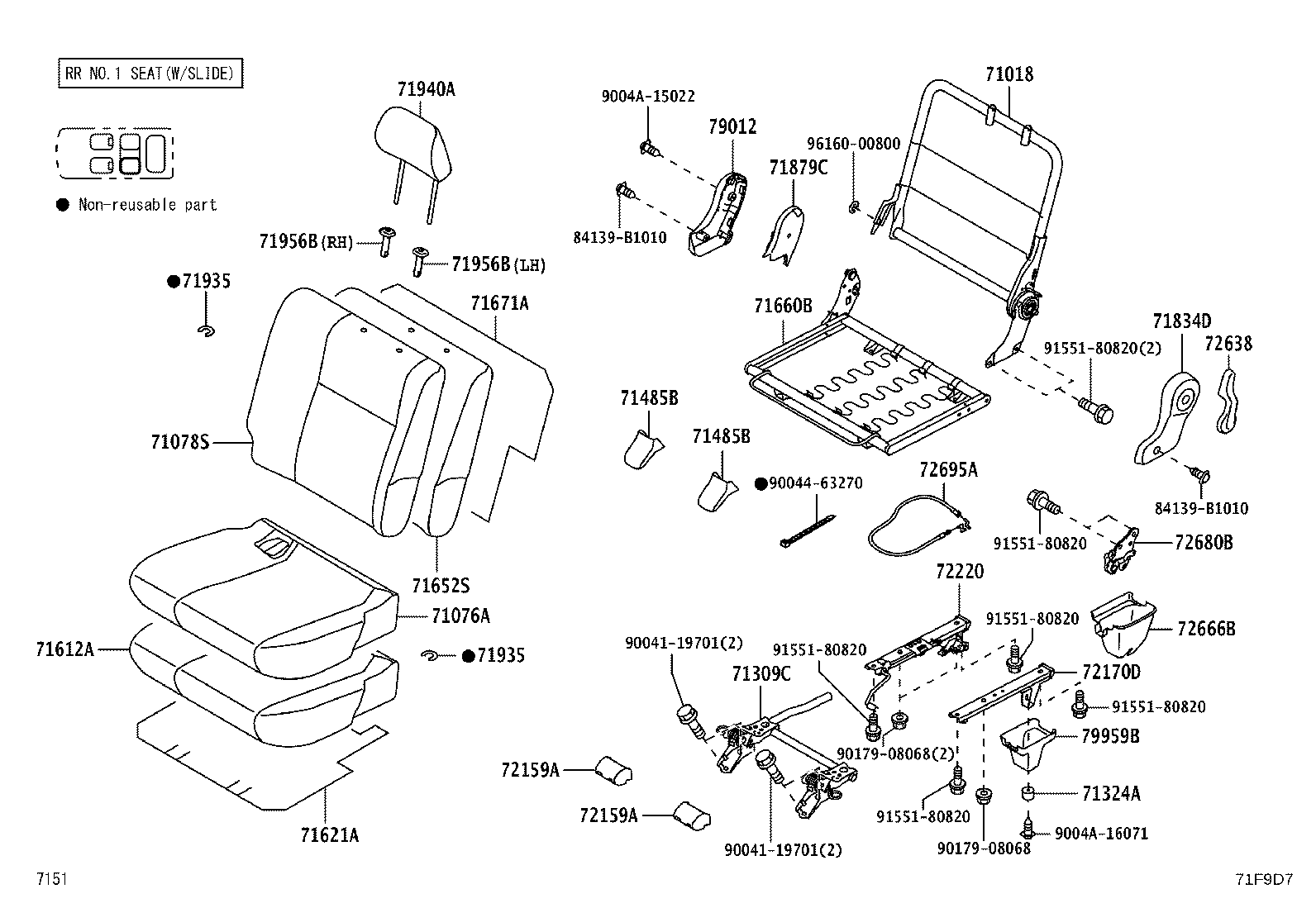

Exploded illustration 71F9D7 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (10 parts) 71076A — COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH (40 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (39 parts) 71485B — COVER, REAR SEAT HINGE (14 parts) 71485B — COVER, REAR SEAT HINGE (14 parts) 71612A — PAD, REAR SEAT CUSHION, LH (13 parts) 71621A — PAD, REAR SEAT CUSHION SILENCER, A (10 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (11 parts) 71660B — SPRING ASSY, REAR SEAT CUSHION, LH (15 parts) 71671A — PAD, REAR SEATBACK SILENCER, A (10 parts) 71834D — COVER, REAR SEAT RECLINING, LH (18 parts) 71879C — COVER, REAR SEAT RECLINING, INNER LH (18 parts) 72638 — HANDLE, REAR SEAT LOCK, LH (18 parts) 72680B — LOCK ASSY, REAR SEAT CUSHION, LH (15 parts) 72666B — COVER, REAR SEAT LOCK, LH (7 parts) 72695A — CABLE, REAR SEAT LOCK CONTROL (15 parts) 79012 — COVER SUB-ASSY, NO.1 SEAT CUSHION, LH (4 parts) 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9004463270 — not listed in this catalogue 9004A15022 — not listed in this catalogue 9155180820 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (40 parts) 71956B — SUPPORT, REAR SEAT HEADREST (34 parts) 71956B — SUPPORT, REAR SEAT HEADREST (34 parts) 71324A — CUSHION, REAR SEAT (4 parts) 71309C — LEG SUB-ASSY, REAR SEAT, REAR LH (13 parts) 72170D — TRACK ASSY, REAR SEAT, OUTER LH (13 parts) 72220 — TRACK ASSY, REAR NO.1 SEAT, INNER LH (13 parts) 79959B — COVER, REAR SEAT LEG, LH (7 parts) 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9017908068 — not listed in this catalogue 9017908068 — not listed in this catalogue 72159A — COVER, REAR SEAT TRACK BRACKET (24 parts) 72159A — COVER, REAR SEAT TRACK BRACKET (24 parts) 9004119701 — not listed in this catalogue 9004119701 — not listed in this catalogue 9004A16071 — not listed in this catalogue 71935 — CLIP (13 parts) 71935 — CLIP (13 parts) 9616000800 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue
71F9D7 · 29 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
418 parts on this figure
Part number Description Fitment Price
71018 — Frame Sub-assy, Rear Seatback, LH
71018-BZ130 Frame Sub-assy, Rear Seatback, LH
2011-11 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MA,MXC,PHL,SA,TH) —
71018-BZ130 Frame Sub-assy, Rear Seatback, LH
2011-11 → 2015-07 ended
F65# IDN —
71018-BZ270 note Frame Sub-assy, Rear Seatback, LH
2015-08 → 2019-04 ended
F654 5F MXC —
71018-BZ270 Frame Sub-assy, Rear Seatback, LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71018-BZ270 note Frame Sub-assy, Rear Seatback, LH
2019-04 → 2021-04 ended
F653 LO PHL —
71018-BZ270 note Frame Sub-assy, Rear Seatback, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71018-BZ270 Frame Sub-assy, Rear Seatback, LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71018-BZ270 Frame Sub-assy, Rear Seatback, LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71018-BZ270 Frame Sub-assy, Rear Seatback, LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71018-BZ270 note Frame Sub-assy, Rear Seatback, LH
2019-04 → 2021-04 ended
F654 5F MXC —
71076A — Cover Sub-assy, Rear Seat Cushion, Front LH
71076-BZ620-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2011-12 → 2013-05 ended
F651 5F GEN;F651 LO +1 —
71076-BZ621-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F651 5F GEN —
71076-BZ660-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2011-11 → 2013-05 ended
F651 LO SA;F651 STD +1 —
71076-BZ661-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F651 LO SA —
71076-BZ671-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F651 LO PHL —
71076-BZ680-E0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2011-11 → 2013-05 ended
F651 IDN;F652 MID (GEN,IDN) —
71076-BZ681-E1 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-07 ended
F65# (MID,STD) IDN —
71076-BZ681-E1 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F652 GCC,GEN,PHL —
71076-BZ700-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2011-11 → 2013-05 ended
F652 SPO,STD;F651 STD (MA,SA);F652 +2 —
71076-BZ701-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F652 MXC,SA,TH;F651 STD (PHL,SA) —
71076-BZ701-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2013-12 ended
F65# MA —
71076-BZ701-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-07 ended
F652 SPO IDN —
71076-BZ740-E0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2011-12 → 2013-05 ended
F652 PHL;F651 MID GEN —
71076-BZ741-E1 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-05 → 2015-08 ended
F651 MID GEN —
71076-BZA10-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2013-12 → 2015-08 ended
F651,652 MA —
71076-BZC00-E0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2015-08 → 2019-04 ended
F653 LHD LO;F65# STD +1 —
71076-BZC00-E0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2016-09 → 2019-01 ended
F653 5F STD IDN —
71076-BZC30-E0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71076-BZC40-C1 note Cover Sub-assy, Rear Seat Cushion, Front LH
2015-07 → 2019-04 ended
F653 SPO,STD) SPO;F653 (IDN,MA,PHL,SA,TH) +7 —
71076-BZC40-C1 note Cover Sub-assy, Rear Seat Cushion, Front LH
2015-08 → 2019-04 ended
F654 5F MXC —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-07 → 2021-11 ended
F653 5F STD IDN —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2021-11 → —
F653 5F IDN —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2021-11 → —
F653 4AT IDN —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → —
F653 LHD LO;F653 STD +1 —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2022-01 ended
F653 5F STD PHL —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → 2021-11 ended
F653 5F STD IDN —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2021-04 ended
F653 LO PHL —
71076-BZD60-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → 2021-10 ended
F653 MID IDN —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → 2021-11 ended
F653 STD IDN;F654 5F +2 —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2022-01 ended
F653 STD PHL —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → 2021-10 ended
F65# MID IDN —
71076-BZD90-B0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2021-11 ended
F654 STD GEN —
71076-BZE00-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71076-BZE00-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2021-11 ended
F654 5F PHL —
71076-BZE00-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → —
F653 PHL,SA) (LO,STD) SA;F654 +7 —
71076-BZE00-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-04 → 2021-04 ended
F654 5F MXC —
71076-BZE00-C0 note Cover Sub-assy, Rear Seat Cushion, Front LH
2019-01 → 2021-10 ended
F65# SPO IDN —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-BZ570-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-07 ended
F651 5F GEN;F651 LO +1 —
71078-BZ571-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-07 → 2013-05 ended
F651 5F GEN;F651 LO +1 —
71078-BZ572-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-08 ended
F651 5F GEN;F651 LO +1 —
71078-BZ600-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2011-11 → 2012-07 ended
F651 STD (MA,PHL);F652 MID +3 —
71078-BZ601-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-07 → 2013-05 ended
F652 SPO,STD;F651 STD PHL;F651 +4 —
71078-BZ602-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2013-12 ended
F65# MA —
71078-BZ602-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-07 ended
F652 SPO IDN —
71078-BZ602-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-08 ended
F651 STD PHL;F651,652 (LO,MID,SPO,STD) +1 —
71078-BZ620-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2011-11 → 2012-07 ended
F651 IDN;F651 MID GEN;F652 +2 —
71078-BZ621-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2012-07 → 2013-05 ended
F651 IDN;F651 MID GEN;F652 +2 —
71078-BZ622-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-07 ended
F65# (MID,STD) IDN —
71078-BZ622-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71078-BZ720-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2011-11 → 2012-07 ended
F65# (LO,MID,STD) SA —
71078-BZ830-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-12 → 2015-08 ended
F651,652 MA —
71078-BZB60-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2019-04 ended
F653 LHD LO;F65# STD +1 —
71078-BZB60-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2019-01 ended
F653 5F STD IDN —
71078-BZB80-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71078-BZB90-C1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-07 → 2019-04 ended
F653 SPO,STD) SPO;F653 (IDN,MA,PHL,SA,TH) +7 —
71078-BZB90-C1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2019-04 ended
F654 5F MXC —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F653 LO PHL —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-11 → —
F653 5F IDN —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-10 ended
F653 MID IDN —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-11 → —
F653 4AT IDN —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → —
F653 LHD LO;F653 STD +1 —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-11 ended
F653 5F STD IDN —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2022-01 ended
F653 5F STD PHL —
71078-BZD20-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-07 → 2021-11 ended
F653 5F STD IDN —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2022-01 ended
F653 STD PHL —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-11 ended
F654 STD GEN —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-11 ended
F653 STD IDN;F654 5F +2 —
71078-BZD50-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-10 ended
F65# MID IDN —
71078-BZD60-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-11 ended
F654 5F PHL —
71078-BZD60-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F654 5F MXC —
71078-BZD60-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → —
F653 PHL,SA) (LO,STD) SA;F654 +7 —
71078-BZD60-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71078-BZD60-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-10 ended
F65# SPO IDN —
71309C — Leg Sub-assy, Rear Seat, Rear LH
71309-BZ070 Leg Sub-assy, Rear Seat, Rear LH
2013-12 → 2015-08 ended
F651,652 MA —
71309-BZ110 Leg Sub-assy, Rear Seat, Rear LH
2011-11 → 2013-12 ended
F65# MA —
71309-BZ110 Leg Sub-assy, Rear Seat, Rear LH
2011-11 → 2015-07 ended
F65# IDN —
71309-BZ110 Leg Sub-assy, Rear Seat, Rear LH
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
71309-BZ110 Leg Sub-assy, Rear Seat, Rear LH
2013-05 → 2015-08 ended
F651,652 PHL —
71309-BZ070 Leg Sub-assy, Rear Seat, Rear LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71309-BZ070 note Leg Sub-assy, Rear Seat, Rear LH
2015-08 → 2019-04 ended
F654 5F MXC —
71309-BZ070 note Leg Sub-assy, Rear Seat, Rear LH
2019-04 → 2021-04 ended
F654 5F MXC —
71309-BZ070 Leg Sub-assy, Rear Seat, Rear LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71309-BZ070 Leg Sub-assy, Rear Seat, Rear LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71309-BZ070 Leg Sub-assy, Rear Seat, Rear LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71309-BZ070 note Leg Sub-assy, Rear Seat, Rear LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71309-BZ070 note Leg Sub-assy, Rear Seat, Rear LH
2019-04 → 2021-04 ended
F653 LO PHL —
71324A — Cushion, Rear Seat
72179-BZ030 Cushion, Rear Seat
2011-11 → 2013-12 ended
F65# MA —
72179-BZ030 Cushion, Rear Seat
2011-11 → 2015-07 ended
F65# IDN —
72179-BZ030 Cushion, Rear Seat
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
72179-BZ030 Cushion, Rear Seat
2013-05 → 2015-08 ended
F651,652 PHL —
71485B — Cover, Rear Seat Hinge
71485-BZ040-B0 note Cover, Rear Seat Hinge
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2011-11 → 2015-07 ended
F652 SPO IDN —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2015-07 → 2019-04 ended
F653 ) SPO;F654 (GEN,IDN,MA,PHL,SA,TH) +5 —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → 2021-10 ended
F65# SPO IDN —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → 2021-10 ended
F65# MID IDN —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → 2021-11 ended
F654 5F STD GCC —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → 2021-11 ended
F654 5F PHL —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → 2021-11 ended
F654 STD GEN —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → —
F653 STD IDN;F654 4AT +2 —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71485-BZ040-B0 note Cover, Rear Seat Hinge
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
71612A — Pad, Rear Seat Cushion, LH
71504-BZ220 Pad, Rear Seat Cushion, LH
2011-11 → 2013-05 ended
F65# LO,MID,SPO,STD —
71504-BZ221 Pad, Rear Seat Cushion, LH
2013-05 → 2015-07 ended
F65# IDN —
71504-BZ221 Pad, Rear Seat Cushion, LH
2013-05 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MXC,PHL,SA,TH) —
71504-BZ221 Pad, Rear Seat Cushion, LH
2013-05 → 2013-12 ended
F65# MA —
71504-BZ330 Pad, Rear Seat Cushion, LH
2013-12 → 2015-08 ended
F651,652 MA —
71504-BZ370 Pad, Rear Seat Cushion, LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71504-BZ370 note Pad, Rear Seat Cushion, LH
2015-08 → 2019-04 ended
F654 5F MXC —
71504-BZ370 note Pad, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 5F MXC —
71504-BZ370 note Pad, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F653 LO PHL —
71504-BZ370 note Pad, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71504-BZ370 Pad, Rear Seat Cushion, LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71504-BZ370 Pad, Rear Seat Cushion, LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71504-BZ370 Pad, Rear Seat Cushion, LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71621A — Pad, Rear Seat Cushion Silencer, A
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2011-11 → 2015-07 ended
F65# IDN —
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2011-11 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MA,MXC,PHL,SA,TH) —
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71621-BZ040 note Pad, Rear Seat Cushion Silencer, A
2015-08 → 2019-04 ended
F654 5F MXC —
71621-BZ040 note Pad, Rear Seat Cushion Silencer, A
2019-04 → 2021-04 ended
F654 5F MXC —
71621-BZ040 note Pad, Rear Seat Cushion Silencer, A
2019-04 → 2021-04 ended
F653 LO PHL —
71621-BZ040 note Pad, Rear Seat Cushion Silencer, A
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71621-BZ040 Pad, Rear Seat Cushion Silencer, A
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71508-BZ180 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2011-11 → 2013-05 ended
F65# LO,MID,SPO,STD —
71508-BZ181 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-07 ended
F65# IDN —
71508-BZ181 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2013-05 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MA,MXC,PHL,SA,TH) —
71508-BZ310 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71508-BZ310 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-08 → 2019-04 ended
F654 5F MXC —
71508-BZ310 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F654 5F MXC —
71508-BZ310 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F653 LO PHL —
71508-BZ310 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71508-BZ310 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71508-BZ310 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71508-BZ310 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71660B — Spring Assy, Rear Seat Cushion, LH
71660-BZ010 Spring Assy, Rear Seat Cushion, LH
2011-11 → 2013-05 ended
F65# PHL —
71660-BZ010 Spring Assy, Rear Seat Cushion, LH
2011-11 → 2015-08 ended
F651 STD GEN;F651 (LO,MID) +1 —
71660-BZ020 Spring Assy, Rear Seat Cushion, LH
2013-05 → 2015-08 ended
F651,652 PHL —
71660-BZ020 Spring Assy, Rear Seat Cushion, LH
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
71660-BZ020 Spring Assy, Rear Seat Cushion, LH
2011-11 → 2013-12 ended
F65# MA —
71660-BZ020 Spring Assy, Rear Seat Cushion, LH
2011-11 → 2015-07 ended
F65# IDN —
71660-BZ030 Spring Assy, Rear Seat Cushion, LH
2013-12 → 2015-08 ended
F651,652 MA —
71660-BZ110 Spring Assy, Rear Seat Cushion, LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71660-BZ110 note Spring Assy, Rear Seat Cushion, LH
2015-08 → 2019-04 ended
F654 5F MXC —
71660-BZ110 note Spring Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 5F MXC —
71660-BZ110 note Spring Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F653 LO PHL —
71660-BZ110 note Spring Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71660-BZ110 Spring Assy, Rear Seat Cushion, LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71660-BZ110 Spring Assy, Rear Seat Cushion, LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71660-BZ110 Spring Assy, Rear Seat Cushion, LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71671A — Pad, Rear Seatback Silencer, A
71671-BZ040 Pad, Rear Seatback Silencer, A
2011-11 → 2015-07 ended
F65# IDN —
71671-BZ040 Pad, Rear Seatback Silencer, A
2011-11 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MA,MXC,PHL,SA,TH) —
71671-BZ080 note Pad, Rear Seatback Silencer, A
2015-08 → 2019-04 ended
F654 5F MXC —
71671-BZ080 Pad, Rear Seatback Silencer, A
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
71671-BZ080 note Pad, Rear Seatback Silencer, A
2019-04 → 2021-04 ended
F654 5F MXC —
71671-BZ080 note Pad, Rear Seatback Silencer, A
2019-04 → 2021-04 ended
F653 LO PHL —
71671-BZ080 note Pad, Rear Seatback Silencer, A
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71671-BZ080 Pad, Rear Seatback Silencer, A
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
71671-BZ080 Pad, Rear Seatback Silencer, A
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
71671-BZ080 Pad, Rear Seatback Silencer, A
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
71834D — Cover, Rear Seat Reclining, LH
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2011-11 → 2015-07 ended
F652 SPO IDN —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
71834-BZ060-E0 note Cover, Rear Seat Reclining, LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
71834-BZ060-E0 note Cover, Rear Seat Reclining, LH
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2015-08 → 2019-04 ended
F654 5F MXC —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2015-07 → 2019-04 ended
F653 ) SPO;F654 (GEN,IDN,MA,PHL,SA,TH) +5 —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-04 → 2021-04 ended
F654 5F MXC —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-04 → 2021-04 ended
F653 LO PHL —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → 2021-10 ended
F65# SPO IDN —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → 2021-10 ended
F65# MID IDN —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → 2021-11 ended
F654 5F STD GCC —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → 2021-11 ended
F654 5F PHL —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → 2021-11 ended
F654 STD GEN —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → —
F653 STD IDN;F654 4AT +2 —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71834-BZ060-B0 note Cover, Rear Seat Reclining, LH
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
71879C — Cover, Rear Seat Reclining, Inner LH
71879-BZ010-B0 note Cover, Rear Seat Reclining, Inner LH
2011-11 → 2015-07 ended
F652 SPO IDN —
71879-BZ010-B0 note Cover, Rear Seat Reclining, Inner LH
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
71879-BZ010-E1 note Cover, Rear Seat Reclining, Inner LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
71879-BZ010-E1 note Cover, Rear Seat Reclining, Inner LH
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2015-07 → 2019-04 ended
F653 ) SPO;F654 (GEN,IDN,MA,PHL,SA,TH) +5 —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2015-08 → 2019-04 ended
F654 5F MXC —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → —
F653 STD IDN;F654 4AT +2 —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → 2021-11 ended
F654 STD GEN —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → 2021-11 ended
F654 5F PHL —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → 2021-11 ended
F654 5F STD GCC —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → 2021-10 ended
F65# SPO IDN —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-01 → 2021-10 ended
F65# MID IDN —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-04 → 2021-04 ended
F654 5F MXC —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71879-BZ030-B0 note Cover, Rear Seat Reclining, Inner LH
2019-04 → 2021-04 ended
F653 LO PHL —
71935 — Clip
9004A-46143 Clip
2011-11 → 2012-07 ended
F65# GEN,IDN,MA,MXC,PHL,TH —
9004A-46143 Clip
2011-11 → 2013-05 ended
F65# (LO,MID,STD) SA —
9004A-46143 Clip
2012-07 → 2013-05 ended
F65# GEN,IDN,MA,MXC,PHL,TH —
9004A-46143 Clip
2013-05 → 2015-07 ended
F65# IDN —
9004A-46143 Clip
2013-05 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (GCC,GEN,MA,MXC,PHL,SA,TH) —
9004A-46143 Clip
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
9004A-46143 note Clip
2015-08 → 2019-04 ended
F654 5F MXC —
9004A-46143 note Clip
2019-04 → 2021-04 ended
F653 LO PHL —
9004A-46143 Clip
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
9004A-46143 Clip
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
9004A-46143 Clip
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
9004A-46143 note Clip
2019-04 → 2021-04 ended
F654 4AT STD GCC —
9004A-46143 note Clip
2019-04 → 2021-04 ended
F654 5F MXC —
71940A — Headrest Assy, Rear Seat
71940-BZ230-C0 note Headrest Assy, Rear Seat
2011-11 → 2013-05 ended
F651 STD (MA,PHL);F652 MID +3 —
71940-BZ230-E0 note Headrest Assy, Rear Seat
2011-11 → 2013-05 ended
F651 IDN;F651 MID GEN;F652 +2 —
71940-BZ530-C0 note Headrest Assy, Rear Seat
2011-11 → 2013-04 ended
F65# (LO,MID,STD) SA —
71940-BZ531-C0 note Headrest Assy, Rear Seat
2013-05 → 2015-08 ended
F651,652 (LO,MID,SPO,STD) (MA,SA) —
71940-BZ580-B0 note Headrest Assy, Rear Seat
2011-12 → 2013-05 ended
F651 5F GEN;F651 LO +1 —
71940-BZ700-E1 note Headrest Assy, Rear Seat
2013-05 → 2015-07 ended
F65# (MID,STD) IDN —
71940-BZ700-E1 note Headrest Assy, Rear Seat
2013-05 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71940-BZ720-B0 note Headrest Assy, Rear Seat
2013-05 → 2015-08 ended
F651 5F GEN;F651 LO +1 —
71940-BZ720-C0 note Headrest Assy, Rear Seat
2013-05 → 2015-08 ended
F652 MXC,TH;F651 STD PHL —
71940-BZ720-C0 note Headrest Assy, Rear Seat
2013-05 → 2015-07 ended
F652 SPO IDN —
71940-BZA30-C1 note Headrest Assy, Rear Seat
2015-08 → 2019-04 ended
F65# (LO,MID,SPO,STD) (MA,SA) —
71940-BZA40-E0 note Headrest Assy, Rear Seat
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71940-BZA50-C1 note Headrest Assy, Rear Seat
2015-07 → 2019-04 ended
F653 SPO;F653 STD PHL;F654 +4 —
71940-BZA50-C1 note Headrest Assy, Rear Seat
2015-08 → 2019-04 ended
F654 5F MXC —
71940-BZA50-E0 note Headrest Assy, Rear Seat
2016-09 → 2019-01 ended
F653 5F STD IDN —
71940-BZA50-E0 note Headrest Assy, Rear Seat
2015-08 → 2019-04 ended
F653 LHD LO;F65# STD +1 —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F653 STD PHL —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-04 → 2021-11 ended
F654 STD GEN —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-01 → 2021-11 ended
F65# 5F STD (GCC,IDN) —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-01 → 2021-11 ended
F653 4AT STD IDN —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-01 → 2021-10 ended
F65# MID IDN —
71940-BZC80-B0 note Headrest Assy, Rear Seat
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-01 → 2021-10 ended
F653 MID IDN —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-01 → 2021-11 ended
F653 5F STD IDN —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2021-11 → —
F653 5F IDN —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-07 → 2021-11 ended
F653 5F STD IDN —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2021-11 → —
F653 4AT IDN —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-04 → 2021-04 ended
F653 LO PHL —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F653 5F STD PHL —
71940-BZC90-B0 note Headrest Assy, Rear Seat
2019-04 → —
F653 LHD LO;F653 STD +1 —
71940-BZE80-C0 note Headrest Assy, Rear Seat
2019-01 → —
F654 5F MXC;F654 SPO +4 —
71940-BZE80-C0 note Headrest Assy, Rear Seat
2019-01 → 2021-10 ended
F65# SPO IDN —
71940-BZE80-C0 note Headrest Assy, Rear Seat
2019-04 → 2021-11 ended
F654 5F PHL —
71940-BZE80-C0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71940-BZE80-C0 note Headrest Assy, Rear Seat
2019-04 → 2021-04 ended
F654 5F MXC —
71940-BZE90-C0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F65# (LO,MID,SPO,STD) (MA,SA) —
71940-BZE90-C0 note Headrest Assy, Rear Seat
2019-04 → 2021-11 ended
F654 5F PHL —
71940-BZE90-C0 note Headrest Assy, Rear Seat
2019-04 → 2022-01 ended
F654 4AT MID PHL —
71956B — Support, Rear Seat Headrest
71930-BZ040-B0 note Support, Rear Seat Headrest
2011-11 → 2015-07 ended
F652 SPO IDN —
71930-BZ040-B0 note Support, Rear Seat Headrest
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
71930-BZ040-E0 note Support, Rear Seat Headrest
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
71930-BZ040-E0 note Support, Rear Seat Headrest
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71931-BZ030-B0 note Support, Rear Seat Headrest
2011-11 → 2015-07 ended
F652 SPO IDN —
71931-BZ030-B0 note Support, Rear Seat Headrest
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
71931-BZ030-E0 note Support, Rear Seat Headrest
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
71931-BZ030-E0 note Support, Rear Seat Headrest
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
71930-BZ040-B0 note Support, Rear Seat Headrest
2015-07 → 2019-04 ended
F653 SPO,STD) SPO;F653 (IDN,MA,PHL,SA,TH) +7 —
71930-BZ040-B0 note Support, Rear Seat Headrest
2015-08 → 2019-04 ended
F654 5F MXC —
71930-BZ040-E1 note Support, Rear Seat Headrest
2015-08 → 2019-04 ended
F653 LHD LO;F65# STD +1 —
71930-BZ040-E1 note Support, Rear Seat Headrest
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71931-BZ030-B0 note Support, Rear Seat Headrest
2015-07 → 2019-04 ended
F653 SPO,STD) SPO;F653 (IDN,MA,PHL,SA,TH) +7 —
71931-BZ030-E1 note Support, Rear Seat Headrest
2015-08 → 2019-04 ended
F653 LHD LO;F65# STD +1 —
71931-BZ030-E1 note Support, Rear Seat Headrest
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → —
F653 STD IDN;F654 4AT +2 —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 STD GEN —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 5F PHL —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 5F STD GCC —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → 2021-10 ended
F65# MID IDN —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-01 → 2021-10 ended
F65# SPO IDN —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-04 → 2021-04 ended
F654 5F MXC —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-04 → 2021-04 ended
F654 4AT STD GCC —
71930-BZ040-B0 note Support, Rear Seat Headrest
2019-04 → 2021-04 ended
F653 LO PHL —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → 2021-10 ended
F65# SPO IDN —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → —
F654 4AT STD GCC;F65# +2 —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → —
F653 STD IDN;F654 4AT +2 —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 STD GEN —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 5F PHL —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → 2021-11 ended
F654 5F STD GCC —
71931-BZ030-B0 note Support, Rear Seat Headrest
2019-01 → 2021-10 ended
F65# MID IDN —
72159A — Cover, Rear Seat Track Bracket
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2011-11 → 2013-07 ended
F652 MID (MXC,TH);F652 (SPO,STD) +1 —
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2013-05 → 2013-07 ended
F651 STD PHL —
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2011-11 → 2014-05 ended
F651 IDN;F652 (MID,STD) (GCC,GEN,IDN) —
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2011-11 → 2014-05 ended
F65# (MID,SPO,STD) (MA,SA) —
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2013-05 → 2014-05 ended
F652 PHL —
72159-BZ010-B0 note Cover, Rear Seat Track Bracket
2013-05 → 2014-05 ended
F651 LO PHL —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2014-06 → 2015-07 ended
F65# (MID,STD) IDN —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2014-06 → 2015-07 ended
F652 SPO IDN —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2014-06 → 2015-08 ended
F652 GCC,GEN,PHL —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2014-06 → 2015-08 ended
F651 LO PHL;F652 MA,MXC,SA,TH;F651 +2 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2015-08 → 2019-04 ended
F654 5F MXC —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2015-07 → 2019-04 ended
F653 ) SPO;F654 (GEN,IDN,MA,PHL,SA,TH) +5 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-04 → 2021-04 ended
F653 LO PHL —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → 2021-10 ended
F65# SPO IDN —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → 2021-10 ended
F65# MID IDN —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → 2021-11 ended
F654 5F STD GCC —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → 2021-11 ended
F654 5F PHL —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → 2021-11 ended
F654 STD GEN —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → —
F653 STD IDN;F654 4AT +2 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → —
F654 4AT STD GCC;F65# +2 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
72159-BZ011-B0 note Cover, Rear Seat Track Bracket
2019-04 → 2021-04 ended
F654 5F MXC —
72170D — Track Assy, Rear Seat, Outer LH
72210-BZ040 Track Assy, Rear Seat, Outer LH
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
72210-BZ040 Track Assy, Rear Seat, Outer LH
2013-05 → 2015-08 ended
F651,652 PHL —
72210-BZ040 Track Assy, Rear Seat, Outer LH
2011-11 → 2015-07 ended
F65# IDN —
72210-BZ040 Track Assy, Rear Seat, Outer LH
2011-11 → 2013-12 ended
F65# MA —
72210-BZ060 Track Assy, Rear Seat, Outer LH
2013-12 → 2015-08 ended
F651,652 MA —
72210-BZ060 Track Assy, Rear Seat, Outer LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
72210-BZ060 note Track Assy, Rear Seat, Outer LH
2015-08 → 2019-04 ended
F654 5F MXC —
72210-BZ060 note Track Assy, Rear Seat, Outer LH
2019-04 → 2021-04 ended
F654 5F MXC —
72210-BZ060 note Track Assy, Rear Seat, Outer LH
2019-04 → 2021-04 ended
F653 LO PHL —
72210-BZ060 note Track Assy, Rear Seat, Outer LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72210-BZ060 Track Assy, Rear Seat, Outer LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
72210-BZ060 Track Assy, Rear Seat, Outer LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
72210-BZ060 Track Assy, Rear Seat, Outer LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
72220 — Track Assy, Rear NO.1 Seat, Inner LH
72220-BZ030 Track Assy, Rear NO.1 Seat, Inner LH
2011-11 → 2013-12 ended
F65# MA —
72220-BZ030 Track Assy, Rear NO.1 Seat, Inner LH
2013-05 → 2015-08 ended
F651,652 PHL —
72220-BZ030 Track Assy, Rear NO.1 Seat, Inner LH
2011-11 → 2015-07 ended
F65# IDN —
72220-BZ030 Track Assy, Rear NO.1 Seat, Inner LH
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
72220-BZ050 Track Assy, Rear NO.1 Seat, Inner LH
2013-12 → 2015-08 ended
F651,652 MA —
72220-BZ050 Track Assy, Rear NO.1 Seat, Inner LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
72220-BZ050 note Track Assy, Rear NO.1 Seat, Inner LH
2015-08 → 2019-04 ended
F654 5F MXC —
72220-BZ050 note Track Assy, Rear NO.1 Seat, Inner LH
2019-04 → 2021-04 ended
F654 5F MXC —
72220-BZ050 note Track Assy, Rear NO.1 Seat, Inner LH
2019-04 → 2021-04 ended
F653 LO PHL —
72220-BZ050 note Track Assy, Rear NO.1 Seat, Inner LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72220-BZ050 Track Assy, Rear NO.1 Seat, Inner LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
72220-BZ050 Track Assy, Rear NO.1 Seat, Inner LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
72220-BZ050 Track Assy, Rear NO.1 Seat, Inner LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
72638 — Handle, Rear Seat Lock, LH
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2011-11 → 2015-07 ended
F652 SPO IDN —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
72637-BZ110-E0 note Handle, Rear Seat Lock, LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
72637-BZ110-E0 note Handle, Rear Seat Lock, LH
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2015-07 → 2019-04 ended
F653,654 MID GEN;F653 (MID,STD) +3 —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2015-07 → 2019-04 ended
F653 ) SPO;F654 (GEN,IDN,MA,PHL,SA,TH) +5 —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2015-08 → 2019-04 ended
F654 5F MXC —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → —
F654 STD) 4AT (MA,PHL,SA) +7 —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → —
F654 4AT STD GCC;F65# +2 —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → —
F653 STD IDN;F654 4AT +2 —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → 2021-11 ended
F654 STD GEN —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → 2021-11 ended
F654 5F PHL —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → 2021-10 ended
F65# MID IDN —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → 2021-10 ended
F65# SPO IDN —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-04 → 2021-04 ended
F653 LO PHL —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-04 → 2021-04 ended
F654 5F MXC —
72637-BZ110-B0 note Handle, Rear Seat Lock, LH
2019-01 → 2021-11 ended
F654 5F STD GCC —
72666B — Cover, Rear Seat Lock, LH
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2013-05 → 2015-08 ended
F651 PHL —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2013-05 → 2015-08 ended
F652 PHL —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2011-11 → 2015-08 ended
F652 GCC,GEN —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2011-11 → 2015-08 ended
F651,652 (MID,SPO,STD) (MXC,SA,TH) —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2011-11 → 2015-07 ended
F652 SPO IDN —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
72666-BZ050-B0 note Cover, Rear Seat Lock, LH
2011-11 → 2013-12 ended
F65# MA —
72680B — Lock Assy, Rear Seat Cushion, LH
72680-BZ130 Lock Assy, Rear Seat Cushion, LH
2011-11 → 2013-05 ended
F65# PHL —
72680-BZ130 Lock Assy, Rear Seat Cushion, LH
2011-11 → 2015-08 ended
F651 STD GEN;F651 (LO,MID) +1 —
72680-BZ140 Lock Assy, Rear Seat Cushion, LH
2011-11 → 2013-12 ended
F65# MA —
72680-BZ140 Lock Assy, Rear Seat Cushion, LH
2011-11 → 2015-07 ended
F65# IDN —
72680-BZ140 Lock Assy, Rear Seat Cushion, LH
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
72680-BZ140 Lock Assy, Rear Seat Cushion, LH
2013-05 → 2015-08 ended
F651,652 PHL —
72680-BZ170 Lock Assy, Rear Seat Cushion, LH
2013-12 → 2015-08 ended
F651,652 MA —
72680-BZ172 Lock Assy, Rear Seat Cushion, LH
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
72680-BZ172 note Lock Assy, Rear Seat Cushion, LH
2015-08 → 2019-04 ended
F654 5F MXC —
72680-BZ172 Lock Assy, Rear Seat Cushion, LH
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
72680-BZ172 Lock Assy, Rear Seat Cushion, LH
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
72680-BZ172 Lock Assy, Rear Seat Cushion, LH
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
72680-BZ172 note Lock Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F653 LO PHL —
72680-BZ172 note Lock Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 5F MXC —
72680-BZ172 note Lock Assy, Rear Seat Cushion, LH
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72695A — Cable, Rear Seat Lock Control
72695-BZ060 Cable, Rear Seat Lock Control
2011-11 → 2013-12 ended
F65# MA —
72695-BZ060 Cable, Rear Seat Lock Control
2011-11 → 2015-07 ended
F65# IDN —
72695-BZ060 Cable, Rear Seat Lock Control
2011-11 → 2015-08 ended
F651 STD SA;F652 GCC,GEN,MXC,SA,TH —
72695-BZ060 Cable, Rear Seat Lock Control
2013-05 → 2015-08 ended
F651,652 PHL —
72695-BZ070 Cable, Rear Seat Lock Control
2011-11 → 2013-05 ended
F65# PHL —
72695-BZ070 Cable, Rear Seat Lock Control
2011-11 → 2015-08 ended
F651 STD GEN;F651 (LO,MID) +1 —
72695-BZ080 Cable, Rear Seat Lock Control
2013-12 → 2015-08 ended
F651,652 MA —
72695-BZ080 Cable, Rear Seat Lock Control
2015-07 → 2019-04 ended
F653,654 LO,MID,SPO,STD —
72695-BZ080 note Cable, Rear Seat Lock Control
2015-08 → 2019-04 ended
F654 5F MXC —
72695-BZ080 note Cable, Rear Seat Lock Control
2019-04 → 2021-04 ended
F654 4AT STD GCC —
72695-BZ080 Cable, Rear Seat Lock Control
2019-01 → —
F654 A,TH);F653 5F (LO,STD) +14 —
72695-BZ080 Cable, Rear Seat Lock Control
2019-01 → 2021-11 ended
F654 5F PHL;F654 LHD +2 —
72695-BZ080 Cable, Rear Seat Lock Control
2019-01 → 2021-10 ended
F65# (MID,SPO) IDN —
72695-BZ080 note Cable, Rear Seat Lock Control
2019-04 → 2021-04 ended
F653 LO PHL —
72695-BZ080 note Cable, Rear Seat Lock Control
2019-04 → 2021-04 ended
F654 5F MXC —
79012 — Cover Sub-assy, NO.1 Seat Cushion, LH
79012-BZ020-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2011-11 → 2015-07 ended
F652 SPO IDN —
79012-BZ020-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2011-11 → 2015-08 ended
F652 MA,MXC,SA,TH;F651 (LO,STD) (GEN,MA,PHL,SA) —
79012-BZ020-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
79012-BZ020-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2011-11 → 2015-08 ended
F651 MID GEN;F652 GCC,GEN,PHL —
79959B — Cover, Rear Seat Leg, LH
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2011-11 → 2013-12 ended
F65# MA —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2011-11 → 2015-07 ended
F65# (MID,STD) IDN —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2011-11 → 2015-07 ended
F652 SPO IDN —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2011-11 → 2015-08 ended
F651,652 (MID,SPO,STD) (MXC,SA,TH) —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2011-11 → 2015-08 ended
F652 GCC,GEN —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2013-05 → 2015-08 ended
F652 PHL —
79959-BZ030-B0 note Cover, Rear Seat Leg, LH
2013-05 → 2015-08 ended
F651 PHL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
