Timing Gear Cover & Rear End Plate

17 part groups · 3 illustrations

Illustrations

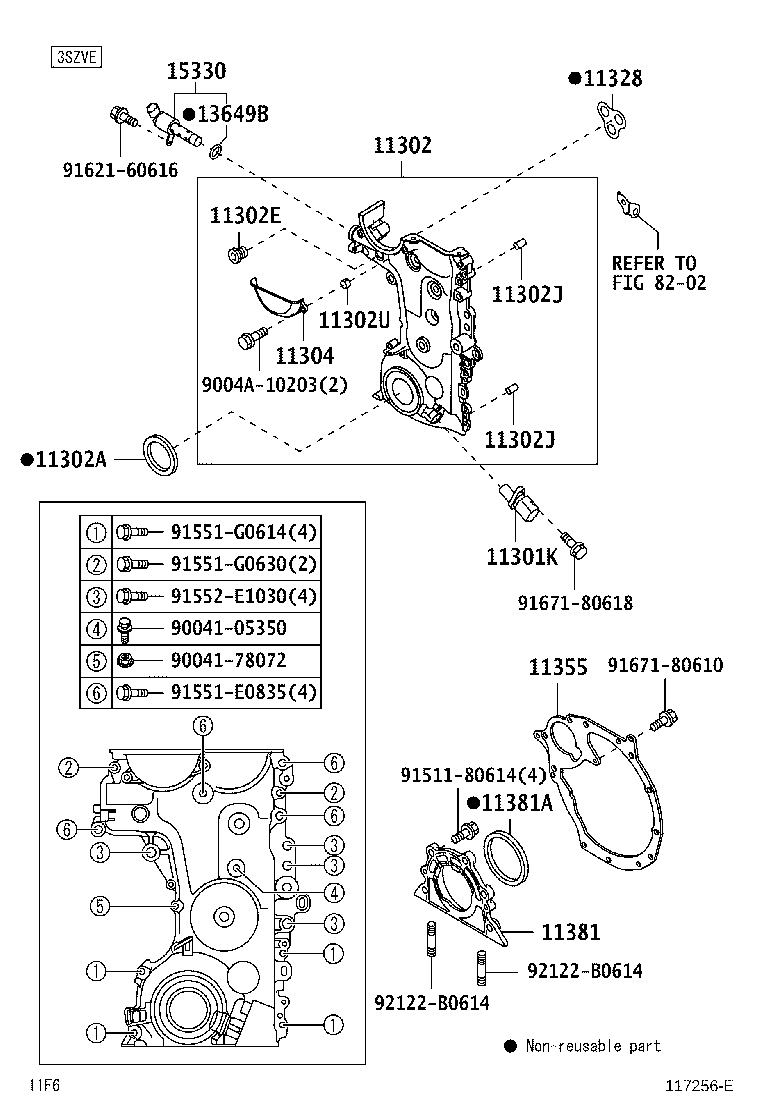

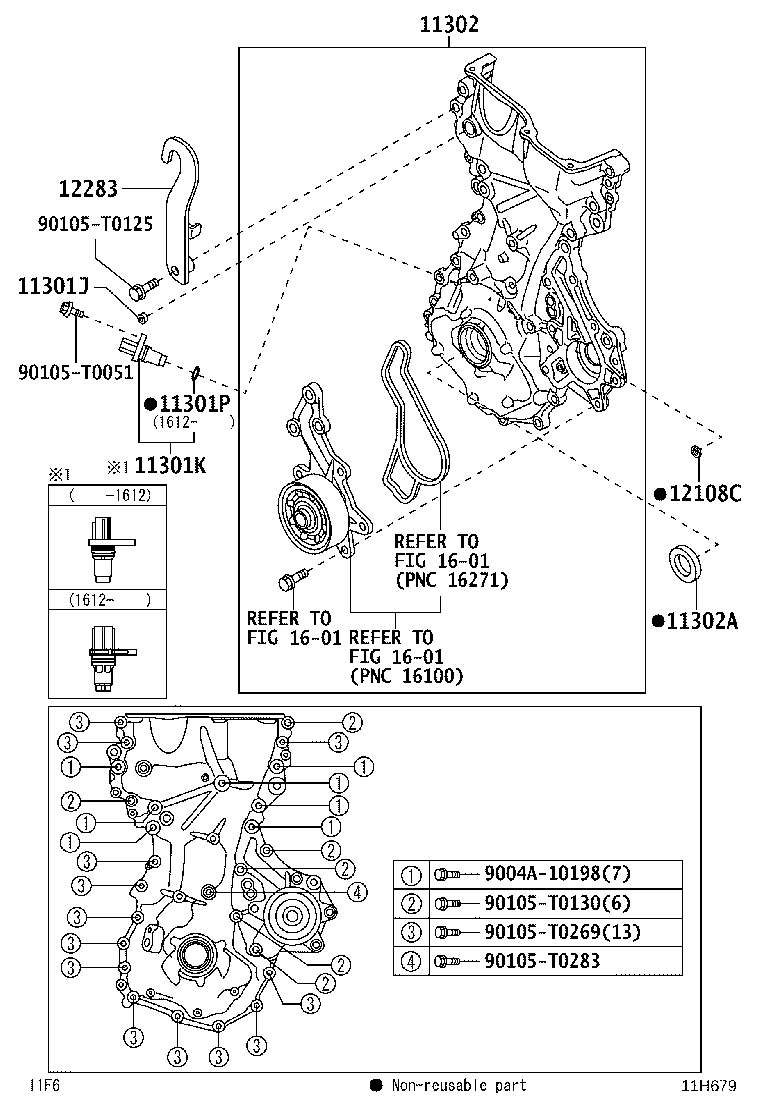

Figure 117257E 117257E 2011-11 → 2015-08 Figure 117256E 117256E 2011-11 → 2015-08 Figure 11H679 11H679 2015-07 → —

Part groups

PNCDescription
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302U Pin, Ring
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12108C Gasket
12283 Hanger, Engine, NO.3
13649B Ring, O
15330 Valve Assy, Cam Timing Oil Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
