Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

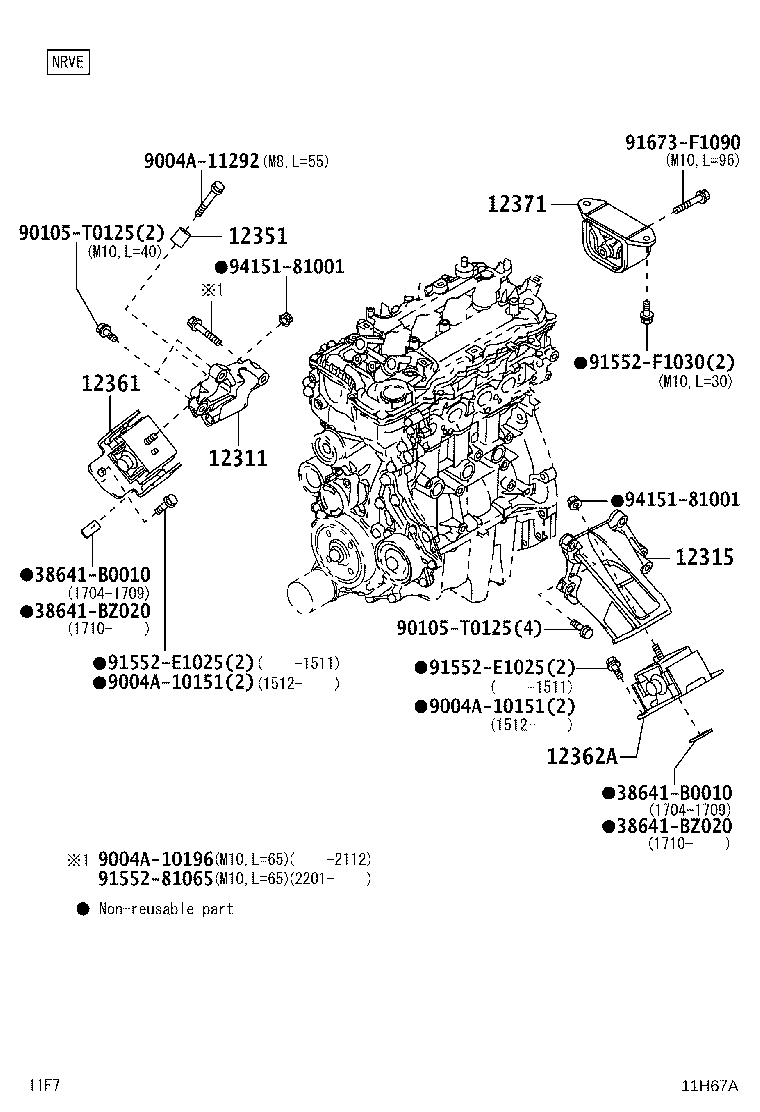

Mounting
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12312 | Bracket, Engine Mounting, Front NO.2 |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12351 | Damper, Engine Mounting |
| 12361 | Insulator, Engine Mounting, Front |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
