Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

13 part groups · 2 illustrations

Illustrations

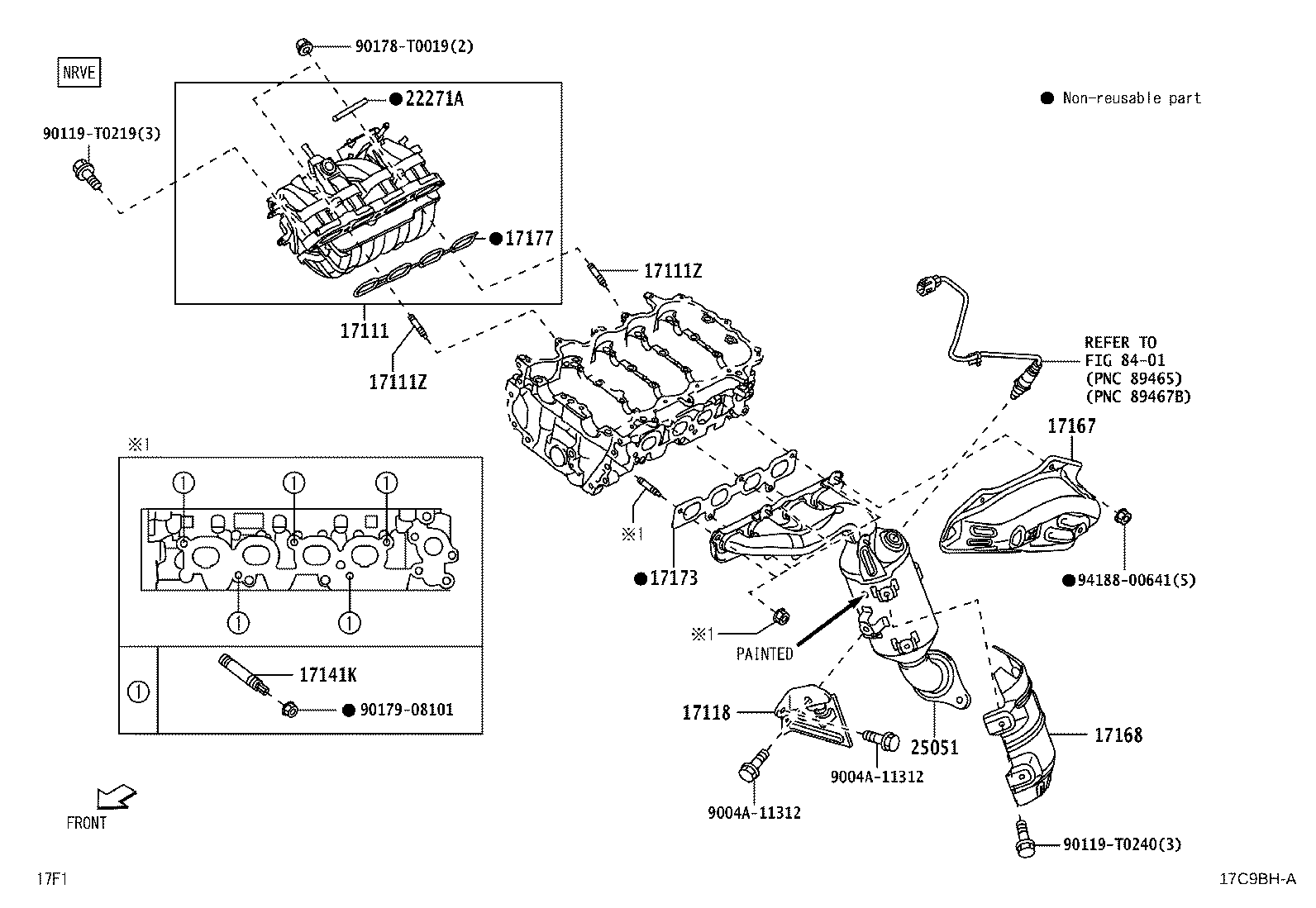

Figure 177412B 177412B 2011-11 → 2015-08 Figure 17C9BHA 17C9BHA 2015-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
