Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 6 illustrations

Illustrations

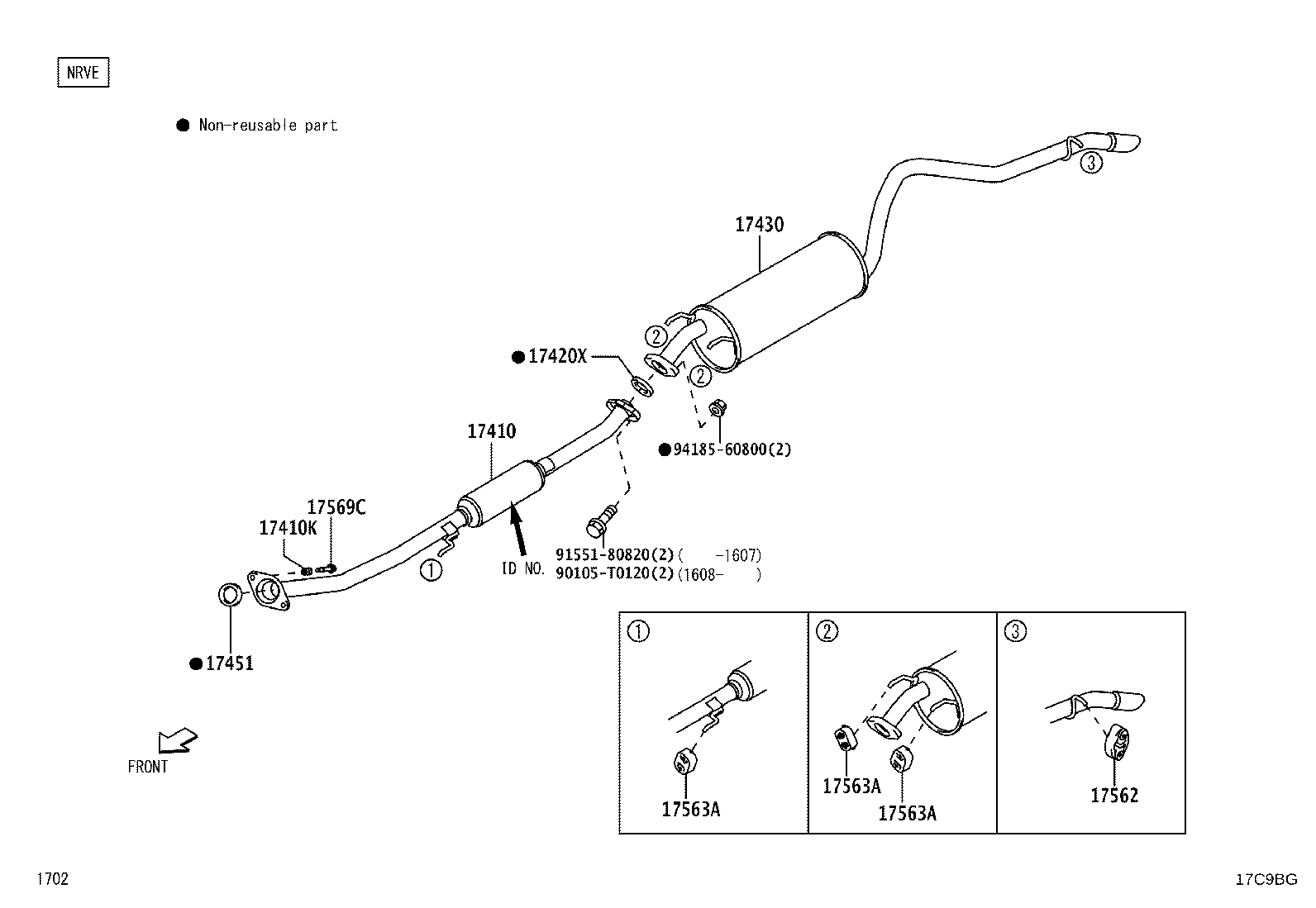

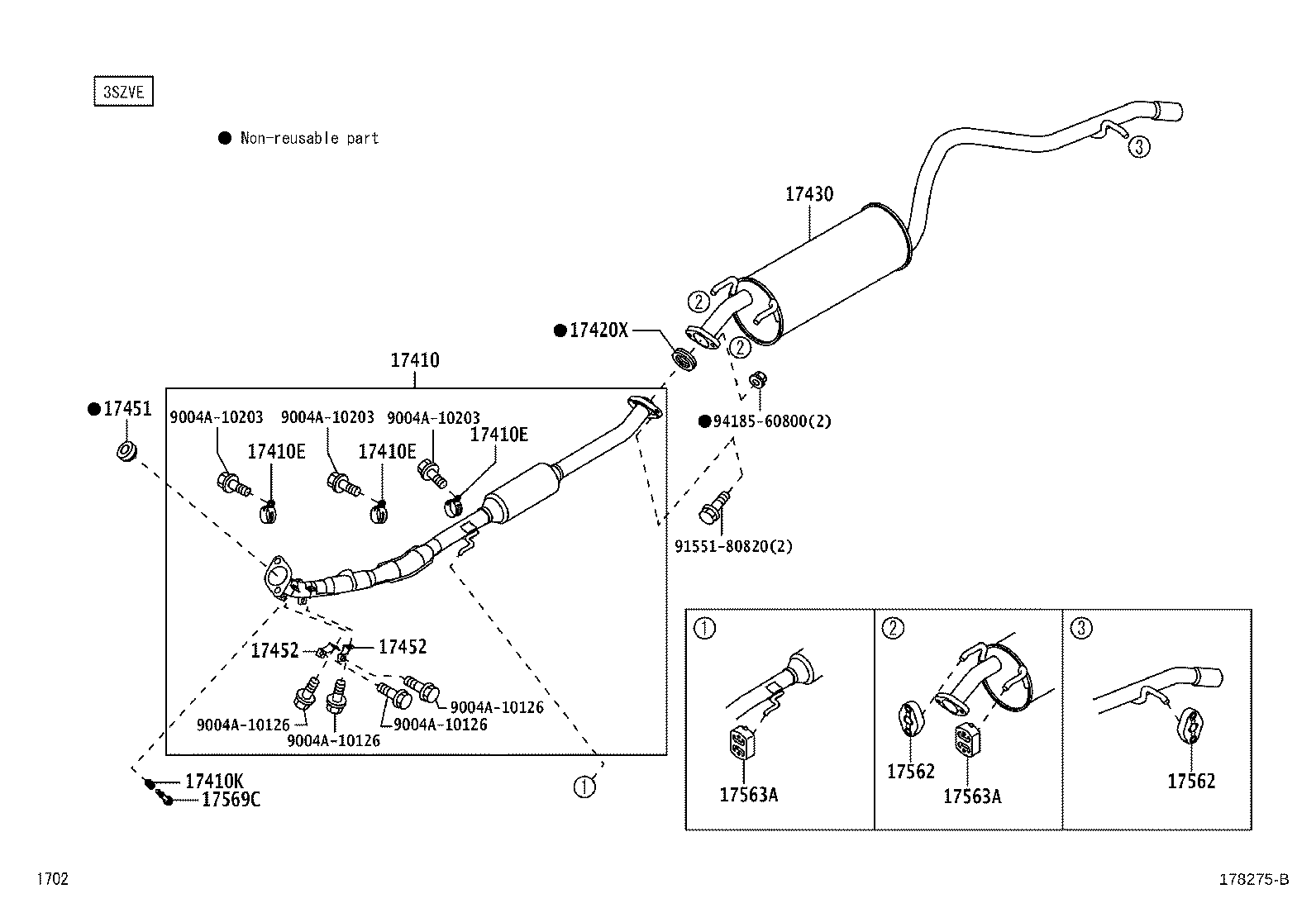

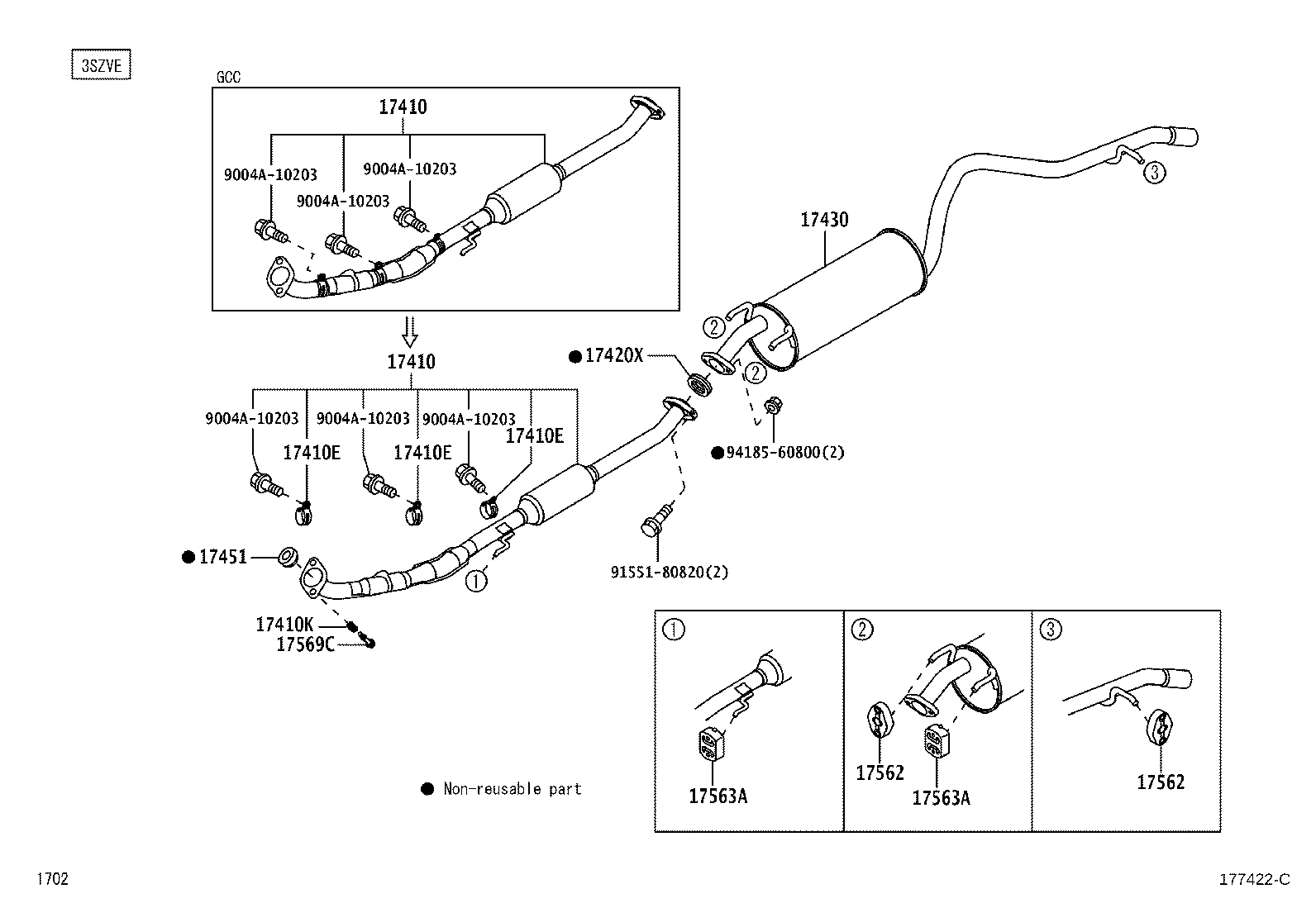

Figure 177421B 177421B 2011-11 → 2015-08 Figure 177422C 177422C 2011-11 → 2013-11 Figure 177422C 177422C 2011-11 → 2015-08 Figure 177422C 177422C 2014-04 → 2015-08 Figure 178275B 178275B 2013-12 → 2015-08 Figure 17C9BG 17C9BG 2015-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410K Spring, Exhaust Pipe
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17569C Bolt, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
