Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

21 part groups · 2 illustrations

Illustrations

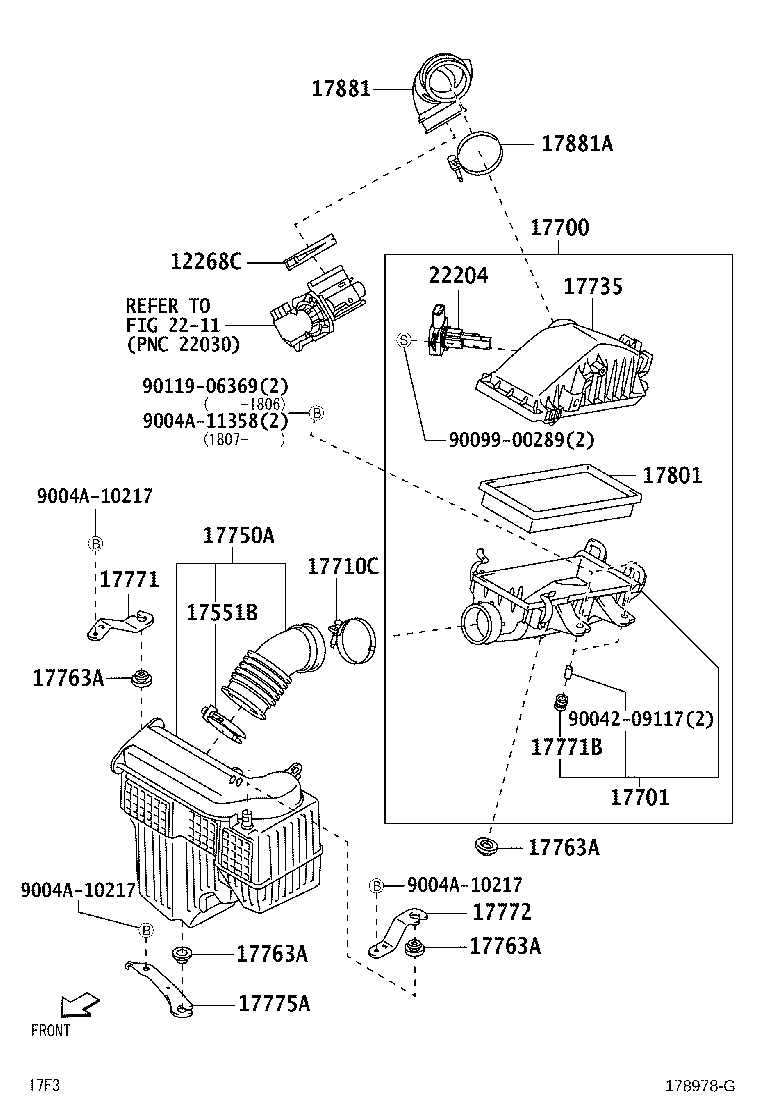

Figure 177418G 177418G 2011-11 → 2015-08 Figure 178978G 178978G 2015-07 → —

Part groups

PNCDescription
12268C Clip, Hose
17551B Clamp(FOR AIR CLEANER INLET, NO.1)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17735 Cap, Air Cleaner
17750A Inlet Assy, Air Cleaner
17763A Grommet, Air Cleaner Inlet Duct
17771 Bracket, Air Cleaner Inlet Duct
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17772 Bracket, Intake Air Connector, NO.2
17775A Bracket, Air Cleaner Pipe, NO.3
17801 Element Sub-assy, Air Cleaner Filter
17880B Collar(FOR AIR CLEANER HOSE)
17880C Grommet(FOR AIR CLEANER HOSE)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
