Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

8 part groups · 3 illustrations

Illustrations

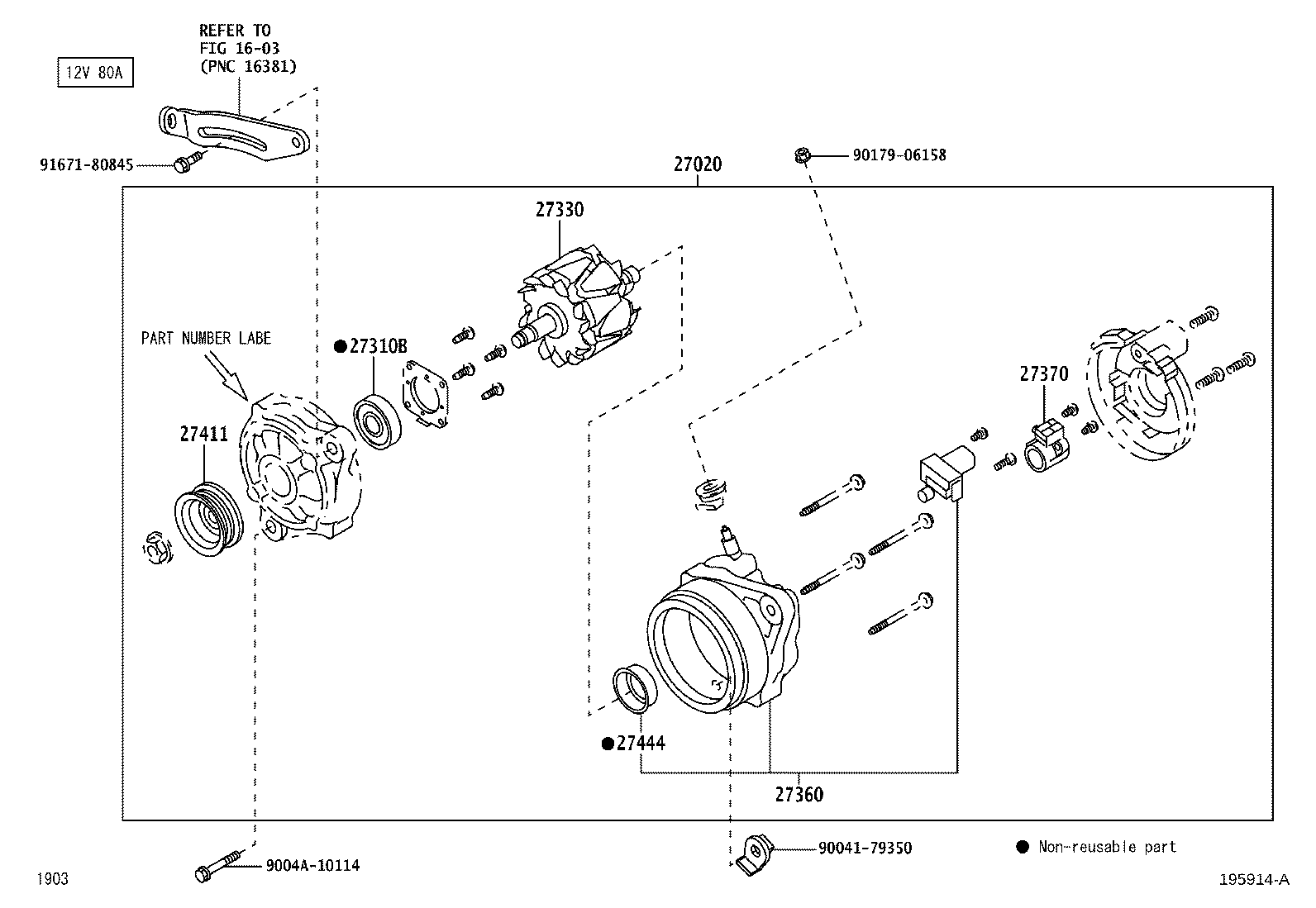

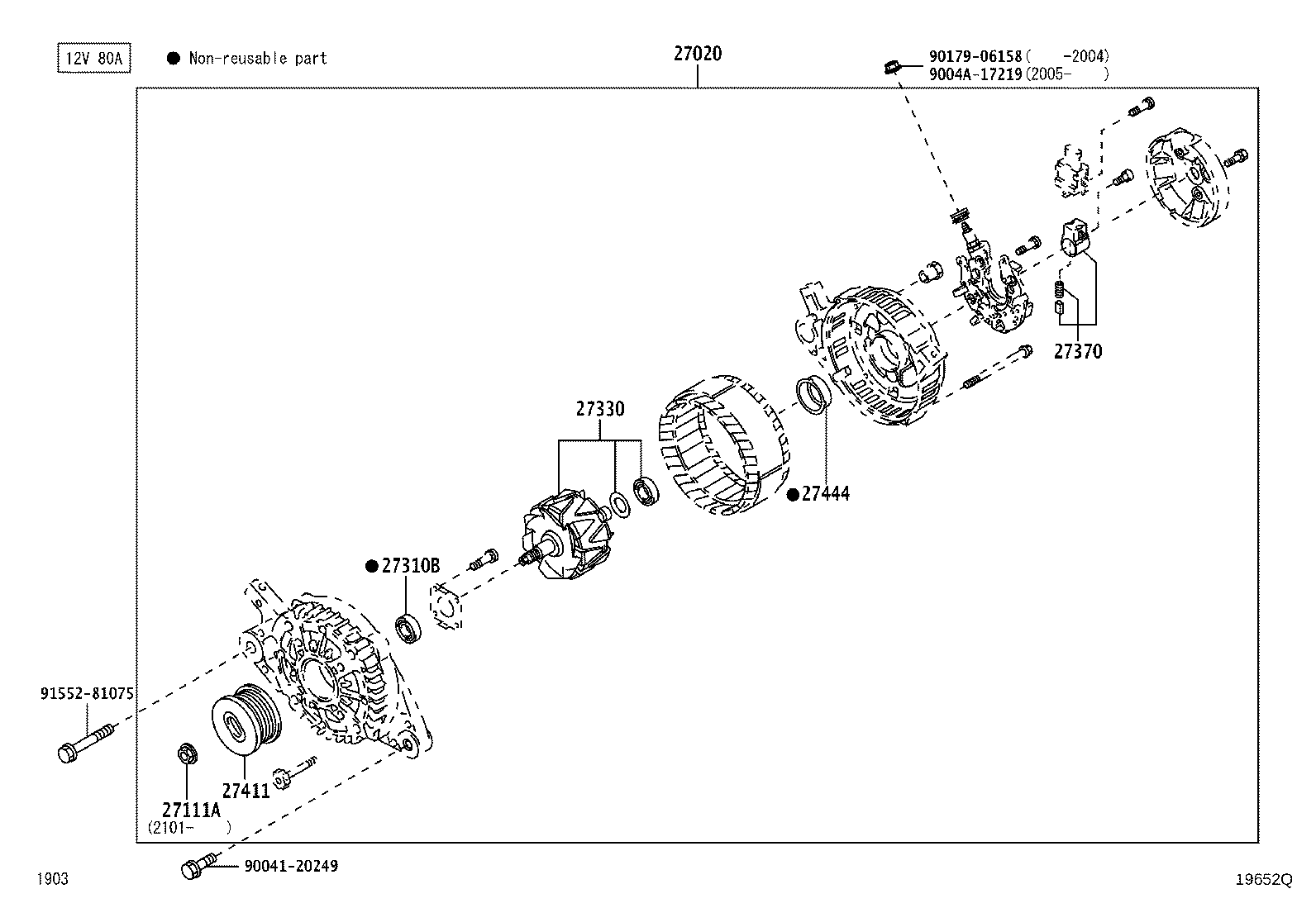

Figure 194808A 194808A 2011-11 → 2014-04 Figure 195914A 195914A 2014-04 → 2015-08 Figure 19652Q 19652Q 2015-07 → —

Part groups

PNCDescription
27020 Alternator Assy
27111A Nut, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27411 Pulley, Alternator
27444 Packing, Alternator Bearing Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
