Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

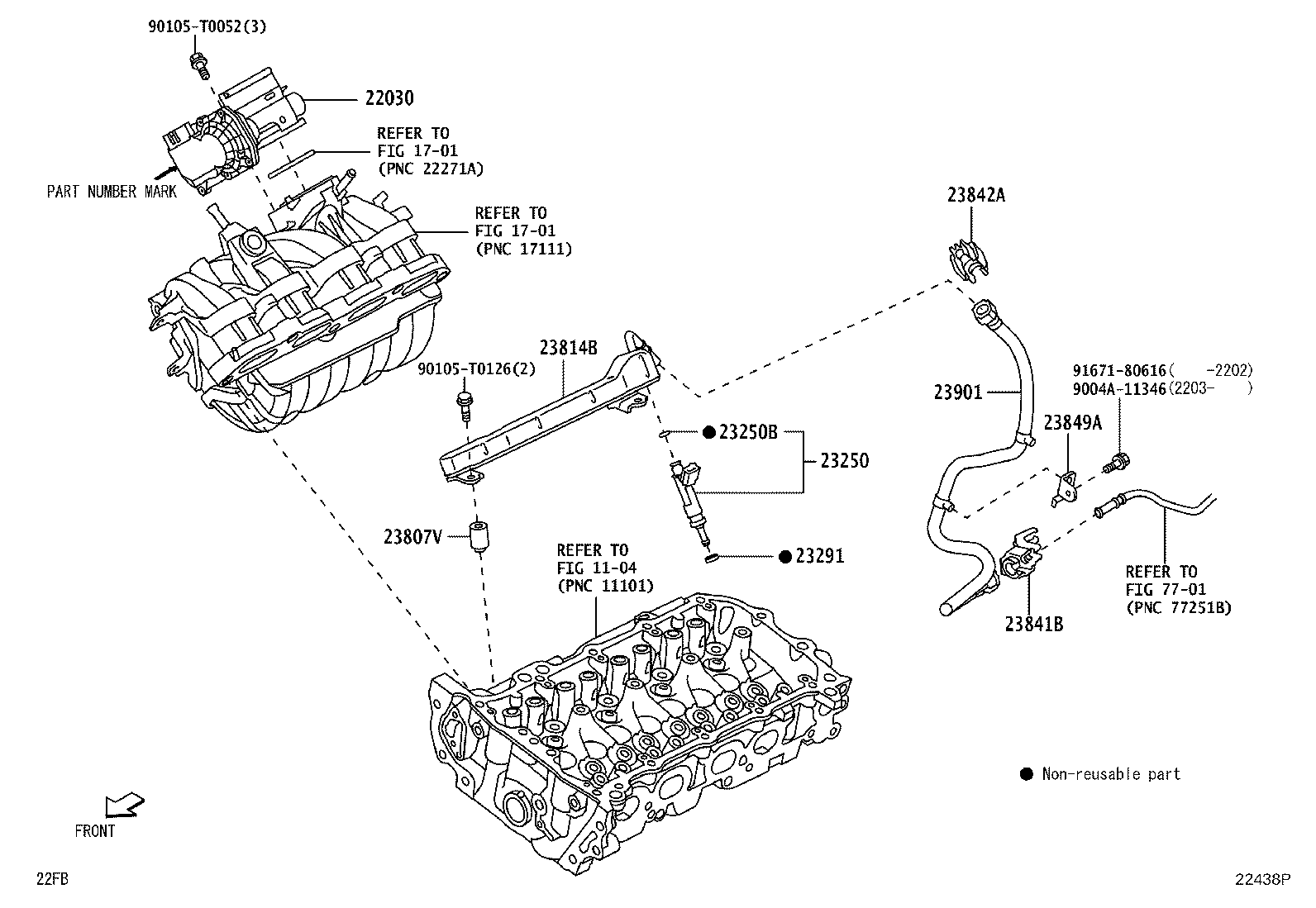

Fuel Injection System
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 21133A | Cover, Dust |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22210 | Body Assy, Throttle |
| 22267 | Bracket, Throttle Body |
| 22268 | Bracket, Throttle Body, NO.2 |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23291 | Insulator, Injector Vibration |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23814B | Pipe, Fuel Delivery |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23845C | Insulator, Fuel Pipe |
| 23849A | Support, Fuel Pipe |
| 23901 | Tube Sub-assy, Fuel |
| 77286G | Clamp, Fuel Tube, NO.2 |
| 89452G | Sensor, Throttle Position |
| 89690 | Actuator Assy, Idle Speed Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
