Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

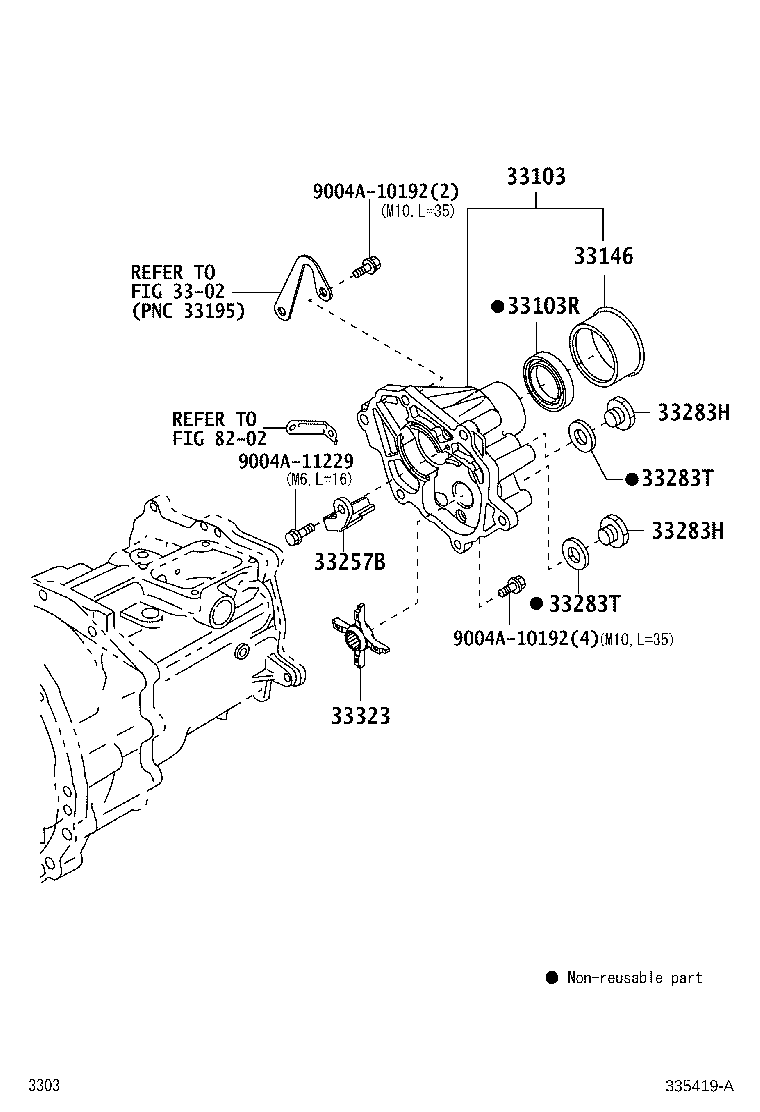

Extension Housing (MTM)
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
| 33257B | Plate, Gear Oil |
| 33283H | Plug, W/Head Straight Screw |
| 33283T | Gasket (FOR HEAD STRAIGHT SCREW PLUG) |
| 33323 | Slinger, Output Shaft Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
