Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04

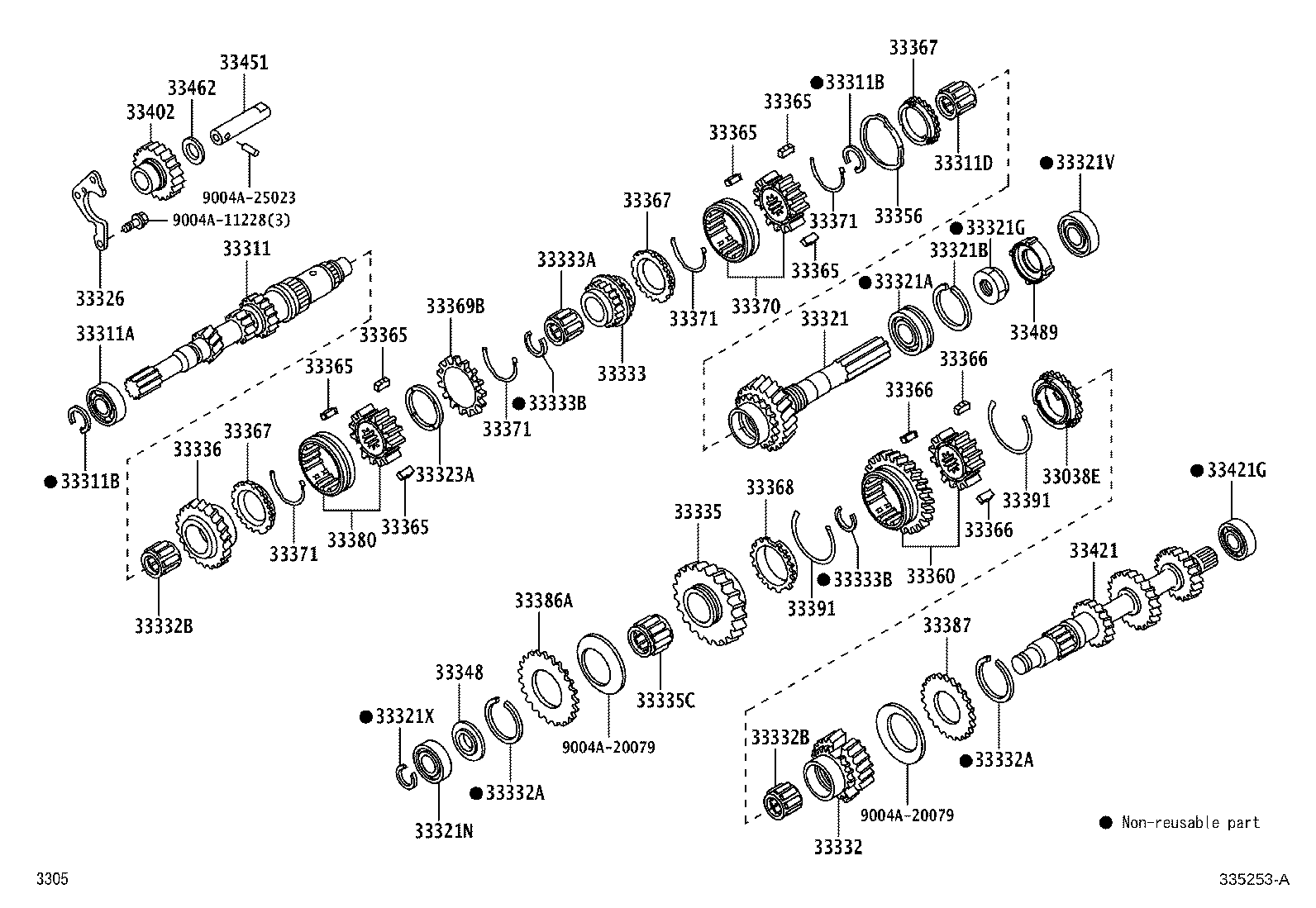

Transmission Gear (MTM)

45 part groups · 2 illustrations

PNC	Description
33038E	Ring Set, Synchronizer, NO.2
33311	Shaft, Input
33311A	Bearing (FOR INPUT SHAFT FRONT)
33311B	Ring, Shaft Snap (FOR FRONT BEARING)
33311D	Bearing, Input Shaft
33321	Shaft, Output
33321A	Bearing (FOR OUTPUT SHAFT REAR)
33321B	Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
33321G	Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321N	Bearing (FOR OUTPUT SHAFT FRONT)
33321V	Bearing (FOR OUTPUT SHAFT CENTER)
33321X	Ring, Shaft Snap (FOR OUTPUT SHAFT CENTER BEARING)
33323A	Spacer, Synchronizer Ring
33326	Plate, Bearing Lock
33332	Gear, 2ND
33332A	Ring, Shaft Snap (FOR 2ND GEAR)
33332B	Bearing, Needle Roller (FOR 2ND GEAR)
33333	Gear, 3RD
33333A	Bearing, Needle Roller (FOR 3RD GEAR)
33333B	Ring, Shaft Snap (FOR 3RD REAR)
33335	Gear, 1ST
33335C	Bearing, Needle Roller(FOR 1ST GEAR)
33336	Gear, 5TH
33348	Washer, 1ST Gear Thrust
33356	Spring, Wave
33360	Hub Assy, Synchronizer, NO.1
33365	Key, Synchromesh Shifting, NO.1
33366	Key, Synchromesh Shifting, NO.2
33367	Ring, Synchronizer, NO.1
33368	Ring, Synchronizer, NO.2
33369	Ring, Synchronizer, NO.3
33369B	Ring, Synchronizer, NO.4
33370	Hub Assy, Synchronizer, NO.2
33371	Spring, Synchromesh Shifting Key, NO.1
33380	Hub Assy, Synchronizer, NO.3
33386A	Sub-gear, 1ST
33387	Sub-gear, NO.2
33391	Spring, Synchromesh Shifting Key, NO.2
33402	Gear Sub-assy, Reverse Idler
33421	Gear, Counter
33421G	Bearing, Radial Ball(FOR COUNTER GEAR REAR)
33451	Shaft, Reverse Idler Gear
33462	Washer, Reverse Idler Thrust
33481	Gear, Speedometer Drive (MTM)
33489	Rotor, Speed Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
