Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

21 part groups · 7 illustrations

Illustrations

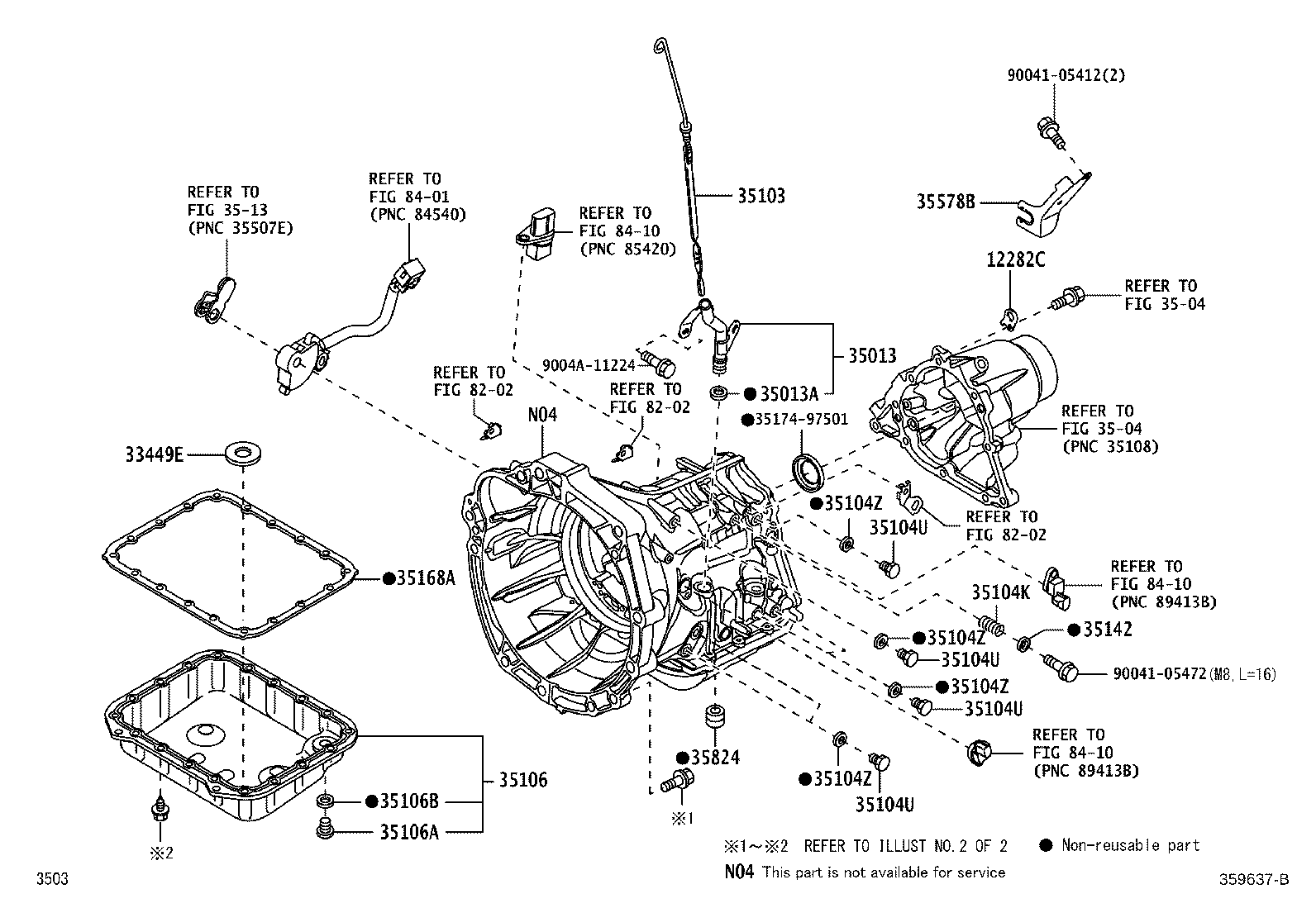

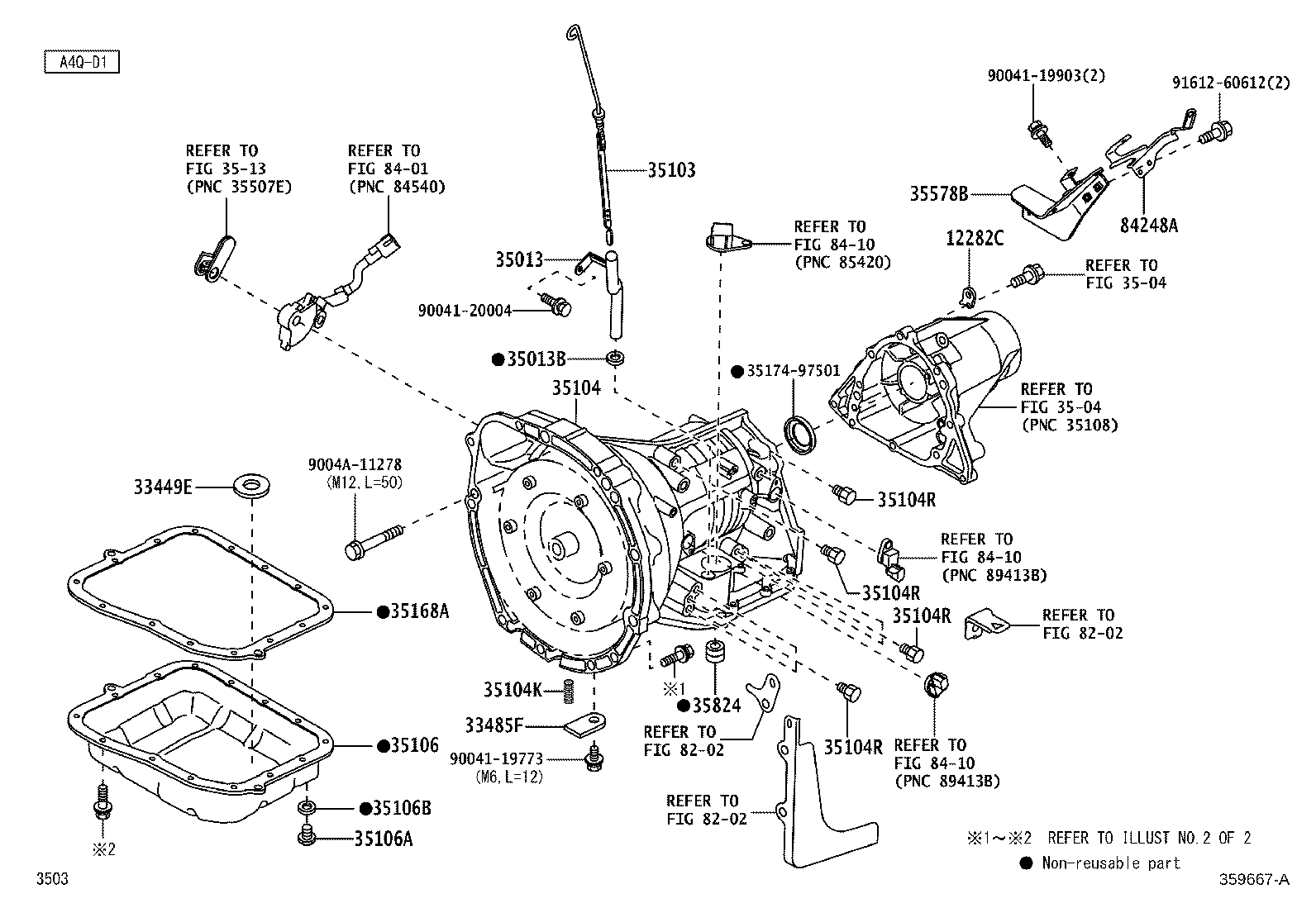

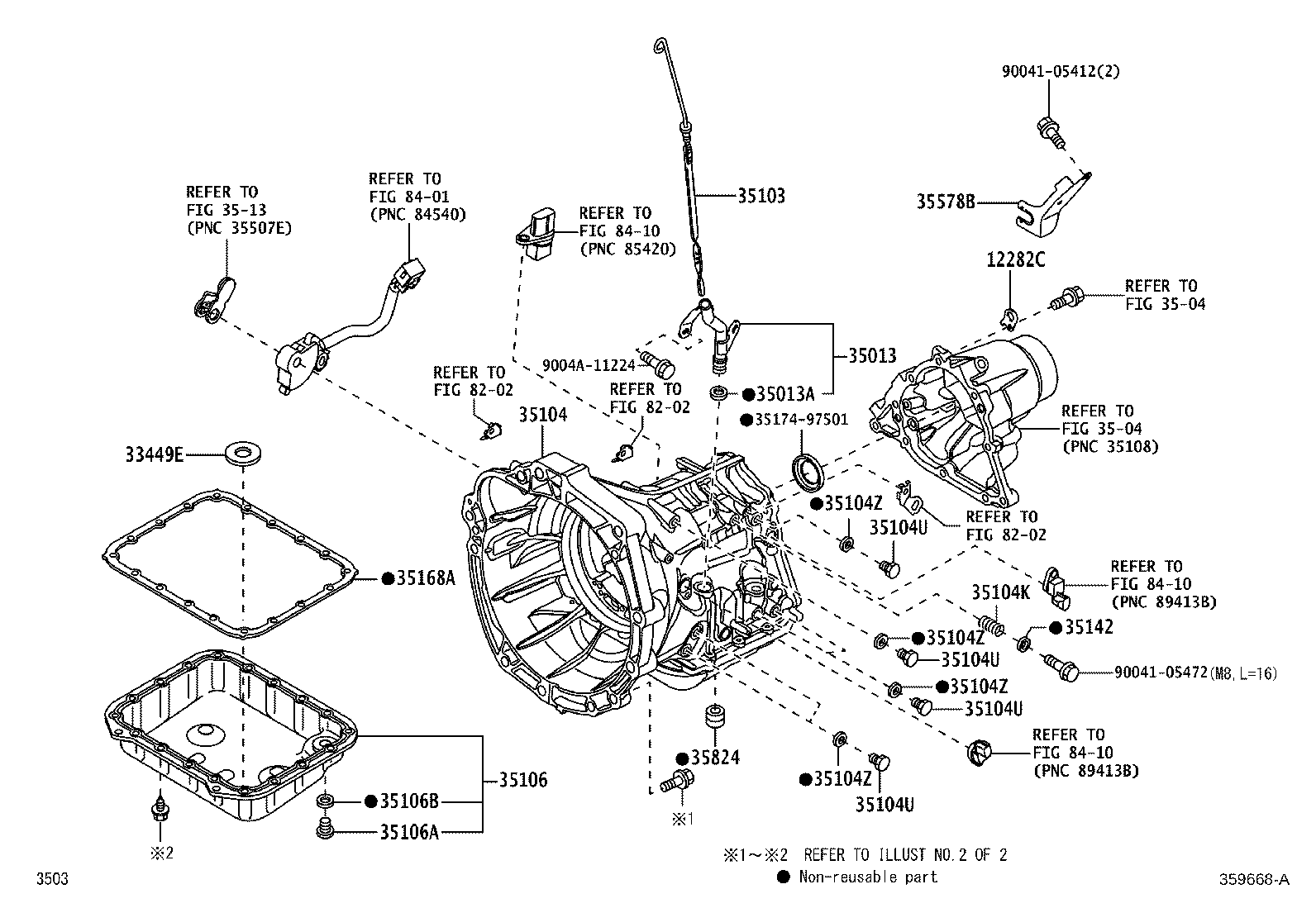

Figure 358116F 358116F 2011-11 → 2015-08 Figure 359667A 359667A 2011-11 → 2015-08 Figure 359637B 359637B 2015-07 → 2019-01 Figure 359668A 359668A 2015-07 → — Figure 359668A 359668A 2019-01 → — Figure 358117C 358117C 2011-11 → 2015-08 Figure 359369C 359369C 2015-07 → —

Part groups

PNCDescription
12282C Hanger, Engine, NO.2
33449E Magnet, Transaxle
33485F Plate, Speedmeter Lock
35013 Tube Sub-assy, Transmission Oil Filler
35013A Ring, O(FOR TRANSMISSION OIL FILLER TUBE)
35013B Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104K Compression Spring, Transaxle Case
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104U Bolt (FOR TRANSAXLE CASE)
35104Z Gasket (FOR TRANSAXLE CASE)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35142 Gasket, Transmission Case(ATM)
35168A Gasket, Automatic Transaxle Oil Pan
35578B Bracket, Transmission Control Cable
35824 Seal, Brake Cylinder
84248A Clamp, Switch Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
