Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Band & Multiple Disc Clutch (ATM)

17 part groups · 3 illustrations

Illustrations

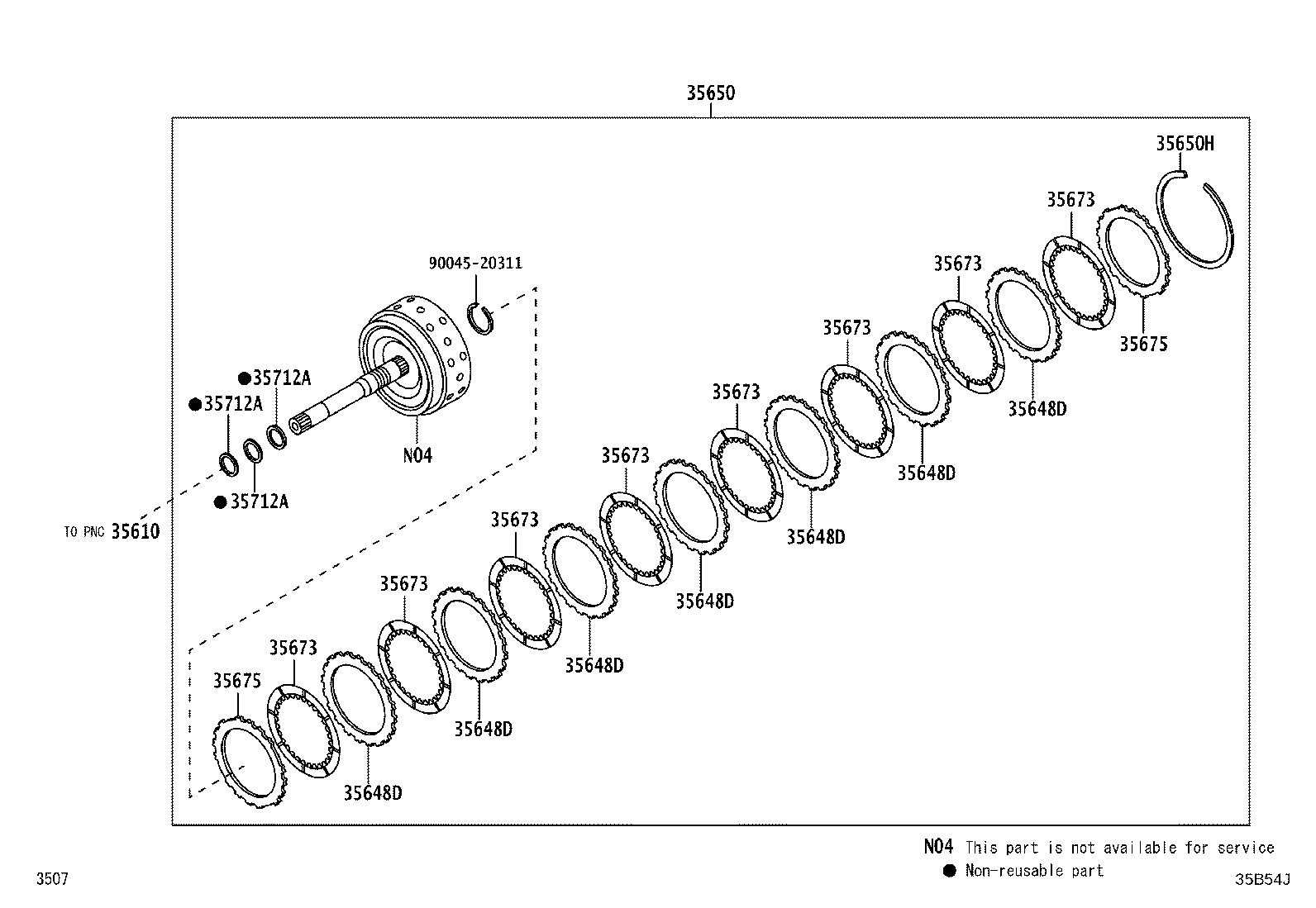

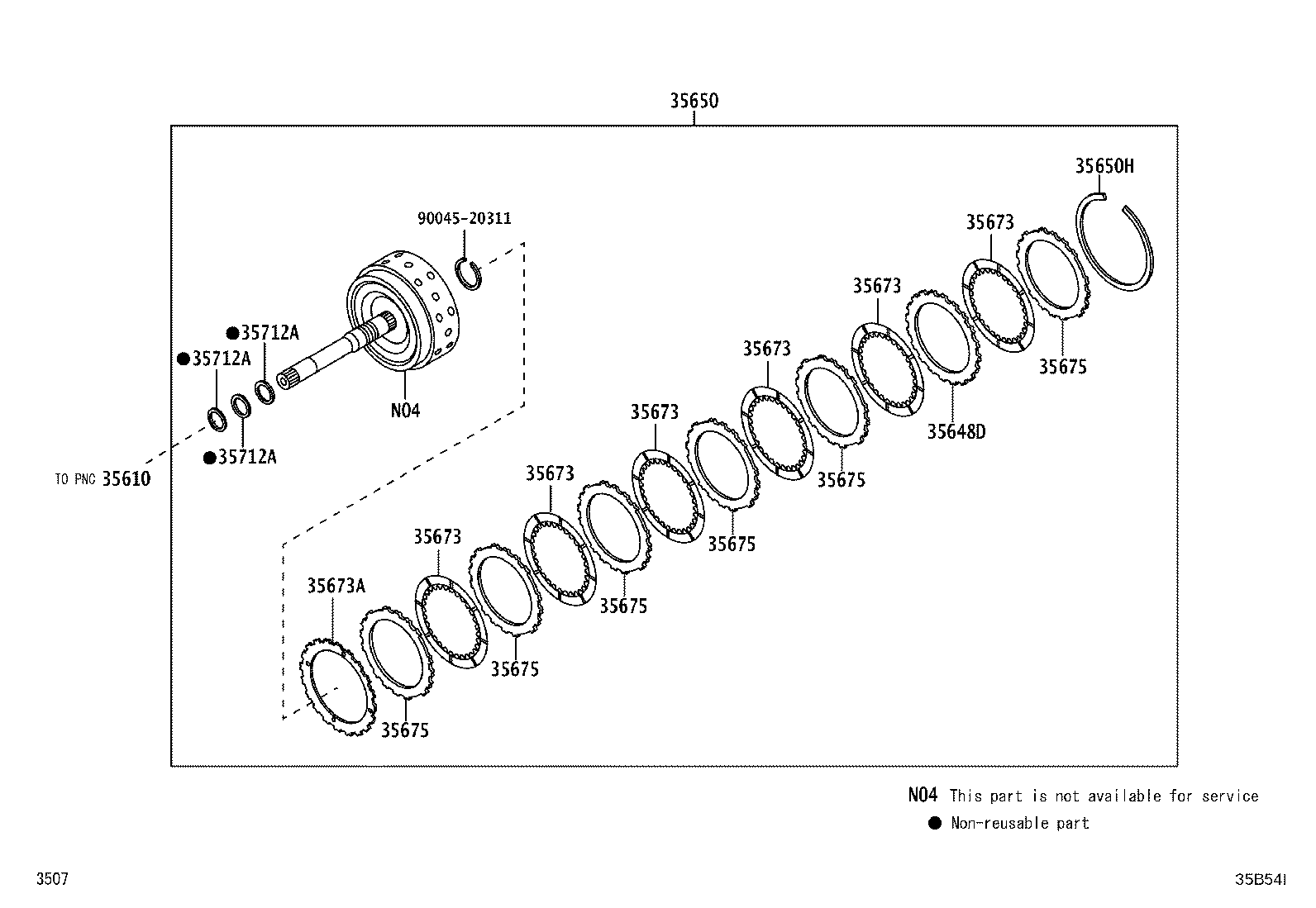

Figure 358382B 358382B 2011-11 → — Figure 35B54I 35B54I 2011-11 → 2015-08 Figure 35B54J 35B54J 2015-07 → —

Part groups

PNCDescription
35610 Clutch Assy, Front Multiple Disc
35616A Bearing, Front Clutch Thrust
35633B Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35633C Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH)
35633F Disc, Clutch (FOR FRONT CLUTCH)
35635 Flange, Forward Clutch
35647B Plate, Clutch, NO.2
35648D Plate, Clutch, NO.3
35649 Flange, Reverse Clutch
35650 Clutch Assy, Rear Multiple Disc
35650H Ring, Hole Snap (FOR REAR MULTIPLE DISC CLUTHC)
35673 Disc, Rear Clutch
35673A Plate, Rear Clutch Cushion
35675 Flange, Rear Clutch
35675B Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
35675E Ring, Hole Snap (FOR REAR CLUTCH FLANGE)
35712A Ring, Input Shaft Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
