Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

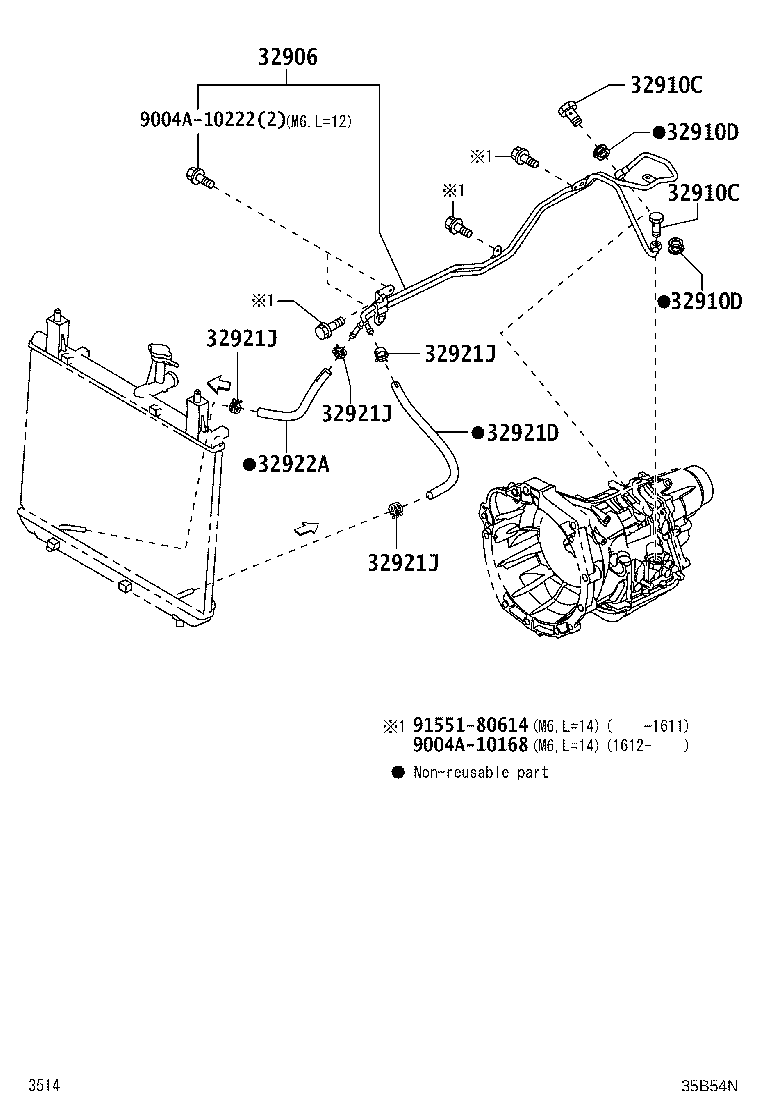

Oil Cooler & Tube (ATM)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32906 | Tube Sub-assy, Oil Cooler |
| 32910C | Bolt, Union(FOR OIL COOLER) |
| 32910D | Gasket(FOR OIL COOLER) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921J | Clip(FOR OIL COOLER HOSE) |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
