Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

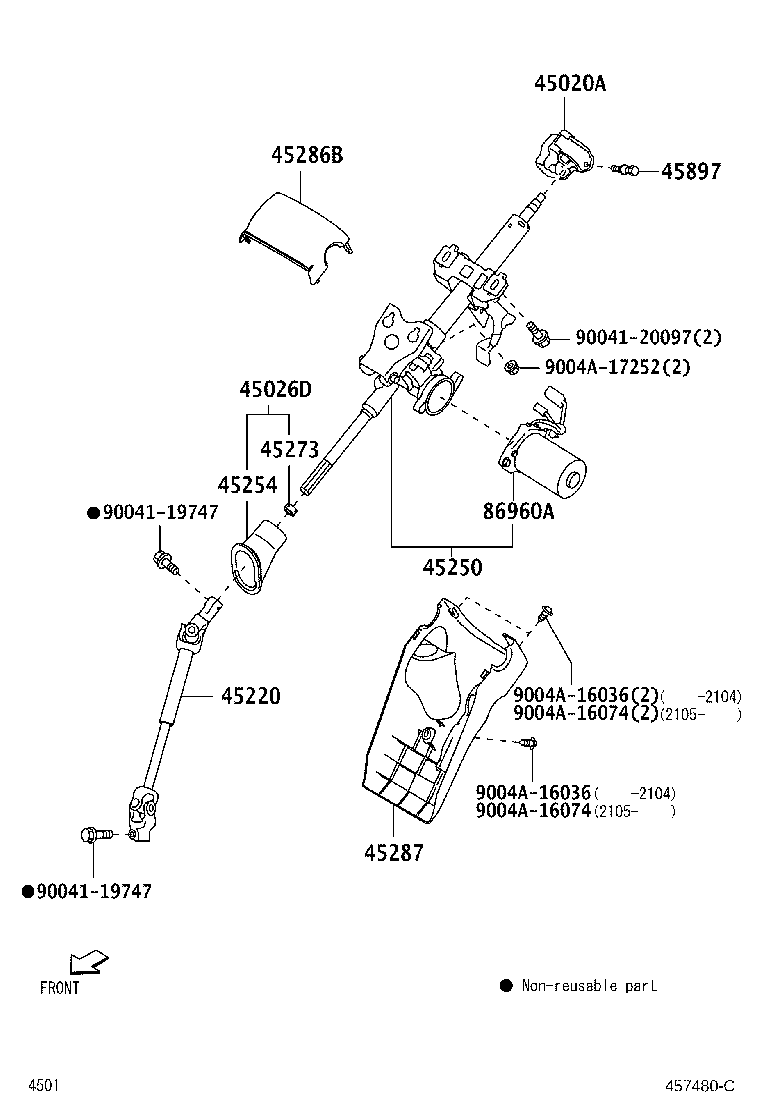

Steering Column & Shaft
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45020A | Actuator Assy, Steering Lock |
| 45026D | Cover Sub-assy, Steering Column Hole |
| 45220 | Shaft Assy, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45254 | Shield, Steering Column Hole |
| 45273 | Bush, Steering Main Shaft |
| 45281 | Housing, Steering Column |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45897 | Bolt, Steering Lock Set |
| 86960A | Motor Set, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
