Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 10 illustrations

Illustrations

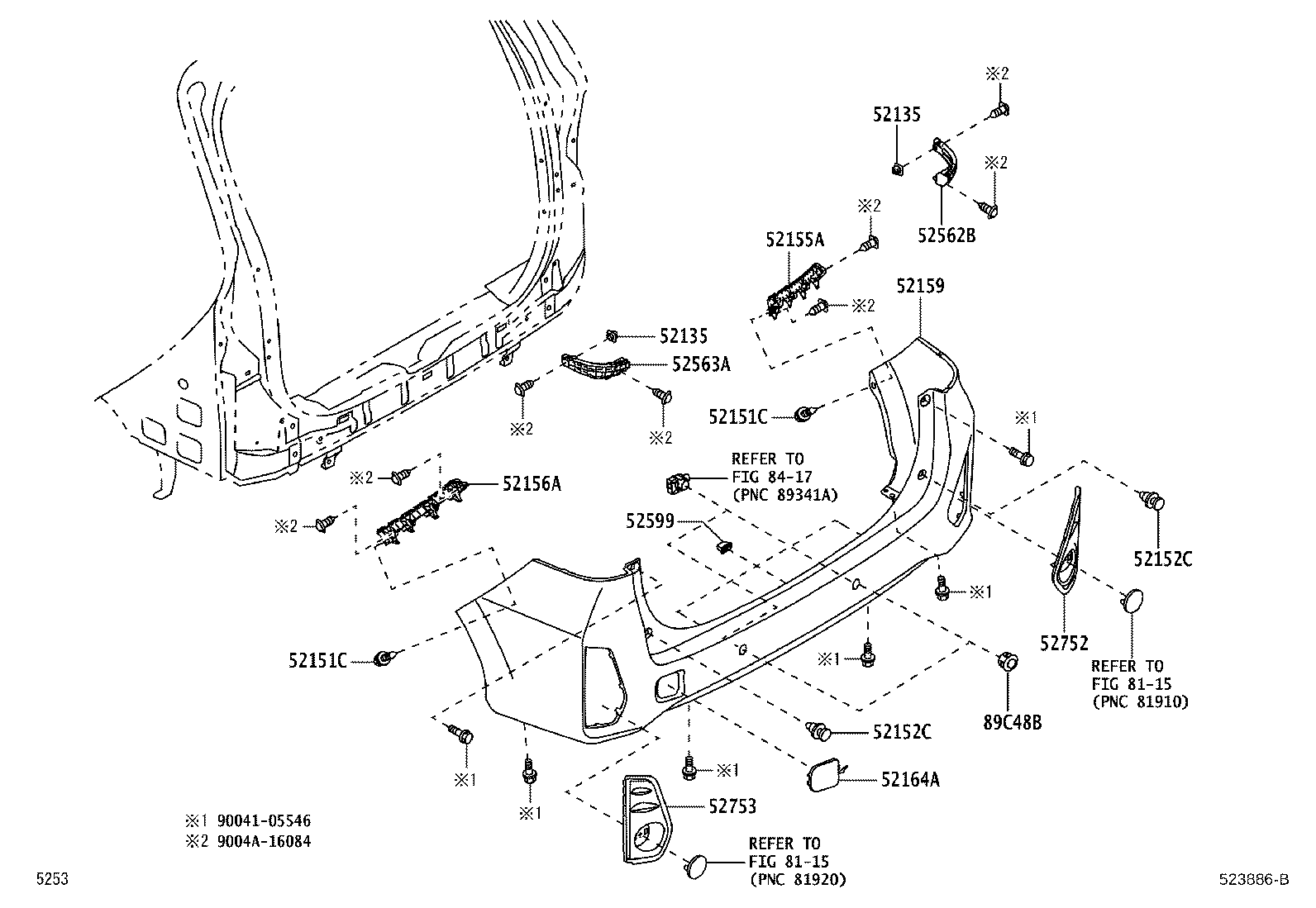

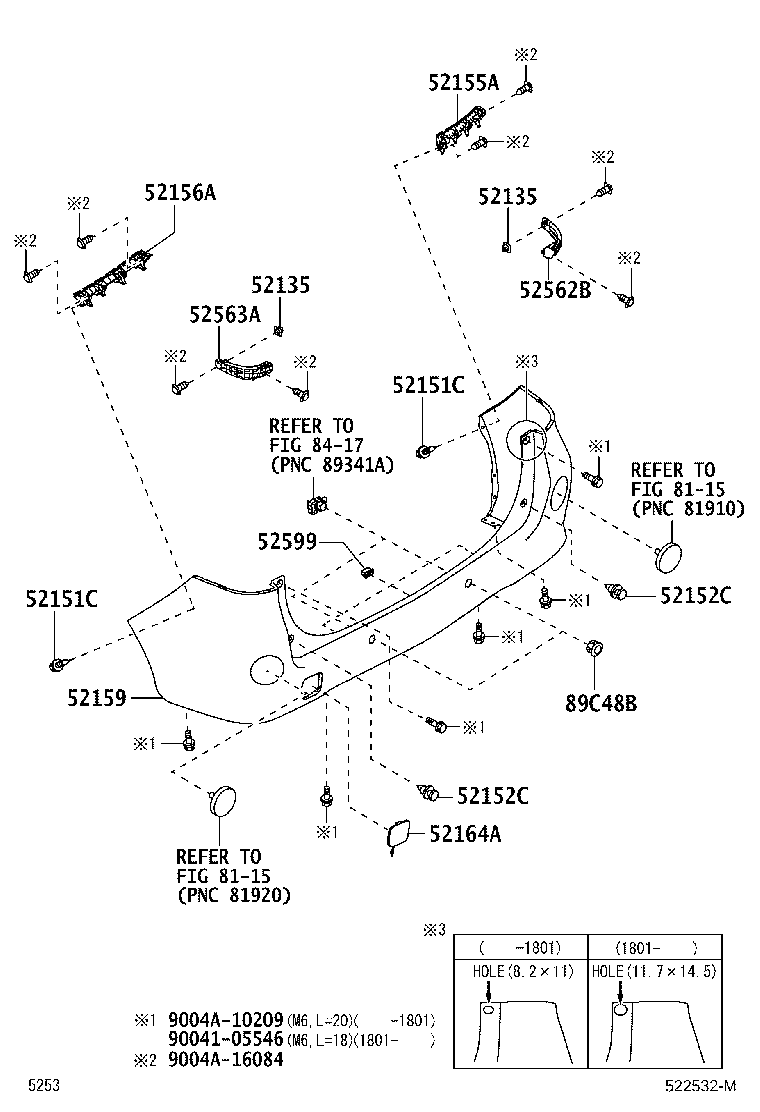

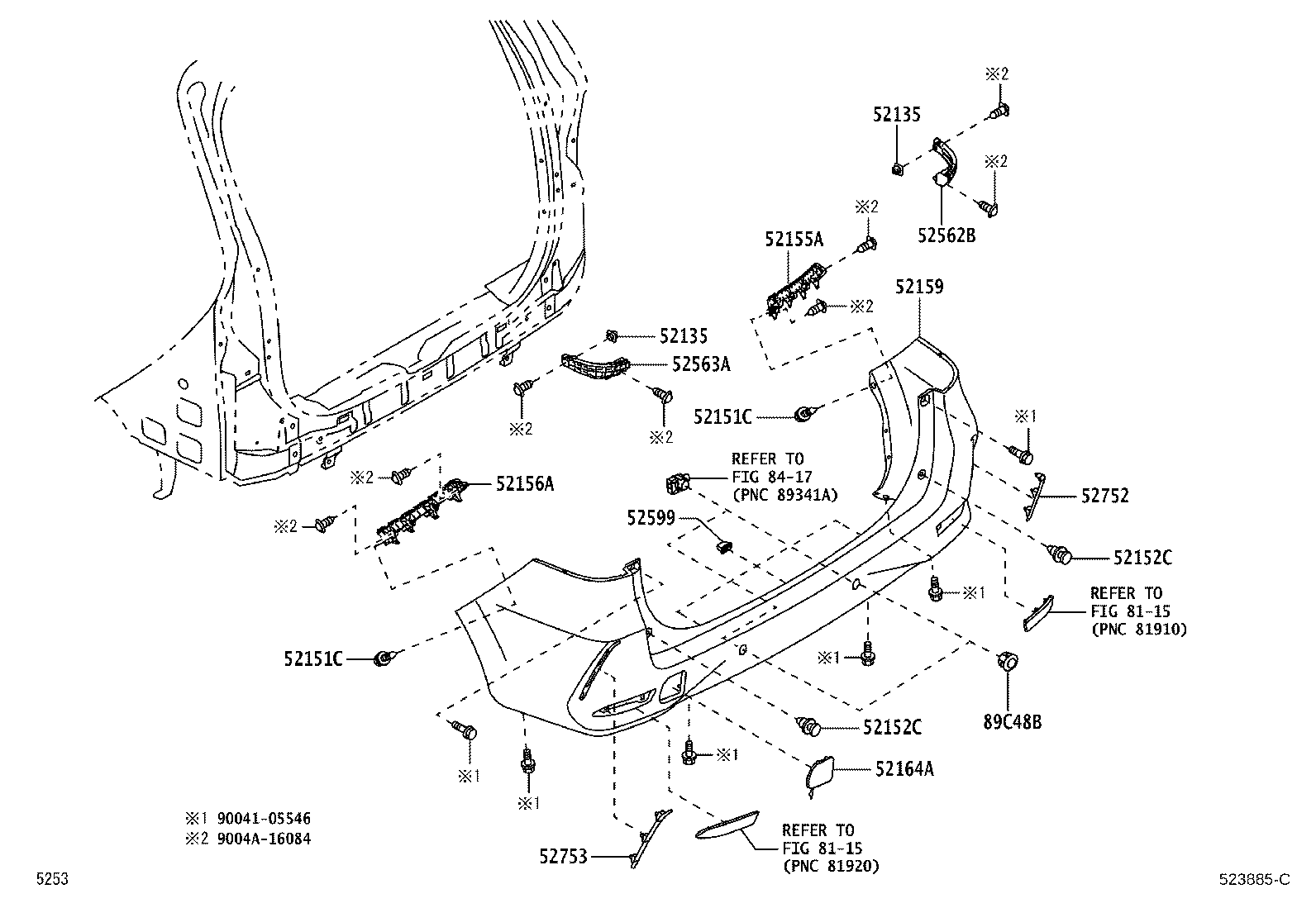

Figure 523337F 523337F 2011-11 → 2019-01 Figure 523337F 523337F 2011-11 → 2019-04 Figure 523337F 523337F 2019-01 → — Figure 523337F 523337F 2019-04 → — Figure 523337F 523337F 2019-04 → — Figure 522532M 522532M 2011-11 → 2019-01 Figure 522532M 522532M 2011-11 → 2019-04 Figure 523885C 523885C 2019-01 → — Figure 523885C 523885C 2019-04 → — Figure 523886B 523886B 2019-01 → —

Part groups

PNCDescription
52135 Grommet, Rear Bumper Stay
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52164A Plate, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52599 Stopper, Rear Bumper, Upper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
