Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 14 illustrations

Illustrations

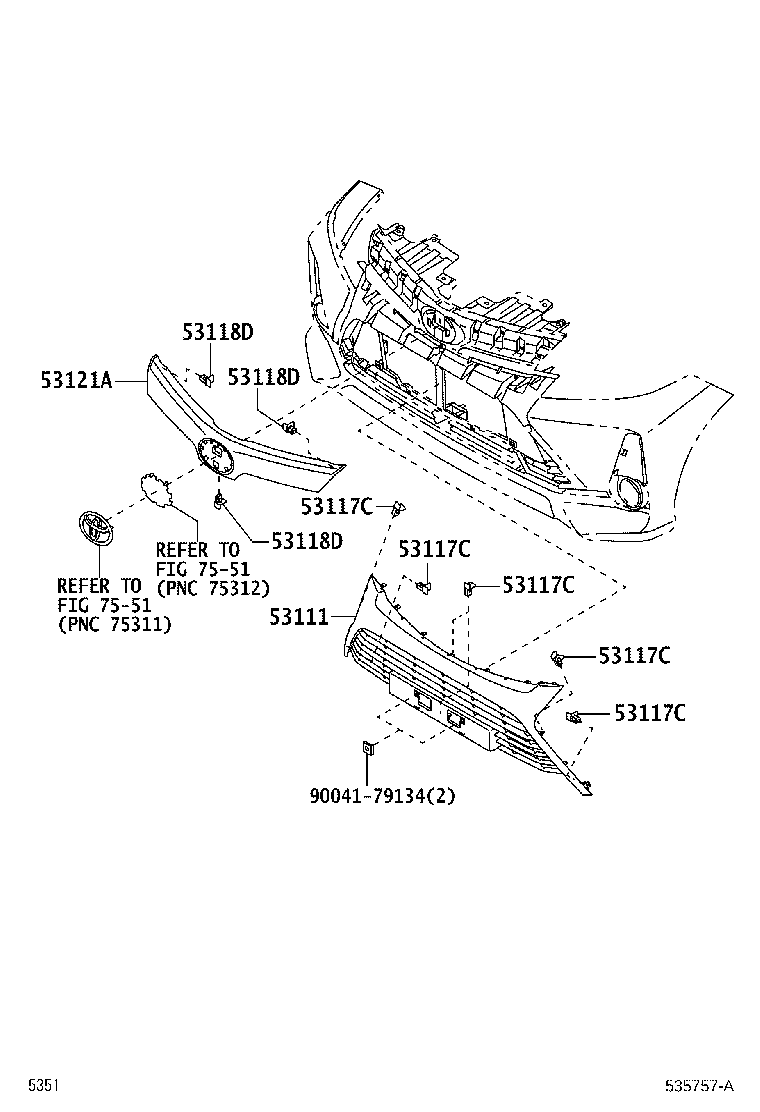

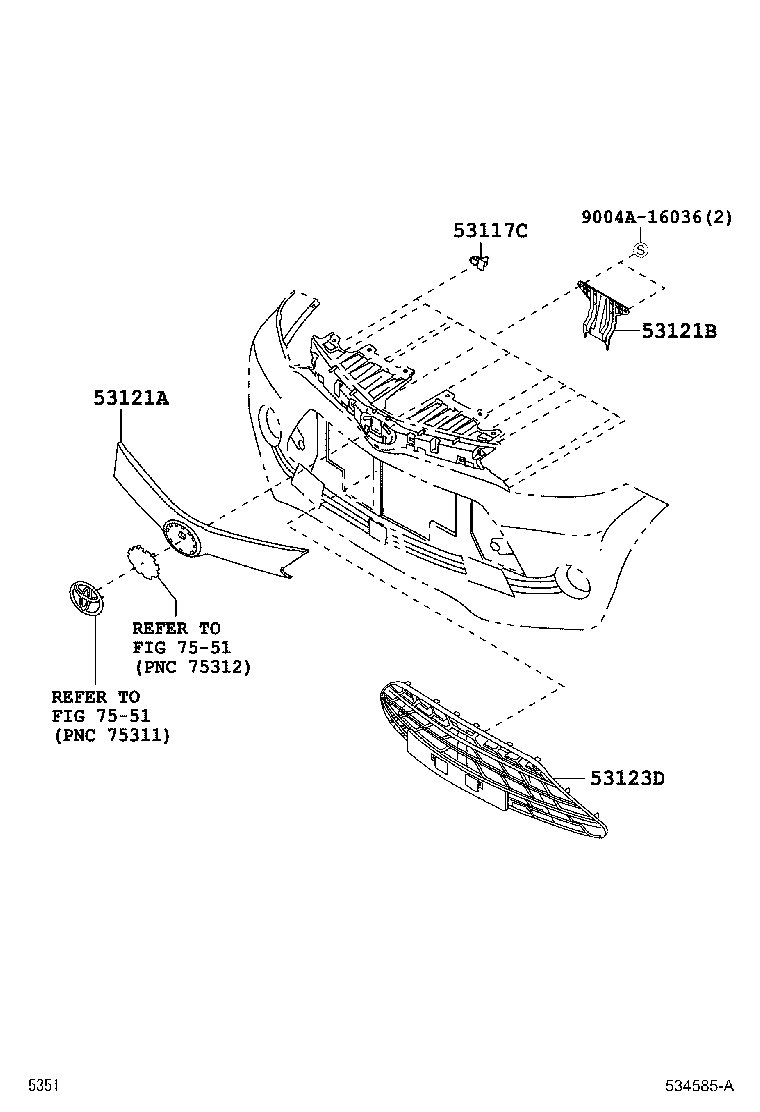

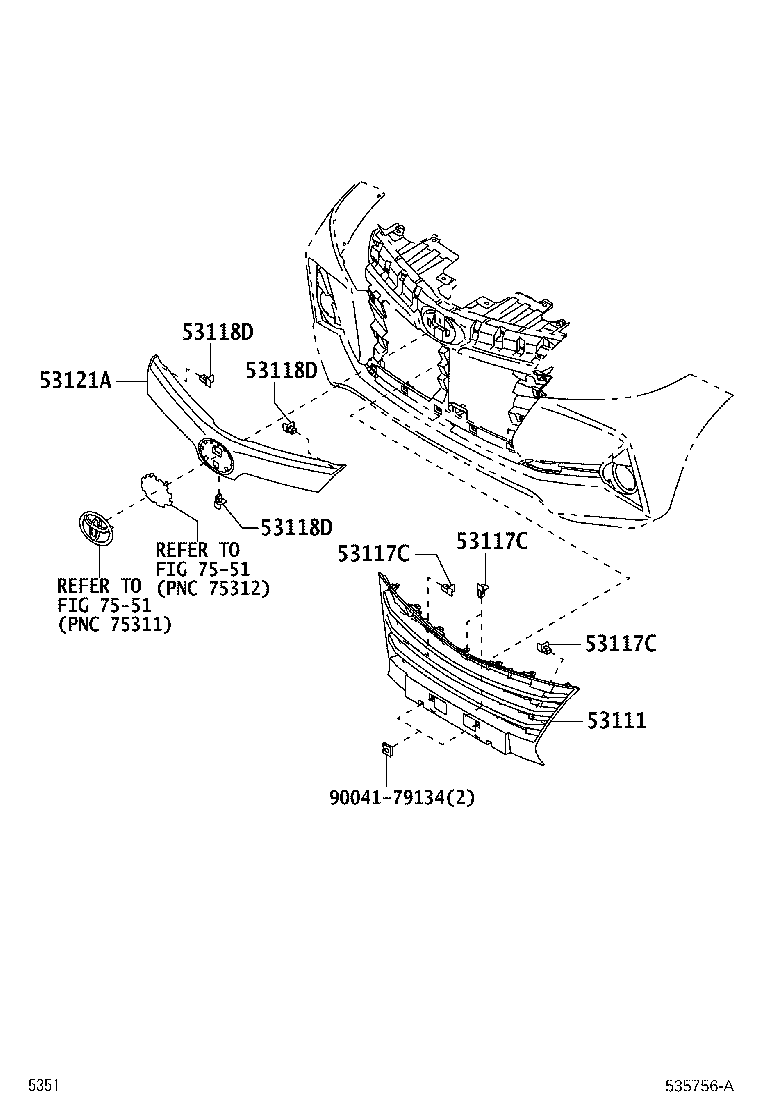

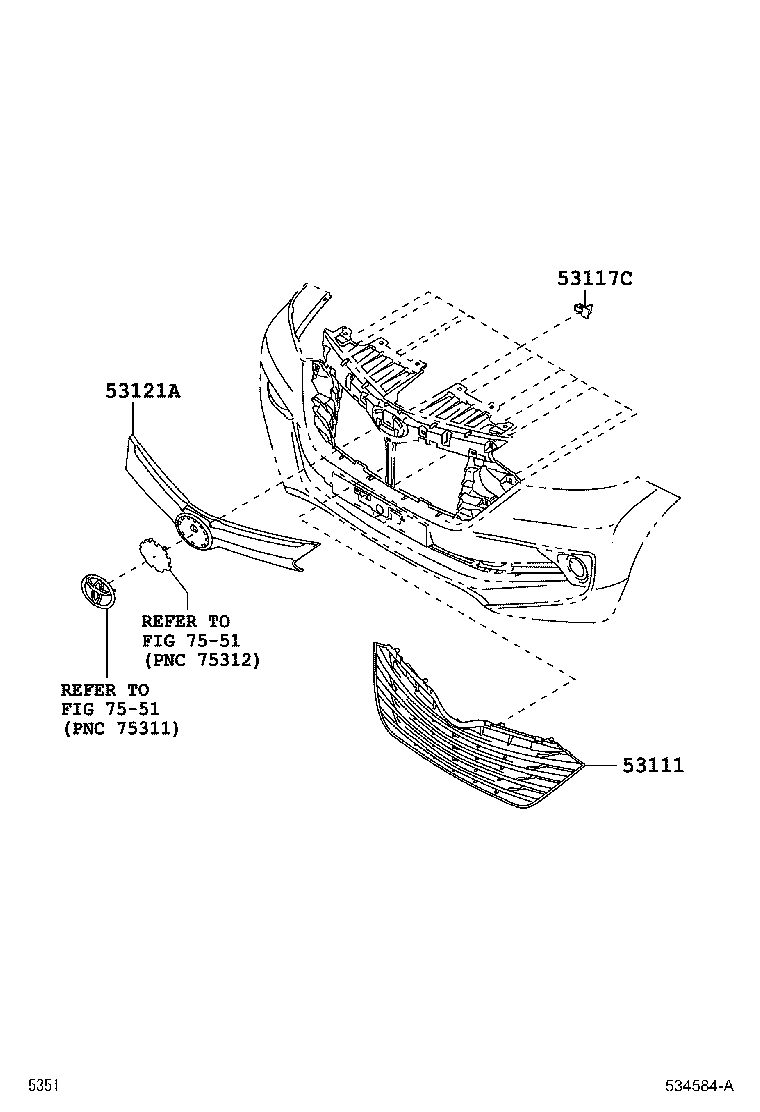

Figure 53906C 53906C 2011-11 → 2015-08 Figure 533568 533568 2011-11 → 2015-08 Figure 534584A 534584A 2015-07 → 2019-01 Figure 534584A 534584A 2015-07 → 2019-04 Figure 534584A 534584A 2019-01 → — Figure 534584A 534584A 2019-04 → — Figure 534584A 534584A 2019-04 → — Figure 534584A 534584A 2021-11 → — Figure 534585A 534585A 2015-07 → 2019-01 Figure 534585A 534585A 2015-07 → 2019-04 Figure 535756A 535756A 2019-01 → — Figure 535756A 535756A 2019-04 → — Figure 535757A 535757A 2019-01 → — Figure 535757A 535757A 2019-04 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112B Grille, Radiator Side, RH
53113B Grille, Radiator Side, LH
53114B Grille, Radiator, Upper
53117C Retainer, Radiator Grille, NO.1
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53121C Plate, Radiator Grille Finish, RH
53122C Plate, Radiator Grille Finish, LH
53123D Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
