Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

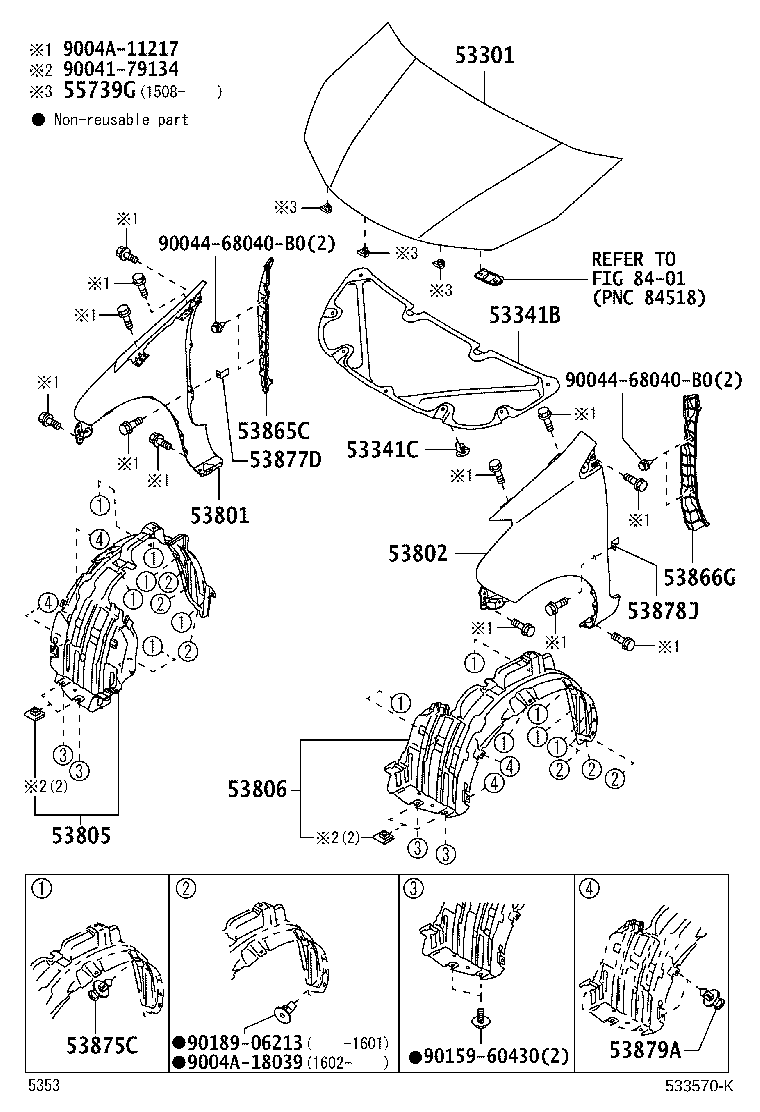

Hood & Front Fender
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53865C | Plate, Front Fender Extension, RH |
| 53866G | Plate, Front Fender Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53876A | Liner, Front Fender, LH |
| 53877D | Bracket, Front Fender Liner, RH |
| 53878J | Bracket, Front Fender Liner, LH |
| 53879A | Retainer, Front Fender Liner |
| 55739G | Stopper, Hood |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
