Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

13 part groups · 2 illustrations

Illustrations

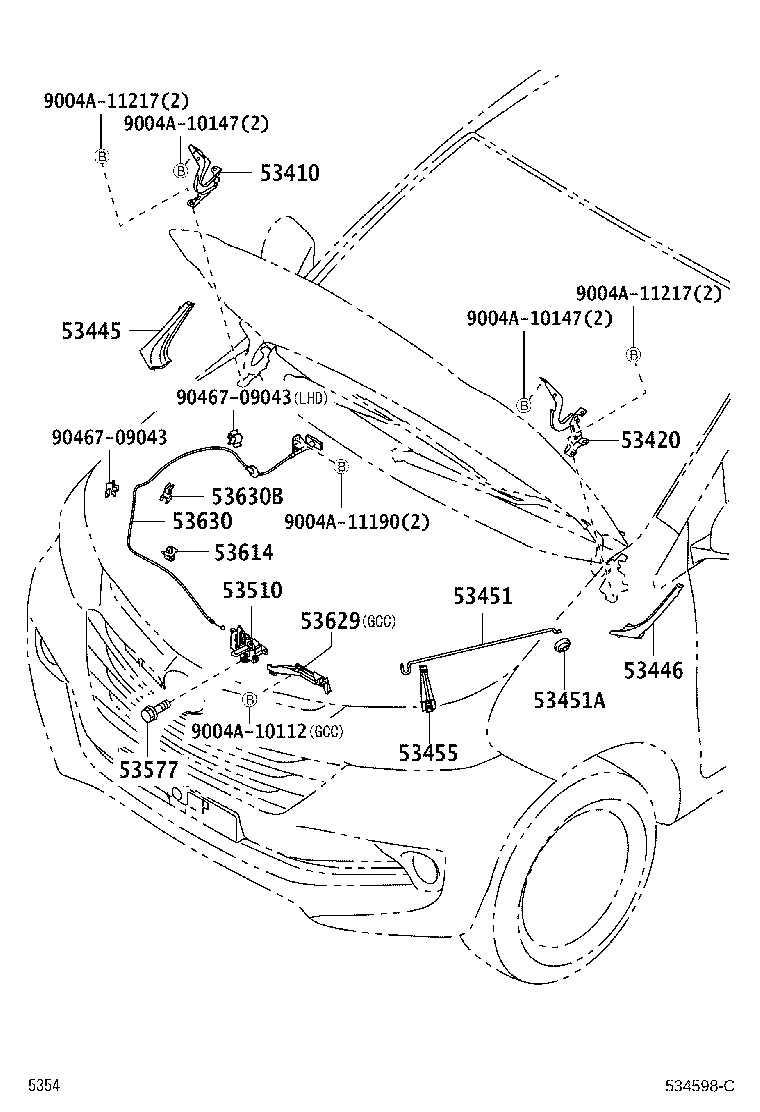

Figure 533571E 533571E 2011-11 → 2015-08 Figure 534598C 534598C 2015-07 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53445 Cover, Hood Hinge, RH
53446 Cover, Hood Hinge, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53455 Clamp, Hood Support Rod
53510 Lock Assy, Hood
53577 Bolt, Hood Lock
53614 Clamp, Hood Lock Control Cable
53629 Cover, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
