Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

46 part groups · 5 illustrations

Illustrations

584270E 2011-11 → 2013-05

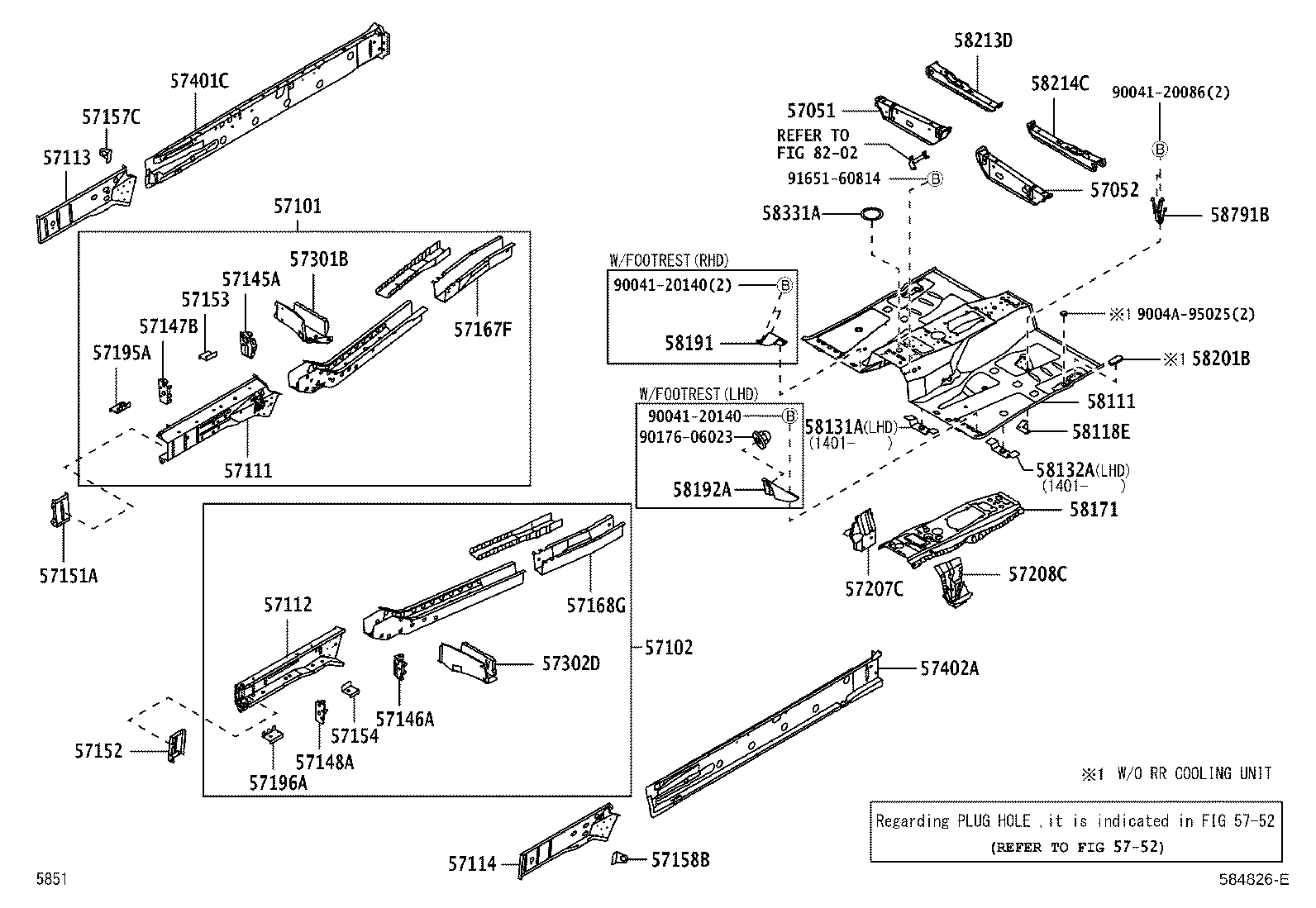

584826E 2013-05 → 2015-07

584826E 2013-05 → 2015-08

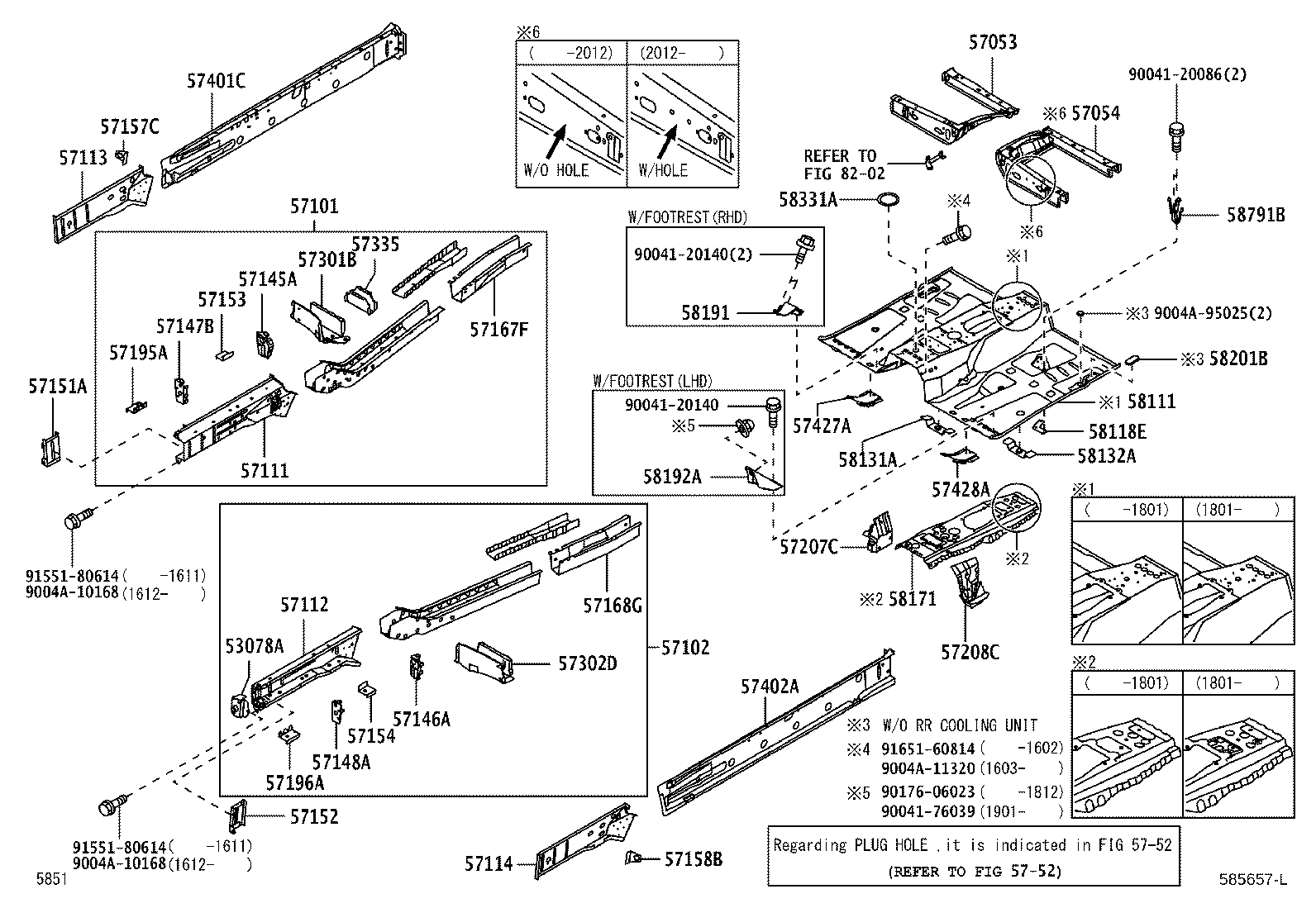

585657L 2015-07 → 2023-02

585657L 2015-08 → 2023-02

Part groups

PNC	Description
53078A	Extension Sub-assy, Front Fender Apron, LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57053	Reinforcement Sub-assy, Front Floor Crossmember, RH
57054	Reinforce Sub-assy, Front Side Member, NO.5
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57145A	Reinforcement, Front Side Member, Rear RH
57146A	Reinforcement, Front Side Member, Rear LH
57147B	Plate, Front Side Member, Rear RH
57148A	Plate, Front Side Member, Rear LH
57151A	Reinforcement, Front Side Member, NO.1 RH
57152	Reinforcement, Front Side Member, NO.1 LH
57153	Reinforcement, Front Side Member, NO.2 RH
57154	Reinforcement, Front Side Member, NO.2 LH
57157C	Bracket, Flexible Hose, Front RH
57158B	Bracket, Flexible Hose, Front LH
57167F	Reinforcement, Front Crossmember Side, RH
57168G	Member, Front Floor, LH
57195A	Reinforcement, Front Side Member, Front RH
57196A	Reinforcement, Front Side Member, Front LH
57207C	Bracket Sub-assy, Engine Rear Mounting, RH
57208C	Bracket Sub-assy, Engine Rear Mounting, LH
57301B	Outrigger Sub-assy, NO.1 RH
57302D	Outrigger Sub-assy, NO.1 LH
57335	Outrigger, NO.2 Front RH
57401C	Member Sub-assy, Floor Side, Inner RH
57402A	Member Sub-assy, Floor Side, Inner LH
57427A	Reinforcement, Front Floor, NO.3 RH
57428A	Reinforcement, Front Floor, NO.3 LH
58111	Pan, Front Floor
58118E	Bracket, Jack Set
58131A	Bracket, Front Floor Heat Insulator, NO.1
58132A	Bracket, Front Floor Heat Insulator, NO.2
58171	Reinforcement, Parking Brake Base
58191	Footrest, Front Floor
58192A	Footrest, Front Floor, LH
58201B	Plug, Hole(FOR FLOOR PANEL)
58213D	Reinforcement, Center Floor Panel
58214C	Reinforcement, Center Floor Panel, LH
58331A	Plug, Hole(FOR FRONT FLOOR CENTER FRONT PANEL)
58791B	Carrier, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
