Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 9 illustrations

Illustrations

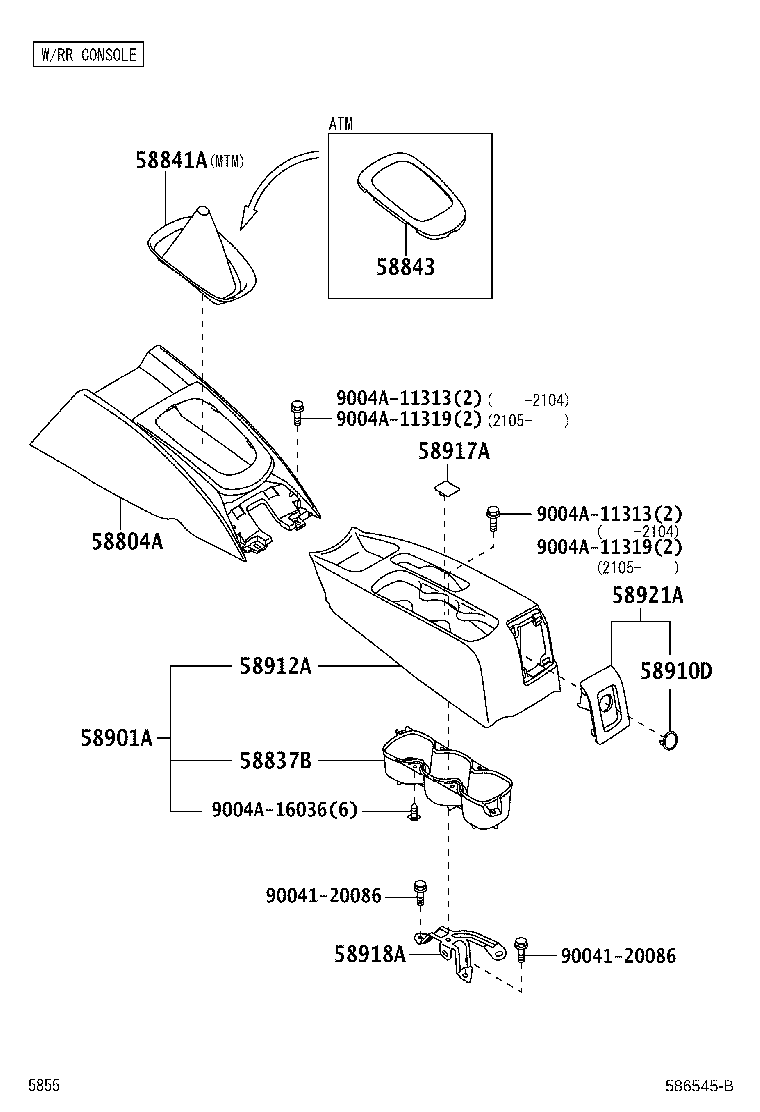

Figure 584278 584278 2011-11 → 2015-08 Figure 584279A 584279A 2011-11 → 2015-08 Figure 585640 585640 2015-07 → 2017-12 Figure 585640 585640 2015-08 → 2017-12 Figure 585640 585640 2015-08 → 2017-12 Figure 586545B 586545B 2017-12 → — Figure 585641A 585641A 2015-08 → 2019-01 Figure 585641A 585641A 2015-08 → 2019-04 Figure 585641A 585641A 2015-08 → 2019-04

Part groups

PNCDescription
55446E Base, Switch Hole, NO.1
58804A Panel Sub-assy, Console, Upper
58821A Panel, Console
58837B Box, Console Cup Holder
58839A Cover, Console Box Hole
58841A Cover, Shifting Hole
58842A Frame, Shifting Hole
58843 Bezel, Shifting Hole
58901A Box Sub-assy, Console, Rear
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58912A Box, Rear Console
58917A Cover, Console Box, Rear
58918A Bracket, Box Support
58921A Panel, Rear Console, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
