Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 9 illustrations

Illustrations

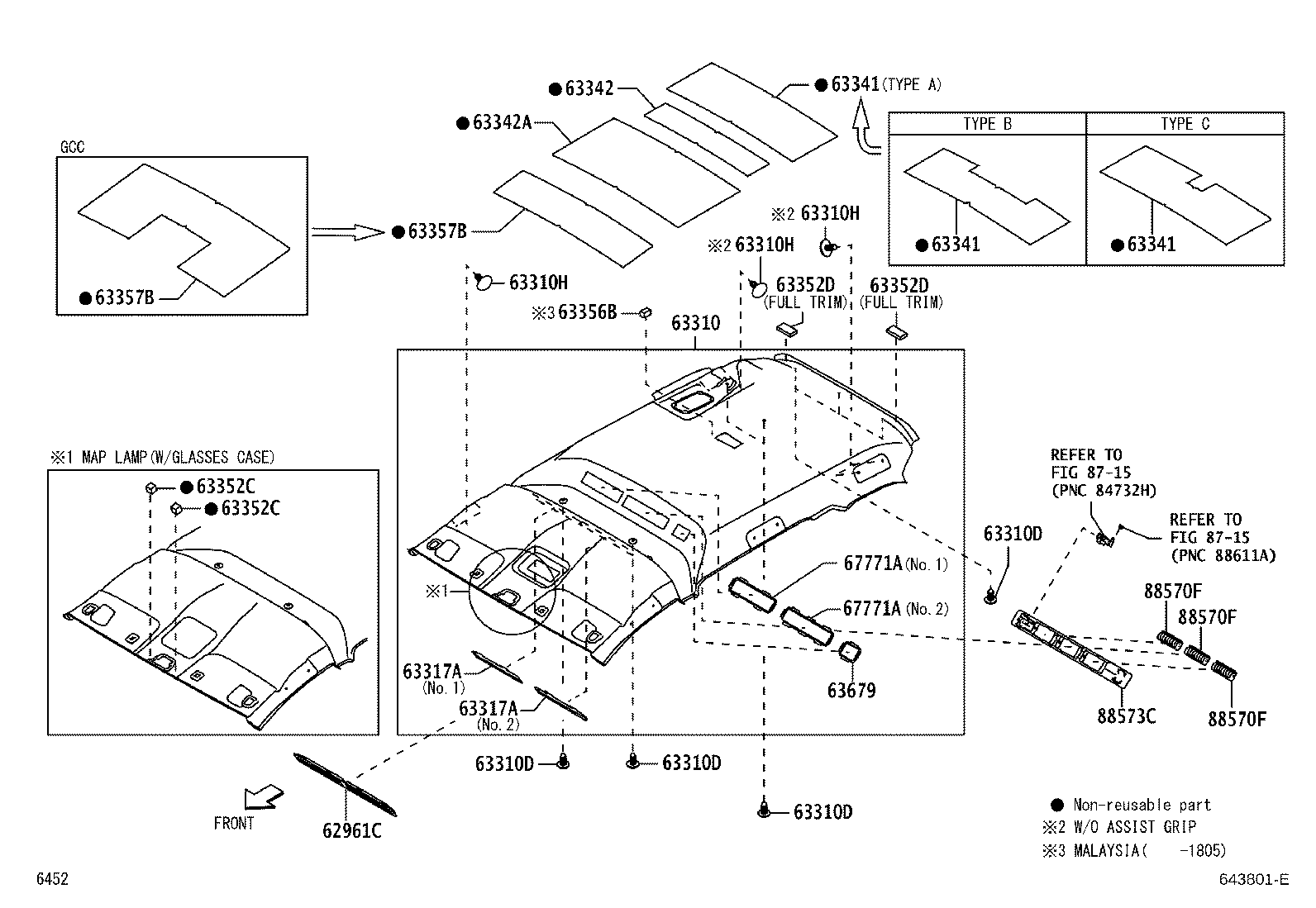

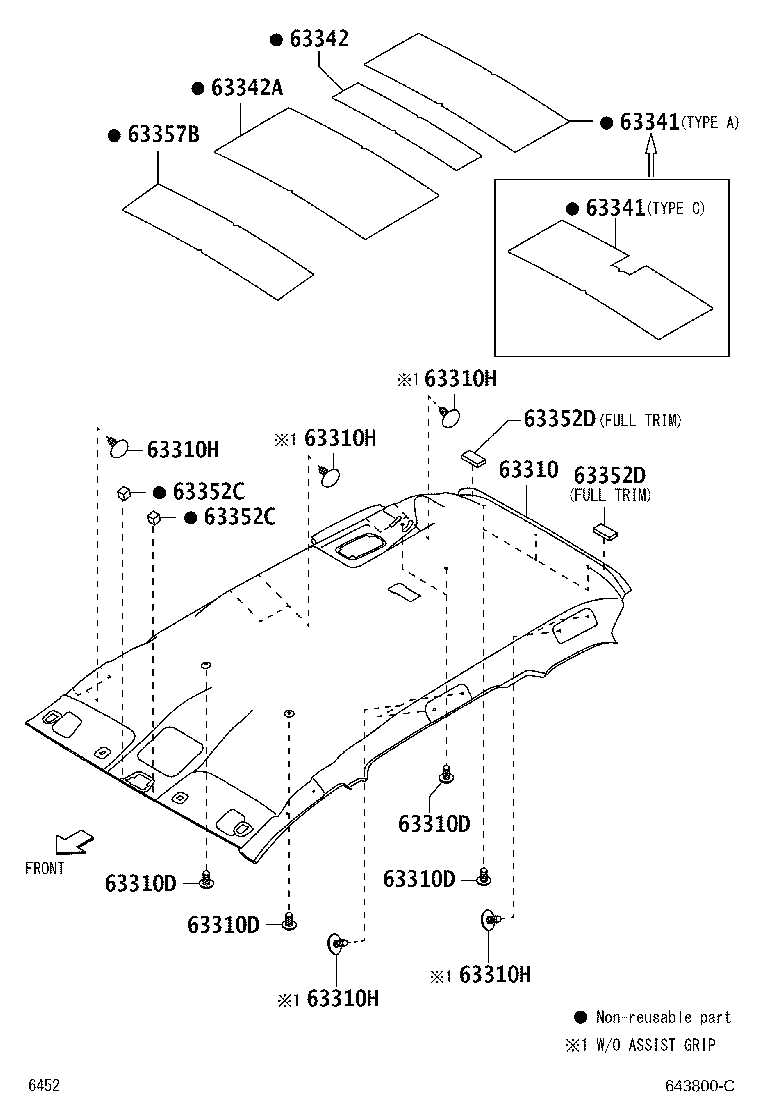

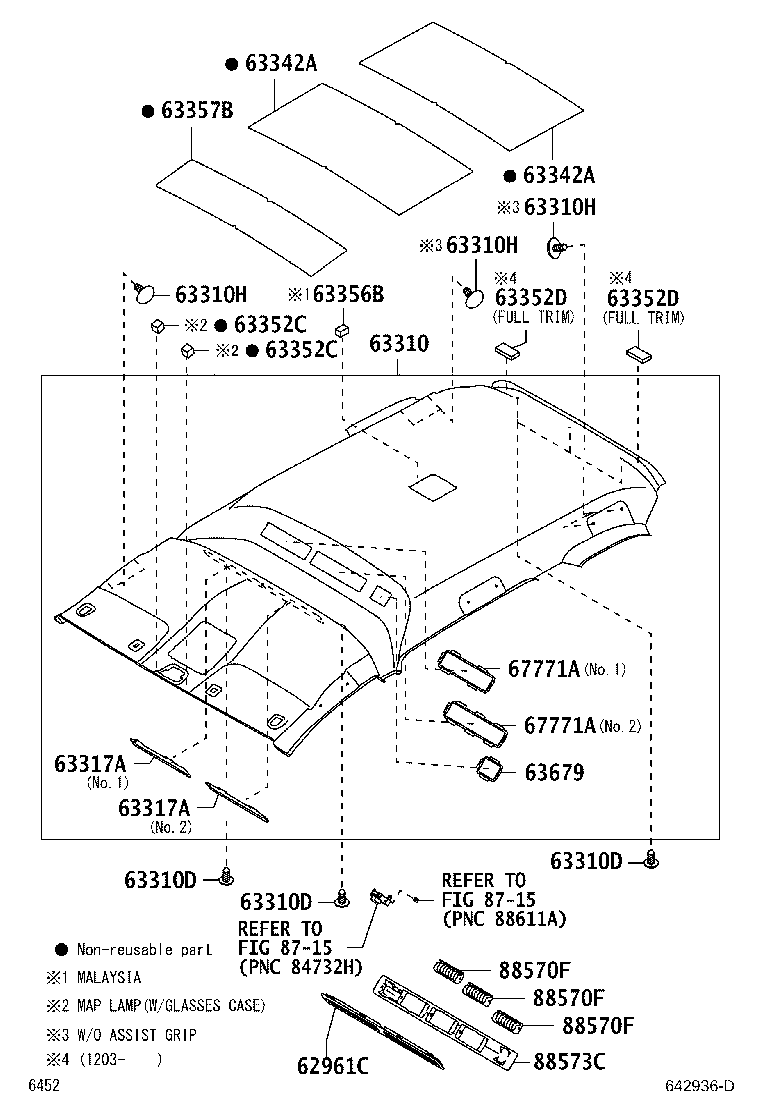

Figure 642938C 642938C 2011-11 → 2015-08 Figure 642938C 642938C 2015-08 → — Figure 642936D 642936D 2011-11 → 2015-07 Figure 642936D 642936D 2011-11 → 2015-08 Figure 643800C 643800C 2015-08 → — Figure 643801E 643801E 2015-07 → — Figure 643801E 643801E 2015-08 → 2019-01 Figure 643801E 643801E 2015-08 → — Figure 643801E 643801E 2015-08 → —

Part groups

PNCDescription
62961C Grille, Room Vent
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63317A Retainer, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63342A Silencer, Roof, NO.2
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63356B Pad, Roof Headlining, LH
63357B Silencer, Roof
63679 Retainer, Roof Headlining
67771A Retainer, Roof Headlining
88570F Grille Assy, Air Outlet
88573C Base, Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
