Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04
Rear Door Panel & Glass
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67485B | Seal, Rear Door Division Bar, Inside, RH |
| 67486B | Seal, Rear Door Division Bar, Inside, LH |

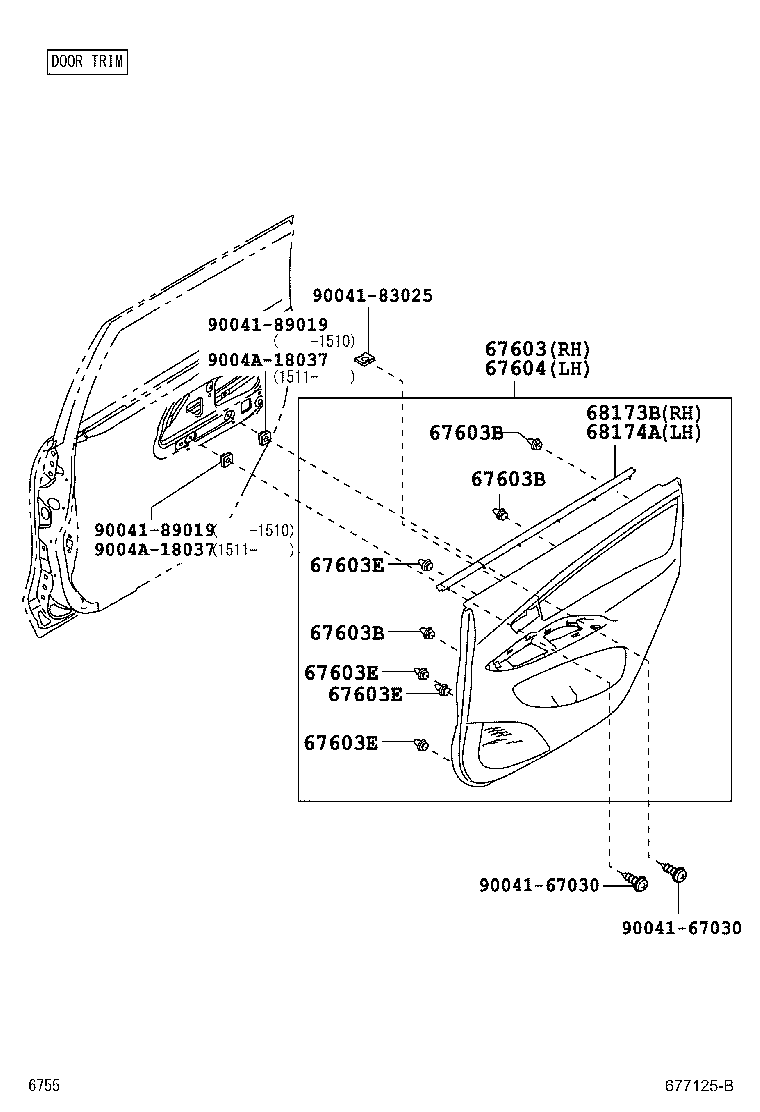

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75931A | Tape, Black Out, Outer Upper RH |
| 75932A | Tape, Black Out, Outer Upper LH |
| 75933B | Tape, Black Out, Outer Front RH |
| 75934B | Tape, Black Out, Outer Front LH |
| 75935B | Tape, Black Out, Outer Rear RH |
| 75936B | Tape, Black Out, Outer Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
