Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

27 part groups · 14 illustrations

Illustrations

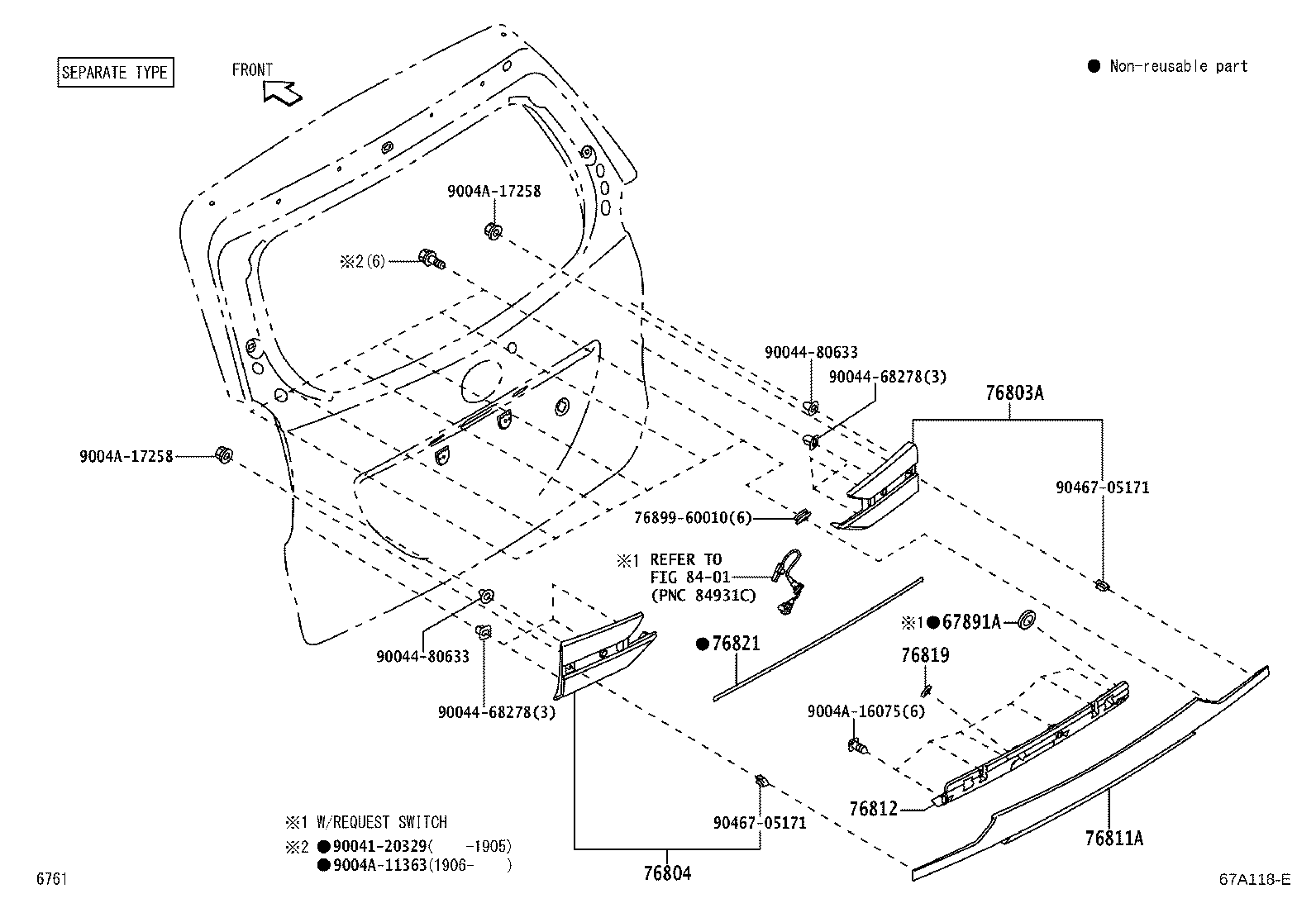

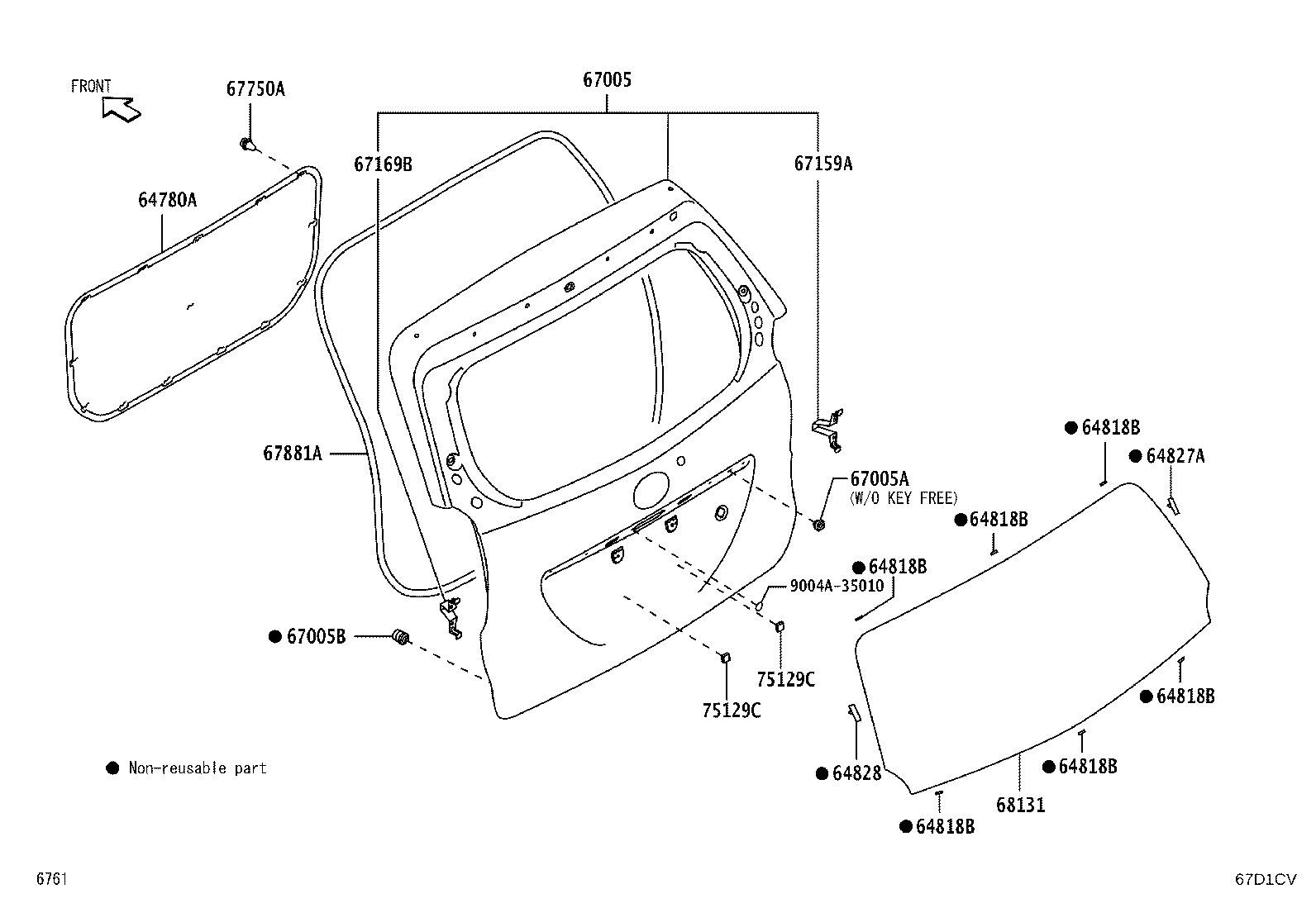

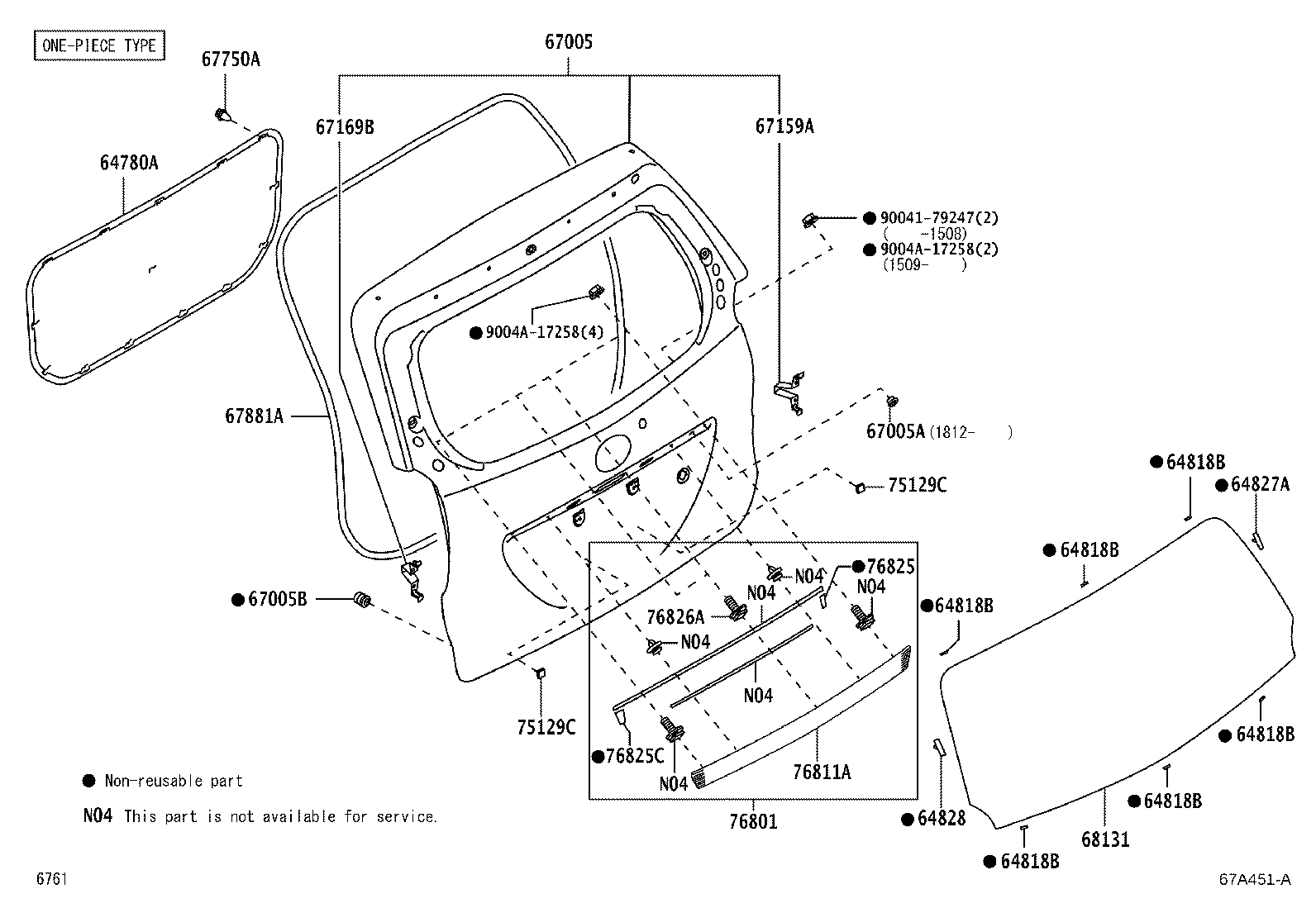

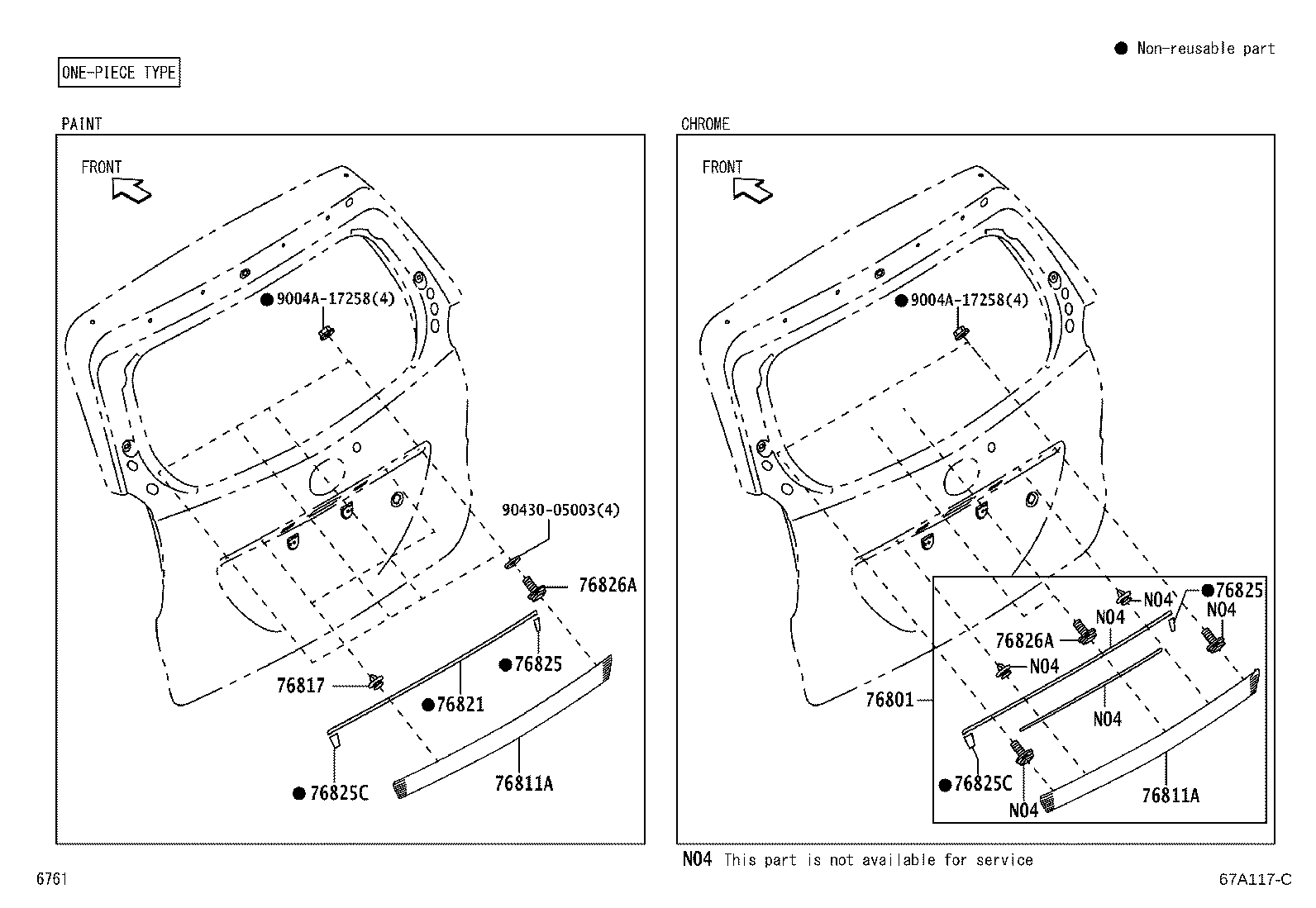

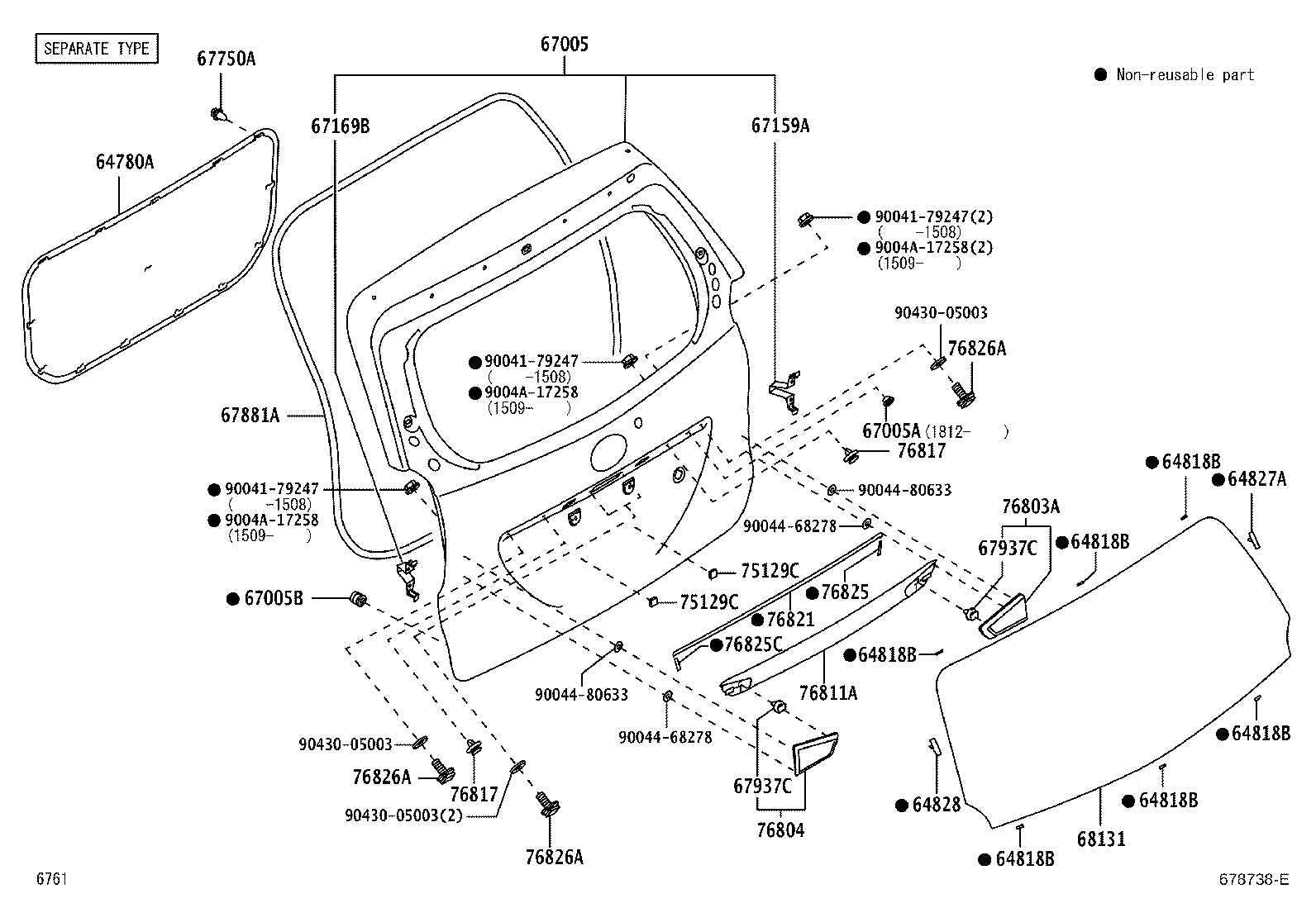

Figure 67D1CT 67D1CT 2011-11 → 2012-07 Figure 67D1CU 67D1CU 2012-07 → 2015-07 Figure 67D1CU 67D1CU 2012-07 → 2015-08 Figure 678738E 678738E 2015-07 → 2019-01 Figure 678738E 678738E 2015-08 → 2019-04 Figure 67A451A 67A451A 2015-07 → 2019-01 Figure 67A451A 67A451A 2015-08 → 2019-04 Figure 67D1CV 67D1CV 2019-01 → — Figure 67D1CV 67D1CV 2019-04 → — Figure 67A117C 67A117C 2019-01 → — Figure 67A117C 67A117C 2019-04 → — Figure 67A117C 67A117C 2019-04 → — Figure 67A118E 67A118E 2019-01 → — Figure 67A118E 67A118E 2019-04 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67005B Cushion(FOR BACK DOOR PANEL)
67159A Extension, Back Door, Inner RH
67169B Extension, Back Door, Inner LH
67750A Clip(FOR BACK DOOR TRIM)
67754B Spacer, Back Door Trim
67881A Weatherstrip, Back Door
67891A Seal, Back Door
67937C Clip(FOR BACK DOOR SIDE GARNISH)
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
76801 Garnish Sub-assy, Back Door, Outside
76803A Garnish Sub-assy, Back Door, Outside Upper RH
76804 Garnish Sub-assy, Back Door, Outside Upper LH
76811A Garnish, Back Door, Outside
76812 Garnish, Back Door, Outside Lower
76817 Clip, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76825 Protector, Back Door Outside Garnish
76825C Protector, Back Door Outside Garnish
76826A Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
