Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

21 part groups · 6 illustrations

Illustrations

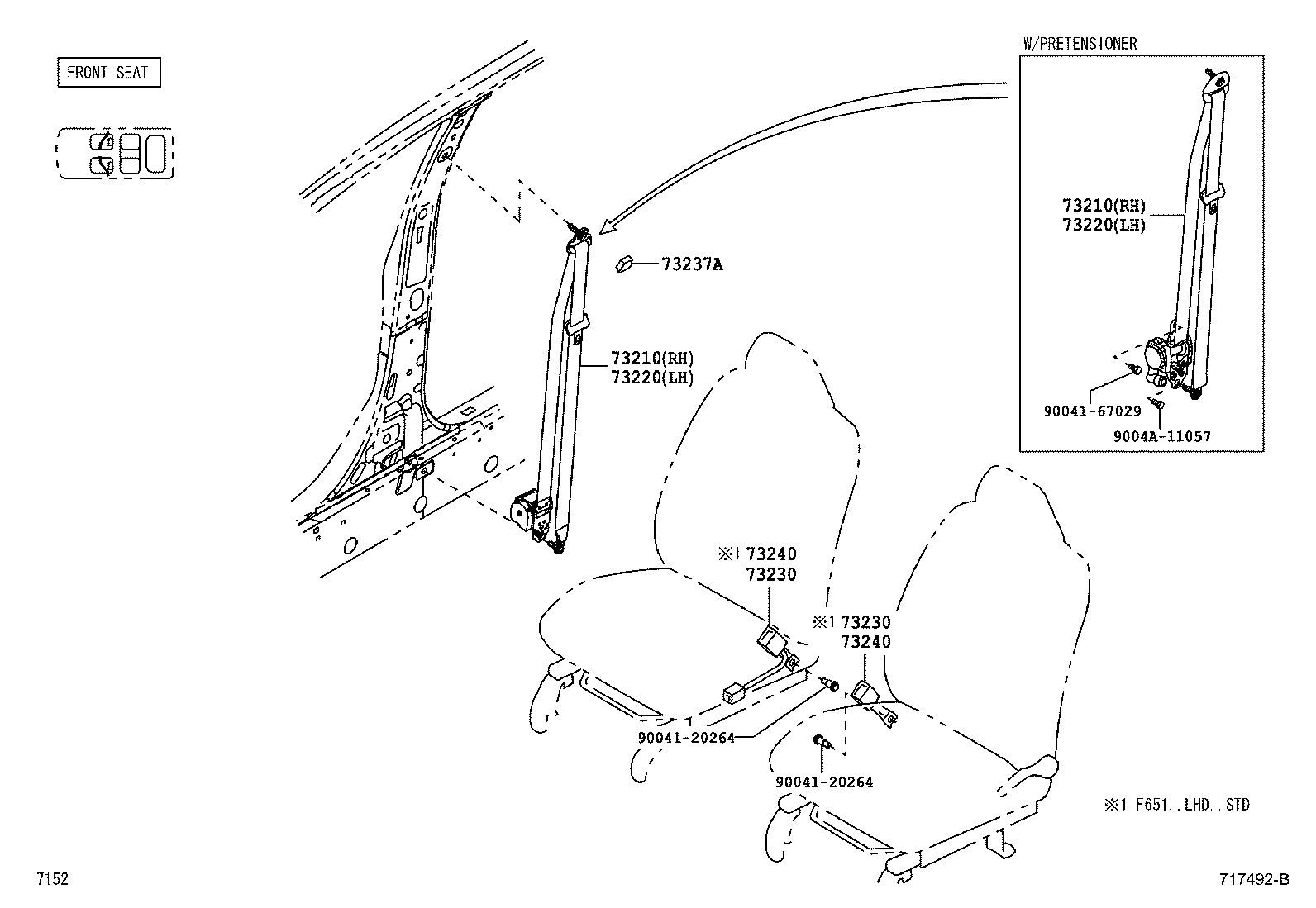

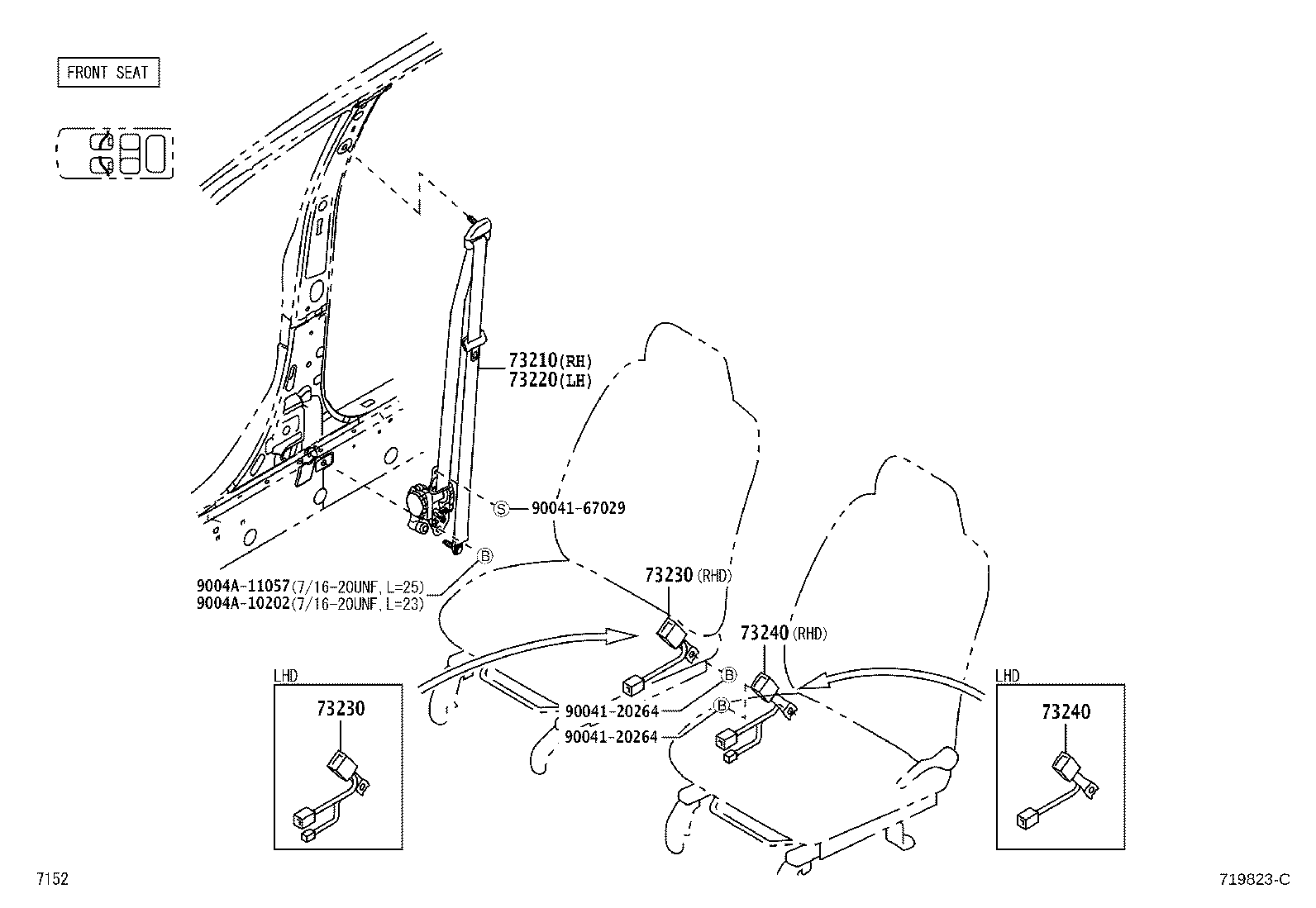

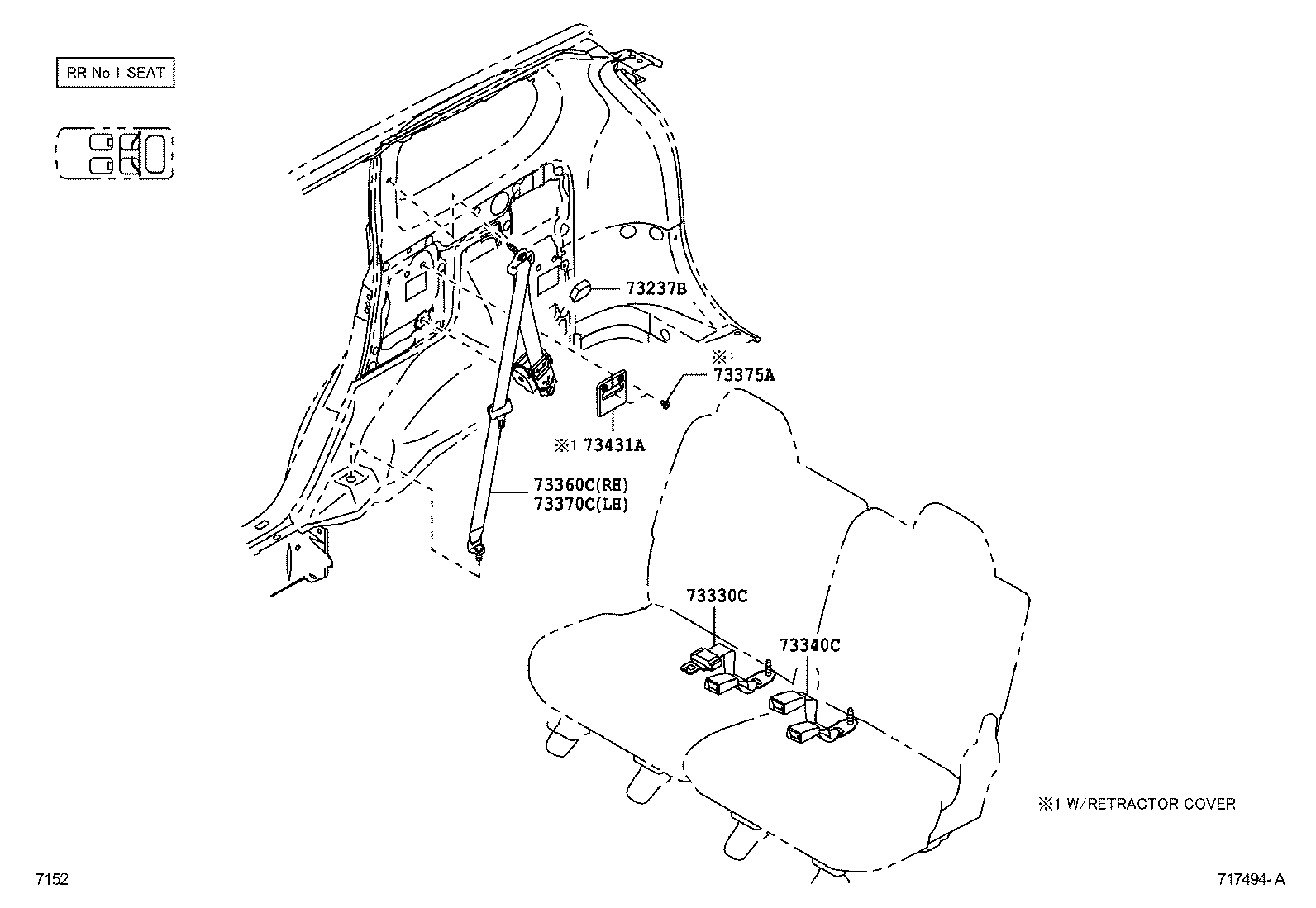

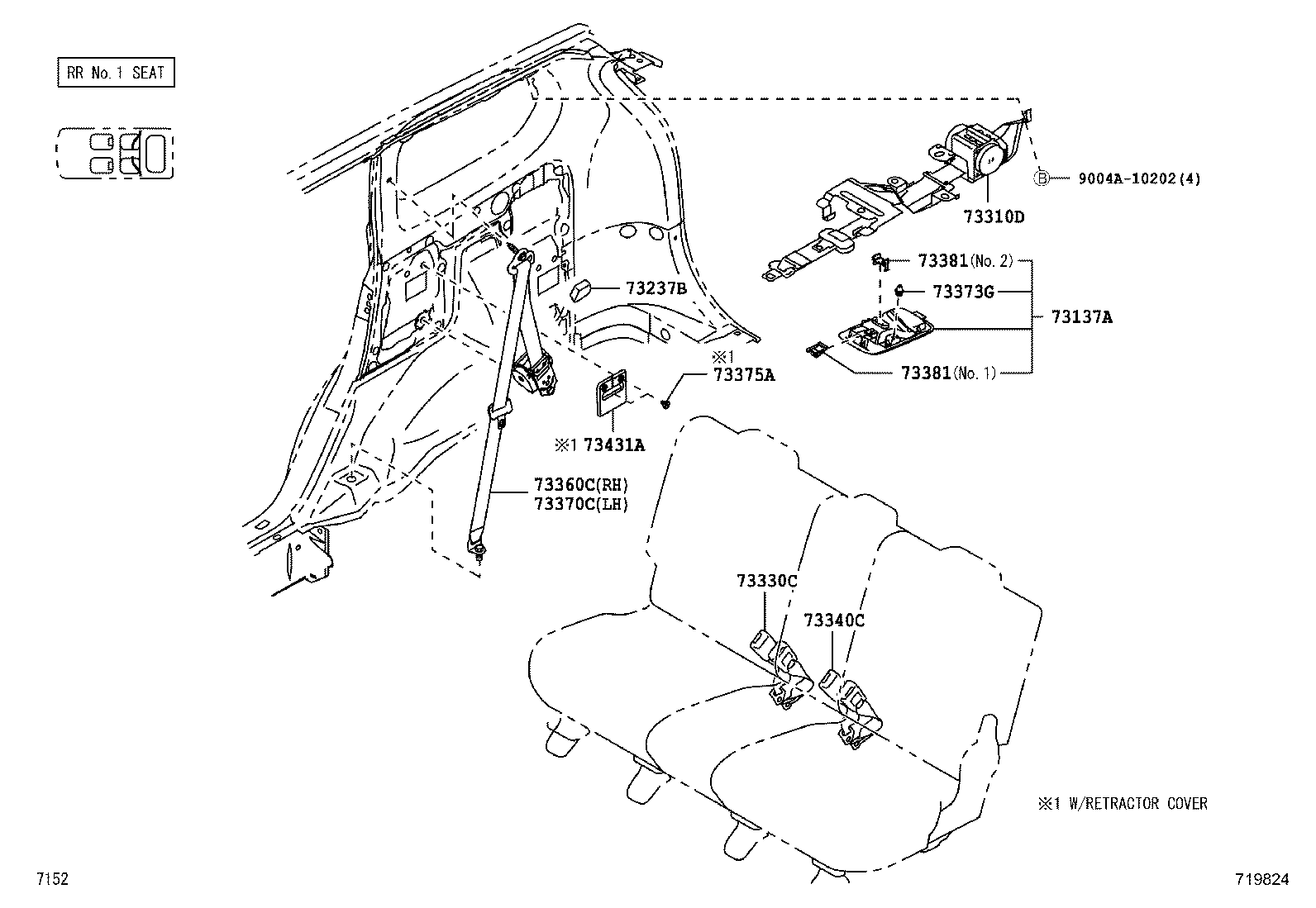

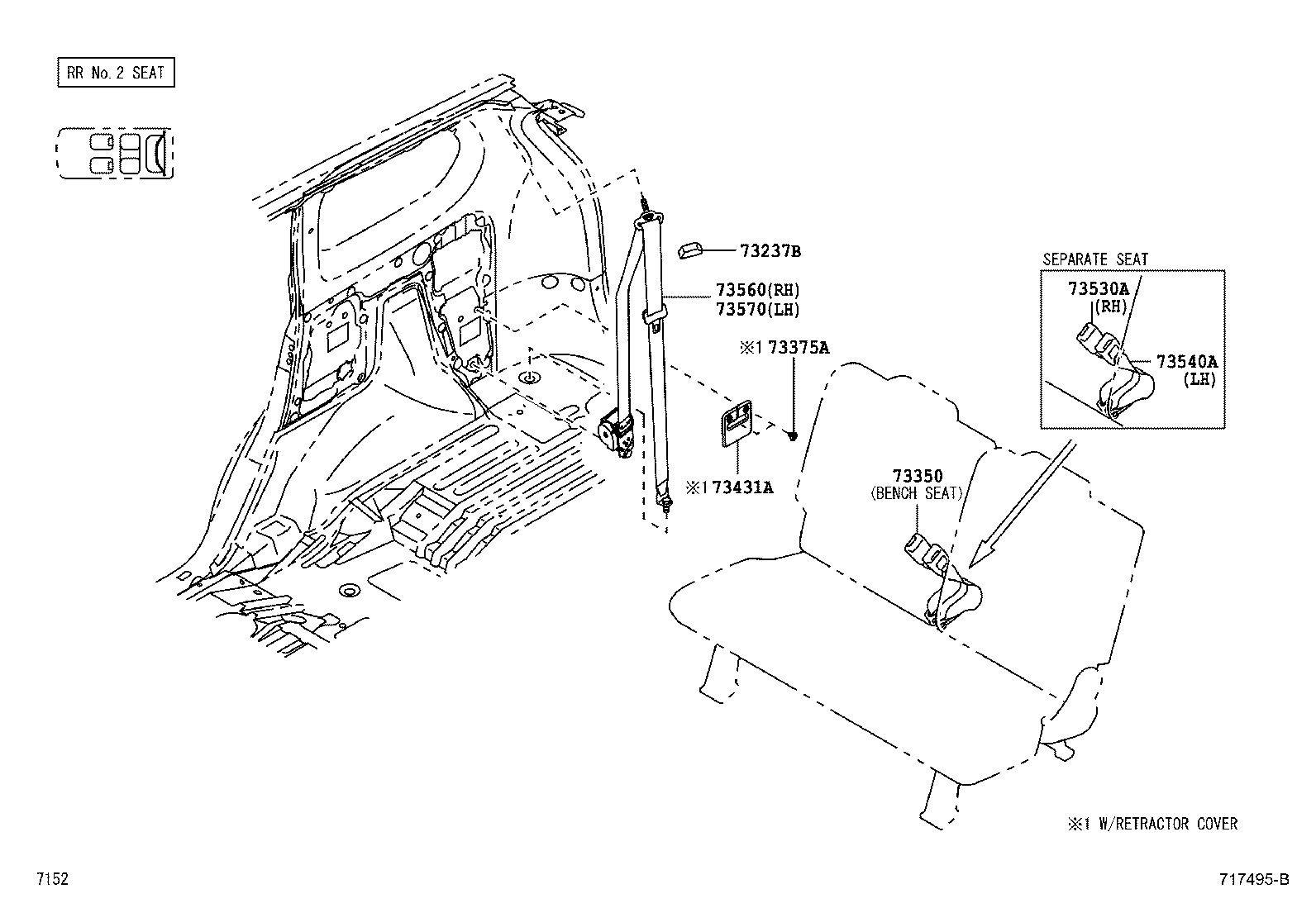

Figure 717491A 717491A 2011-11 → 2015-08 Figure 717492B 717492B 2011-12 → 2015-08 Figure 719823C 719823C 2015-07 → — Figure 717494A 717494A 2011-11 → 2015-08 Figure 719824 719824 2015-07 → — Figure 717495B 717495B 2011-11 → —

Part groups

PNCDescription
73137A Cover, Shoulder Belt Anchor, Upr
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73237B Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73310D Belt Assy, Rear Seat 3 Point Type, Center
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373G Clip, Rear Seat Shoulder Belt Cover
73375A Clip, Rear Seat Belt Cover
73381 Holder, Rear Seat Belt
73431A Cover, Rear Seat Belt Retractor
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
