Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

8 part groups · 3 illustrations

Illustrations

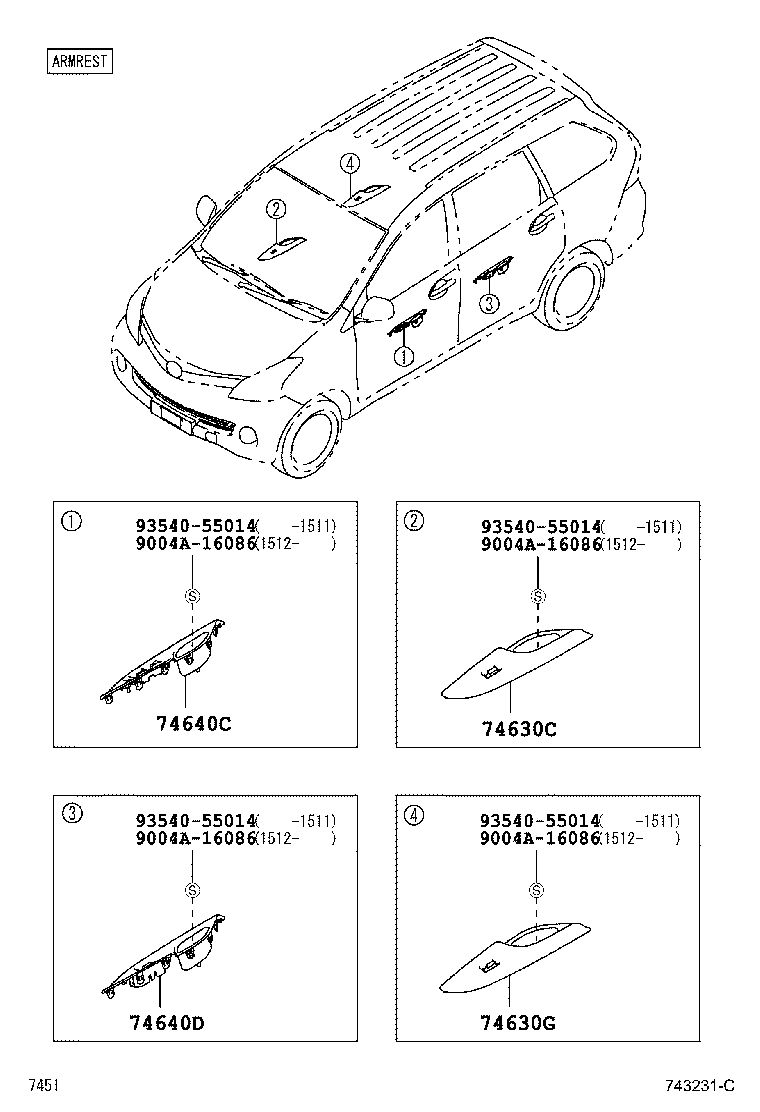

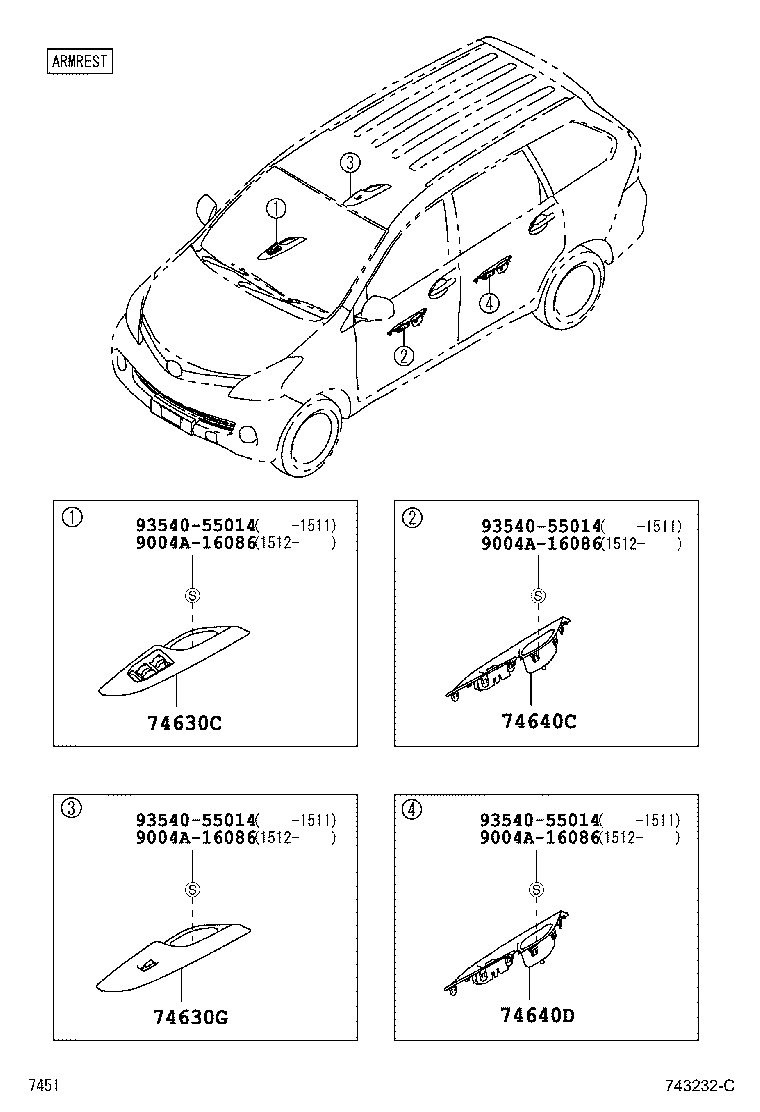

Figure 743230D 743230D 2011-11 → — Figure 743232C 743232C 2011-11 → — Figure 743231C 743231C 2011-12 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74611B Grip, Assist
74630C Grip Assy, Door Assist, RH
74630G Grip Assy, Rear Door Assist RH
74640C Grip Assy, Door Assist, LH
74640D Grip Assy, Rear Door Assist LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
