Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

20 part groups · 4 illustrations

Illustrations

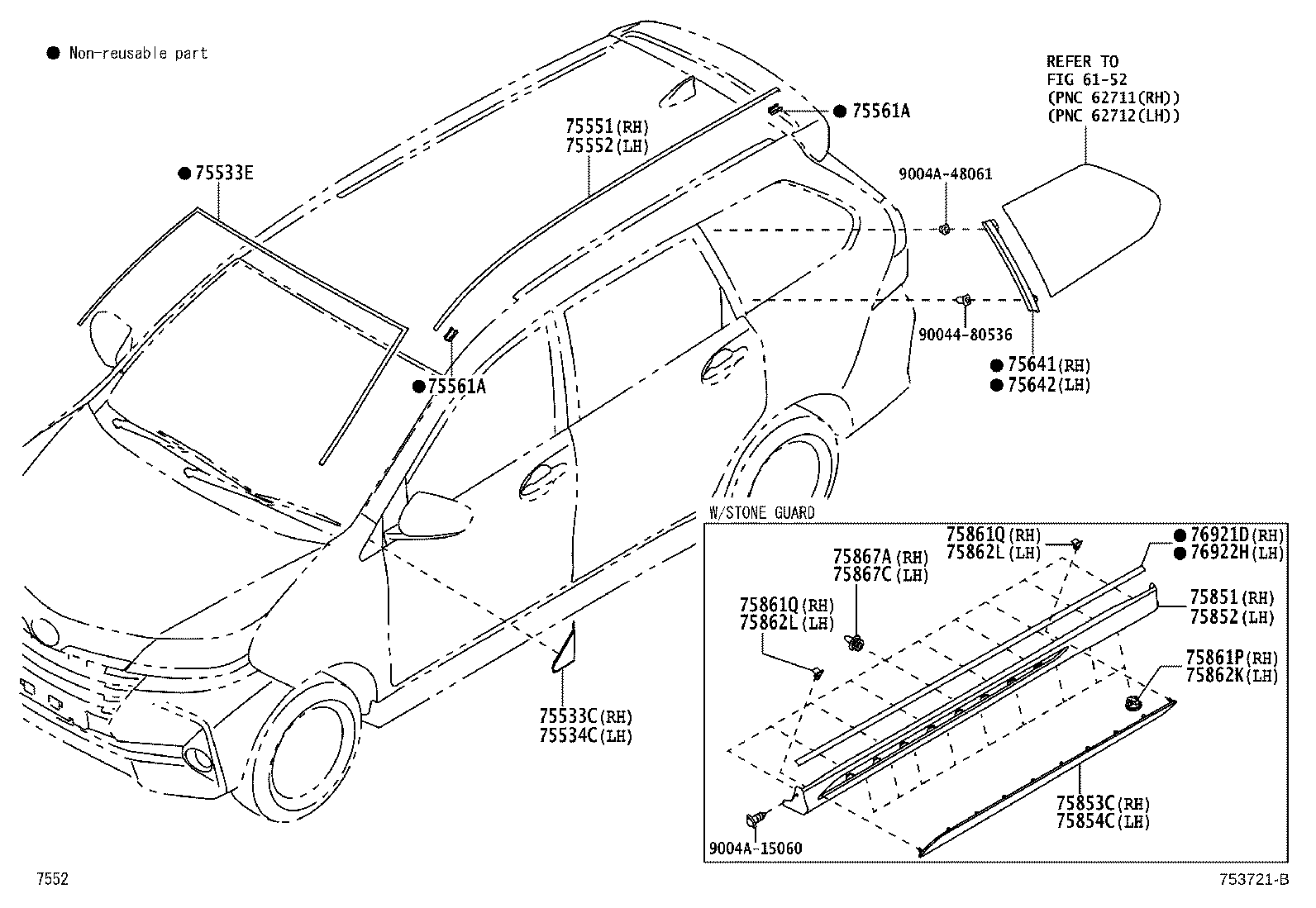

Figure 752580L 752580L 2011-11 → 2019-01 Figure 752580L 752580L 2019-01 → — Figure 753721B 753721B 2019-01 → — Figure 753721B 753721B 2019-01 → —

Part groups

PNCDescription
75533C Garnish, Front Pillar, Outer RH
75533E Moulding, Windshield, Outside
75534C Garnish, Front Pillar, Outer LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75641 Moulding, Quarter Window, Outside Front RH
75642 Moulding, Quarter Window, Outside Front LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75853C Moulding, Rocker Panel, Lower RH
75854C Moulding, Rocker Panel, Lower LH
75861P Retainer, Rocker Panel Moulding, NO.1 RH
75861Q Retainer, Rocker Panel Moulding, NO.2 RH
75862K Retainer, Rocker Panel Moulding, NO.1 LH
75862L Retainer, Rocker Panel Moulding, NO.2 LH
75867A Clip, Rocker Panel Moulding
75867C Clip, Rocker Panel Moulding
76921D Protector, Side Mudguard, NO.1
76922H Protector, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
