Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

67 part groups · 10 illustrations

Illustrations

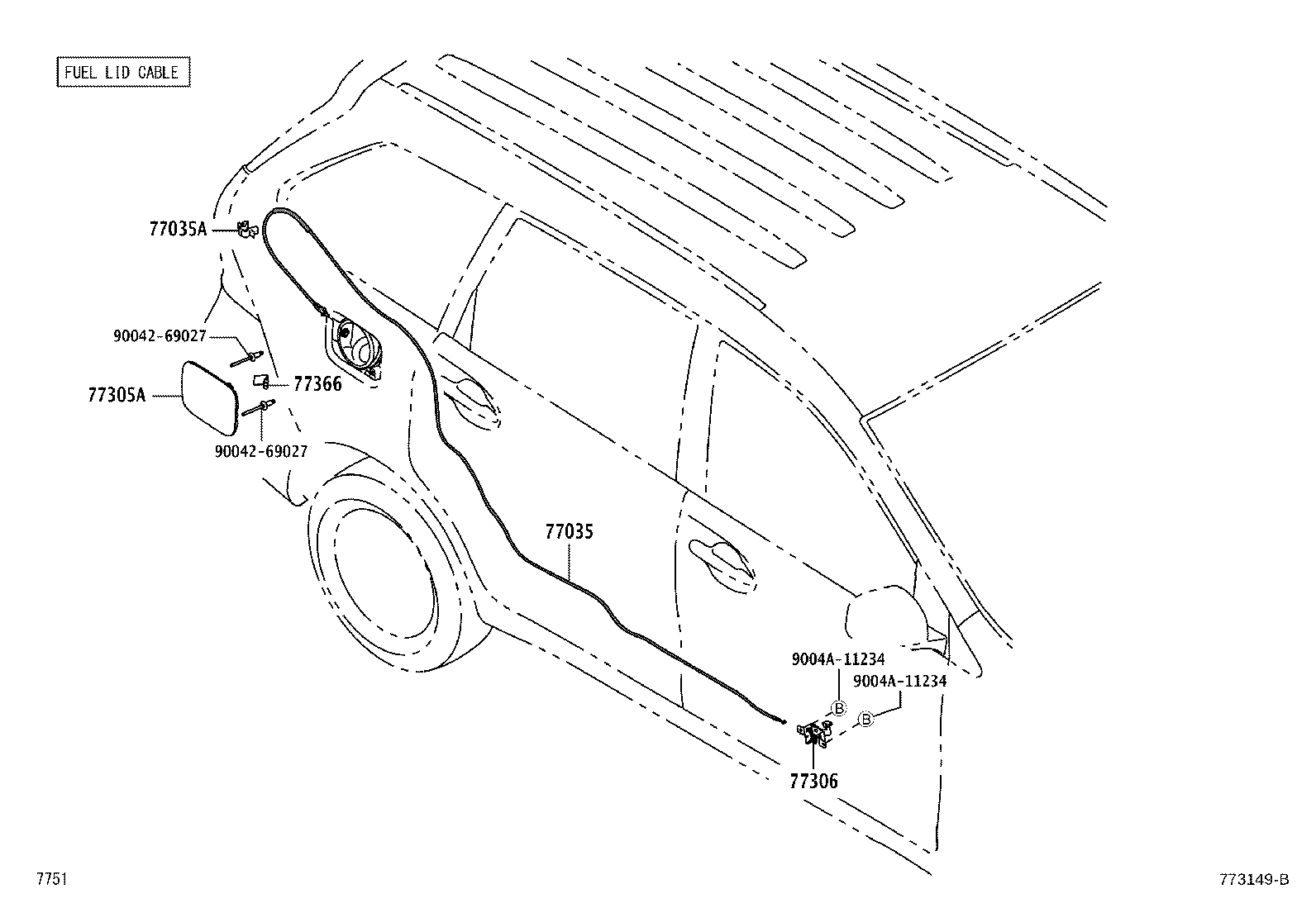

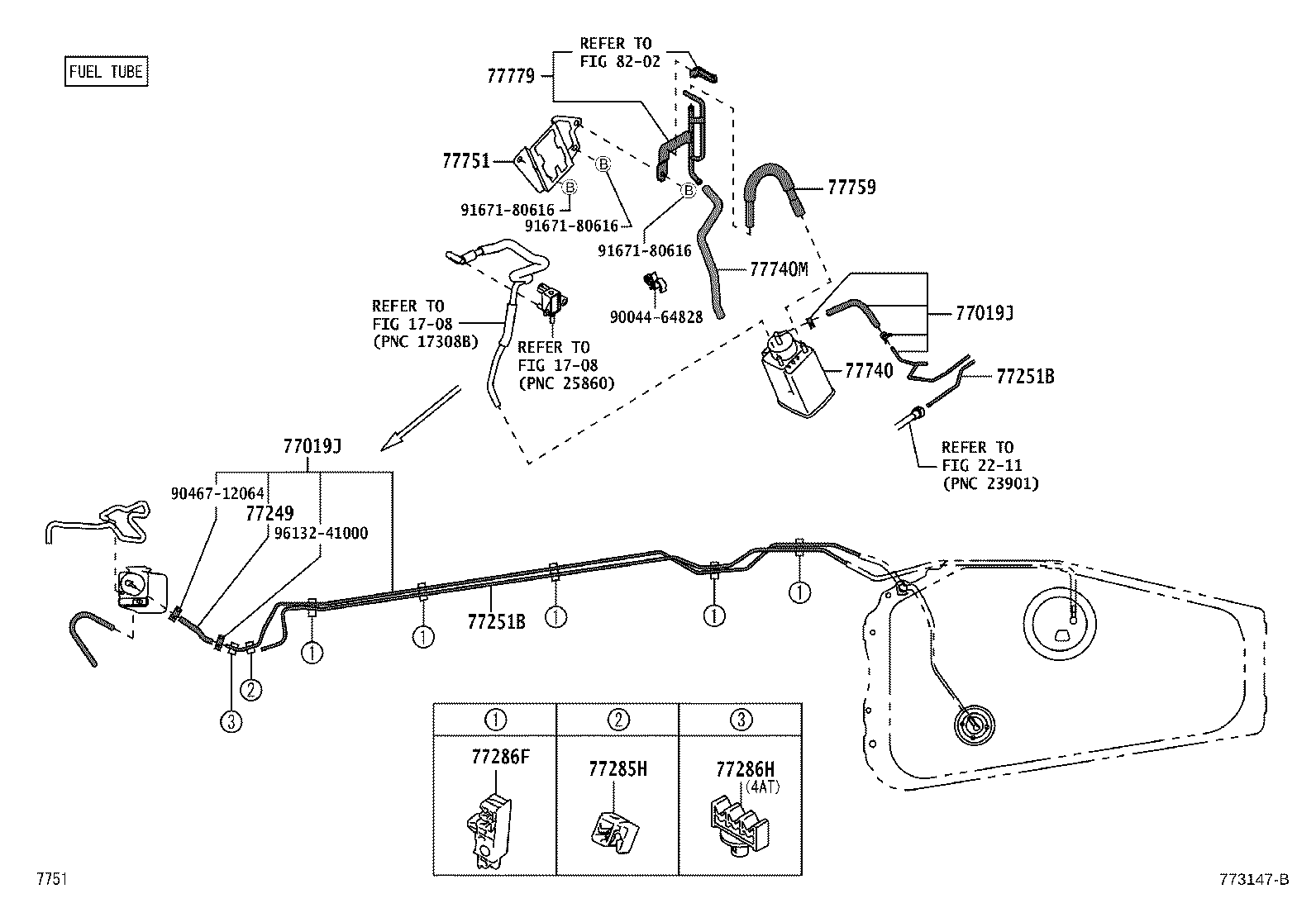

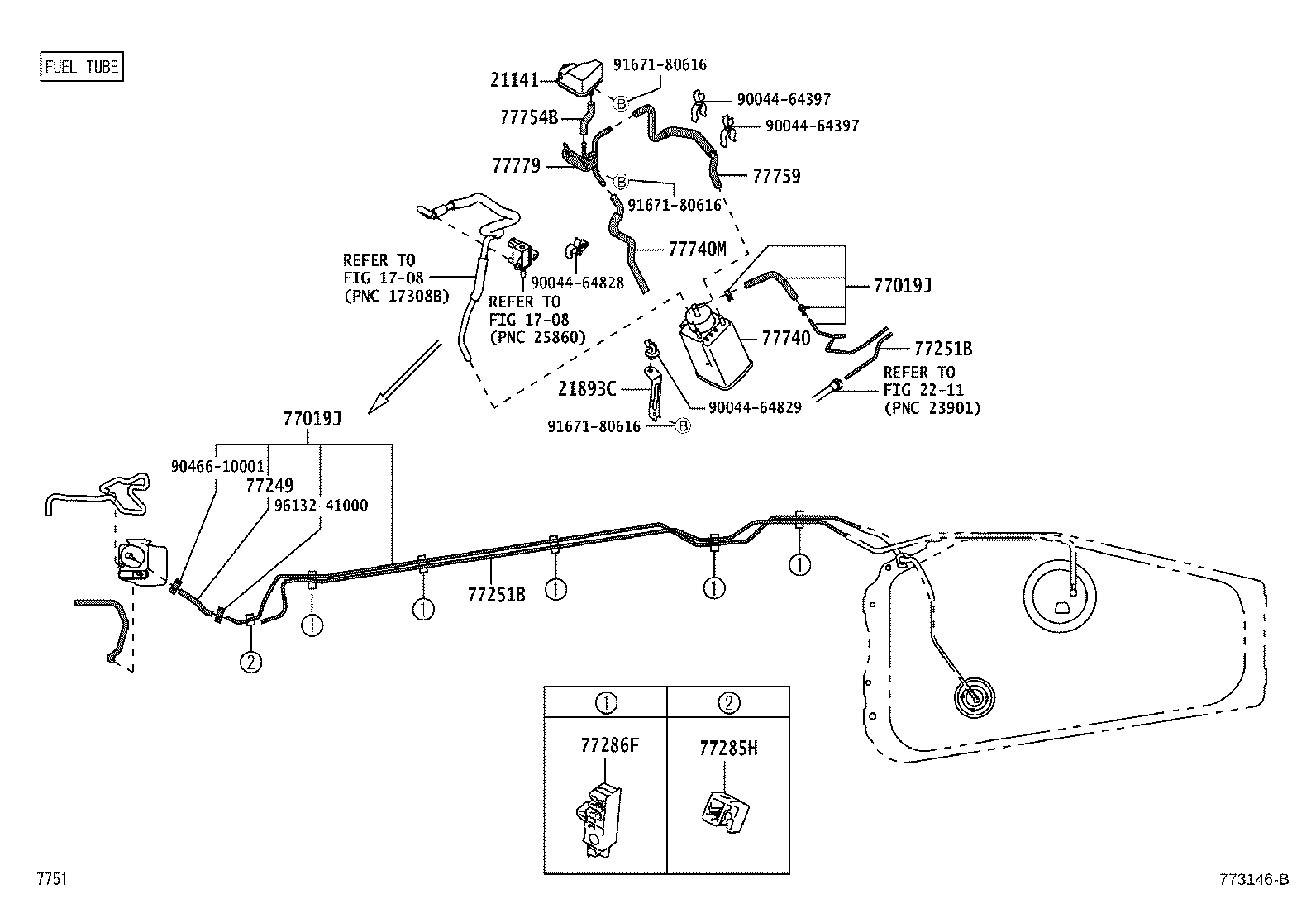

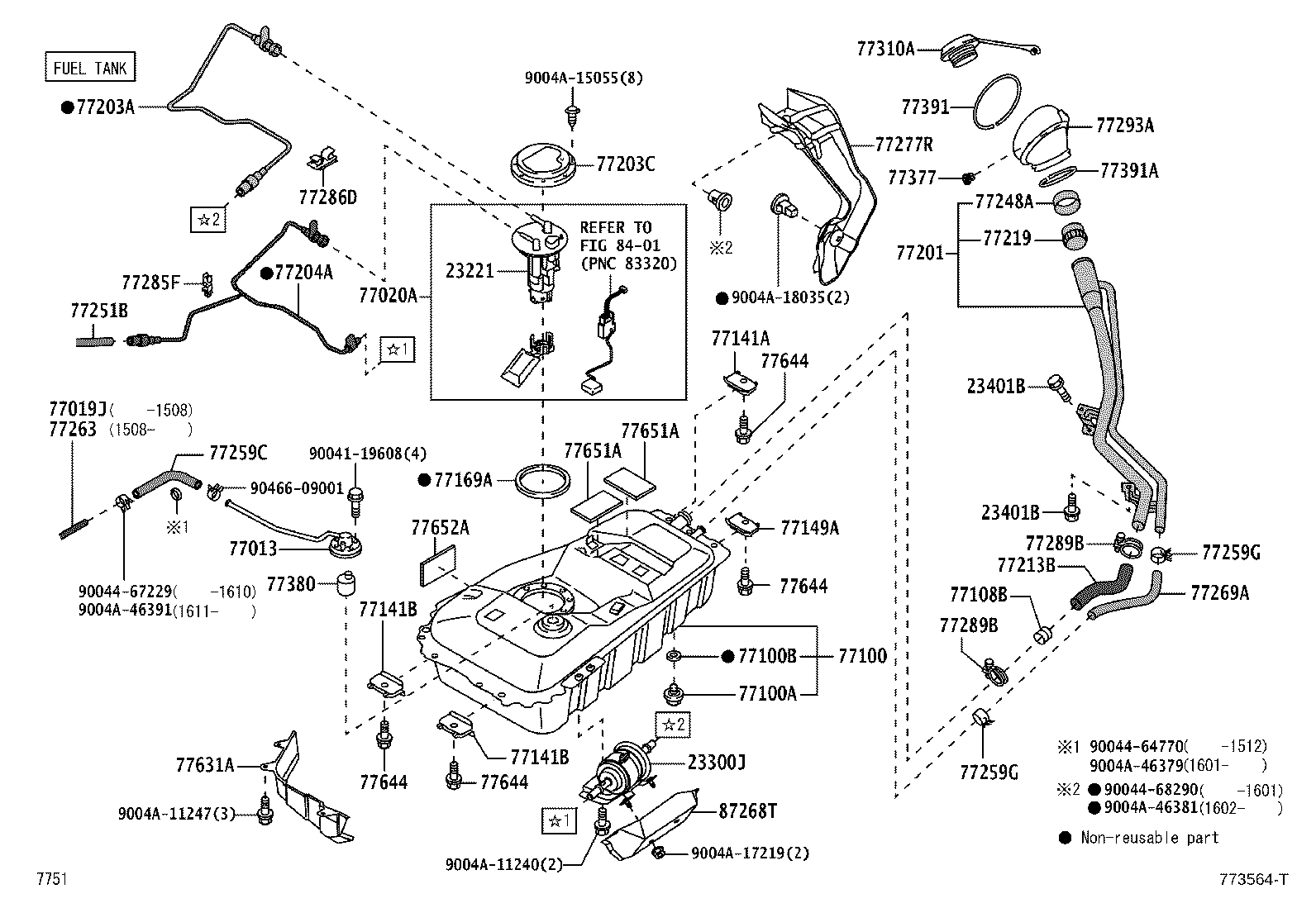

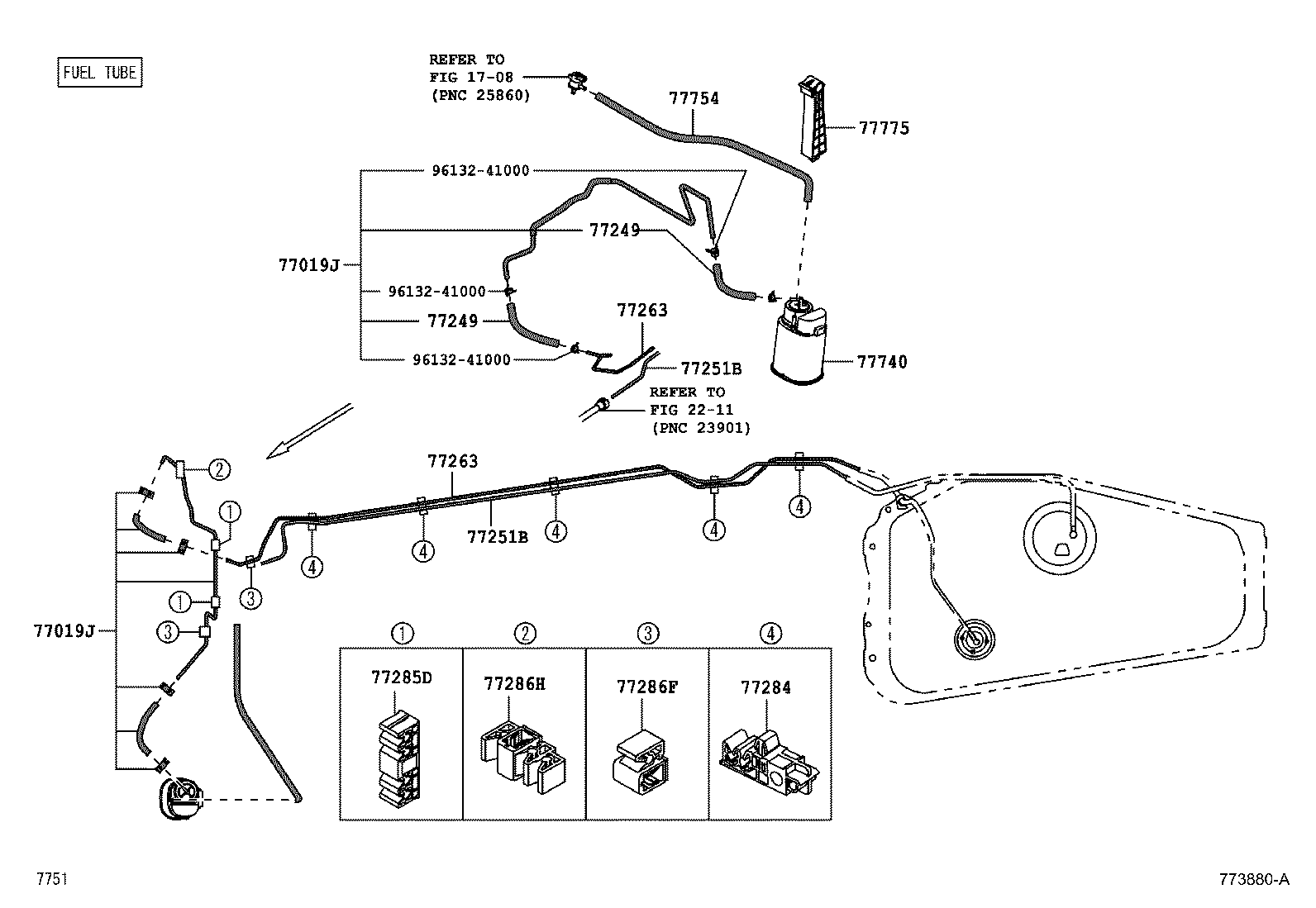

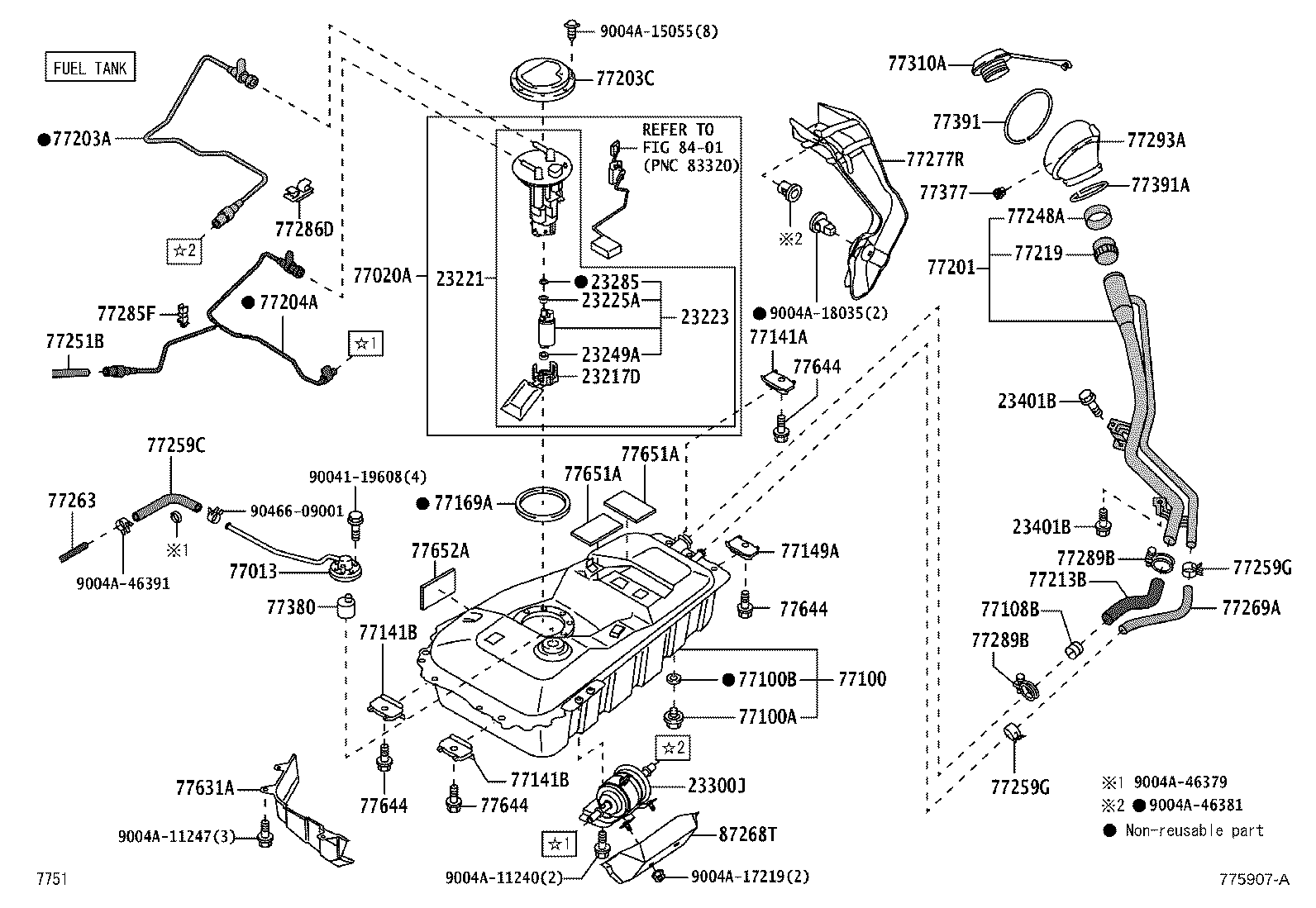

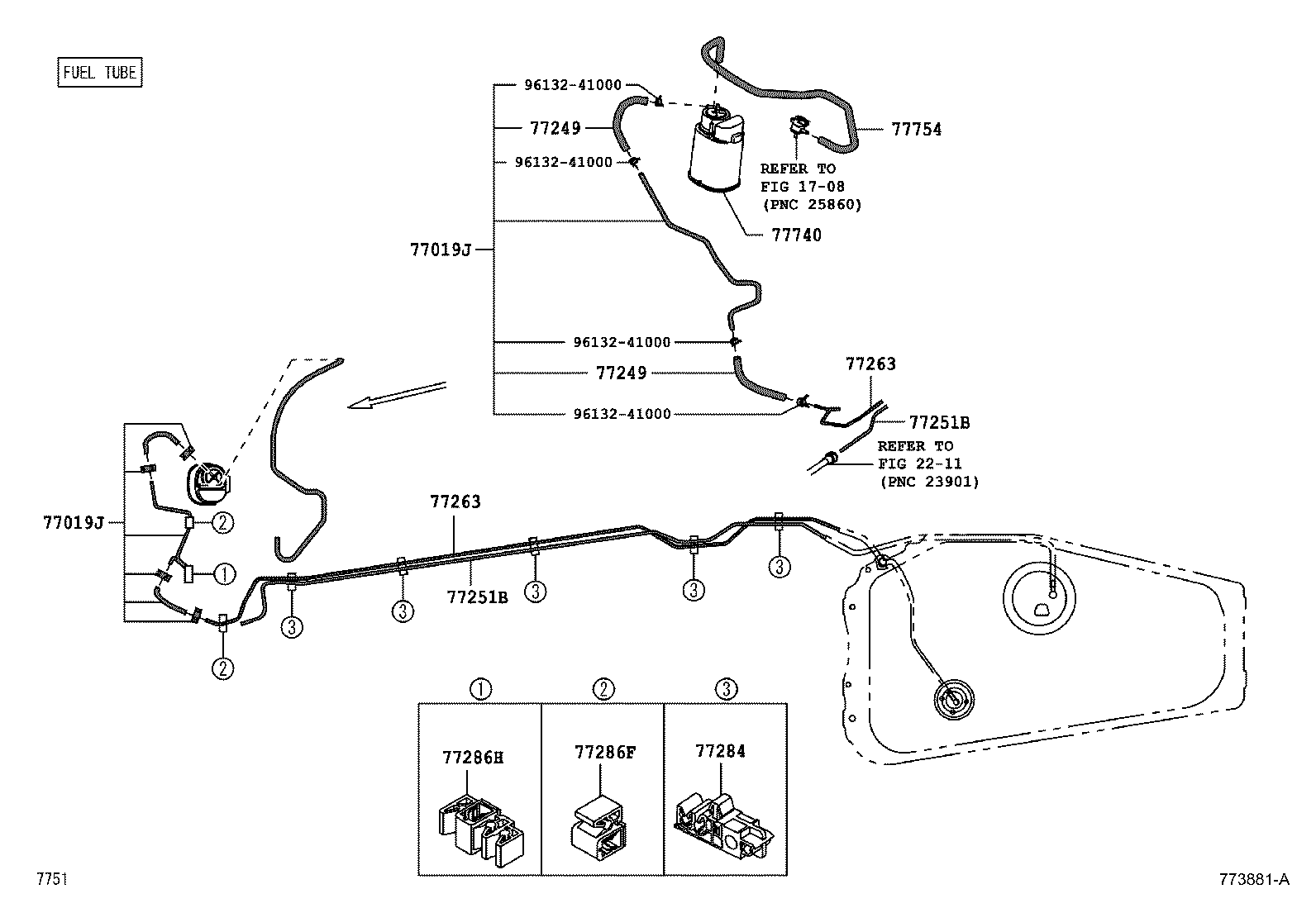

Figure 773144M 773144M 2011-11 → 2013-12 Figure 773564T 773564T 2013-12 → 2019-01 Figure 775907A 775907A 2019-01 → — Figure 773146B 773146B 2011-11 → 2015-07 Figure 773146B 773146B 2011-11 → 2015-08 Figure 773147B 773147B 2011-12 → 2015-08 Figure 773880A 773880A 2015-07 → — Figure 773880A 773880A 2015-08 → — Figure 773881A 773881A 2015-08 → — Figure 773149B 773149B 2011-11 → —

Part groups

PNCDescription
21141 Chamber, Suction
21893C Bracket
23217D Filter, Fuel Pump
23221 Pump, Fuel
23223 Pump, Fuel, NO.2
23225A Spacer, Fuel Pump
23249A Rubber, Cushion(FOR FUEL PUMP)
23285 Ring, O
23300J Filter Assy, Fuel
23401B Bolt
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77019J Tube Sub-assy, Fuel Tank TO Canister
77020A Tube Assy, Fuel Suction W/Pump & Gage
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77108B Valve Sub-assy, Fuel Tank Filler Check
77141A Reinforcement, Fuel Tank Flange
77141B Reinforcement, Fuel Tank Flange, NO.1
77149A Reinforcement, Fuel Tank Side
77169A Gasket, Fuel Suction Tube Set
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77203C Bracket, Fuel Pump
77204A Tube, Fuel Tank Return
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77248A Holder, Fuel Tank Filler Pipe Cover
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77259C Hose, Fuel
77259G Clip, Fuel Hose
77263 Tube, Fuel Tank TO Canister, NO.3
77269A Hose, Fuel Tank Breather
77277R Protector, Fuel Tank Filler Pipe
77284 Clamp, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77289B Clamp, Fuel Tube, NO.3
77293A Shield, Fuel Tank Filler Pipe, NO.3
77305A Lid Sub-assy, Fuel Filler Opening
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77631A Protector, Fuel Tank, Lower Center
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77740 Canister Assy, Charcoal
77740M Hose, Charcoal Canister
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77754B Hose, Charcoal Canister Outlet
77759 Hose, Charcoal Canister
77775 Guide, Charcoal Canister Outlet
77779 Tube, Charcoal Canister Outlet
87268T Protector, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
