Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04
Accelerator Link
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010F | Pedal Assy, Accelerator |
| 78110C | Bush (FOR ACCELERATOR PEDAL ROD) |

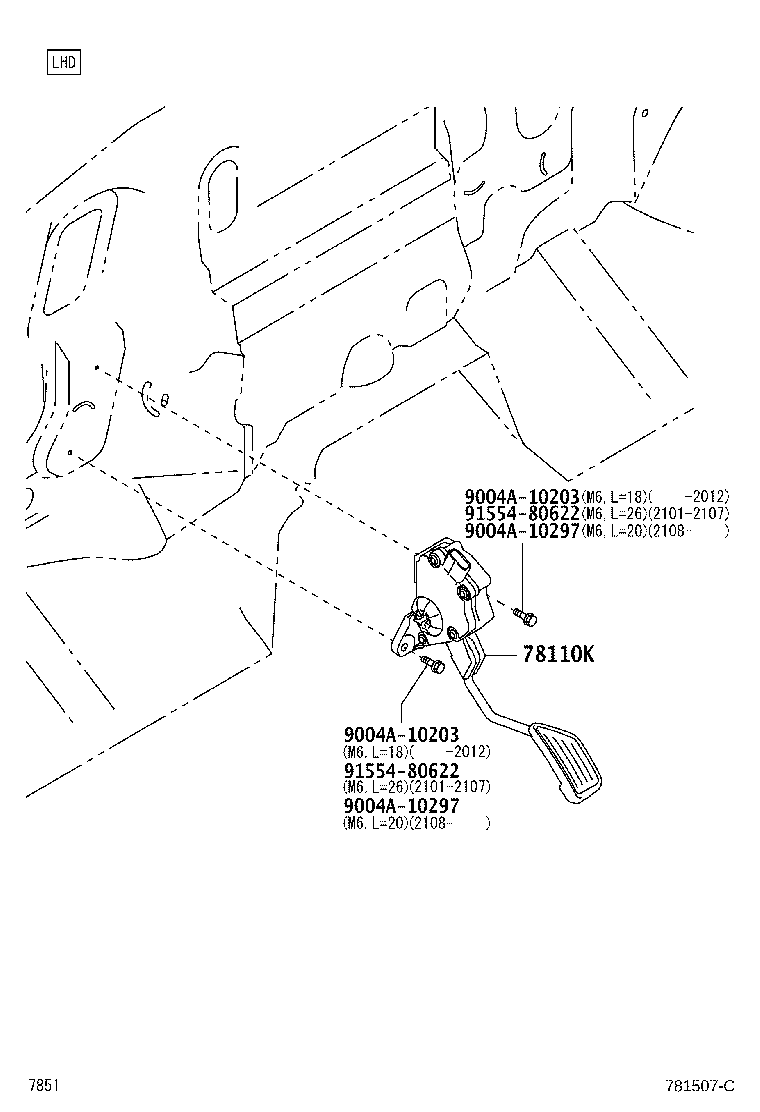

| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78117 | Cushion (FOR ACCELERATOR ROD) |
| 78124A | Bracket, Accelerator Pedal Rod |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78184C | Bracket, Accelerator Control Cable |
| 78214 | Spring, Accelerator Link Rod Return |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
