Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 10 illustrations

Illustrations

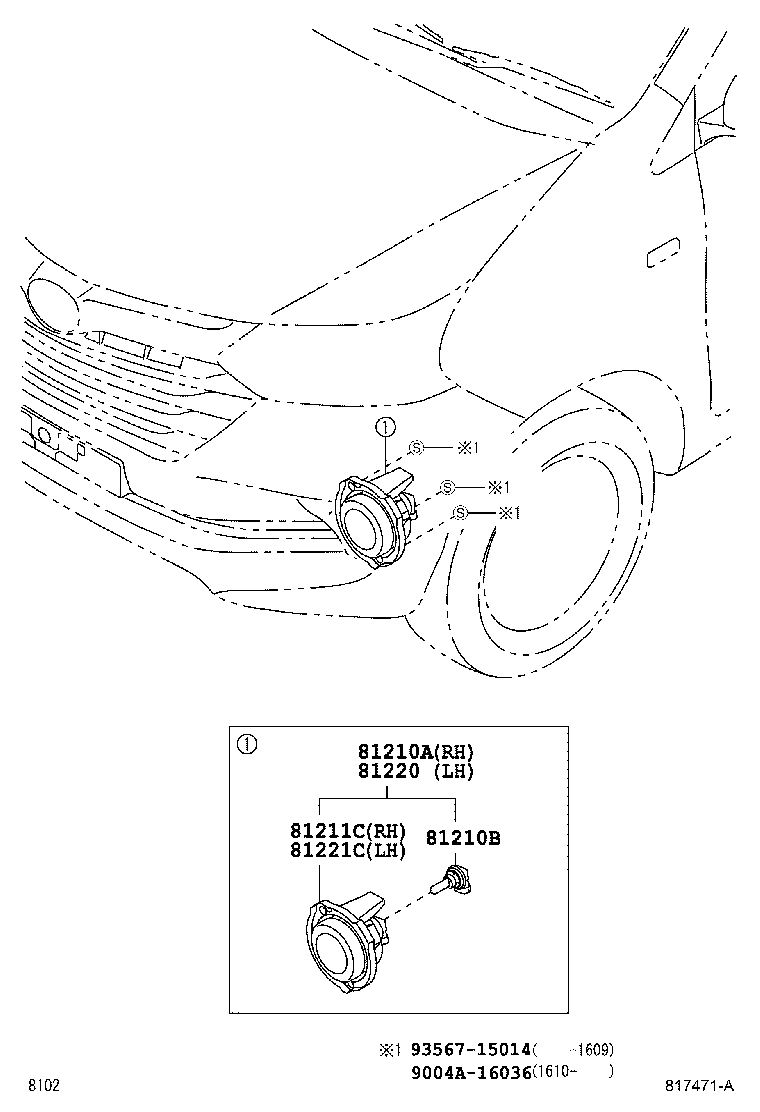

Figure 815867B 815867B 2011-11 → 2015-07 Figure 815867B 815867B 2011-11 → 2015-08 Figure 817471A 817471A 2015-07 → — Figure 817471A 817471A 2015-08 → 2019-01 Figure 817471A 817471A 2015-08 → — Figure 817471A 817471A 2015-08 → — Figure 817471A 817471A 2016-09 → — Figure 817471A 817471A 2018-01 → 2019-04 Figure 817471A 817471A 2018-01 → — Figure 817471A 817471A 2019-04 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
