Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 3 illustrations

Illustrations

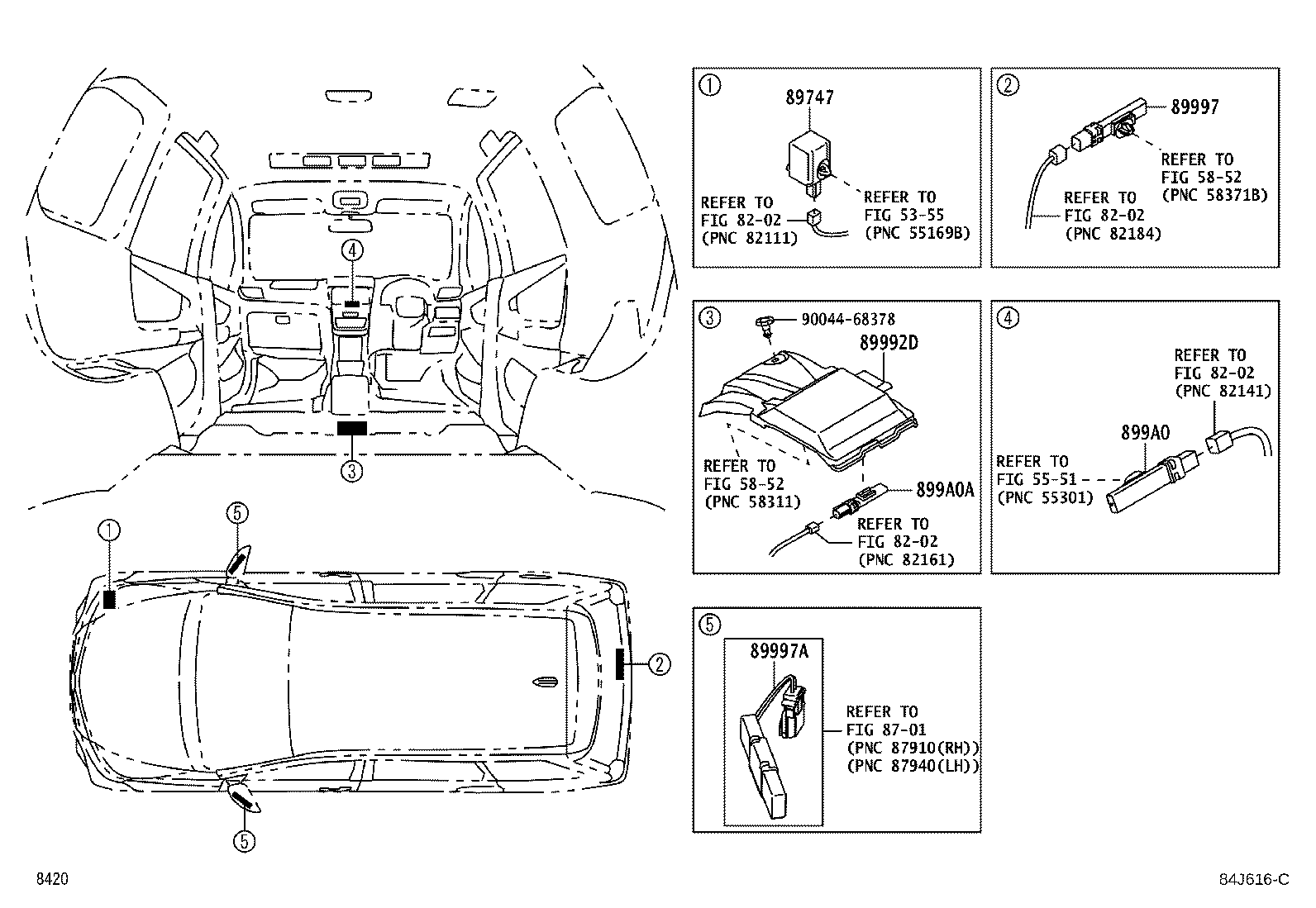

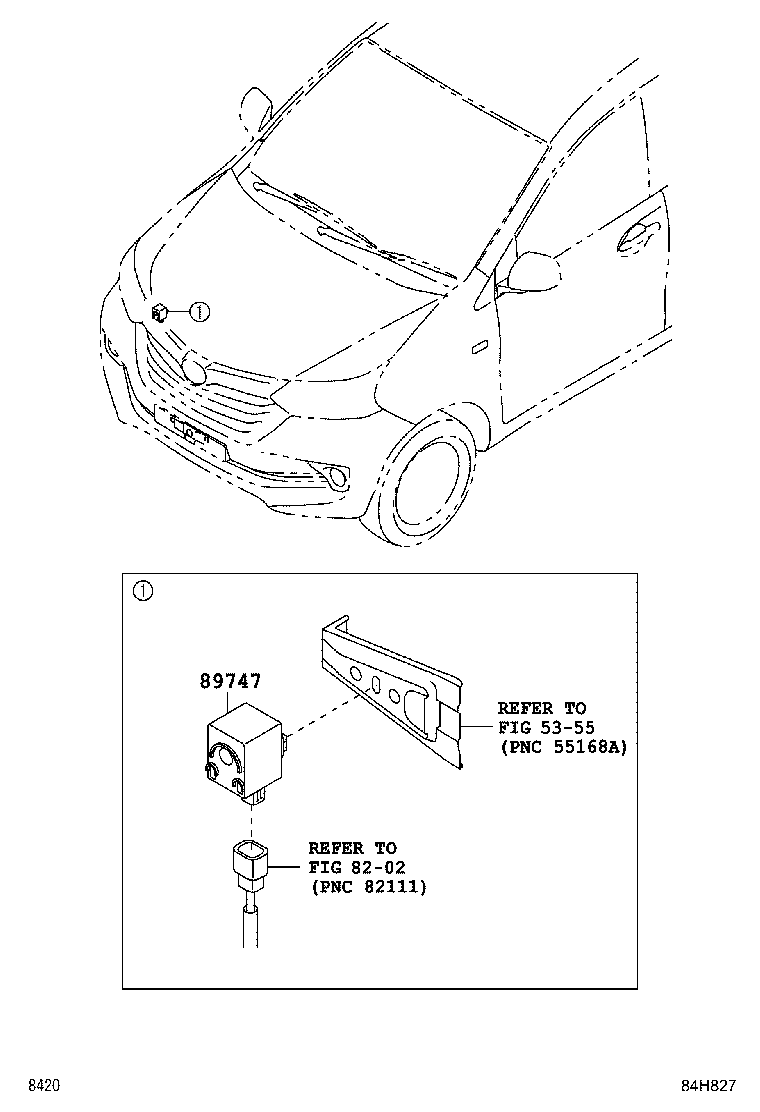

Figure 84C636A 84C636A 2011-11 → 2015-08 Figure 84H827 84H827 2018-05 → — Figure 84J616C 84J616C 2019-01 → 2021-10

Part groups

PNCDescription
89743 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
