Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

3 part groups · 6 illustrations

Illustrations

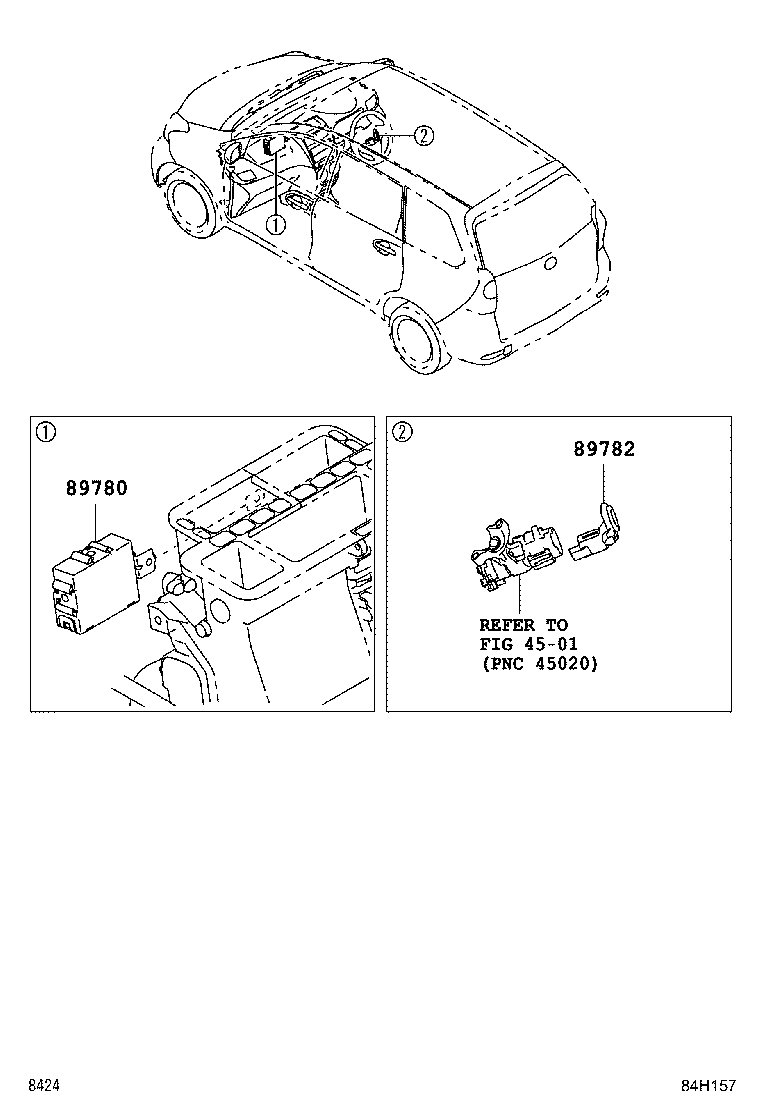

Figure 84C643C 84C643C 2011-11 → 2015-08 Figure 84C643C 84C643C 2013-05 → 2015-08 Figure 84H157 84H157 2015-07 → 2019-01 Figure 84H157 84H157 2015-07 → — Figure 84H157 84H157 2015-07 → — Figure 84H157 84H157 2018-01 → —

Part groups

PNCDescription
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
