Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

23 part groups · 3 illustrations

Illustrations

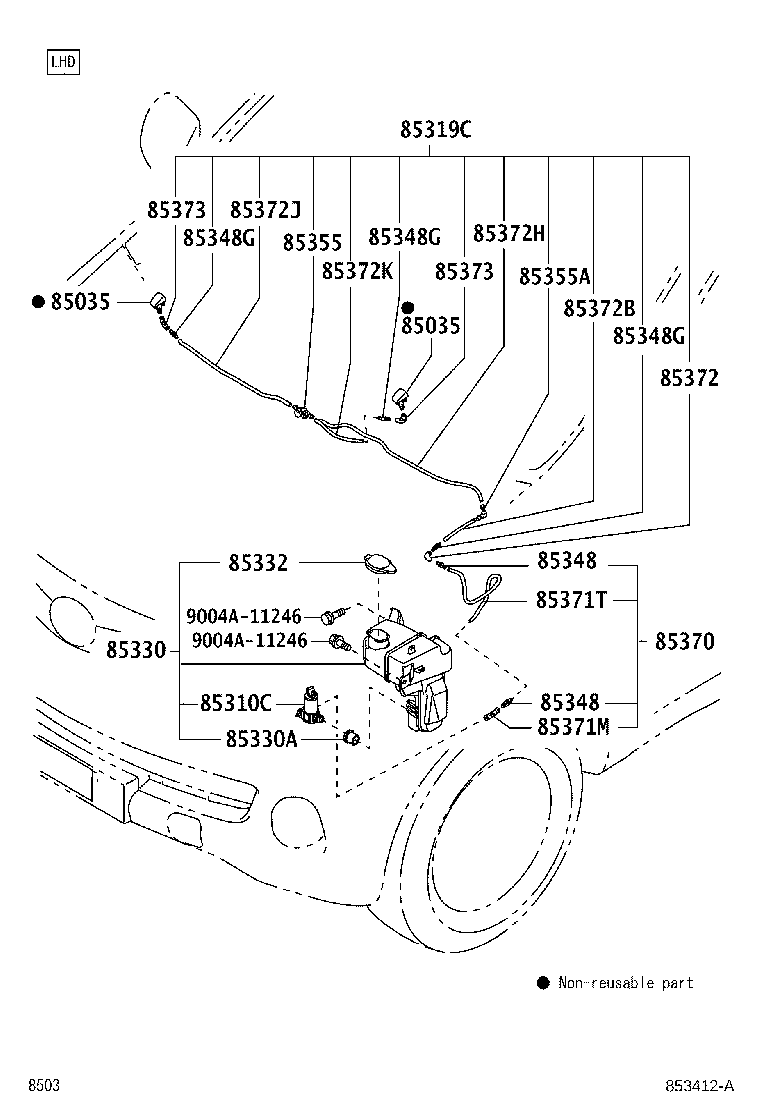

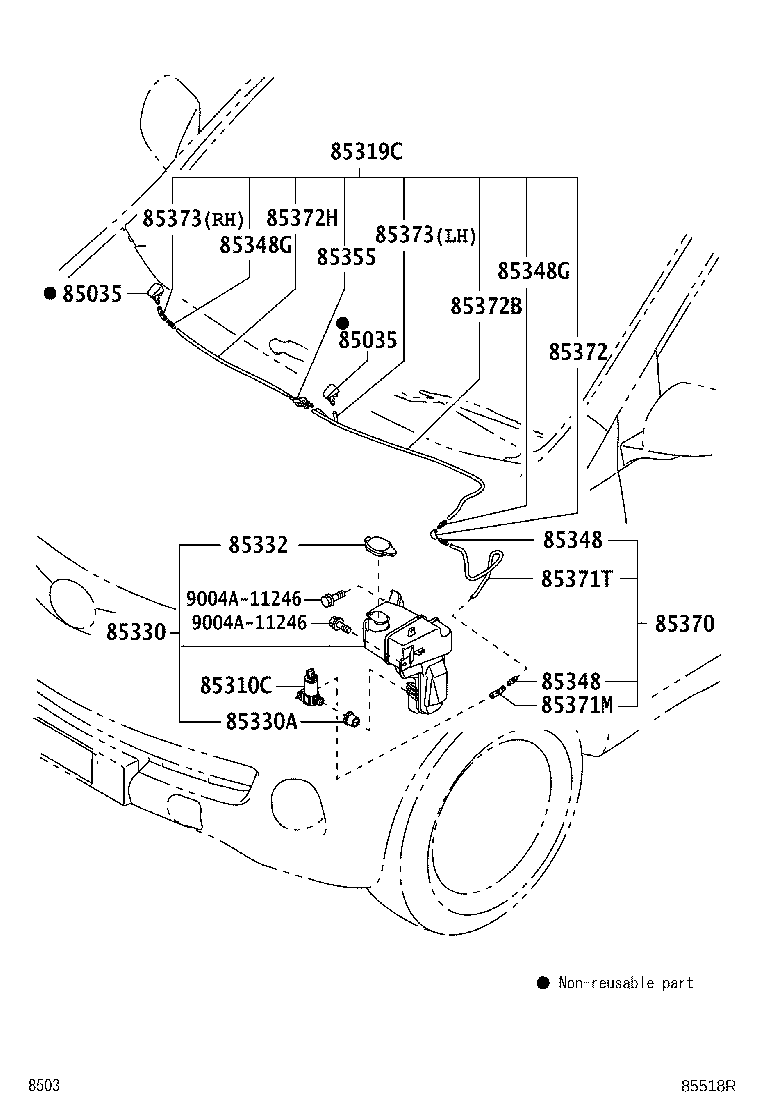

Figure 853550A 853550A 2011-11 → 2015-08 Figure 85518R 85518R 2015-07 → — Figure 853412A 853412A 2015-08 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85310C Motor & Pump Assy, Washer
85319C Hose, Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85349A Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85355A Joint, Windshield Washer Elbow
85355B Joint, Elbow NO.2
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371M Hose, Windshield Washer (FROM JOINT TO TANK)
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
