Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

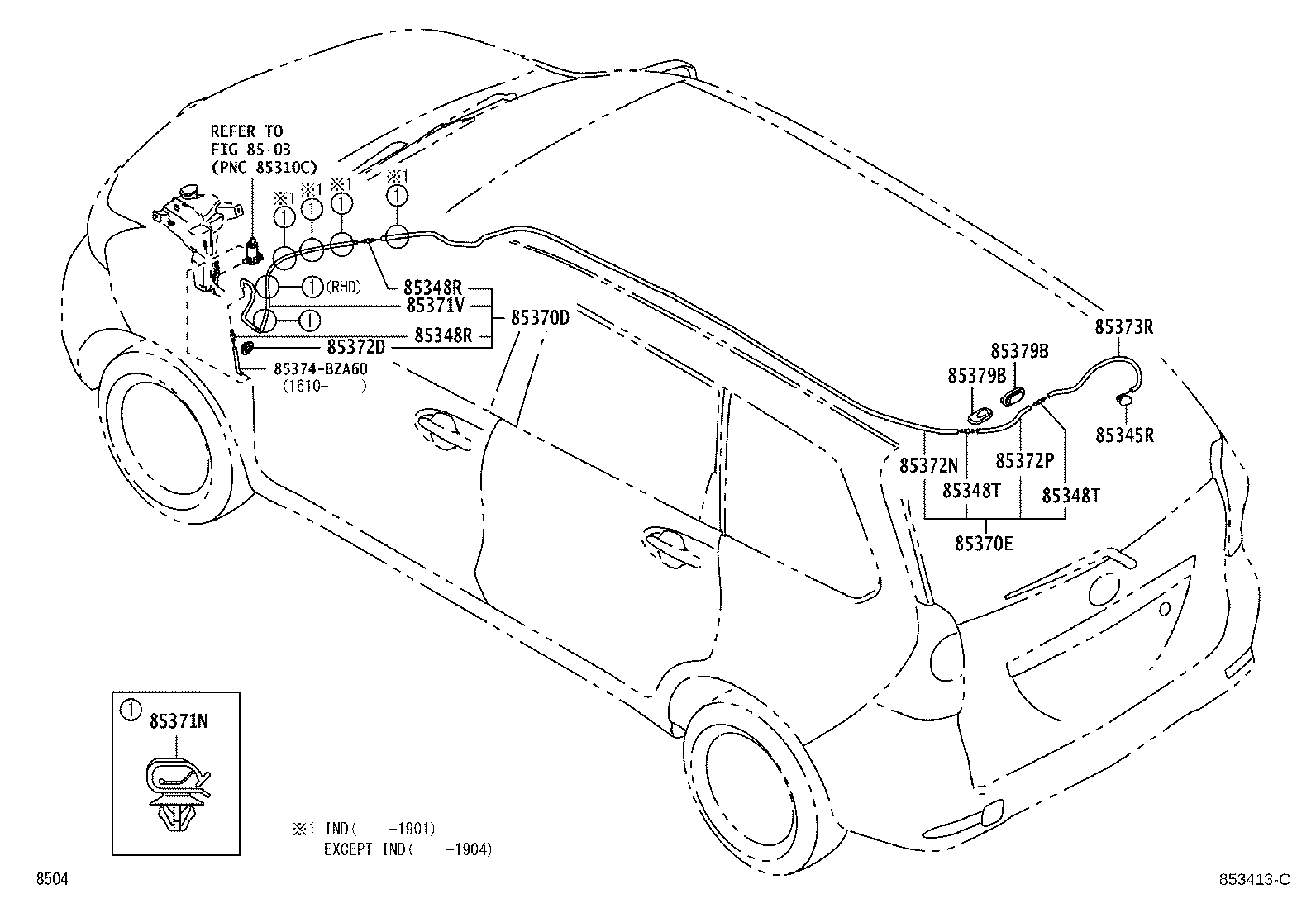

Rear Washer
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85310R | Motor Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85349X | Joint, Rear Washer Elbow, NO.6 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85370E | Hose Assy, Rear Washer, NO.2 |
| 85371N | Clamp, Rear Washer Hose |
| 85371V | Hose, Rear Washer (FROM JOINT TO JOINT) |
| 85372D | Grommet, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85379B | Grommet, Washer, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
