Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 4 illustrations

Illustrations

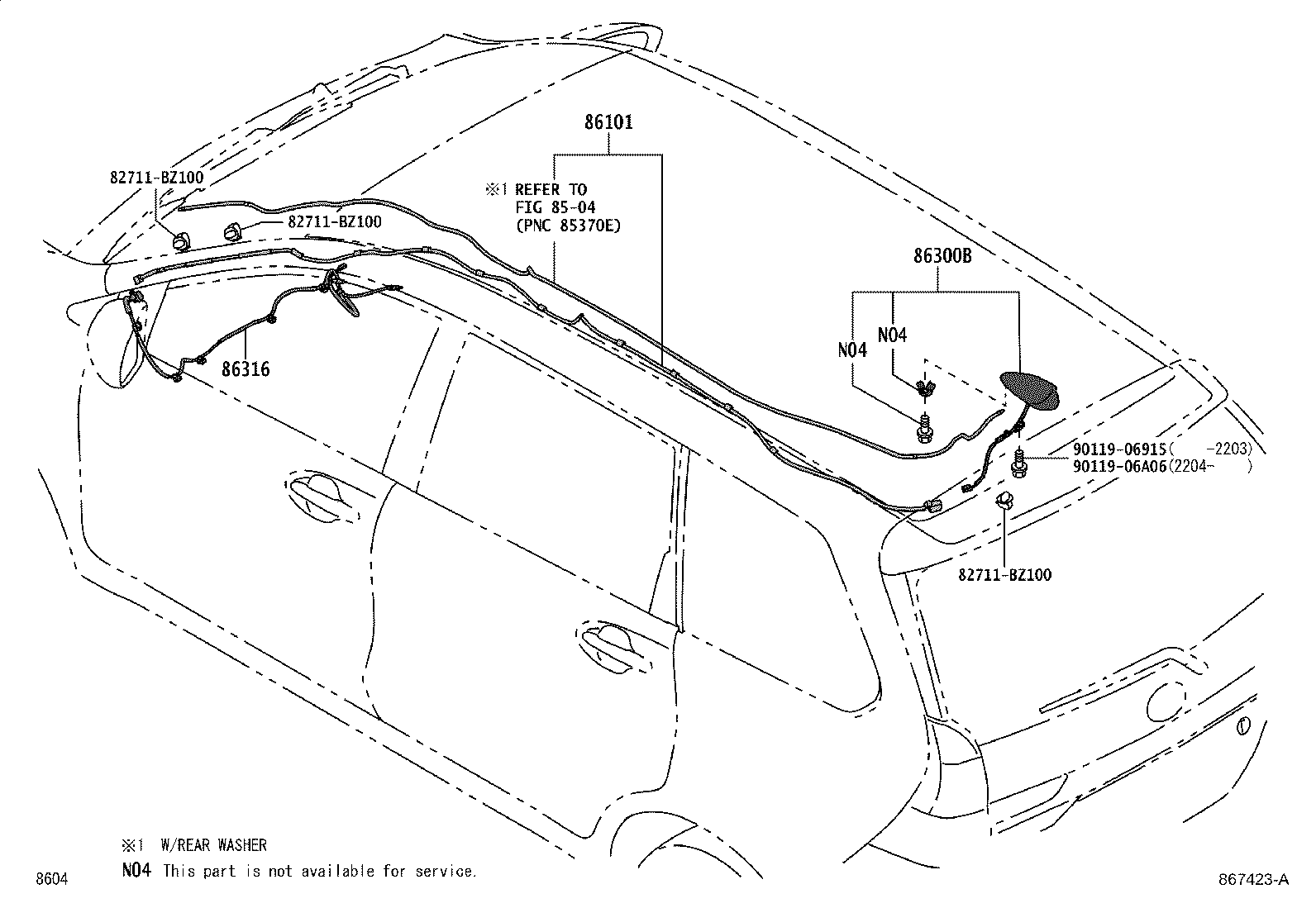

Figure 864752 864752 2011-11 → 2019-01 Figure 864752 864752 2011-11 → 2019-04 Figure 867423A 867423A 2019-01 → — Figure 867423A 867423A 2019-04 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86300B Antenna Assy, Amplifier, NO.1
86316 Cable, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
