Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 14 illustrations

Illustrations

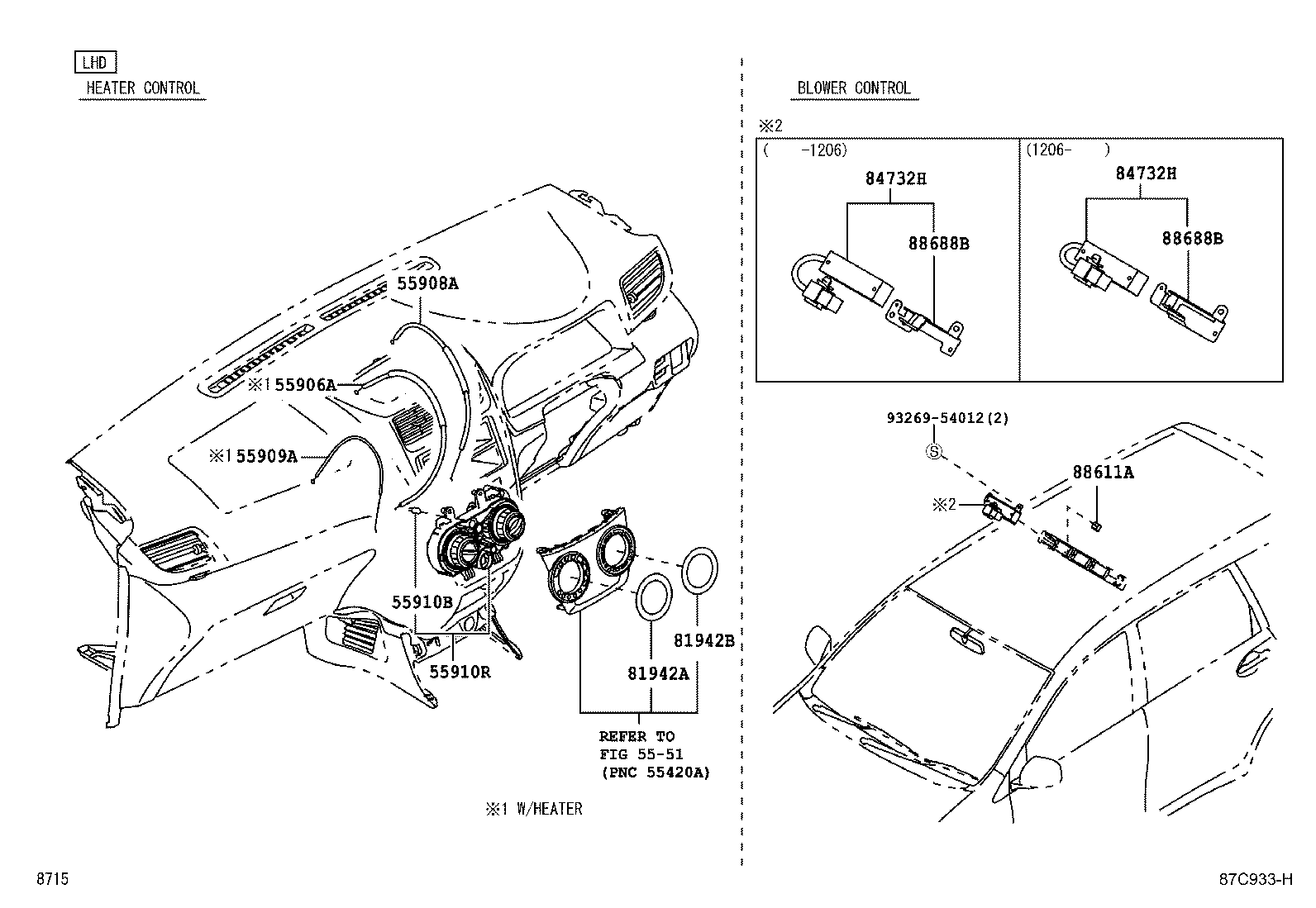

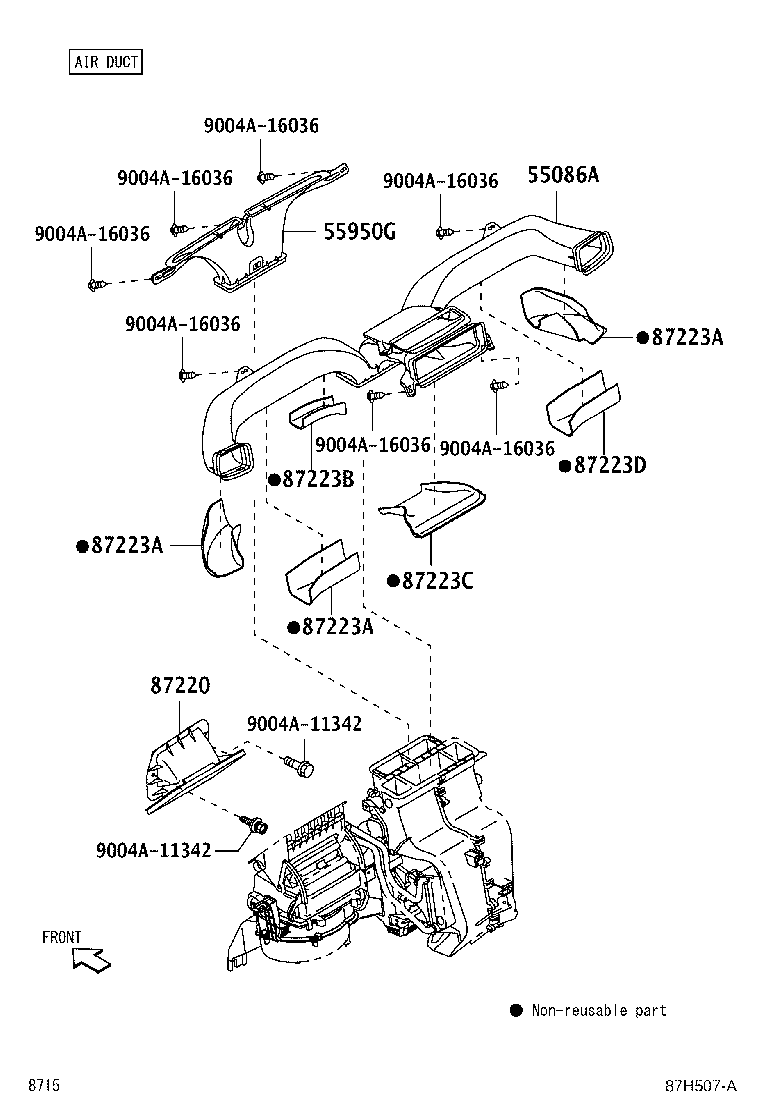

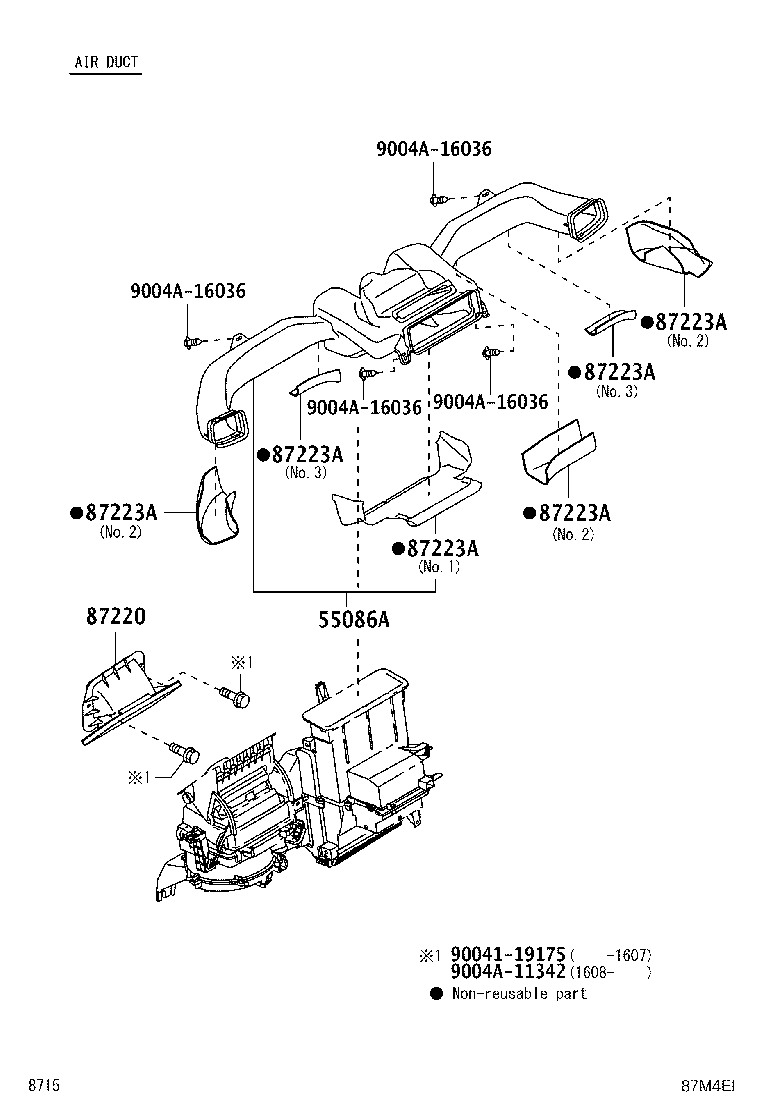

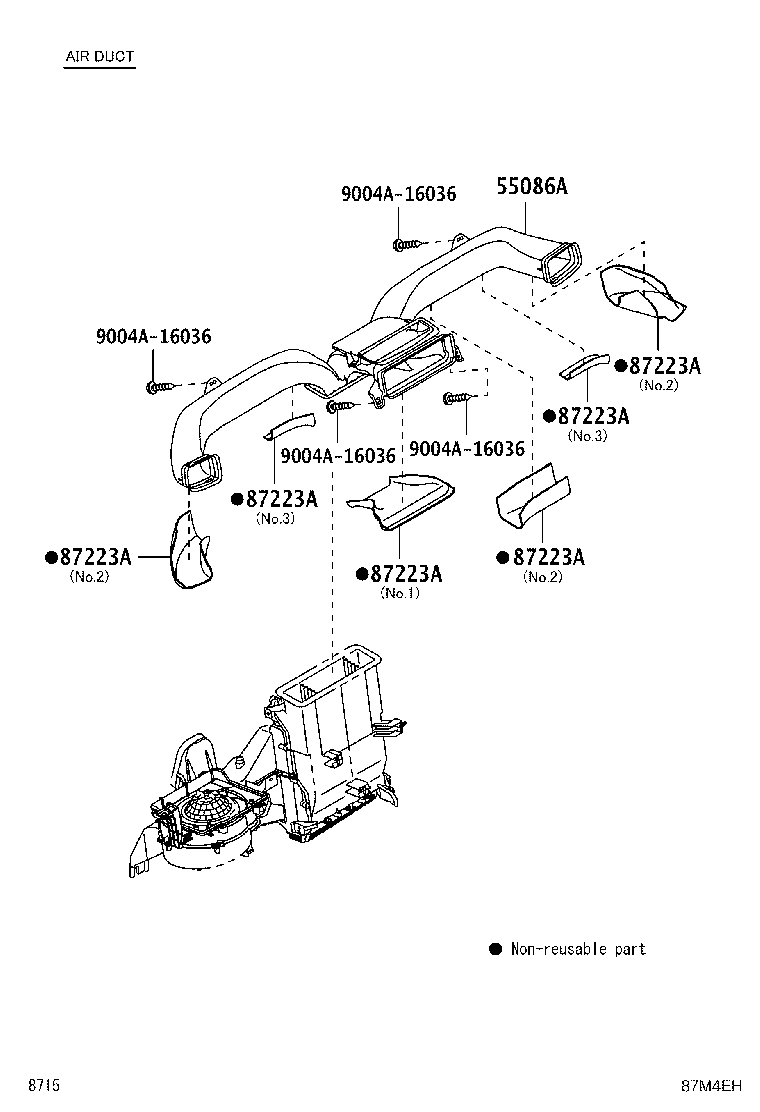

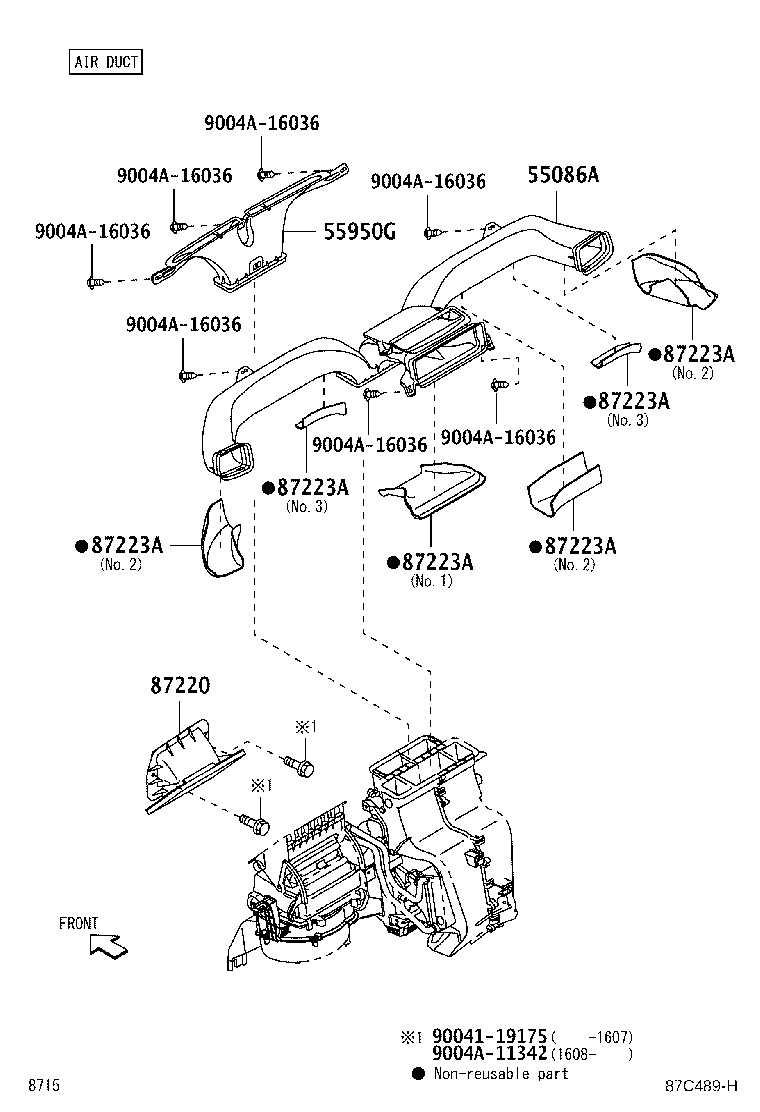

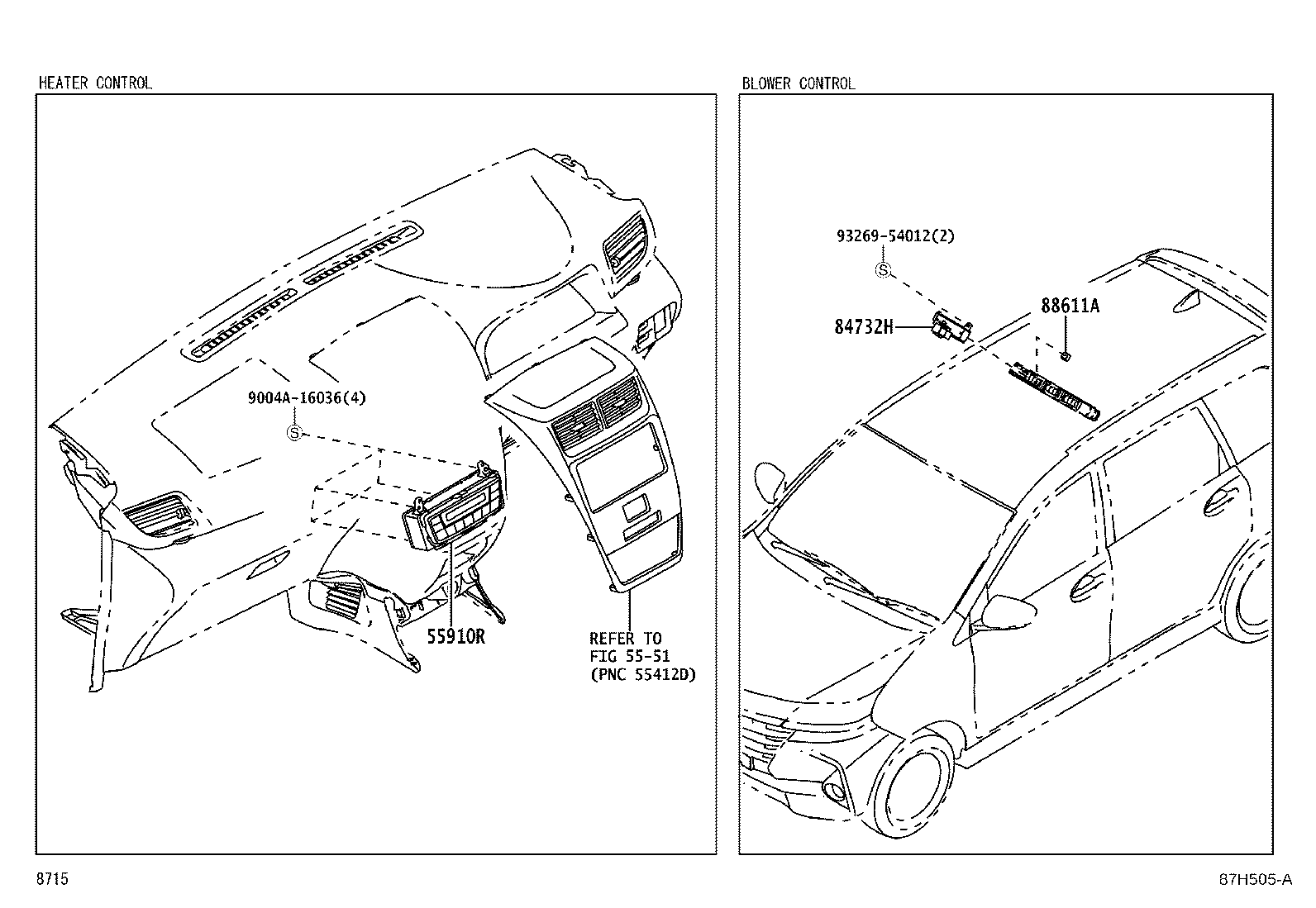

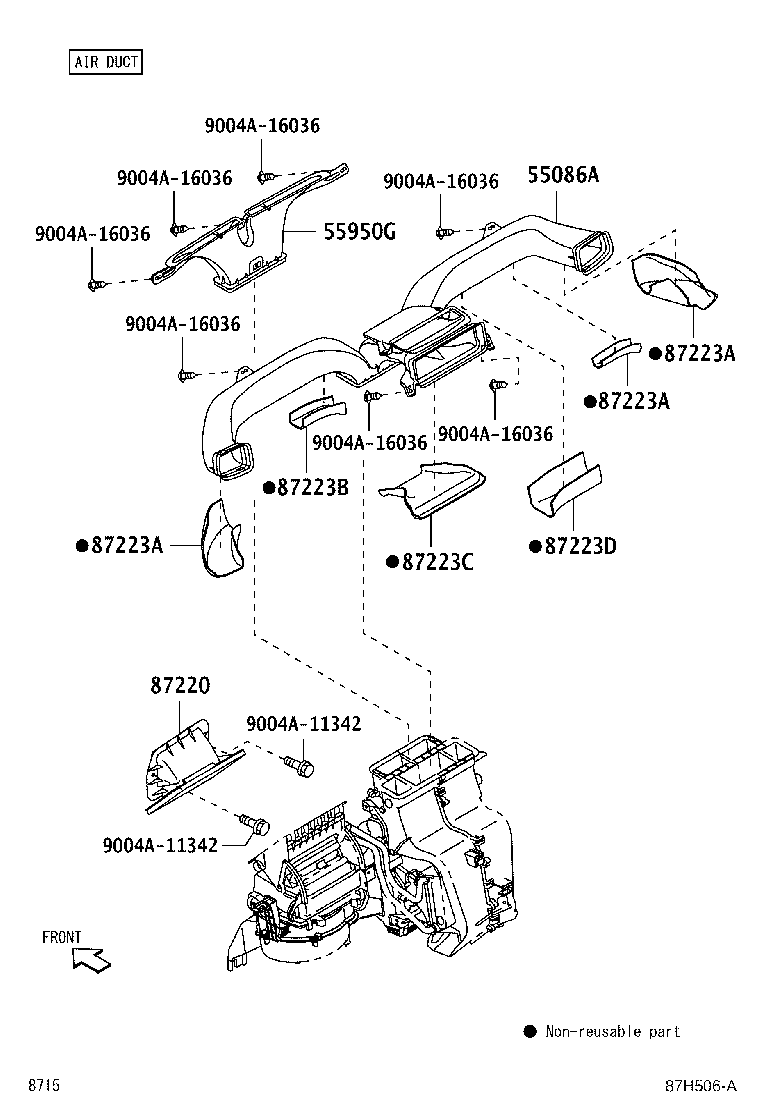

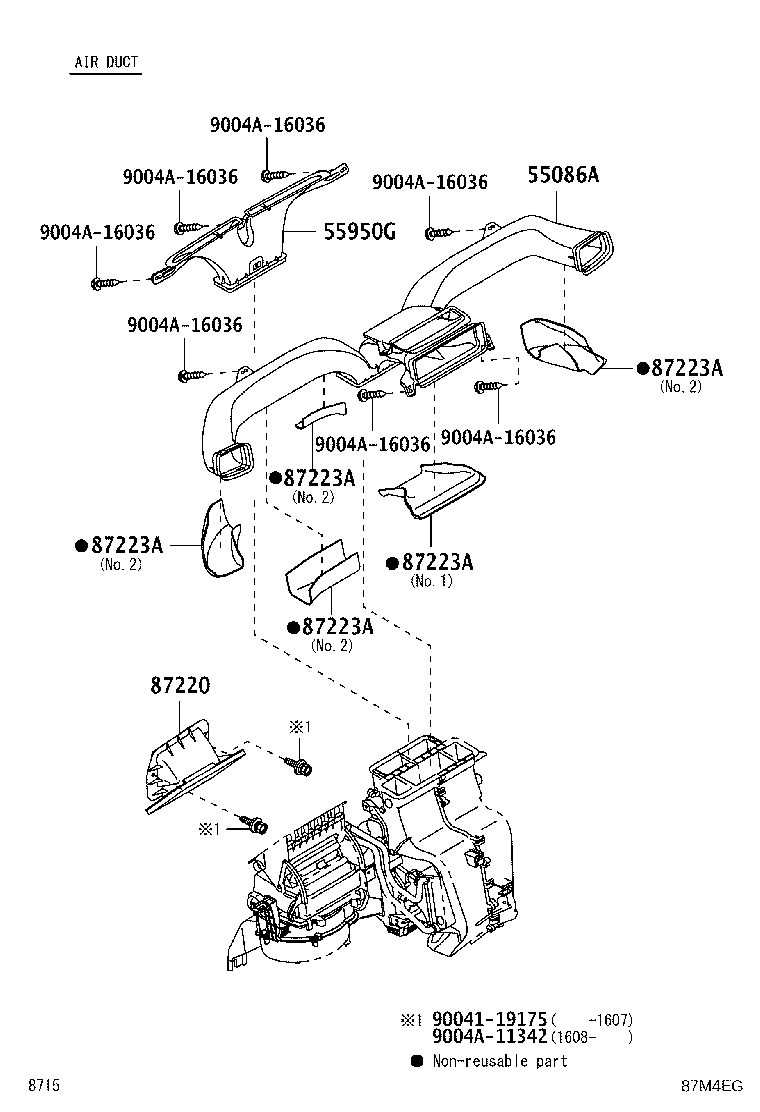

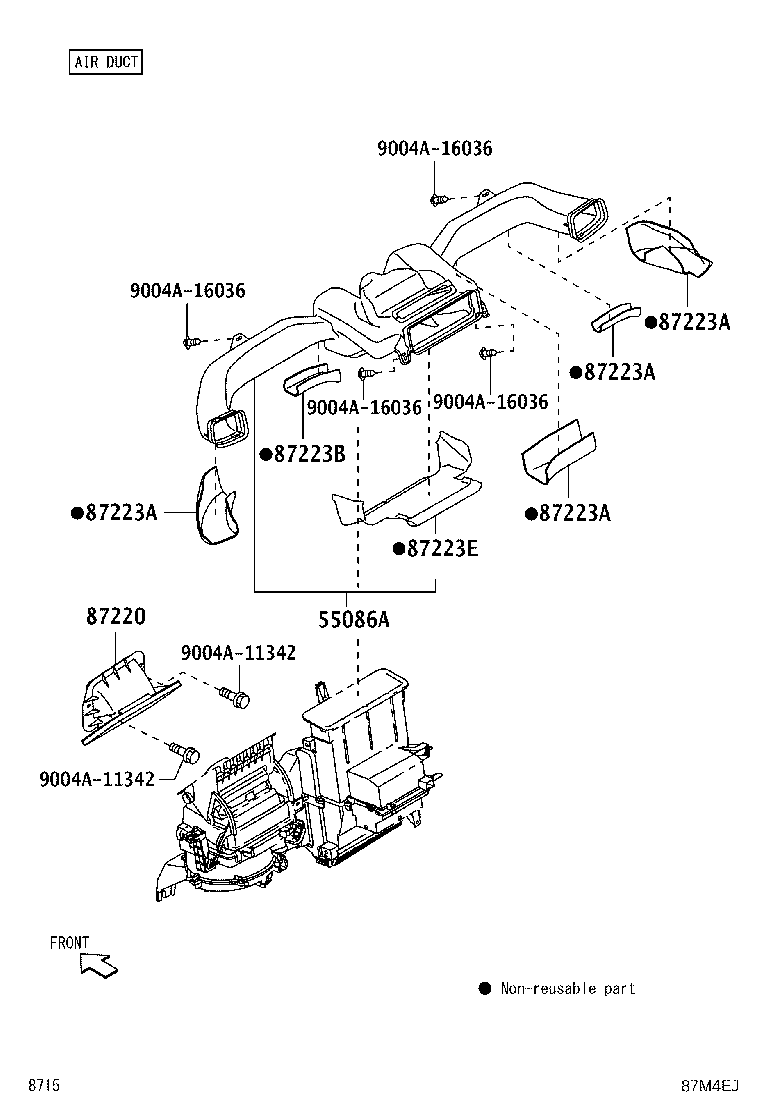

Figure 87C488I 87C488I 2011-11 → 2015-08 Figure 87C488I 87C488I 2011-11 → 2019-04 Figure 87C488I 87C488I 2015-07 → 2019-01 Figure 87C933H 87C933H 2011-12 → 2019-04 Figure 87H505A 87H505A 2019-01 → — Figure 87H505A 87H505A 2019-04 → — Figure 87C489H 87C489H 2011-11 → 2019-04 Figure 87H506A 87H506A 2019-01 → — Figure 87H506A 87H506A 2019-04 → — Figure 87M4EG 87M4EG 2011-12 → 2019-04 Figure 87H507A 87H507A 2019-04 → — Figure 87M4EH 87M4EH 2011-11 → 2012-04 Figure 87M4EI 87M4EI 2012-04 → 2019-01 Figure 87M4EJ 87M4EJ 2019-01 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
84732H Switch, Heater Blower
87220 Duct Assy, Air
87223A Pad, Air Duct
87223B Pad, Air Duct, NO.2
87223C Pad, Air Duct, NO.3
87223D Pad, Air Duct, NO.4
87223E Pad, Air Duct, NO.5
88611A Knob, Cooler Control Switch
88688B Bracket, Air Conditioner Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
